HA3003 SAFETY SWITCH FLAME OUT CONTROL
In stock
Part Number
HA3003
$79.92

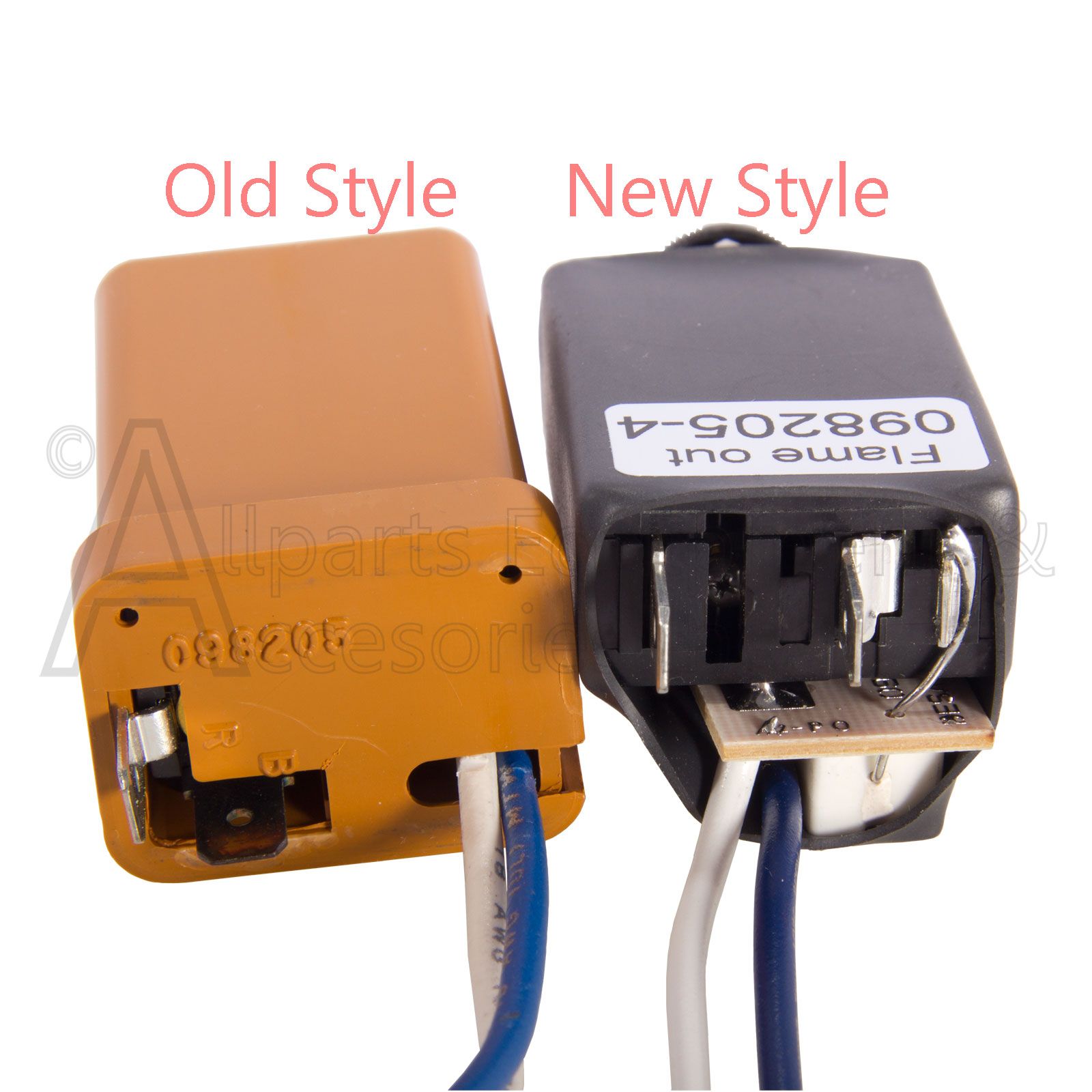

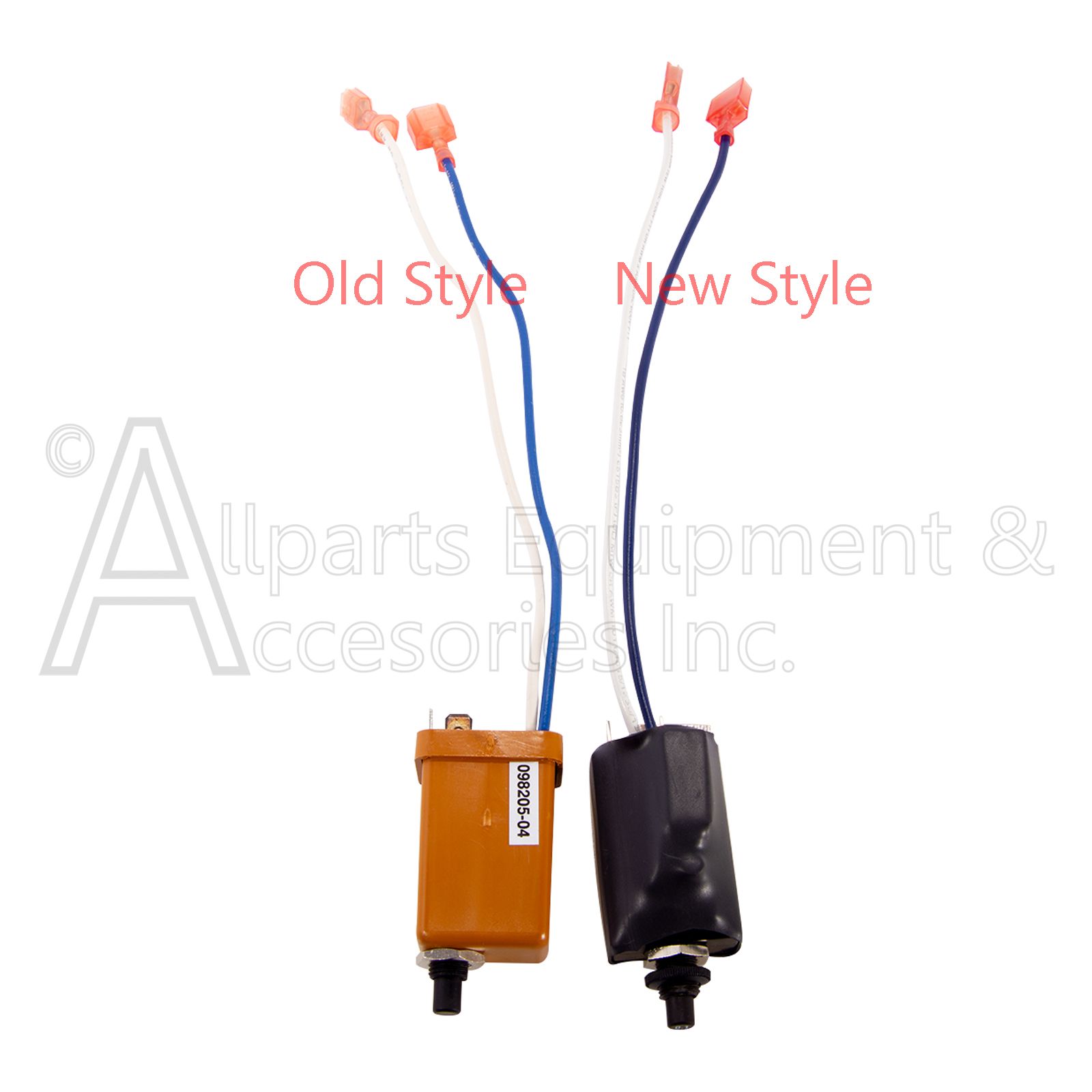

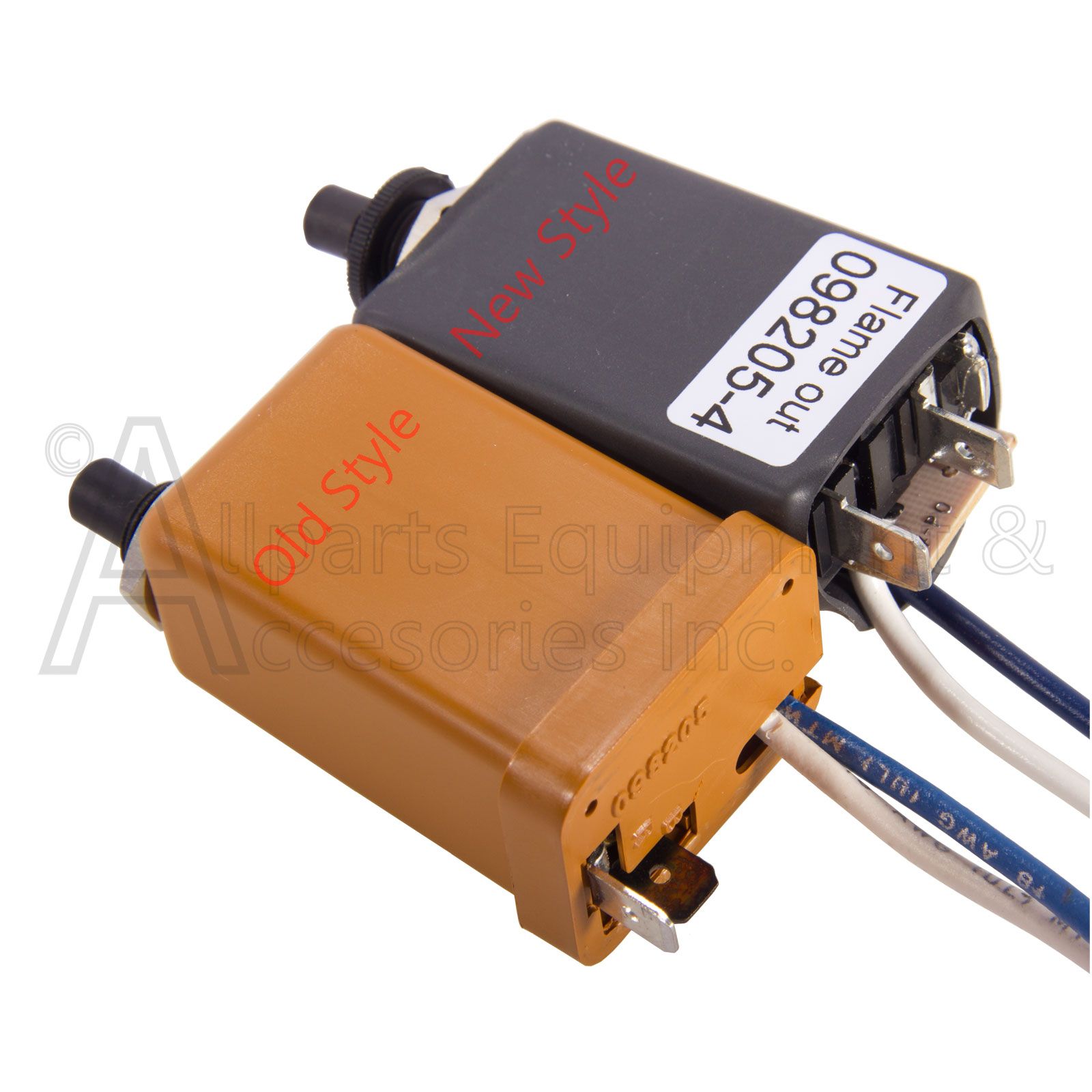

The HA30032 Flameout Safety Control consists of an enclosed and non serviceable safety device.
The HA3003 Flameout Safety Control senses current from the photocell that flows into the circuit breaker section of the safety control and heats a small bimetal bar causing the bar to warp and releases the spring loaded reset button.
This will cause the reset button to trip and break power to the heater. As a service technician, it is important to understand the operation of the safety control. In the past, it has been the single most misdiagnosed part of the heater.
It is suggested that all controls be checked per instructions listed in the Troubleshooting Section, prior to replacement
