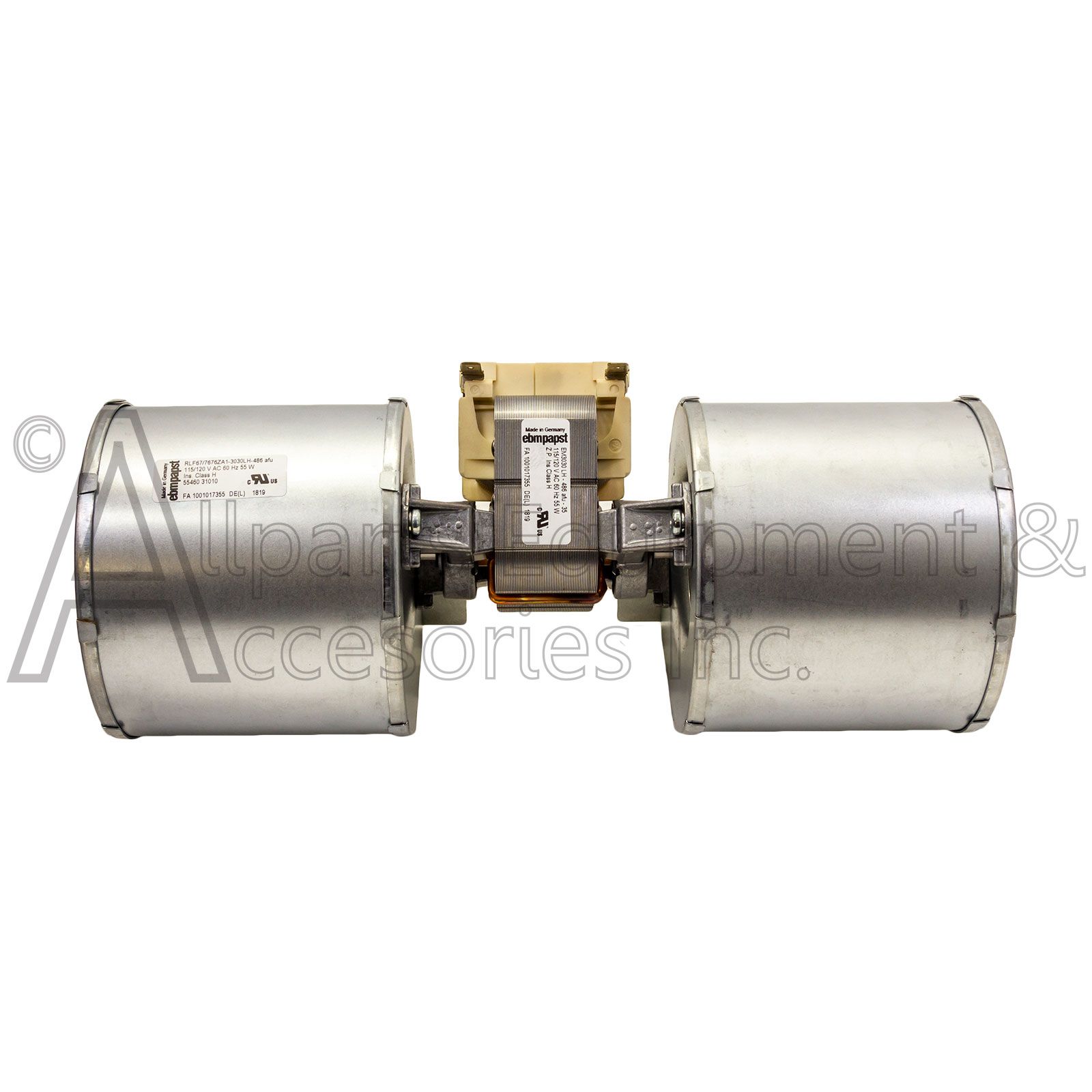

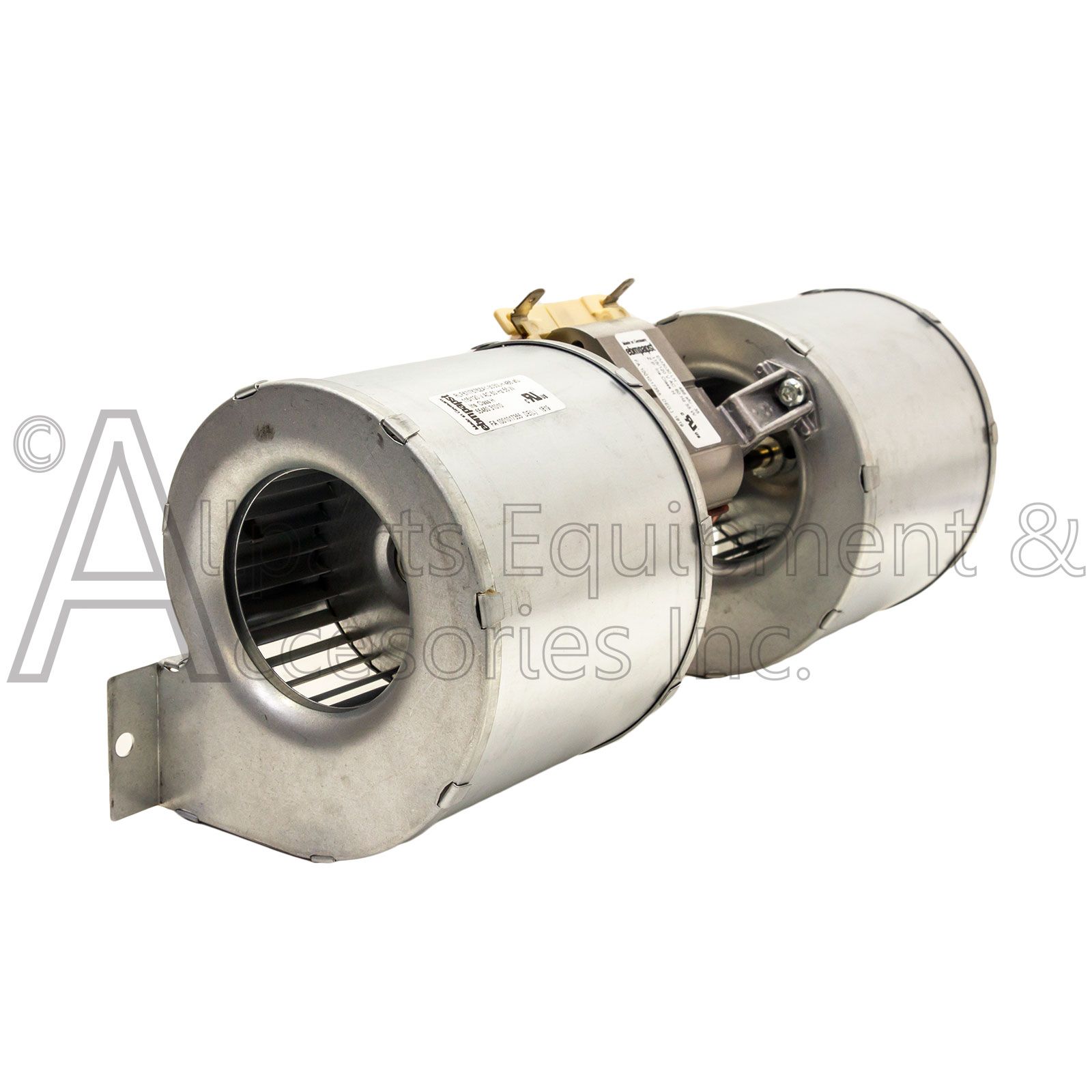

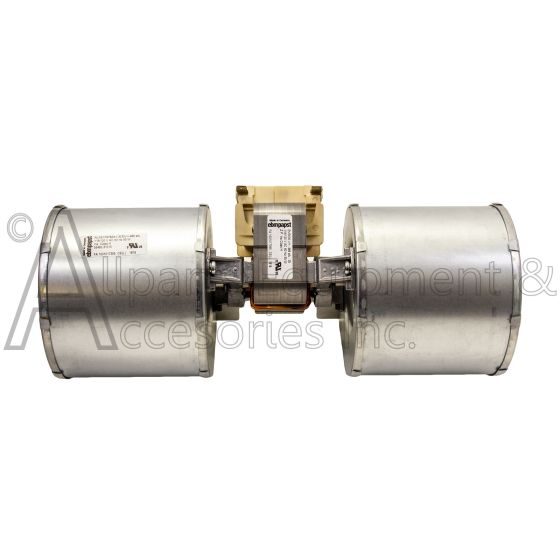

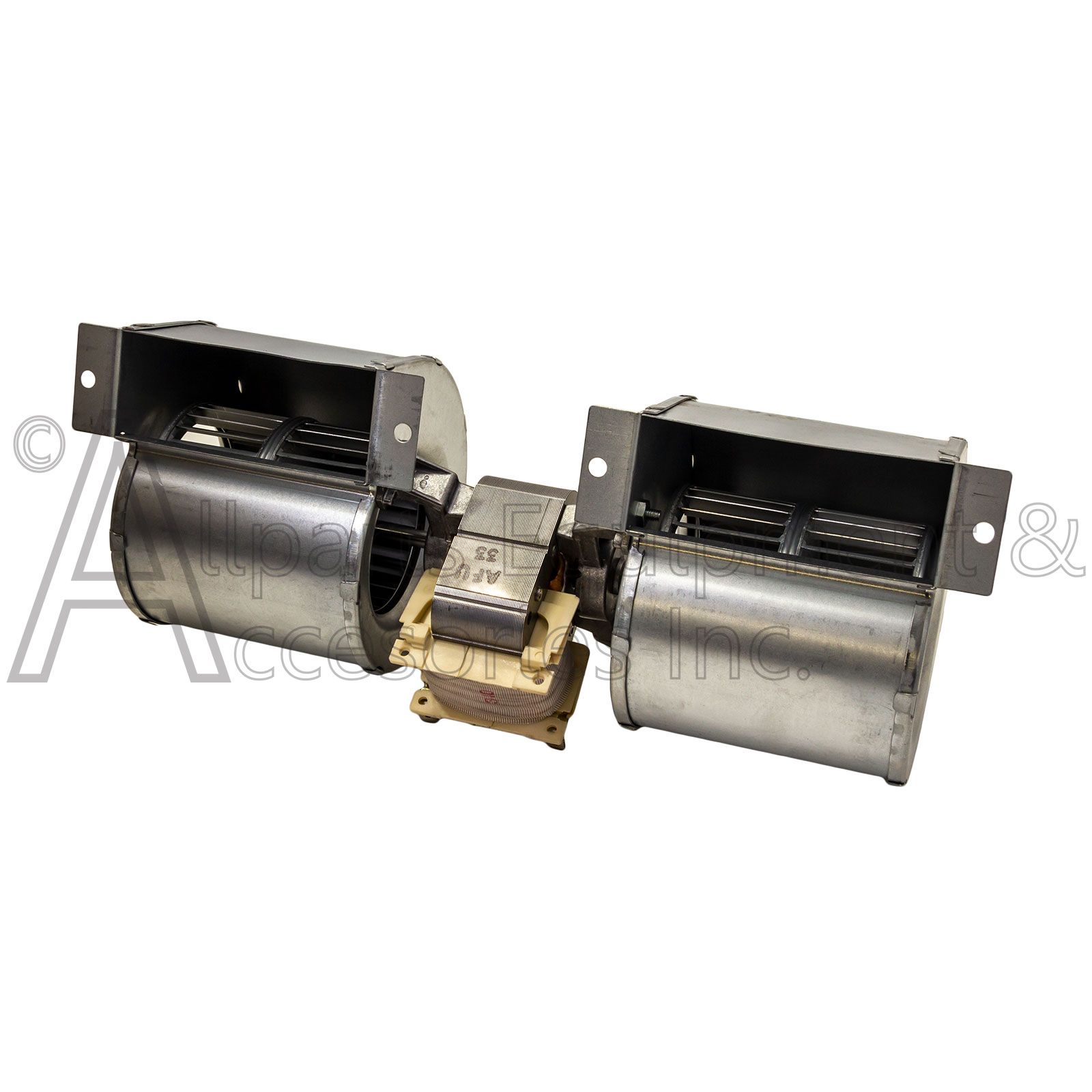

H8493 Room Air Blower Kit for RDV Ravenna Fireplaces

Blower kit H8493 was originally designed for use with direct-vent Raveena RDV-model fireplaces. The H8493 blower features four screw-driven mounting brackets for installation.

This circulation blower assembly is designed for use in direct-vent fire inserts and is rated for a maximum BTU input of 40,000. The H8493 also requires a 120V 60Hz outlet to operate.

The H8493's speed can be adjusted between six different levels using either a control knob (H5655) or an optional remote control. At lower speeds, the H8493 runs quiet.

An automatic snap switch (H8483) for this blower ensures safe blower operation, as it will automatically turn the blower on/off depending on the fireplace temperature.

Specifications of the Blower Kit H8493:

• Compatible with the H8483 Snap Switch
• Controlled with either knob or remote
• Adjustable between six speed levels
• Runs quiet at low speeds
• Has an output of 150 CFM

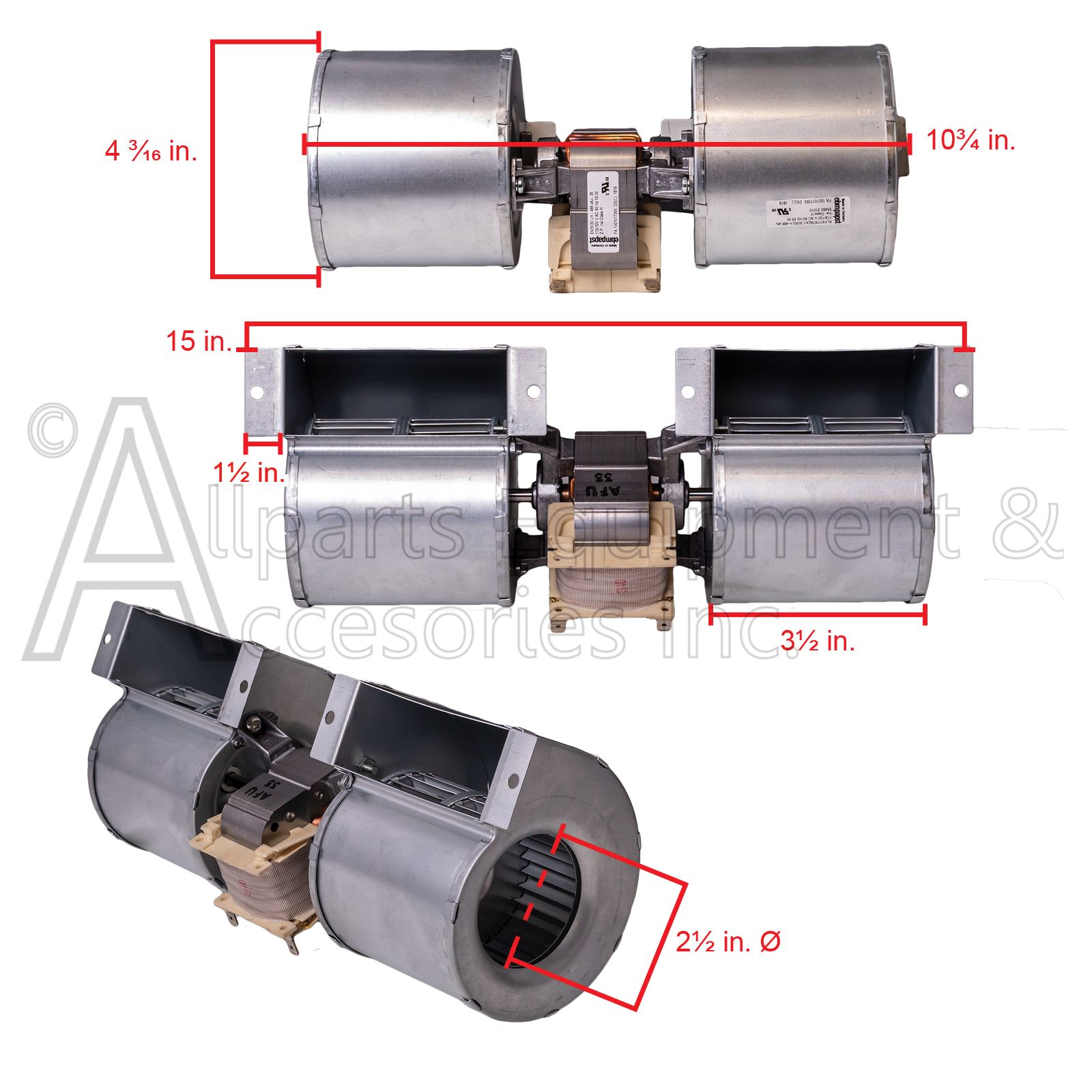

Dimensions of the H8493 Blower Kit:

• Height: 5 in.
• Length: 10 ³/₄ in.


• Blower Length: 3 ¹/₂ in.
• Blower Diameter: 2 ¹/₂ in.
• Blower to Blower Length: 10 ¹/₂ in.


• Mounting Bracket Width: 1 ¹/₂ in.
• Bracket to Bracket Length: 15 in.

The H8493 blower kit is compatible with both the Raveena RVD33 and RDV40 series fireplaces.
