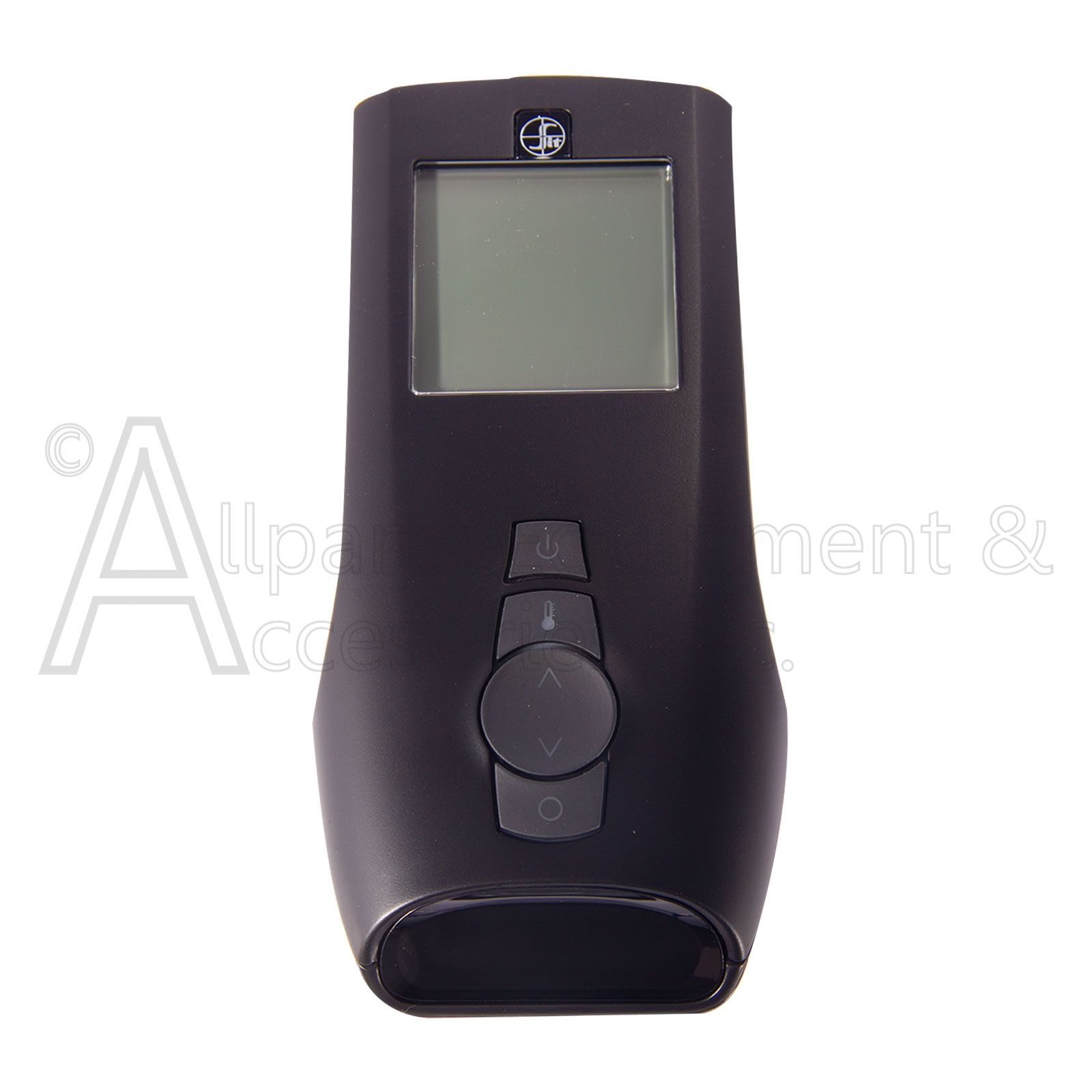

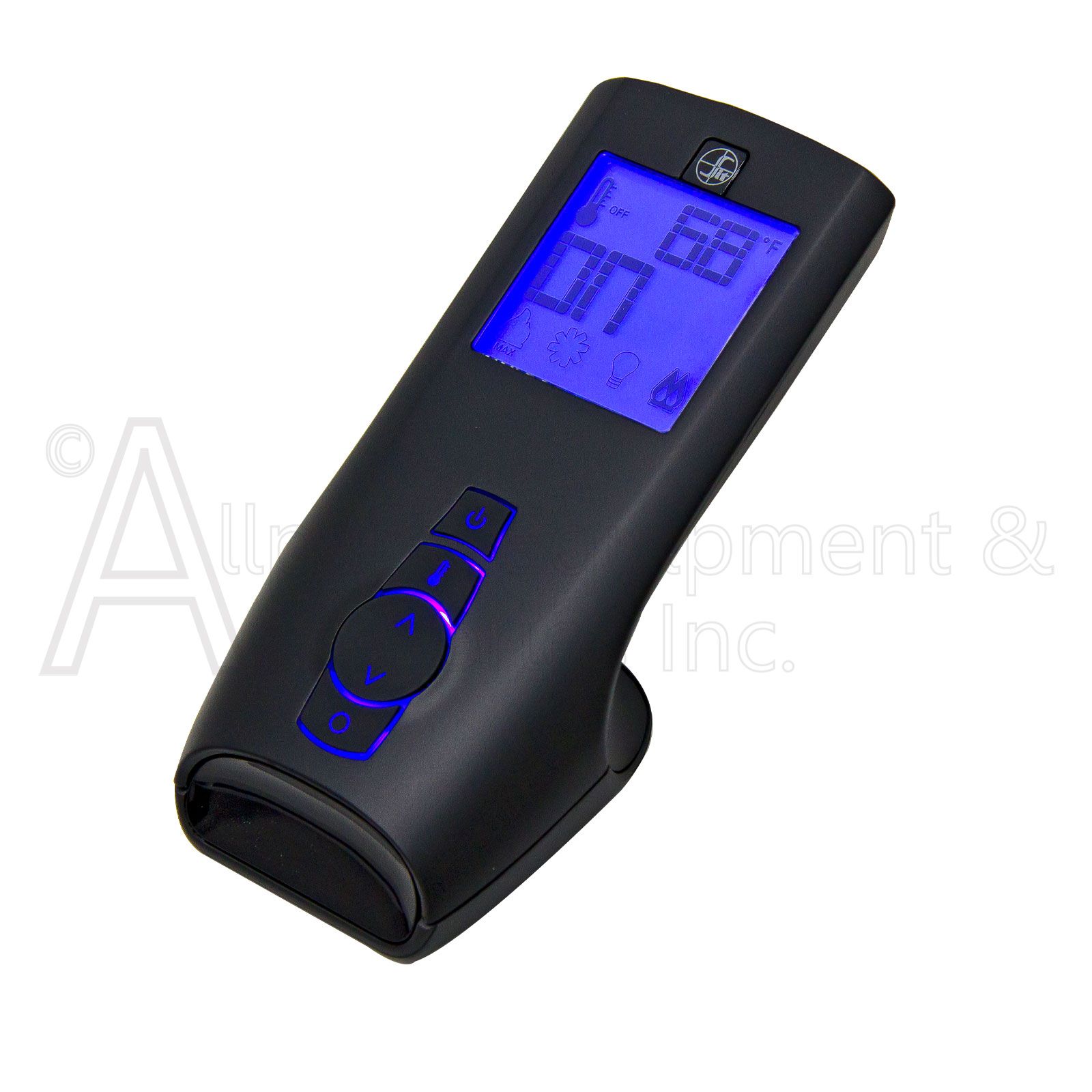

H7275 Proflame Remote Transmitter for IHP Lennox Direct Vent Fireplaces

The H7275 is a remote transmitter for IHP Lennox direct vent fireplaces. When paired with a compatible SIT Proflame remote receiver, it can control various features on a Lennox fireplace.

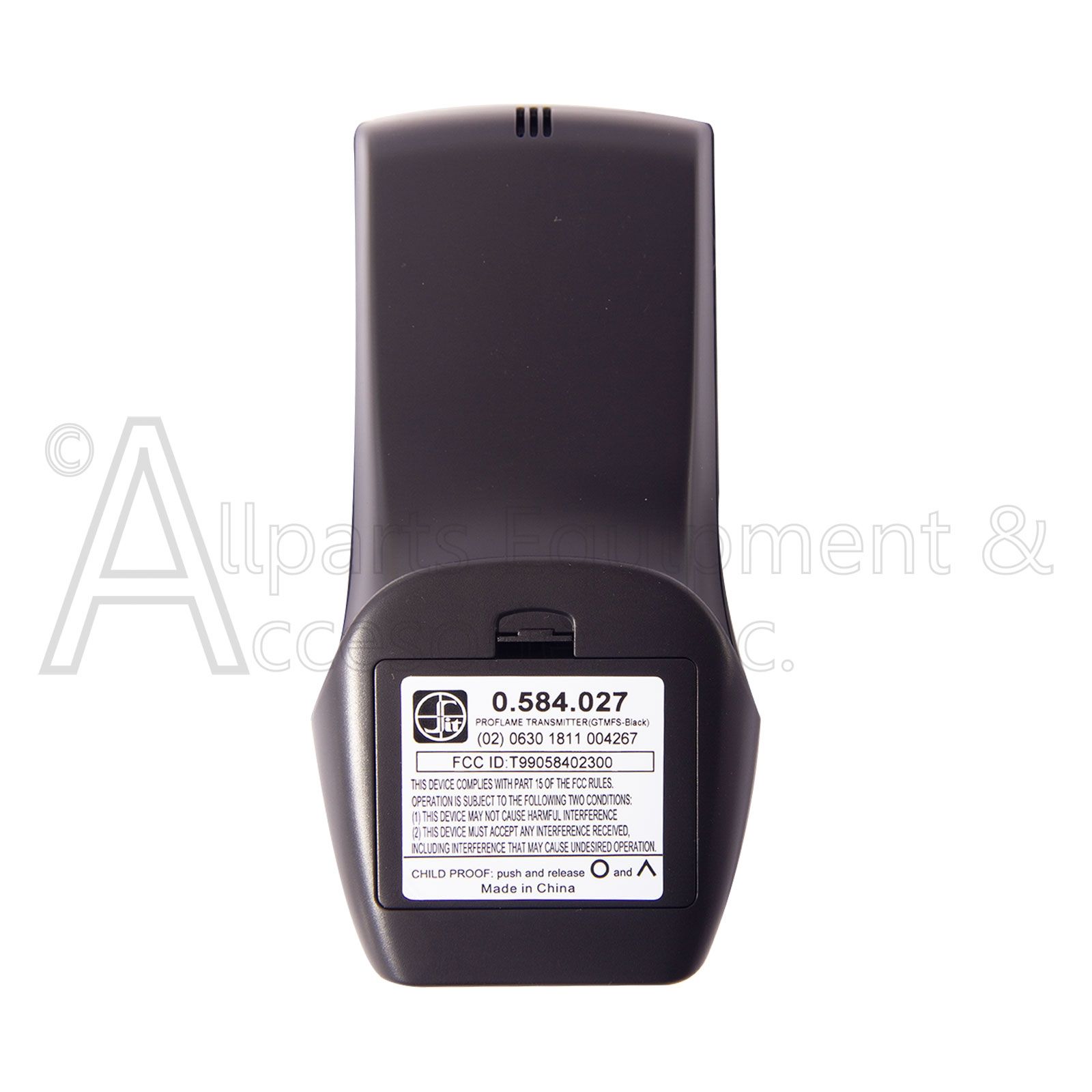

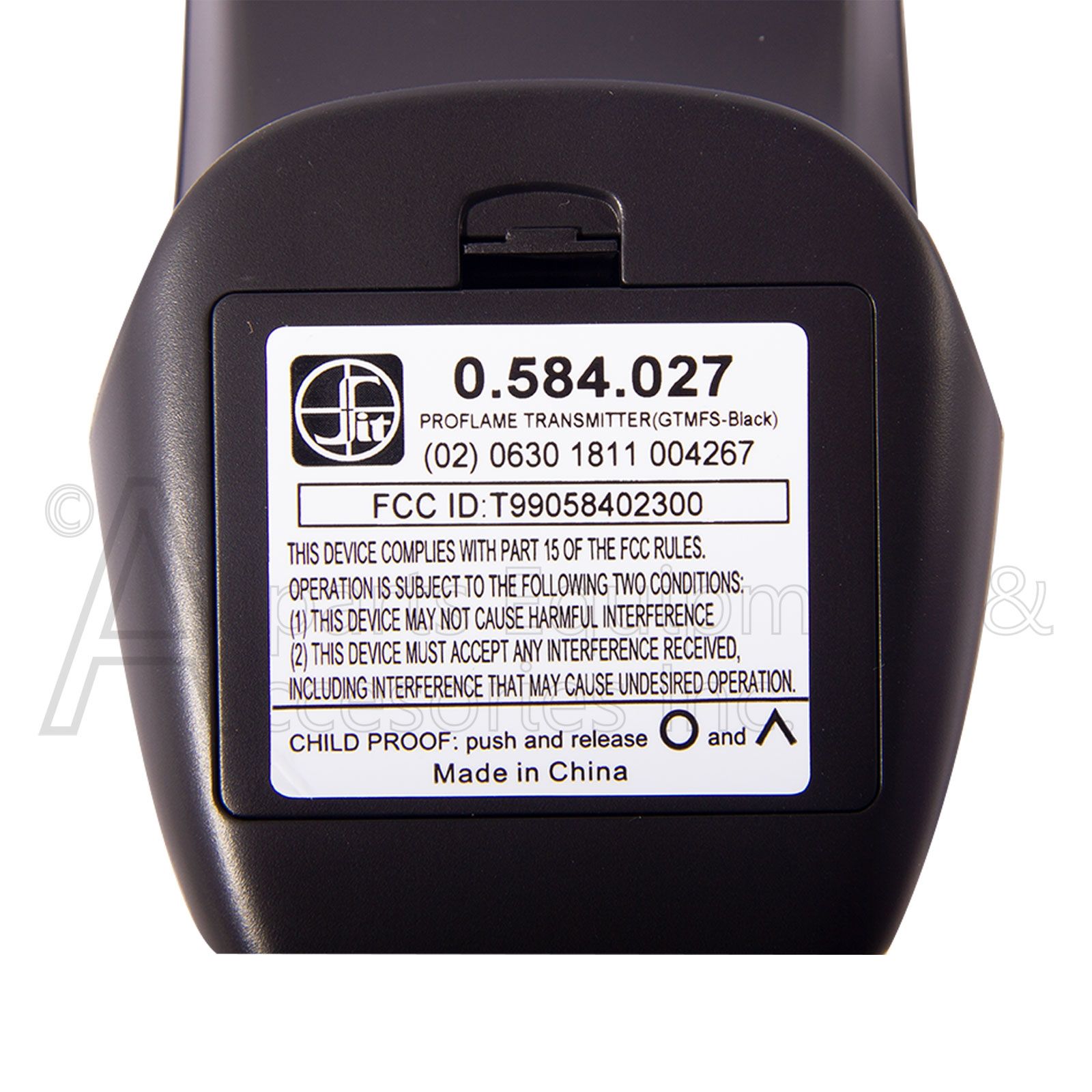

This remote transmitter uses 3 AAA batteries (AllParts recommends standard alkaline batteries) and has a radio frequency of 315 MHz.

The Proflame GTMFS H7275 is able to control the following fireplace features:

• On/off main burner operation
• Flame height modulation
• Fan speed control
• Split flow control

It also provides on/off and Smart thermostatic control of the hearth appliance.

Programming you H7275 Proflame Transmitter

First, push the program button one time on your receiver. You should hear 3 short beeps telling you the receiver is now ready to accept a new code from the remote transmitter.

Then, push the On/Off button on your remote transmitter. You should hear 4 beeps from the receiver telling you the receiver and the remote are now paired with the same RF code and ready to be used.

If you are still unable to control your Lennox fireplace using the remote, even after performing this procedure, then the most common failure part is the receiver.

Service Note:

It is recommended to use standard alkaline batteries in these transmitters. The use of lithium ion batteries has been found to throw an ER9 code due to higher voltage. If you have an ER9 code, transmitter battery measure error, appearing on your unit and you have lithium batteries installed, swap them out for standard alkaline batteries. If the code reappears, the remote will need to be replaced.
