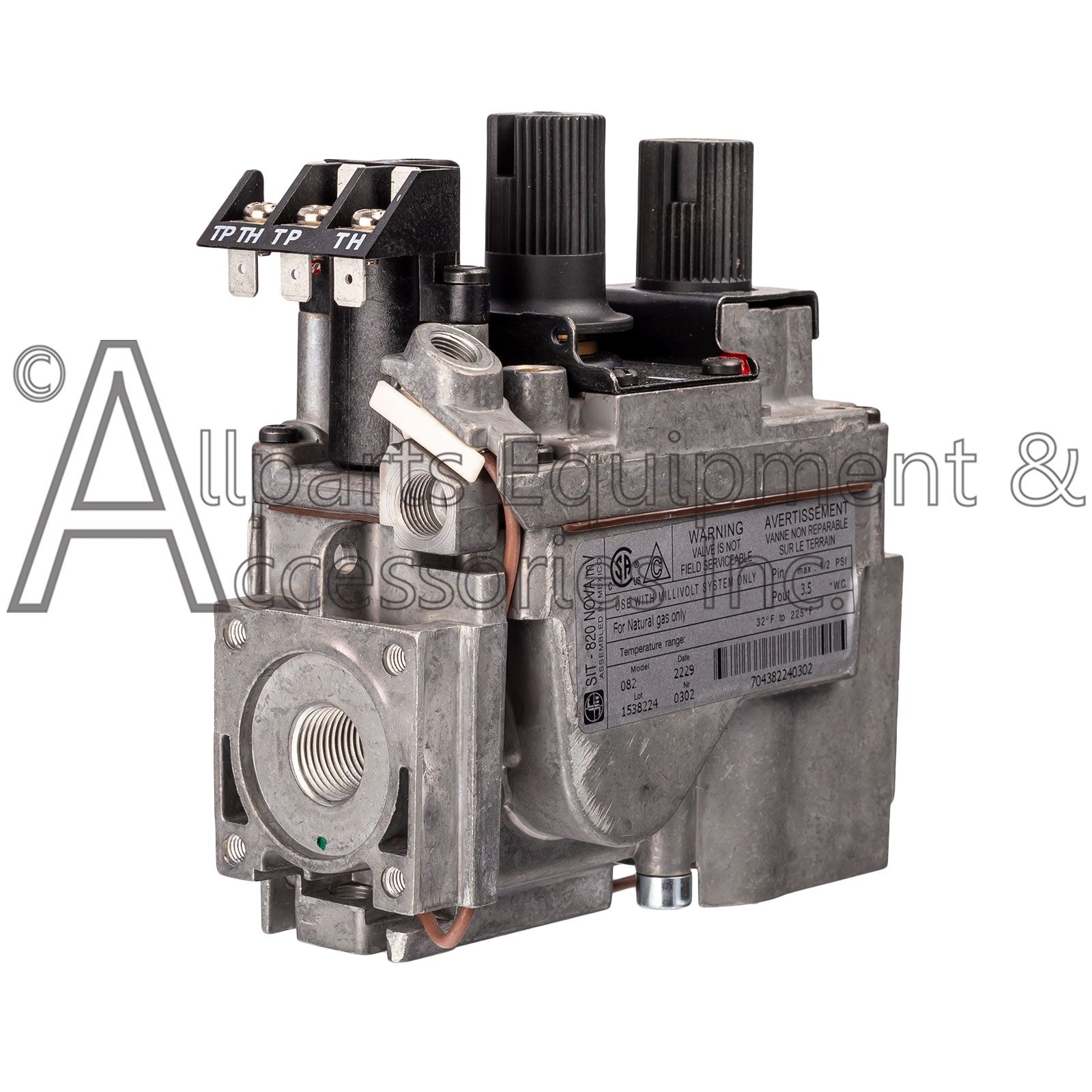

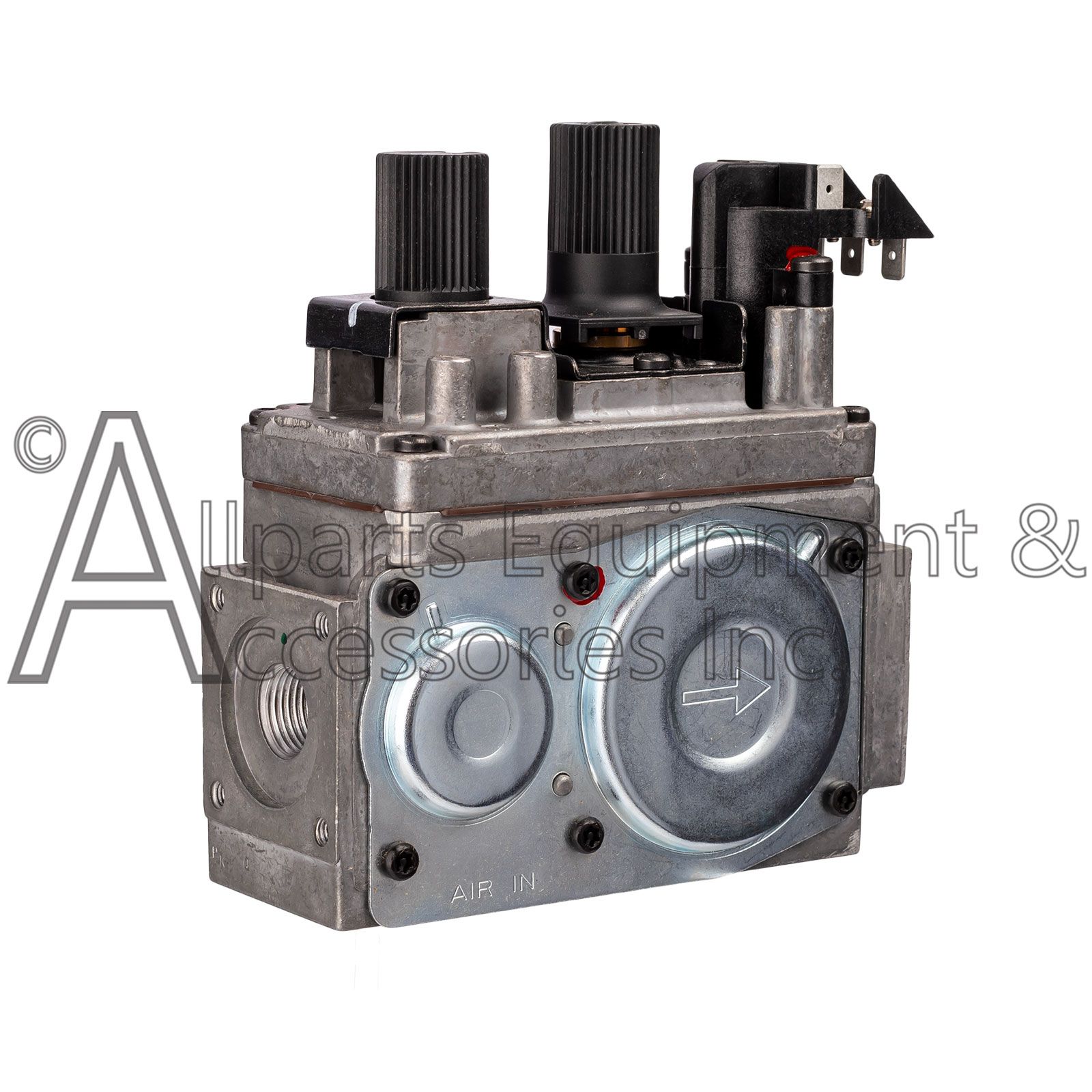

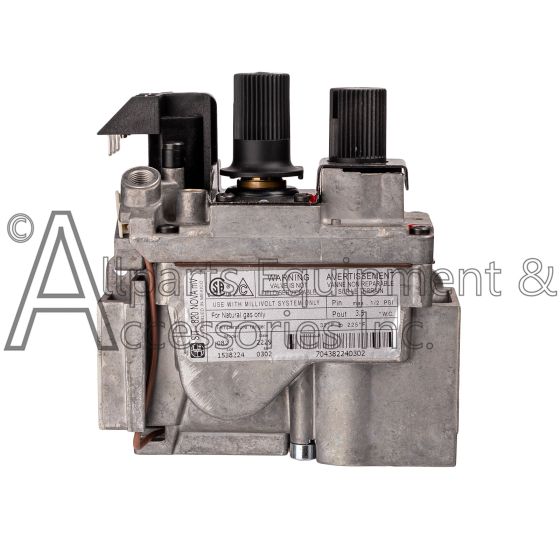

H5942 Natural Gas Valve with Split System Millivolt Control

The H5942 is a gas valve designed for use with natural gas Superior Fireplaces. This is a durable gas valve that features split-system millivolt control.

The H5942 is compatible with direct vent natural gas fireplaces, stoves, gas logs, and similar appliances that feature a HI/LO burner adjustment and a manually operated knob.

A millivolt wall switch or millivolt remote control system can be used to control the H5942 natural gas valve.

Features of the H5942 Natural Gas Valve

• Designed for use with direct vent natural gas fireplaces.
• Features a split-system millivolt control system designed for vented appliances.
• Remote-ready and compatible with multiple millivolt control methods
• Supports Variable flame adjustment with the HI/LO manual knob.
• Includes safety valves on both the thermocouple and the pilot

Specifications

Gas Type: Natural Gas

Natural Gas Inlet: 3/8 in. NPT

Natural Gas Outlet: 3/8 in. NPT

Minimum Voltage: 145 mV. Coil Resistance 2.25±0.5

Thermo-Electric Hold-In Current: < 285 Ma

Thermo-Electric Drop-Out Current: >125 mA.

Drop-Out Coil Resistance: 0.018± 0.003

Manual Pressure Set Point: 3.5 in. ± 0.4

Range of Adjustment: 3.5 in. w.c. - 1.6 in. w.c.

Maximum Natural Gas Inlet Pressure: 1/2 PSIG

Ambient Operating Temperature: 32° to 175° F

Regulation Capacity: 5,000 to 195,000 BTU AP per hour
