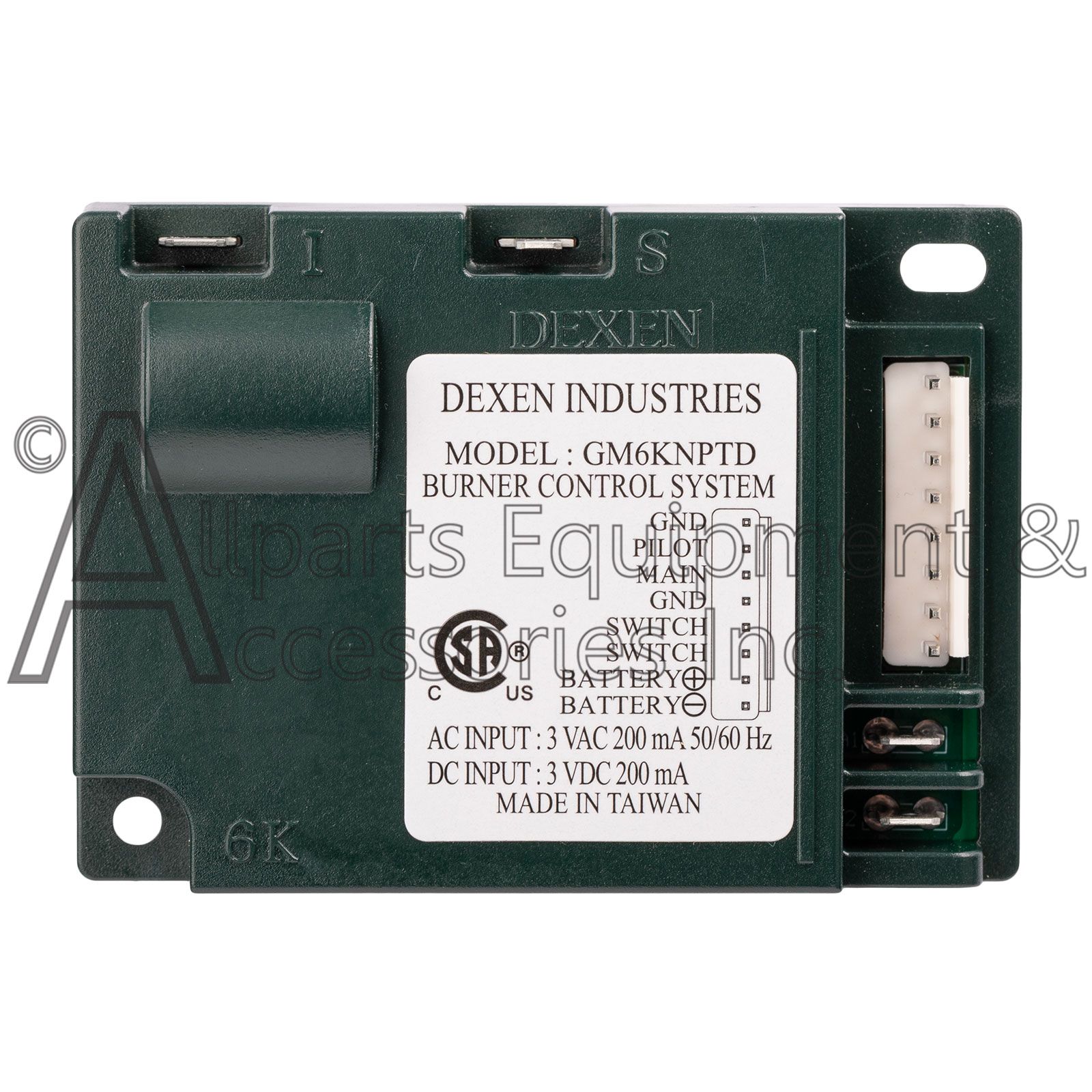

GM6KNPTD Dexen Control Module Dual AC/DC Voltage New Design CSA Certified White Label

This GM6KNPTD  module is the OEM CSA certified Dexen Industries embossed Green Control Module Box for operating electronic ignition systems for use with direct vent fireplaces, gas logs and other appliances.
Our new Dexen GM6KNPTD is now a dual voltage model that can operate on both AC Input Voltage: 3 VAC 200mA 50/60Hz or DC Input Voltage: 3 VDC 200 mA.

Designed with advanced technology and precision engineering, this CSA certified control module ensures optimal performance and efficiency for your Dexen-equipped systems.

This new Dexen control module is a CSA certified original equipment module and will have Dexen embossed into the Green plastic housing assuring your installer that the highest quality component is being used for the repair procedure.

The GM6KNPTD Specification are:

Wiring  -  GM6KNPTD

GND  -  Black

Pilot  -  Orange

Main  -  Green

Switch  -  Brown
Switch  -  Brown
Positive  -  Red
Negative  -  Black

AC Input Voltage: 3 VAC 200mA 50/60Hz
DC Input Voltage: 3 VDC 200 mA

Operation for 3 VAC 200 mA 50/60Hz requires the SRV593-593 Power Supply Class 2 Model YLA-03020.

Cross references for the GM6KNPTD Module:

Astria (IHP): H4674

Desa: 122118-01 122118 01

Comfort Flame: J5760
Comfort Glow: J5760 / 122118-01 / 122118-01

Continental: W190-0015, W190-0022

Country Stoves: H4674 / J5760 / J5760

Dexen: GM-6KA, GM6KA, GM-6K, GN6K

FMI / Desa: 122118-01 / 122118-01 / J5760
Hargrove: DXICM

Heat-N-Glo: 593-592 / 593592 / SRV593-592 / SRV593-592

Heatilator: 593-595 / 593595 / SRV593595 / SRV593-598
Lennox: J7728 H4674
Napoleon: W190-0015
Wolf Steel: W190-0022
RH Peterson: IMP-1
Real Frye: IMP-1
Town and Country: 5030.02. 5030 02
