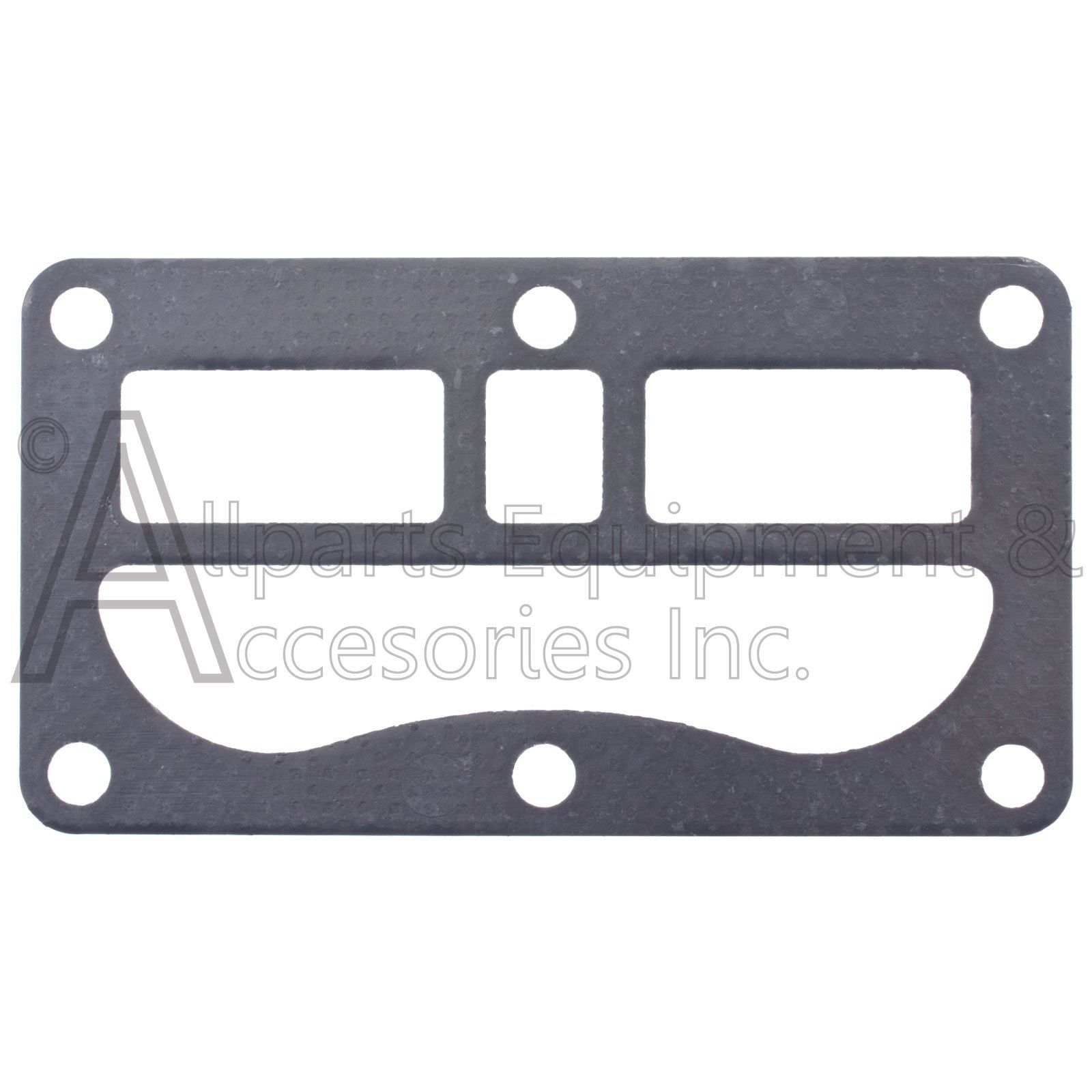

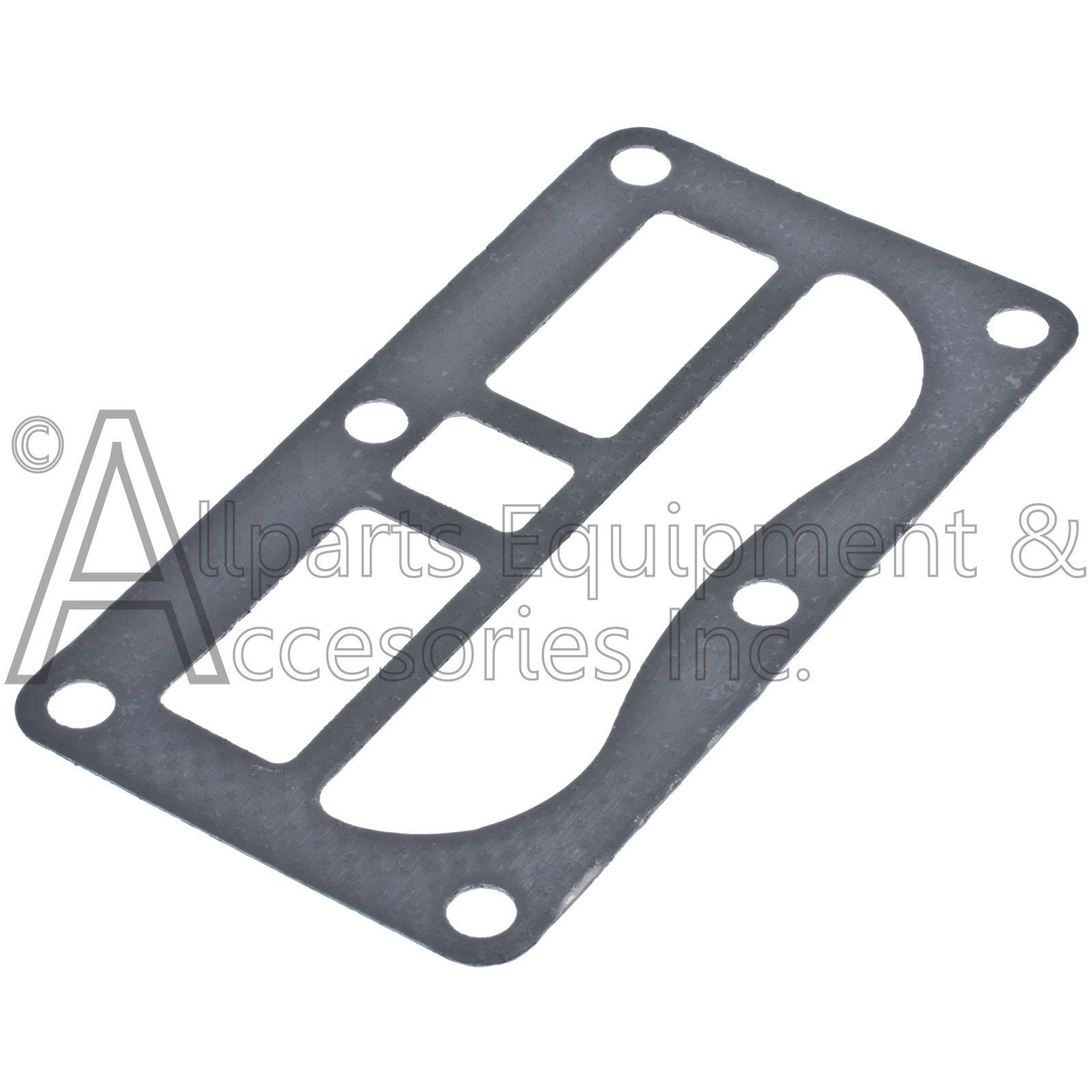

Z-CAC-291-1 valve plate gasket
Z-CAC-291-1 valve plate gasket Replacement valve plate gasket for air compressor

Z-CAC-291-1 DeVilbiss Wire Mesh Valve Plate Gasket for Air Compressor Pump Heads

In stock

$8.35

In stock

Part Number: Z-CAC-291-1
Compatible Brands: DeVilbiss
Shipping Weight: 0.25 Lbs

The Z-CAC-291-1 valve plate gasket is a DeVilbiss high-pressure replacement gasket used between the finned aluminum compressor head and valve plate assembly on compatible air compressor pumps. This gasket helps create an airtight seal at the pump head, reducing compressed air leakage and supporting proper CFM output.

This Z-CAC-291-1 DeVilbiss gasket is made from reinforced Graphoil graphite-based gasket material bonded to metal wire mesh foil. The reinforced construction is designed to help address over-compression and brittleness concerns associated with earlier non-wire-mesh gasket styles.

Z-CAC-291-1 DeVilbiss Valve Plate to Head Gasket Specifications

  • Gasket Location: Between finned aluminum compressor head and valve plate assembly
  • Material: Graphoil graphite-based gasket material
  • Reinforcement: Metal wire mesh foil
  • Seal Function: High-pressure valve plate-to-head sealing surface
  • Torque Reference Range: 25 to 35 ft-lbs
  • Final Torque Reference: 32.5 ft-lbs maximum final setting

Z-CAC-291-1 DeVilbiss Air Compressor Gasket Key Features

  • DeVilbiss replacement gasket for compatible compressor pump head assemblies
  • Reinforced gasket construction helps support longer service life at the pump head sealing surface
  • Graphite-based Graphoil material is used for high-pressure compressor gasket sealing
  • Wire mesh foil reinforcement helps reduce gasket over-compression compared with earlier gasket styles
  • Helps maintain the sealed air path between the valve plate and cylinder head assembly

Need Help? Call us:

1-269-685-4123

For availability, please text:

1-269-447-0412

Related Items

Compatible Models

The Z-CAC-291-1 valve plate to head gasket is known to properly fit and function with the following partial list of air compressors:

DeVilbiss Air Compressors

  • DeVilbiss 66-750 Type 0
  • DeVilbiss AC-0171
  • DeVilbiss AC-0171-1
  • DeVilbiss AC-0336
  • DeVilbiss AC-0336-1
  • DeVilbiss ACBL320 Type 0
  • DeVilbiss ACBL320 Type 2
  • DeVilbiss ACBL320 Type 3
  • DeVilbiss ACBL320 Type 4
  • DeVilbiss ACBL520 Type 0
  • DeVilbiss ACBL520 Type 1
  • DeVilbiss ACBL530VP Type 2
  • DeVilbiss ACBL530VP Type 3
  • DeVilbiss ACBL530VP Type 4
  • DeVilbiss ACBL5G20 Type 0
  • DeVilbiss ACBL5G20 Type 2
  • DeVilbiss ACBL5G20 Type 3
  • DeVilbiss ACBL5G20HP Type 0
  • DeVilbiss ACBL660V Type 0
  • DeVilbiss ACBL660V Type 1
  • DeVilbiss ACBL760V Type 0
  • DeVilbiss ACSL530RVP Type 3
  • DeVilbiss AFL2512 Type 0
  • DeVilbiss AFL2512 Type 1
  • DeVilbiss AFL2520 Type 0
  • DeVilbiss AFL2520 Type 1
  • DeVilbiss AFL320 Type 0
  • DeVilbiss AFL320 Type 1
  • DeVilbiss AFL520 Type 0
  • DeVilbiss AFL520 Type 1
  • DeVilbiss AFL560V Type 1
  • DeVilbiss AFL560V Type 2
  • DeVilbiss AFL560V Type 3
  • DeVilbiss AFL5G20 Type 0
  • DeVilbiss AFL660V Type 0
  • DeVilbiss AFL660V Type 1
  • DeVilbiss ATCL4520 Type 0
  • DeVilbiss ATCL4520 Type 2
  • DeVilbiss BACL4520 Type 0
  • DeVilbiss BACL4520 Type 2
  • DeVilbiss CAC-4029
  • DeVilbiss CAC-4029-1
  • DeVilbiss D22623
  • DeVilbiss D22624
  • DeVilbiss D22625
  • DeVilbiss D22629
  • DeVilbiss DAC-4026
  • DeVilbiss DAC-4026-1
  • DeVilbiss EXL5020 Type 0
  • DeVilbiss EXL6560V Type 0
  • DeVilbiss EXLC5G20 Type 0
  • DeVilbiss EXLC7060V Type 0
  • DeVilbiss HL6560V Type 0
  • DeVilbiss HL6560V Type 1
  • DeVilbiss HL7060V Type 0
  • DeVilbiss IMCL4520 Type 0
  • DeVilbiss IMCL4520 Type 2
  • DeVilbiss IR25E20AD Type 0
  • DeVilbiss IR35E20AD Type 1
  • DeVilbiss IR35E20AD Type 2
  • DeVilbiss IR4E20AD Type 0
  • DeVilbiss IR5E20AD Type 0
  • DeVilbiss IR5E20AD Type 1
  • DeVilbiss IR5E20AD Type 2
  • DeVilbiss IR5E30AD Type 0
  • DeVilbiss IR5E30AD Type 1
  • DeVilbiss IR5E30AD Type 2
  • DeVilbiss IR5E60VAD Type 0
  • DeVilbiss IR5E60VAD Type 1
  • DeVilbiss IR5G20AD Type 0
  • DeVilbiss IR6E60VAD Type 0
  • DeVilbiss IRC4E20AD Type 0
  • DeVilbiss IRC4E20AD Type 1
  • DeVilbiss IRC5E20AD Type 0
  • DeVilbiss IRC5E20AD Type 1
  • DeVilbiss IRC5E60VAD Type 0
  • DeVilbiss IRC5E60VAD Type 1
  • DeVilbiss IRC6E60VAD Type 0
  • DeVilbiss IRL5020 Type 0
  • DeVilbiss IRL5G20 Type 0
  • DeVilbiss IRL5G20 Type 2
  • DeVilbiss IRL5G20 Type 3
  • DeVilbiss IRL6520 Type 0
  • DeVilbiss IRL6530 Type 0
  • DeVilbiss IRL6530 Type 1
  • DeVilbiss IRL6560V Type 0
  • DeVilbiss IRLC5020 Type 0
  • DeVilbiss IRLC6520 Type 0
  • DeVilbiss IRLC6560V Type 0
  • DeVilbiss IRLC6560V Type 1
  • DeVilbiss L2512 Type 0
  • DeVilbiss L2512 Type 1
  • DeVilbiss L2520 Type 0
  • DeVilbiss L2520 Type 1
  • DeVilbiss L320 Type 0
  • DeVilbiss L320 Type 1
  • DeVilbiss L320 Type 2
  • DeVilbiss L320 Type 3
  • DeVilbiss L320 Type 4
  • DeVilbiss L420 Type 0
  • DeVilbiss L5020 Type 0
  • DeVilbiss L520 Type 0
  • DeVilbiss L520 Type 1
  • DeVilbiss L520 Type 2
  • DeVilbiss L530 Type 0
  • DeVilbiss L530 Type 1
  • DeVilbiss L560V Type 0
  • DeVilbiss L560V Type 1
  • DeVilbiss L560V Type 2
  • DeVilbiss L560V Type 3
  • DeVilbiss L5G20 Type 0
  • DeVilbiss L5G20 Type 2
  • DeVilbiss L5G20 Type 3
  • DeVilbiss L6520 Type 0
  • DeVilbiss L6530 Type 0
  • DeVilbiss L6530 Type 1
  • DeVilbiss L6560V Type 0
  • DeVilbiss L660V Type 0
  • DeVilbiss L660V Type 1
  • DeVilbiss L660V Type 2
  • DeVilbiss L660V Type 3
  • DeVilbiss N076027
  • DeVilbiss PALC520 Type 0
  • DeVilbiss PALC520 Type 1
  • DeVilbiss PALC560V Type 1
  • DeVilbiss PALC6520 Type 0
  • DeVilbiss PALC6560V Type 0
  • DeVilbiss PALC6560V Type 1
  • DeVilbiss PALC7060V Type 0
  • DeVilbiss PRL5020 Type 0
  • DeVilbiss PRLC5020 Type 0
  • DeVilbiss RA4E20AD Type 0
  • DeVilbiss RA5E20AD Type 0
  • DeVilbiss RA5E20AD Type 1
  • DeVilbiss RA5E20AD Type 2
  • DeVilbiss RA5E60VAD Type 0
  • DeVilbiss RA5E60VAD Type 1
  • DeVilbiss RA6E60VAD Type 0
  • DeVilbiss RAC5E20AD Type 0
  • DeVilbiss RAC5E20AD Type 1
  • DeVilbiss RAC5E60VAD Type 0
  • DeVilbiss RAC5E60VAD Type 1
  • DeVilbiss RAL5020 Type 0
  • DeVilbiss RAL5G20 Type 0
  • DeVilbiss RAL5G20 Type 2
  • DeVilbiss RAL5G20 Type 3
  • DeVilbiss RAL6520 Type 0
  • DeVilbiss RAL6560V Type 0
  • DeVilbiss RALC5020 Type 0
  • DeVilbiss RALC6520 Type 0
  • DeVilbiss RALC6560V Type 0
  • DeVilbiss RALC6560V Type 1
  • DeVilbiss SDS2E8DCD Type 0
  • DeVilbiss SDS2E8DCD Type 1
  • DeVilbiss SDS5G8D Type 0
  • DeVilbiss SDS5G8D Type 1
  • DeVilbiss Z-D22629

Craftsman Air Compressors

  • Craftsman 1000003437
  • Craftsman 919-15725 Type 1
  • Craftsman 919-15726 Type 0
  • Craftsman 919-18416 Type 1
  • Craftsman 919-18419 Type 0
  • Craftsman 919-18419 Type 1
  • Craftsman 919-18419 Type 2
  • Craftsman 919-18543 Type 1
  • Craftsman 919-18695 Type 1
  • Craftsman 919-19540 Type 0
  • Craftsman 919-19541 Type 0
  • Craftsman 919-19541 Type 1
  • Craftsman 919-19541 Type 2
  • Craftsman 919-19541 Type 3
  • Craftsman 919-72728 Type 0
  • Craftsman 919-72728 Type 2
  • Craftsman 919-72800 Type 0
  • Craftsman 919-72800 Type 1

Porter Cable Air Compressors

  • Porter Cable C5510 Type 0
  • Porter Cable C7501M Type 0
  • Porter Cable CPL55GH8W Type 0
  • Porter Cable CPL6025 Type 1
  • Porter Cable CPLC7060V Type 0
  • Porter Cable CPLC7060V Type 1
  • Porter Cable CPLC7060V Type 2

Additional compatibility may exist for other brands and models manufactured using the same valve plate to head gasket. Always verify compatibility by confirming your unit’s model number and part diagram.

No Reviews Yet

Only registered users can write reviews. Please Sign in or create an account

Frequently Asked Questions

What does the Z-CAC-291-1 gasket seal?

The Z-CAC-291-1 gasket seals the joint between the air compressor head and valve plate assembly. This helps reduce compressed air leakage at the pump head sealing surface.

Is the Z-CAC-291-1 gasket reinforced?

Yes. The Z-CAC-291-1 DeVilbiss valve plate gasket is made from Graphoil graphite-based gasket material bonded to a metal wire-mesh foil.

Can a leaking valve plate gasket reduce CFM output?

Yes. Air leakage between the compressor head and valve plate can reduce air delivery and affect CFM output. Always verify the compressor model number and parts diagram before ordering a replacement gasket.

What torque reference is listed for the Z-CAC-291-1 gasket?

The provided service reference includes 30 to 35 ft-lbs and a staged 25, 30, and 32.5 ft-lb sequence, with 32.5 ft-lbs listed as the final recheck reference. Verify the correct procedure for your exact compressor pump model before service.

Z-CAC-291-1 Service Reference

  • Provided torque references include 30 to 35 ft-lbs and a staged 25, 30, and 32.5 ft-lb sequence.
  • After initial run time and cooling, the provided final torque recheck reference is 32.5 ft-lbs.
  • Always verify the correct torque procedure for the exact compressor pump model before service.
