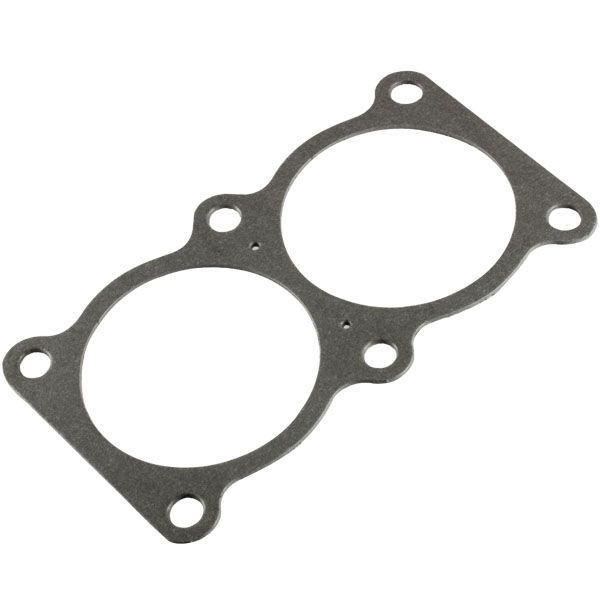

Z-CAC-1265-2 graphoil-reinforced wire mesh cylinder gasket
Z-CAC-1265-2 graphoil-reinforced wire mesh cylinder gasket Z-CAC-1265-2 air compressor high pressure seal gasket Z-CAC-1265-2 old style gasket

Z-CAC-1265-2 Graphoil Wire Mesh Valve Plate Gasket for Air Compressors

In stock

$7.90

In stock

Part Number: Z-CAC-1265-2
Compatible Brands: DeVilbiss
Shipping Weight: 0.56 Lbs

The Z-CAC-1265-2 is a Graphoil Reinforced Wire Mesh Valve to Plate Gasket designed for air compressors from multiple manufacturers. This high-pressure seal prevents air leaks between the crankcase cylinder and valve plate assembly, addressing issues of compression and brittleness found in earlier gasket designs.

Z-CAC-1265-2 Features

  • Graphoil Reinforced Wire Mesh construction
  • Prevents air leaks between cylinder and valve plate
  • Compatible with multiple air compressor brands
  • Improved durability over standard gaskets
  • Designed for high-pressure sealing

Z-CAC-1265-2 Specifications

  • Material: Graphoil with Wire Mesh
  • Installation Torque: 25-32.5 foot pounds
  • Recommended Break-in: 10 minutes without tank pressure

Compatible Models

  • ACBL320 Type 0
  • ACBL520 Type 1
  • ACBL660V Type 0
  • AFL2512 Type 0
  • AFL2512 Type 1
  • AFL2520 Type 0
  • AFL2520 Type 1
  • AFL320 Type 0
  • AFL320 Type 1
  • AFL520 Type 1
  • AFL560V Type 1
  • AFL560V Type 2
  • AFL560V Type 3
  • AFL660V Type 0
  • ATCL4520 Type 0
  • BACL4520 Type 0
  • IMCL4520 Type 0
  • IR25E20AD Type 0
  • IR35E20AD Type 1
  • IR4E20AD Type 0
  • IR5E20AD Type 0
  • IR5E20AD Type 1
  • IR5E20AD Type 2
  • IR5E30AD Type 0
  • IR5E30AD Type 1
  • IR5E30AD Type 2
  • IR5E60VAD Type 0
  • IR5E60VAD Type 1
  • IR5G20AD Type 0
  • IR6E60VAD Type 0
  • IRC4E20AD Type 0
  • IRC4E20AD Type 1
  • IRC5E20AD Type 0
  • IRC5E20AD Type 1
  • IRC5E60VAD Type 0
  • IRC5E60VAD Type 1
  • IRC6E60VAD Type 0
  • L2512 Type 0
  • L2512 Type 1
  • L2520 Type 0
  • L2520 Type 1
  • L320 Type 0
  • L320 Type 1
  • L520 Type 1
  • L520 Type 2
  • L530 Type 0
  • L530 Type 1
  • L560V Type 0
  • L560V Type 1
  • L560V Type 2
  • L560V Type 3
  • L660V Type 0
  • PALC520 Type 0
  • PALC520 Type 1
  • PALC560V Type 1
  • RA4E20AD Type 0
  • RA5E20AD Type 0
  • RA5E20AD Type 1
  • RA5E20AD Type 2
  • RA5E60VAD Type 0
  • RA5E60VAD Type 1
  • RA6E60VAD Type 0
  • RAC5E20AD Type 0
  • RAC5E20AD Type 1
  • RAC5E60VAD Type 0
  • RAC5E60VAD Type 1
  • Craftsman: 1000003437
  • Craftsman: 919-15725 Type 1
  • Craftsman: 919-15726 Type 0
  • Craftsman: 919-18416 Type 1
  • Craftsman: 919-18419 Type 0
  • Craftsman: 919-18419 Type 1
  • Craftsman: 919-18419 Type 2
  • Craftsman: 919-18543 Type 1
  • Craftsman: 919-18695 Type 1
  • Craftsman: 919-19540 Type 0
  • Craftsman: 919-19541 Type 0
  • Craftsman: 919-19541 Type 1
  • Craftsman: 919-19541 Type 2
  • Craftsman: 919-19541 Type 3
  • Craftsman: 919-72728 Type 0
  • Craftsman: 919-72728 Type 2
  • Craftsman: 919-72800 Type 0
  • Craftsman: 919-72800 Type 1
  • Porter Cable: C5510 Type 0
  • Porter Cable: C7501M Type 0
  • Porter Cable: CPL55GH8W Type 0
  • Porter Cable: CPL6025 Type 1
  • Porter Cable: CPLC7060V Type 0
  • Porter Cable: CPLC7060V Type 1
  • Porter Cable: CPLC7060V Type 2

Need Help? Call us:

1-269-685-4123

For availability, please text:

1-269-447-0412
The Z-CAC-1265-2 Cylinder gasket was used on the following model numbers of air compressors. ACBL320 Type 0 ACBL520 Type 1 ACBL660V Type 0 AFL2512 Type 0 AFL2512 Type 1 AFL2520 Type 0 AFL2520 Type 1 AFL320 Type 0 AFL320 Type 1 AFL520 Type 1 AFL560V Type 1 AFL560V Type 2 AFL560V Type 3 AFL660V Type 0 ATCL4520 Type 0 BACL4520 Type 0 IMCL4520 Type 0 IR25E20AD Type 0 IR35E20AD Type 1 IR4E20AD Type 0 IR5E20AD Type 0 IR5E20AD Type 1 IR5E20AD Type 2 IR5E30AD Type 0 IR5E30AD Type 1 IR5E30AD Type 2 IR5E60VAD Type 0 IR5E60VAD Type 1 IR5G20AD Type 0 IR6E60VAD Type 0 IRC4E20AD Type 0 IRC4E20AD Type 1 IRC5E20AD Type 0 IRC5E20AD Type 1 IRC5E60VAD Type 0 IRC5E60VAD Type 1 IRC6E60VAD Type 0 L2512 Type 0 L2512 Type 1 L2520 Type 0 L2520 Type 1 L320 Type 0 L320 Type 1 L520 Type 1 L520 Type 2 L530 Type 0 L530 Type 1 L560V Type 0 L560V Type 1 L560V Type 2 L560V Type 3 L660V Type 0 PALC520 Type 0 PALC520 Type 1 PALC560V Type 1 RA4E20AD Type 0 RA5E20AD Type 0 RA5E20AD Type 1 RA5E20AD Type 2 RA5E60VAD Type 0 RA5E60VAD Type 1 RA6E60VAD Type 0 RAC5E20AD Type 0 RAC5E20AD Type 1 RAC5E60VAD Type 0 RAC5E60VAD Type 1
