AQ000025 GAS CONTROL VALVE
In stock
Part Number
AQ000025
$161.65

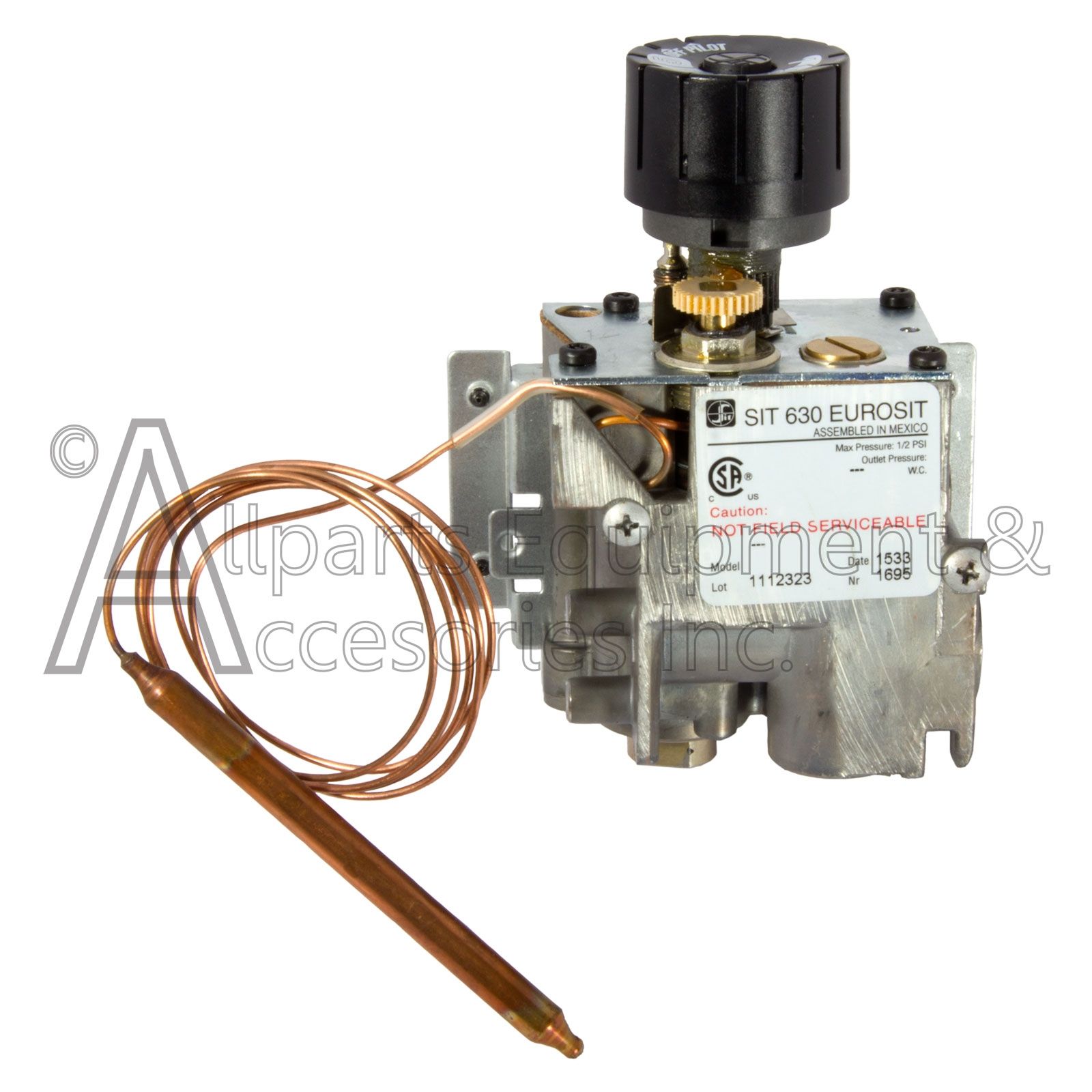

AQ000025 Gas Control multi function valve that will provide long life for your appliance using either Liquid Propane Gas LPG or Natural Gas NG.
This AQ000025 Multi Gas control valve has been used by many different manufactures in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Venteless Fireplaces, Pedestal Stoves and other vent-free hearth related products.
The AQ000025 Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system. This Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
AQ000025 valve does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
This gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets and many hearth appliances that require accurate temperature control without an external power supply.
The AQ000025 gas control valve is configured for both LPG and NG applications.
The AQ000025 Valve has the following features:
Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points
Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting
This AQ000025 Multi Gas control valve has been used by many different manufactures in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Venteless Fireplaces, Pedestal Stoves and other vent-free hearth related products.
The AQ000025 Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system. This Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
AQ000025 valve does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
This gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets and many hearth appliances that require accurate temperature control without an external power supply.
The AQ000025 gas control valve is configured for both LPG and NG applications.
The AQ000025 Valve has the following features:
Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points
Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting
We are sorry but Gas valve and related gas Products are NOT RETURNABLE for refunds!
These items comes with a 90 day warranty for exchange only.
Please look at all pictures carefully and study your manual before you purchase this item because no returns for refunds will be accepted.
