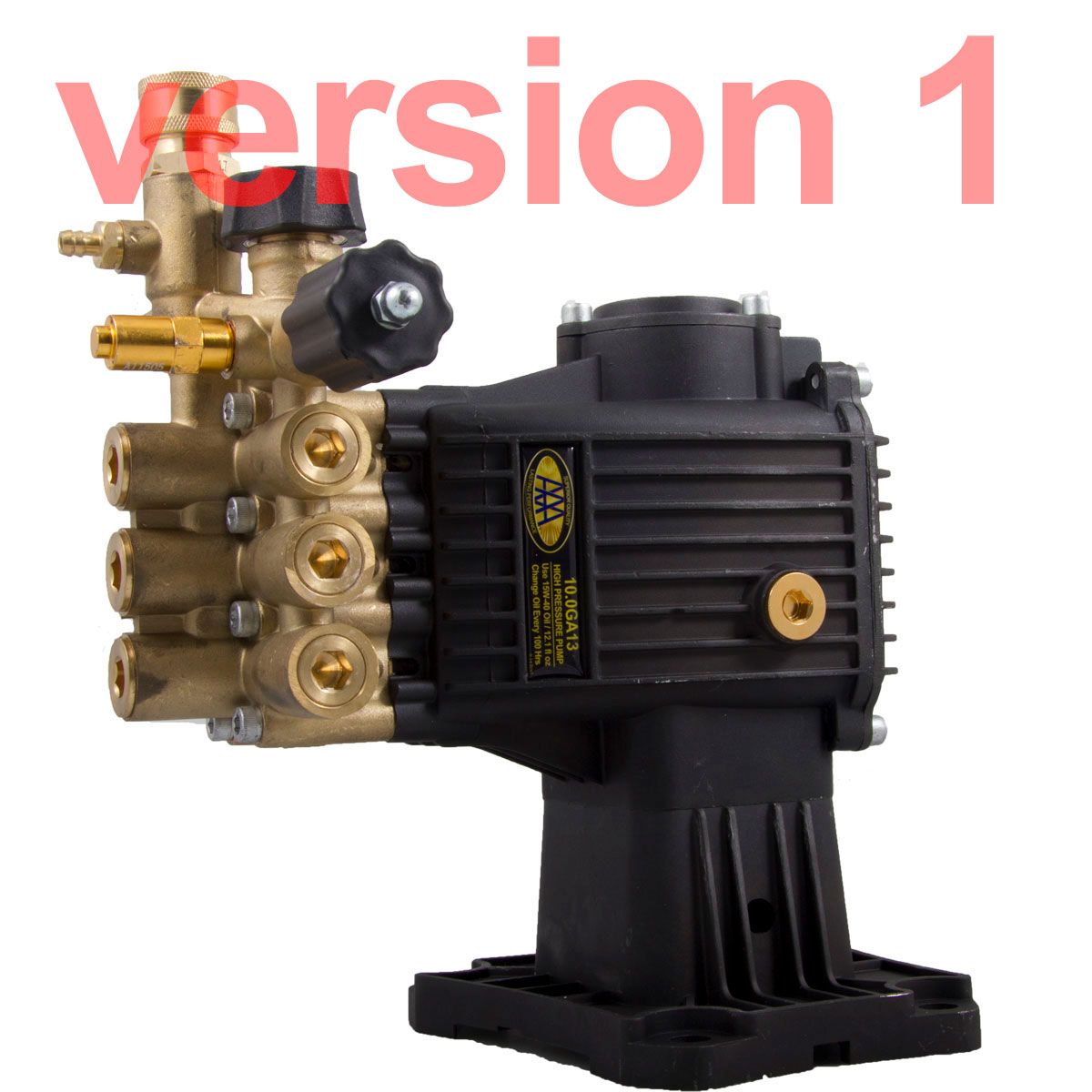

7109049 C41 SERIES REPLACEMENT PUMP 4000 PSI MAX 3.5GPM
In stock
Part Number
7109049
$329.90
7109049 FNA C Series Triplex Plunger Pump Kit is a highly efficient pump that minimizes engine load while delivering top performance.
7109049 Triplex Plunger Pump with Power-Boost provides higher pressure at the spray nozzle.
7109049 contains dual oversized ball bearings for better wear, friction resistance, and longer-lasting performance in challenging cleaning environments.
Features:
4000 PSI @ 3.5 GPM Max
PowerBoost™ Technology
Fully adjustable unloader system with ergonomic control
Sight glass and advanced oil seal technology, does away with the need for a dipstick
Thermal relief protection to prevent pump overheating
Dual over-sized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life.
Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure.
Gas engine flange and hollow shaft that fits most horizontal shaft engines
Specifications:
PSI: 4000
GPM: 3.5
Kit Includes: Siphon tube with filter, mounting bolts, and shaft key
Inlet Port: 3/4” GH
Discharge Port: 3/8” Quick connect female
Inlet Pressure Range: 10-60 PSI
Thermal Relief Port: 1/2” NPT
Shaft Diameter: 24mm
Key Way: M8
Pump Oil Capacity: 11 fl oz.
PowerBoost®: Yes
Head: Brass
