320-1000 suction filter assembly
320-1000 suction filter assembly 320-1000 air filter assembly used on air compressor pumps 320-1000 replacement air filter with decal

320-1000 Filter W/Decal Assy L154

In stock

$42.15

In stock

Part Number: 320-1000
Model Number: 320-1000
Compatible Brands: Emglo Products, Jenny Products
Shipping Weight: 2 Lbs

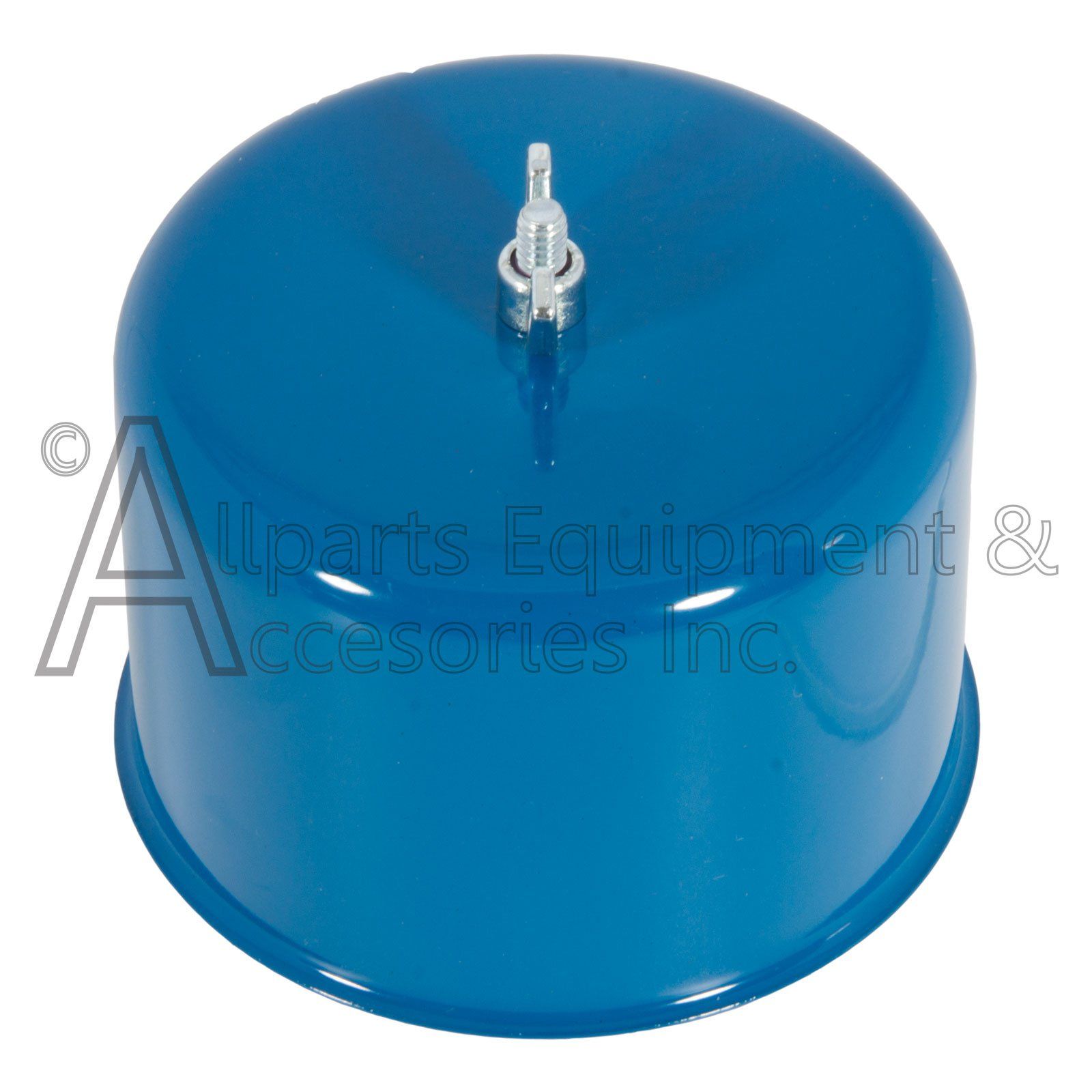

The 320-1000 is a genuine Jenny Products air intake filter assembly designed for use on Jenny reciprocating air compressor pumps. It serves as the primary intake air filtration point on the pump head, filtering particulates from incoming air before compression. This assembly mounts directly to the pump intake port using a 1/2 in. NPT connection.

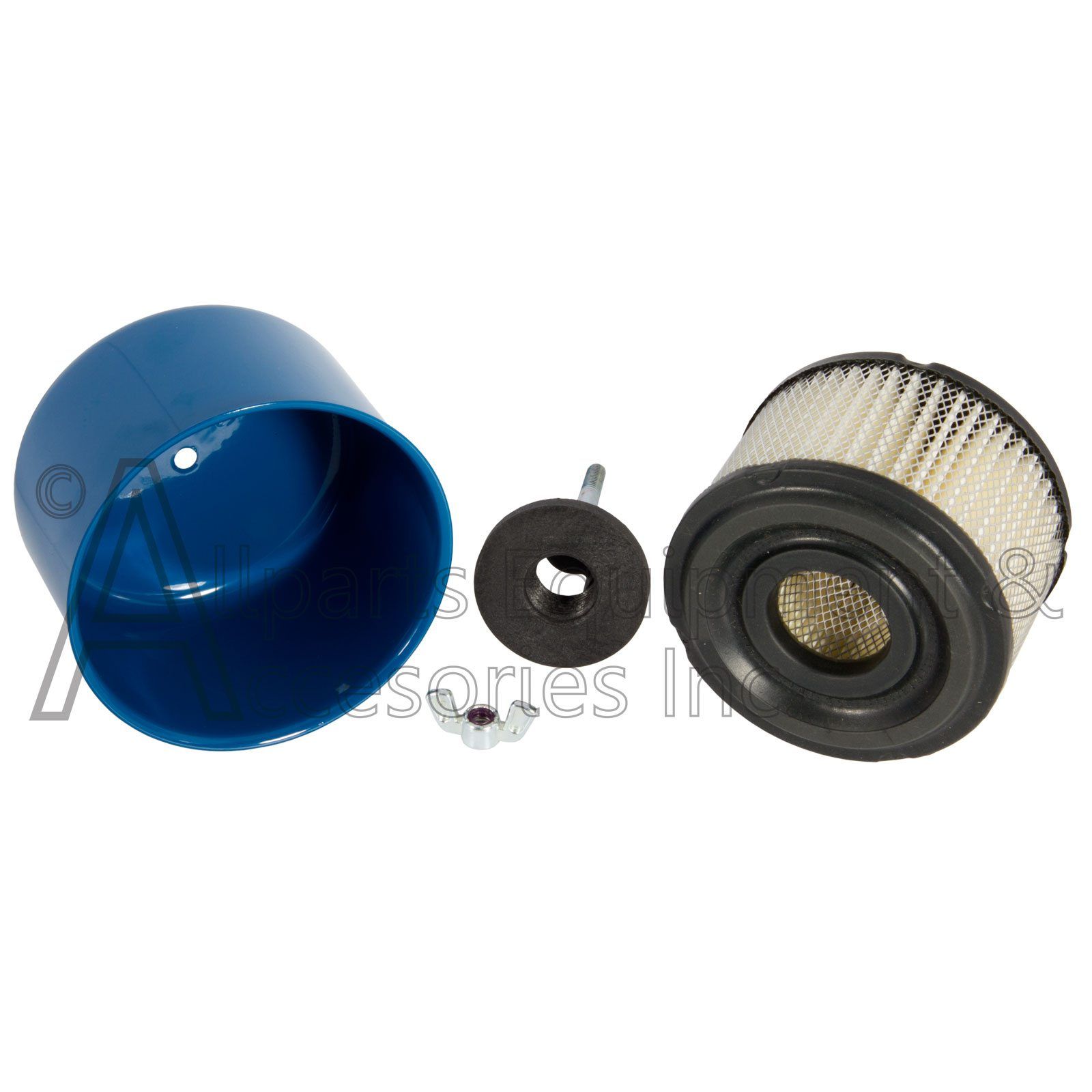

The 320-1000 assembly includes four sub-components: an air filter bracket, a replaceable filter element, a filter cover with decals, and a wing nut.

Key Features

  • Genuine Jenny Products OEM air intake filter assembly
  • Designated L154
  • 1/2 in. NPT inlet connection for direct pump head mounting
  • Wing nut retention allows tool-free access for filter element service

Specifications

  • Assembly Designation: L154
  • Part Type: OEM
  • Inlet Thread Size: 1/2 in. NPT
  • Quantity: 1 assembly per order

Need Help? Call us:

1-269-685-4123 1-269-447-0412

Compatible Models

The 320-1000 Filter with Decal Assembly (L154) is known to properly fit and function with the following partial list of Jenny Products air compressor pumps:

  • Jenny K Series
  • Jenny KU Series
  • Jenny F Series
  • Jenny FU Series
  • Jenny W Series

Additional compatibility may exist for other brands and models manufactured using the same air filter assembly. Always verify compatibility by confirming your unit's model number and part diagram.
