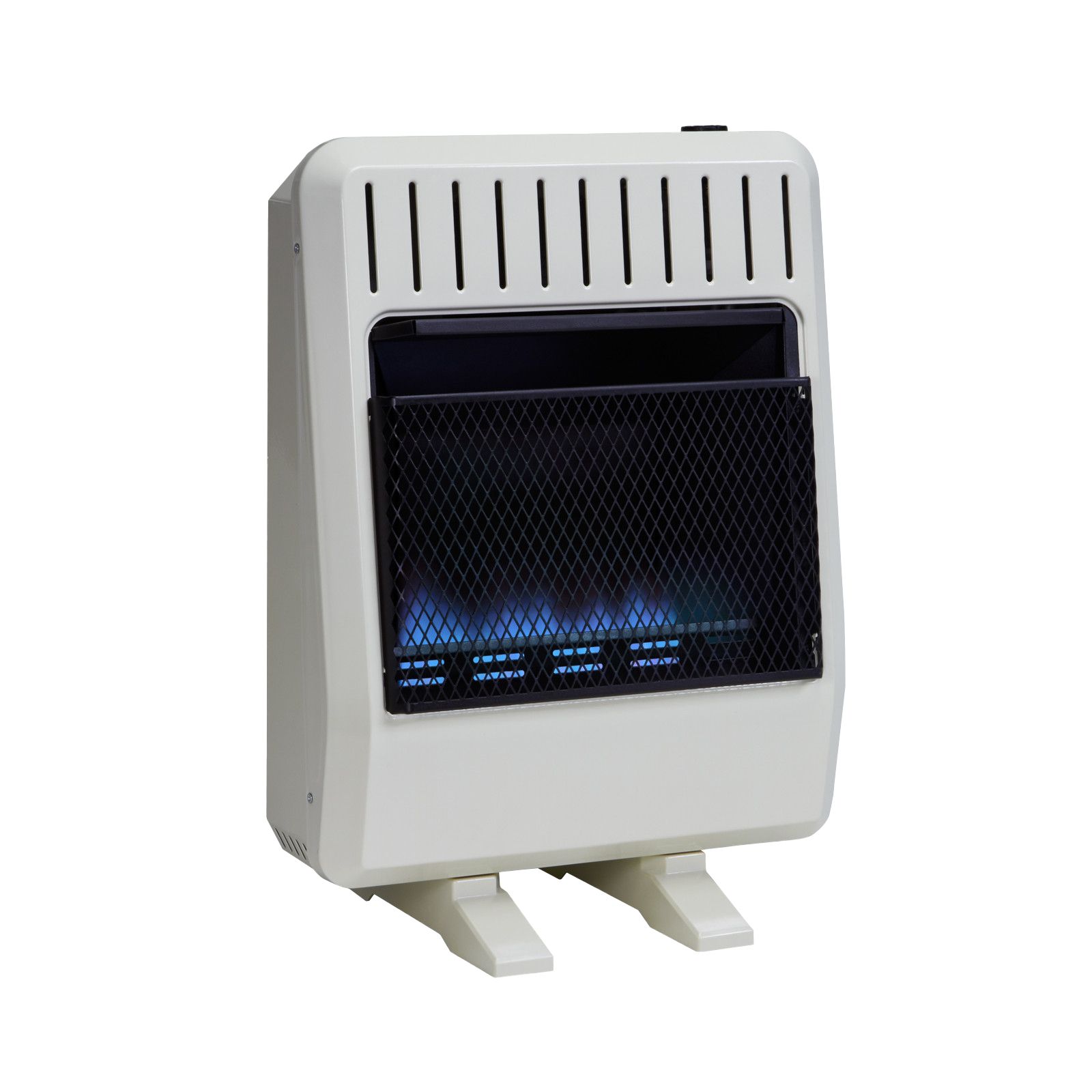

FDT20BFA Avenger Blue Flame Vent-Free Heater, Dual-Fuel 20,000 BTU

The FDT20BFA is a vent-free blue flame gas heater rated at 20,000 BTUs. This Avenger blue flame heater has a maximum area coverage of up to 950 sq. ft.

This compact space heater features a push button piezo ignition system, 5-stage heat adjustment, and an automatic shut-off ODS safety system.

Using dual-fuel technology, the FDT20BFA is able to run off either natural gas or liquid propane gas. It comes pre-configured for liquid propane gas.

Fuel conversion should only ever be handled by a qualified installer.

The FDT20BFA also goes by the part number 110010.

Features of the FDT20BFA Avenger Heater

• Thermostat control automatically cycles the burner on and off to keep a consistent room temperature.
• Easily adjustable 5-stage heat options that include micro adjustments in-between for precise heat levels
• An safety shutoff oxygen depletion sensing switch prevents heater operation if insufficient fresh air is detected.
• Comes from the manufacturer set up for use with liquid propane. A qualified installer can convert the unit to natural gas.
• Built with a slim and compact design for space-efficient heating.
• Supports the installation of an optional 120 VAC 60Hz blower fan.
• Includes both wall-mounting hardware and floor-mount foot stands.

Specifications

Max. Heat Rating: 20,000 BTUs (Natural Gas/Liquid Propane)

Heating Coverage: 950 sq. ft.

Natural Gas Pressure Specs

• Pressure Regulator Setting: 4 in. w.c
• Max. Inlet Pressure: 9.5 in. w.c
• Min. Inlet Pressure: 5 in. w.c

Liquid Propane Gas Pressure Specs

• Pressure Regulator Setting (LPG): 9 in. w.c
• Max. Inlet Pressure (LPG): 14 in. w.c
• Min. Inlet Pressure (LPG): 11 in. w.c

Dimensions:

• Height: 26.18 in.
• Width: 20.7 in.
• Depth: 9.84 in.
• Weight: 18.4 lbs.
