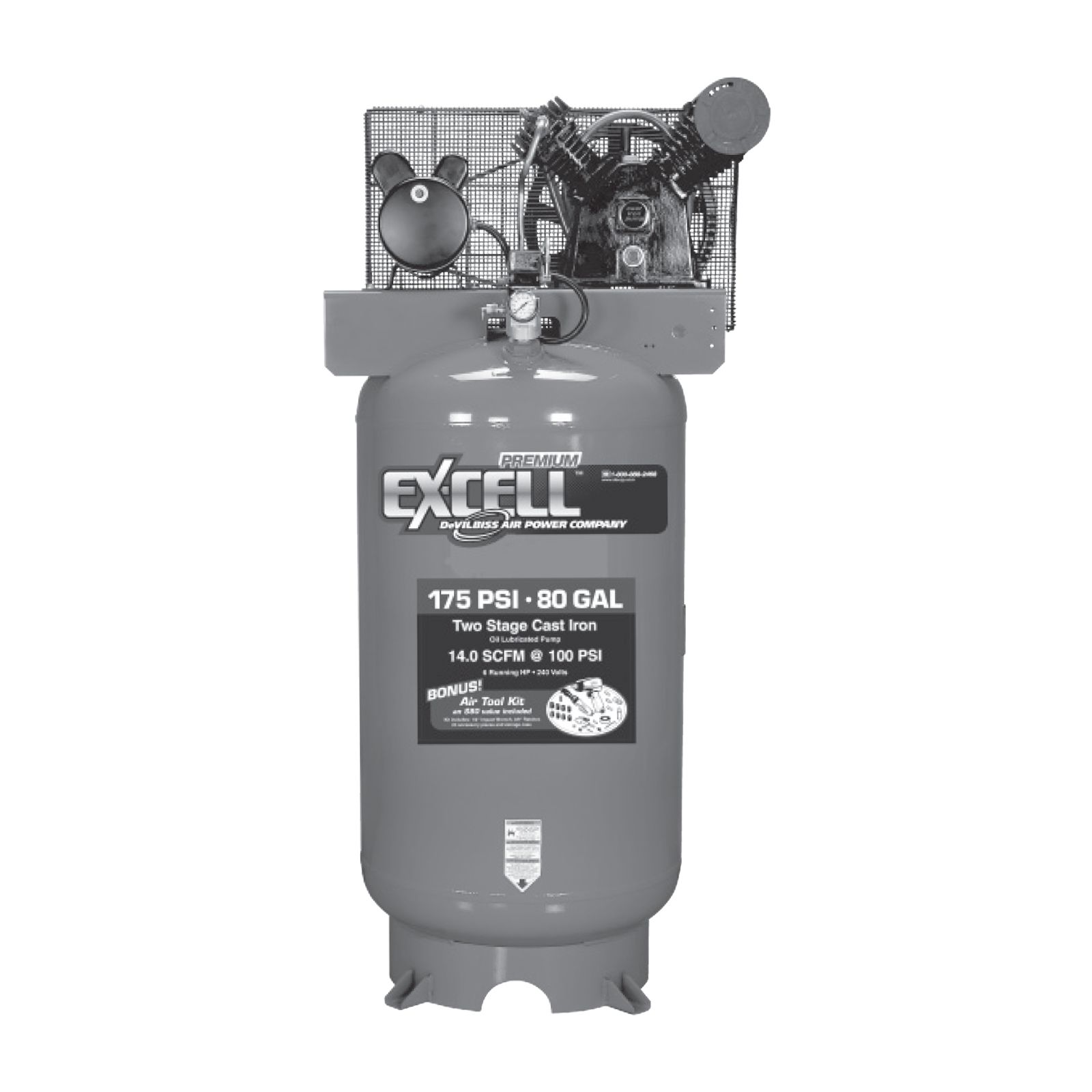

E7540 Excell Type 0 Two-Stage Air Compressor

The E7540 Excell air compressor is a two-stage air compressor manufactured by DeVilbiss that is powered with a 240-volt 2-pole motor. It also features an Unoair two-stage air pump.

This is the Type 0 version of the E7540, which uses the 5146116-49 pressure switch.

Features of the E7540 Type-0 Air Compressor

• Power is toggled with an On/Auto/Off lever.
• Automatic pressure switch toggles the motor at the cut-in and cut-out pressure.
• Safety valve helps prevent over-pressurization when tank hits cut-out pressure.
• Comes standard with an air tank pressure gauge, a built-in cooling fan, and a condensation drain valve.
• Also uses a check valve and pressure release valve.

Specifications of the Type 0 E7540

Running Horsepower: 6.0 HP

Voltage-Single Phase: 240V

Minimum Branch Circuit Requirement: 30 amps

Fuse Type: Time Delay

Air Tank Capacity: 80 gal. ASME, Vertical

Approximate Cut-in Pressure: 140 PSIG

Approximate Cut-Out Pressure: 175 PSIG
