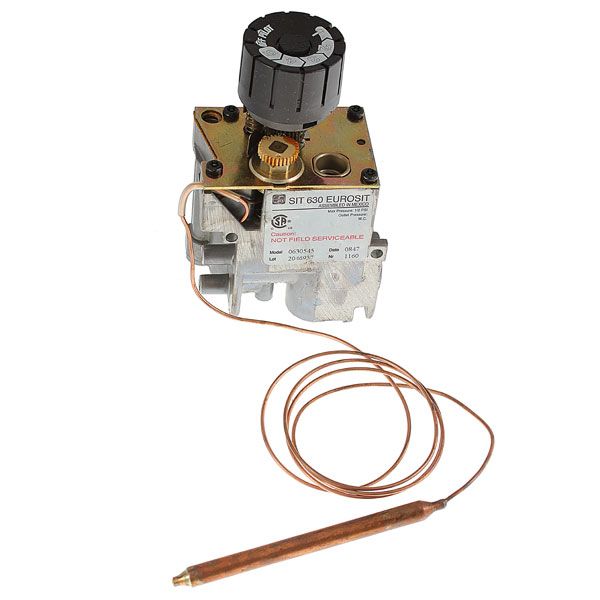

630545 EUROSIT 630 SERIES GAS CONTROL VALVE
In stock
Part Number
630545
$136.90
The Eurosit 630545 Gas Control valve by Sit Controls is a multi function valve that will provide a long life for your appliance using either Liquid Propane Gas or Natural Gas.
This Multi Gas control valve has been used by many different manufactures in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Venteless Fireplaces, Pedestal Stoves and other vent-free hearth related products.
The SIT 630 Eurosit Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system.
The SIT 630 Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
The SIT 630 Eurosit does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
The 630 Series gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets and many hearth appliances that require accurate temperature control without an external power supply.
This gas control valve is configured for both propane (LPG) and natural gas (NG) applications.
This Multi Gas control valve has been used by many different manufactures in producing several different hearth products including Gas Logs, Vent-Free Wall Heaters, Venteless Fireplaces, Pedestal Stoves and other vent-free hearth related products.
The SIT 630 Eurosit Gas Control Valve is a multi-functional single control knob combination gas control with combined modulating snap action thermostat and safety interlock system.
The SIT 630 Eurosit gas control valve is particularly for use with most gas hearth related heating applications as well as many other vent-free appliance applications.
The SIT 630 Eurosit does not require electrical supply and is suitable for operations in ambient temperatures up to 120 degrees Celsius.
The 630 Series gas valve is available in a wide range of configurations. It is particularly suitable for use in vent free gas wall heaters, vent-free gas fireplaces, gas log sets and many hearth appliances that require accurate temperature control without an external power supply.
This gas control valve is configured for both propane (LPG) and natural gas (NG) applications.
The SIT 630 Eurosit Valve has the following features:

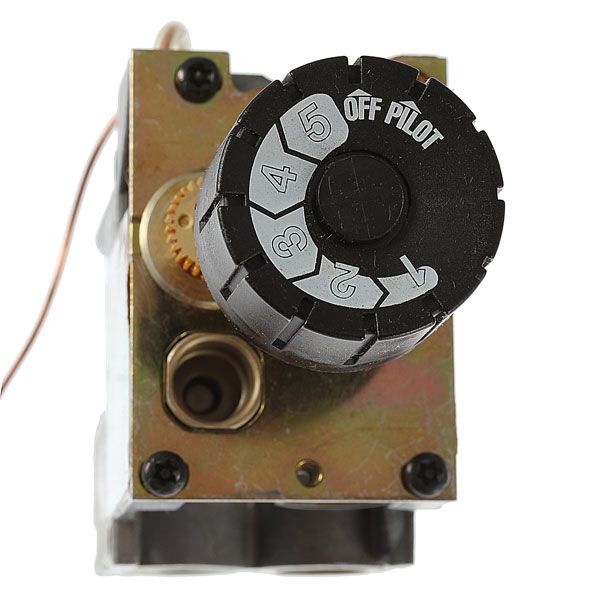

- Control knob with positions for off, pilot and temperature selections
- Thermo-electric flame supervision device with optional interlock
- Pressure regulator or alternatively flow adjuster

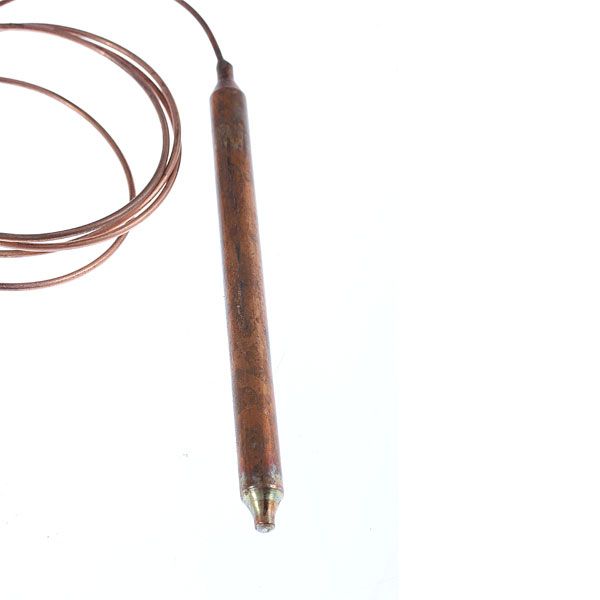

- Modulating and on-off thermostat Pilot outlet with pre-setting device of the gas flow

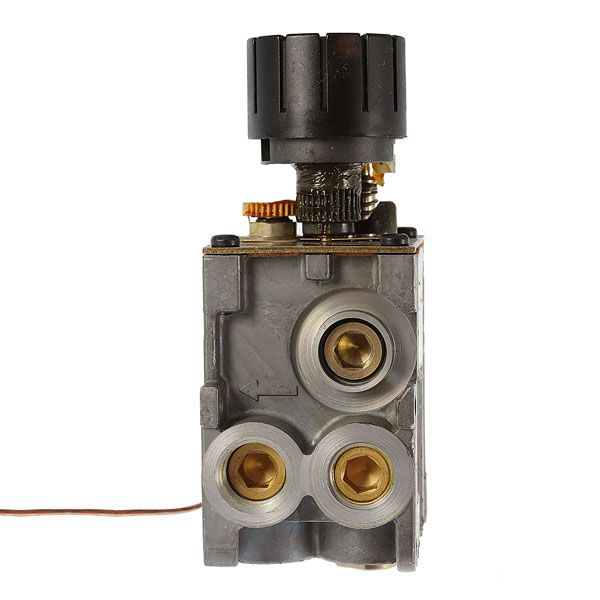

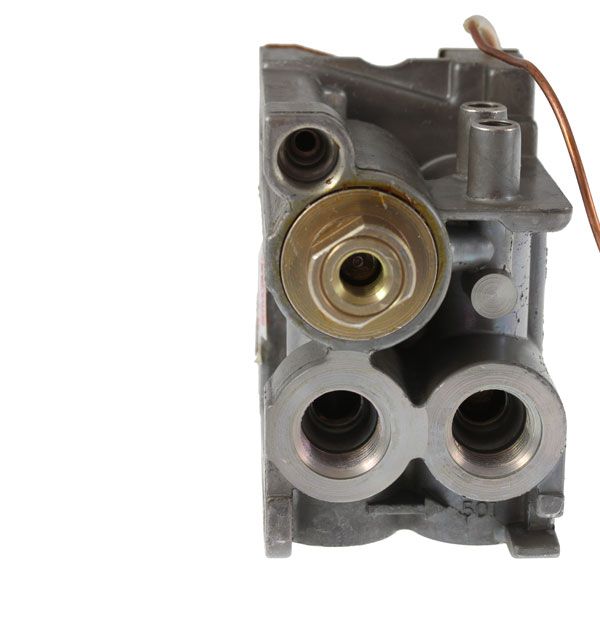

- Inlet and Pilot Filters Inlet and Outlet pressure test points Side or bottom main gas inlet and outlet
- Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting
