630535 Series gas control valve

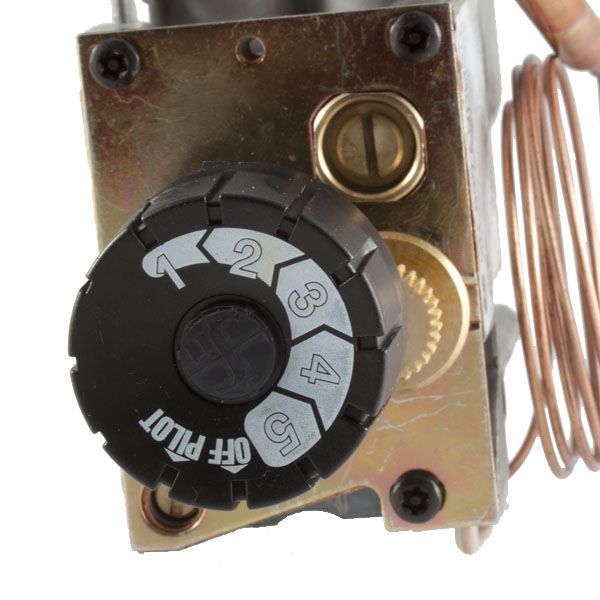

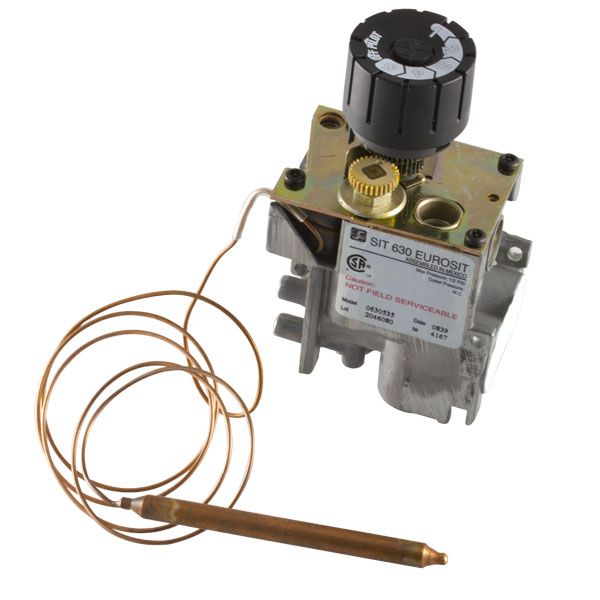

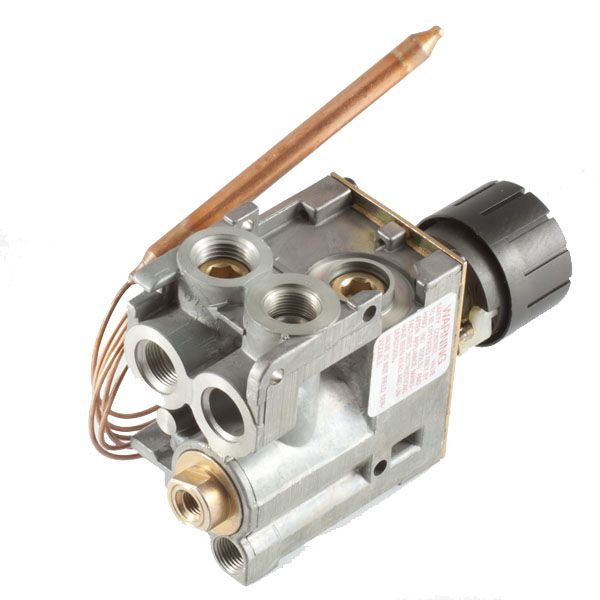

630535 Series gas control valve 630535 control knob 630535 side outlet and inlet 630535 bottom outlet and inlet


In stock
Part Number
Part Number: 630535
Shipping Weight: 2.8 Lbs
Non Returnable
Click here to agree to Allpart's Return Policy.
Please see our return policy
⇧ Check The Box If You Want To Proceed.
The 630535 Series gas control valve is configured for both LPG and NG applications. See sit 630535 Eurosit instructions for more information.

The SIT 630535 Eurosit Valve has the following features:
Control knob with positions for off, pilot and temperature selections
Thermo-electric flame supervision device with optional interlock
Pressure regulator or alternatively flow adjuster
Modulating and on-off thermostat
Pilot outlet with pre-setting device of the gas flow
Inlet and Pilot Filters
Inlet and Outlet pressure test points
Side or bottom main gas inlet and outlet
Main gas connections with threaded 3/8 NPT pipe or suitable for nut or compression fitting

We are sorry but Gas valve and related gas Products are NOT RETURNABLE for refunds!
These items comes with a 90-day warranty for exchange only.
Please look at all pictures carefully and study your manual before you purchase this item because no returns for refunds will be accepted.
