E106122 Piston Kit
E106122 Piston Kit Air compressor piston E106122 Air compressor piston and cylinder kit E106122

E106122 Piston Kit Assembly Oil Free Pumps

In stock
Part Number
E106122
$53.54
Part Number: E106122
Shipping Weight: 2 Lbs

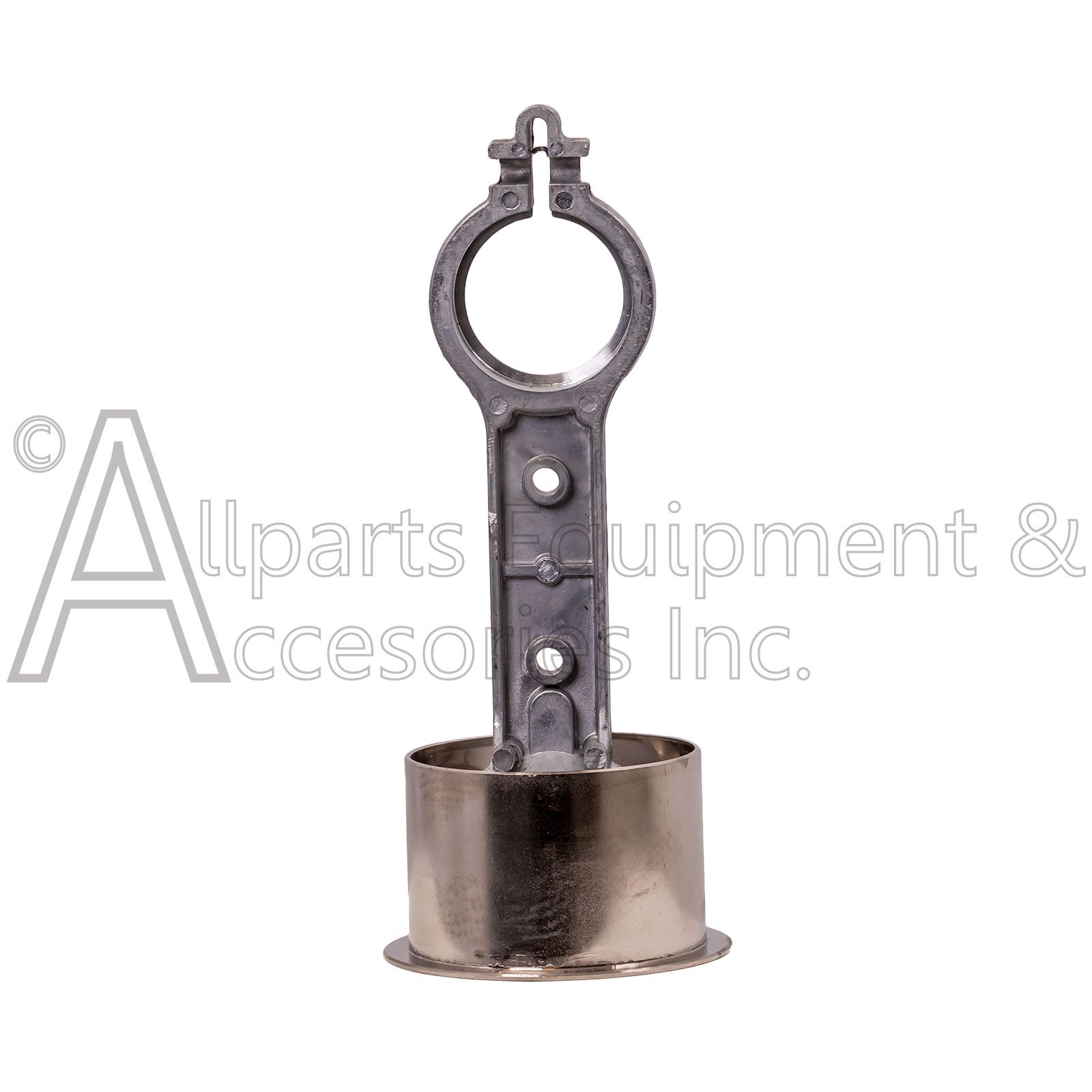

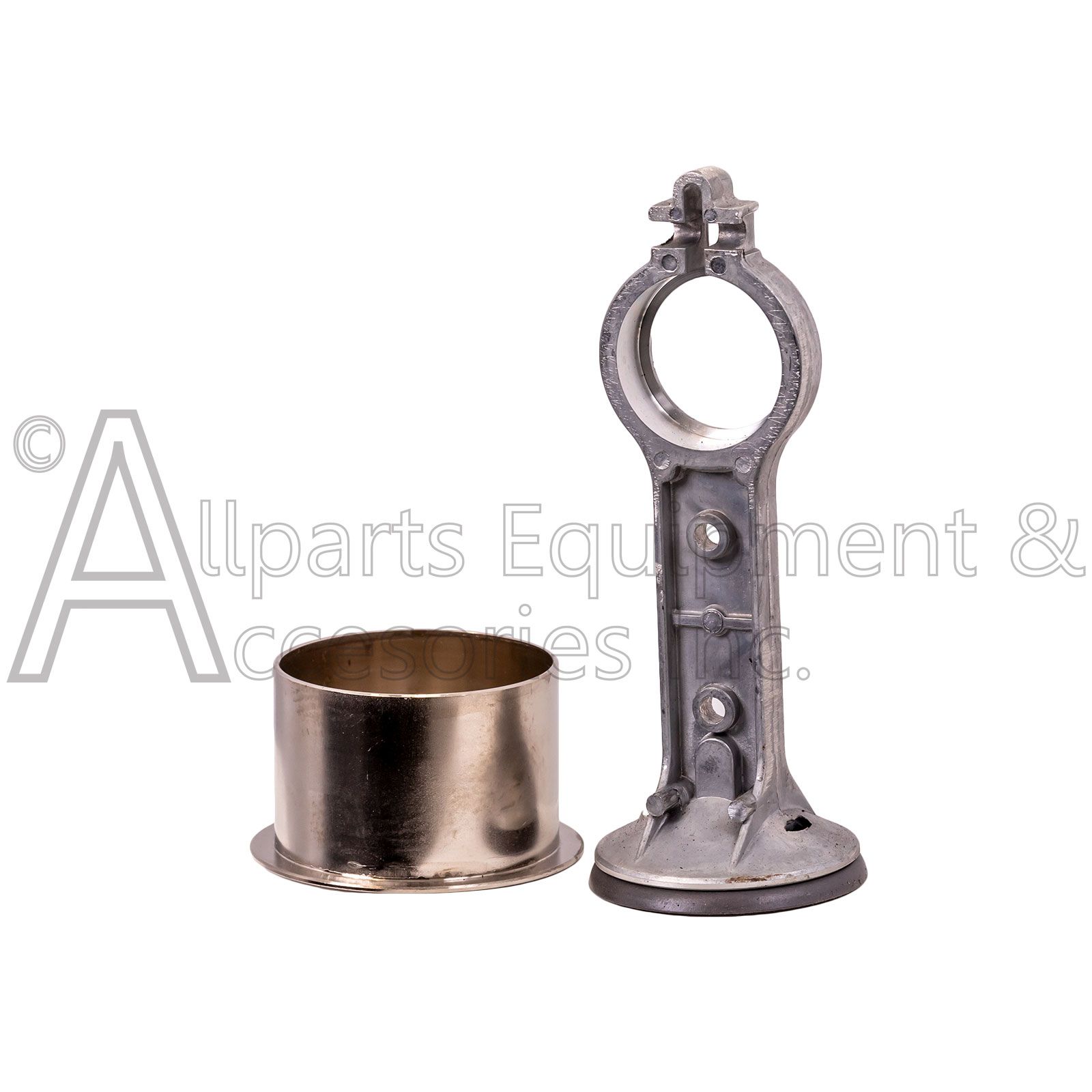

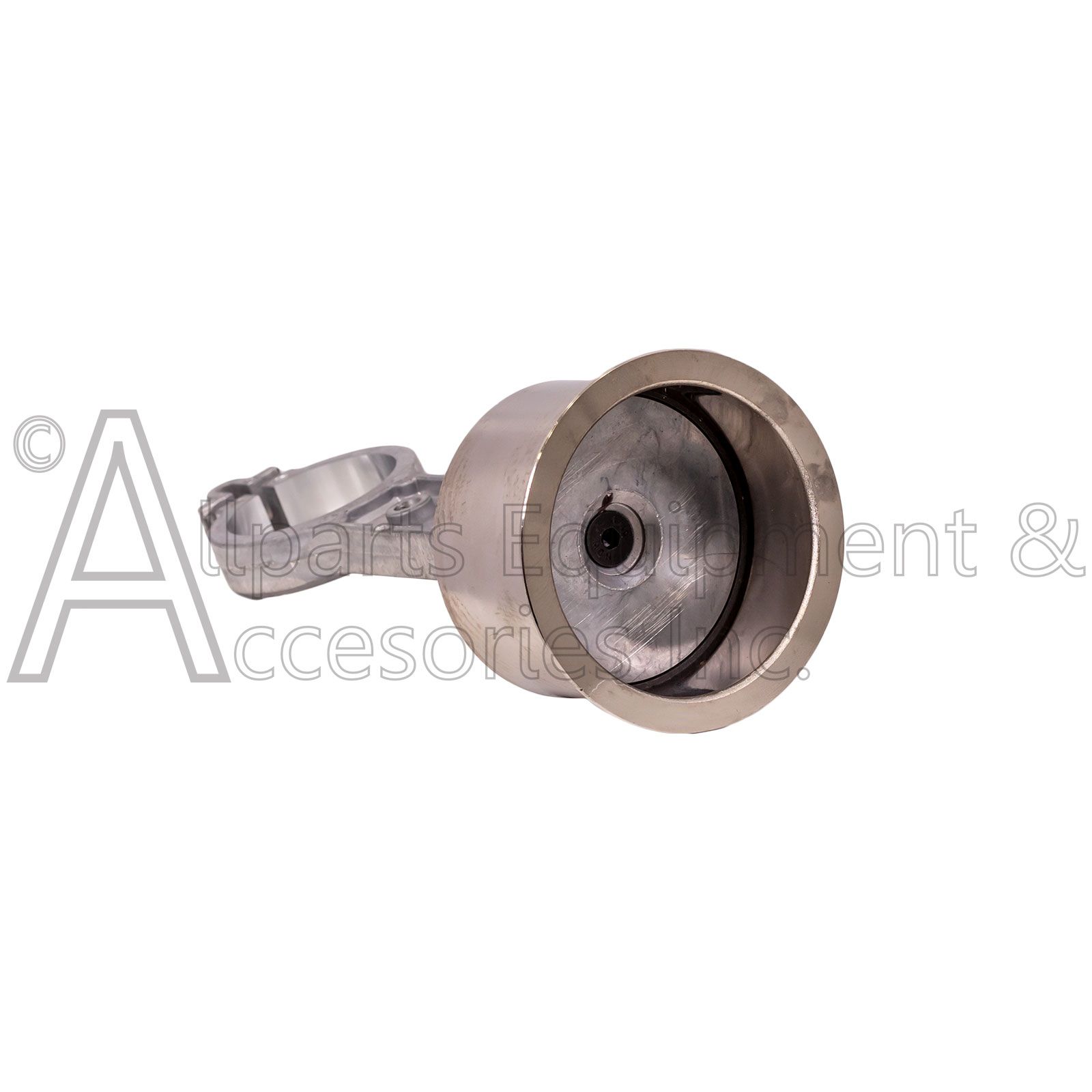

E106122 Piston Kits include the Connecting Rod, Piston Ring, Cylinder Sleeve and Gasket for the Oil Free air compressor pump.

The E106122 Piston and Cylinder Kit was used on air compressors manufactured by MAT Industries and sold as Husky, Porter Cable, Sears Craftsman and Sanborn branded equipment.

    E106122 Piston Kit approximate cylinder dimensions are as follows:
  • Inside Diameter: 63mm
  • Outside Diameter: 66mm
  • Outside Shoulder: 78mm
  • Total Height: 44.85mm

Some model numbers include:

    Porter Cable:
  • PXCMF226VW
  • F2226VWD
  • 585-819 / 585819
    Sears Craftsman:
  • 921167500 / 921.167500
  • 921166420 / 921.166420
  • 921166430 / 921.166430
  • 921164710 / 921.164710

Need Help? Call us:

1-269-685-4123
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Service Note:

The correct color codes spacer gasket must be used when completing the repair of your oil free air compressor pump for proper function and to prevent damage from occurring.

These specific colored “spacers gaskets” are used to control the proper clearance between the connecting rod cap and the valve plate in the compressor pump assembly.

It some cases BOTH spacer gaskets may need to be used.


If your original oil free compressor pump previously had a single-colored spacer in place, then you will need to use the same color spacer from this service kit.

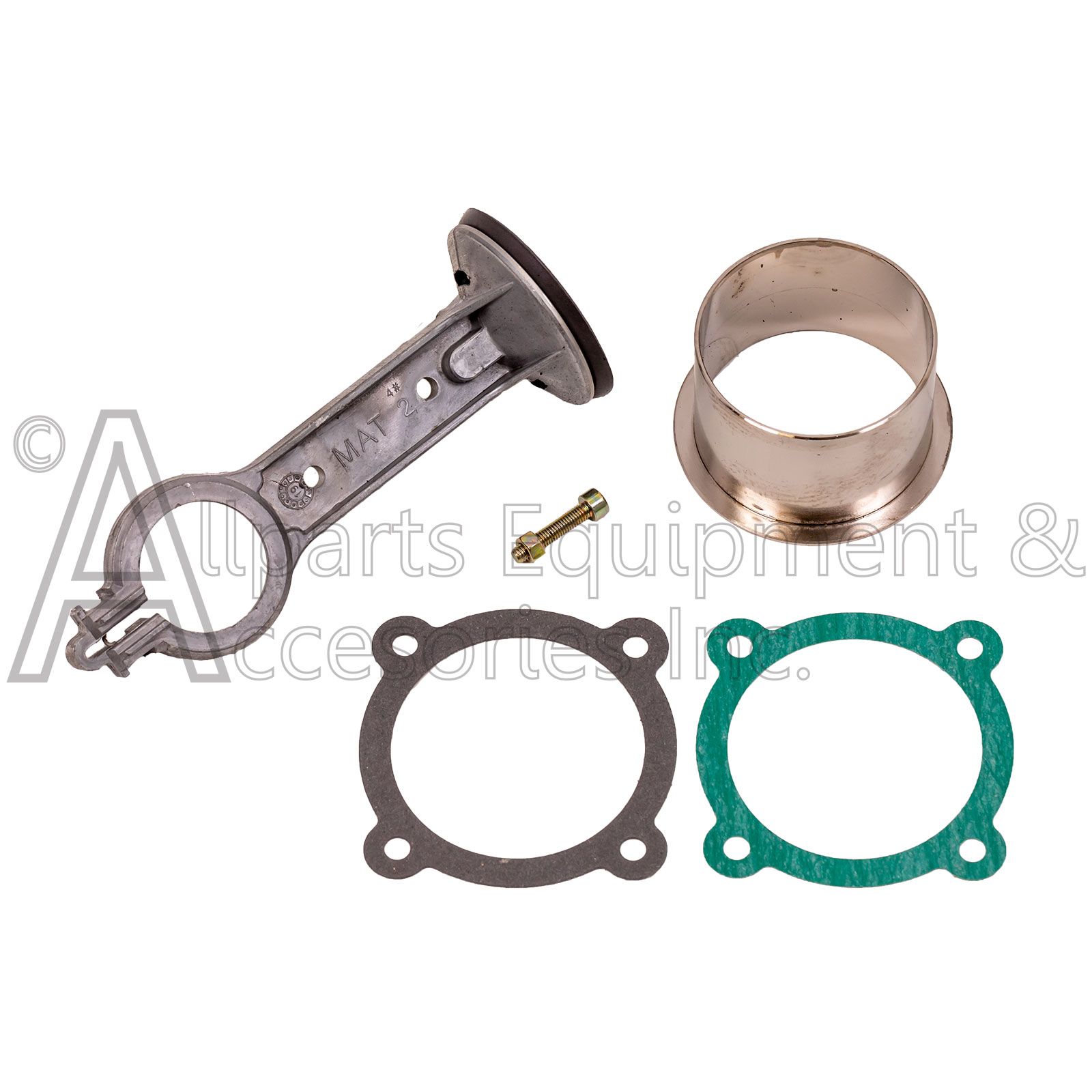

Each kit comes with two colored spacer gaskets with the following specifications.


Green Spacer Gasket approximately .012 - 0.15” in thickness.

Grey Spacer Gasket approximately .035 - 0.39” in thickness.

These colored gasket spacers when use is required are intended to be placed between the top of the pump casting and the cylinder sleeve.

The lip of the cylinder must sit on top of the colored spacer gasket to create the proper clearance.



*Important Note*

If the incorrect spacer gasket is used or if you place them on top of the cylinder sleeve instead of under it, the con-rod cap could possible strike the bottom of the valve plate assembly and cause severe damage.

During reassembly it is always recommended to “Rotate the pump by hand” before the final tightening of the compressor head.


This will insure proper piston rod to valve plate clearance has been achieved and that there is no binding of any reassembled components prior to the air compressor being plugged in and turning at the high RPM’s incurred and thus preventing any permanent damage.
