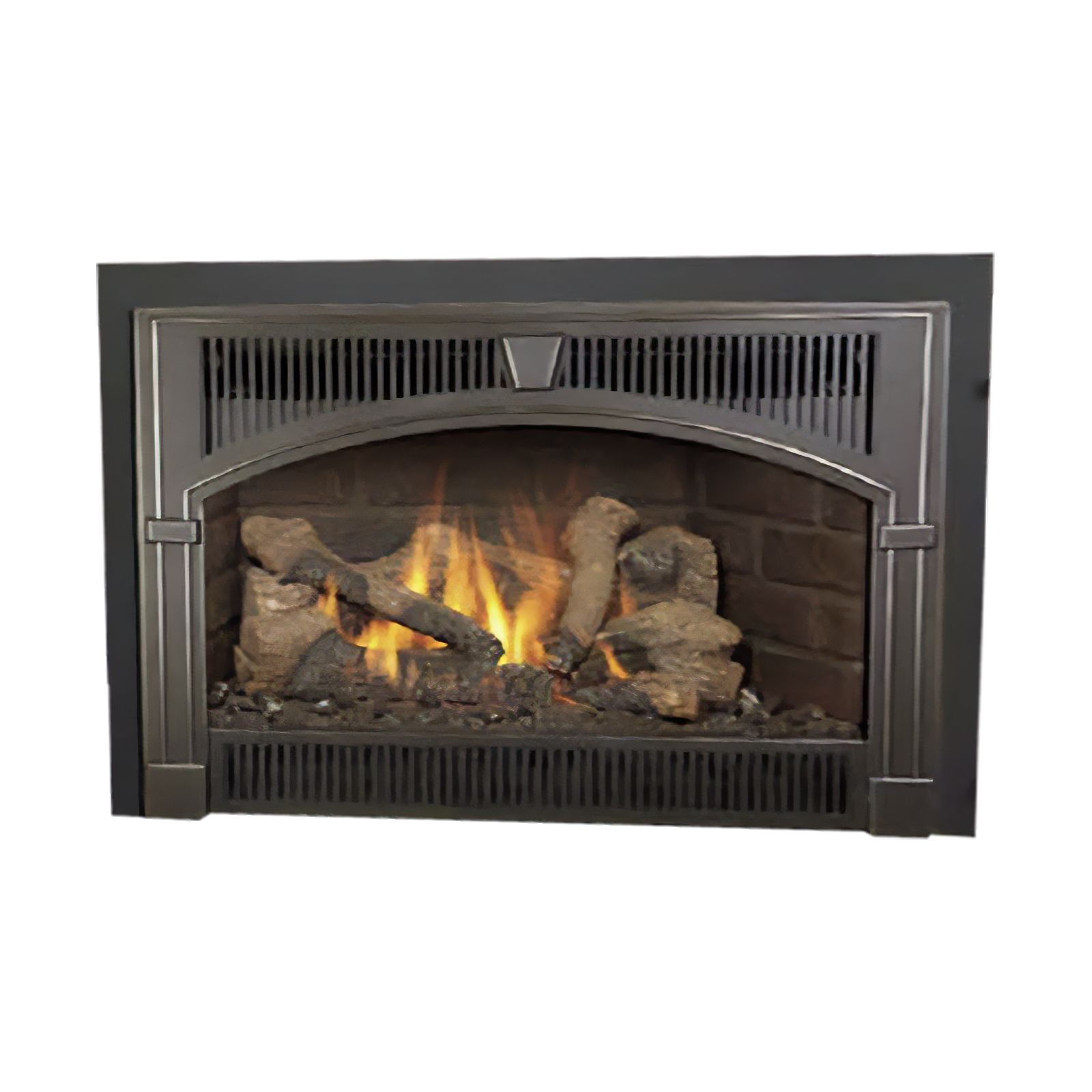

DVS-GSR2-NB Travis Industries Direct Vent Gas Fireplace Insert with Backup Battery, 31,000 BTU

The DVS-GSR2-NB is a Travis Industries direct vent fireplace insert with a maximum heat rating of 31,000 BTUs.

This Travis Industries fireplace insert is configurable to run on either natural gas or liquid propane gas. We recommend that a licensed and qualified installer handle any gas heating appliance conversions.

Features of the DVS-GSR2-NB

• Comes standard with a blower fan and a remote transmitter.
• Features a GreenSmart 2 pilot that alternates between standing and intermittent pilot modes.
• Variable heat Hi/Lo controls are easy to use to adjust the heater's output temperature.
• Battery backup system allows the fireplace to operate even during power outages.
• Comes from the manufacturer configured for use with natural gas.

Specifications

• Max. Heat Rating: 31,000 BTU/hr.
• Heating Coverage Area: 500 - 1,500 sq. ft.
• Blower Electrical Requirements: 115 volts, 1.5 amps, 60 hz.

Natural Gas Inlet Pressure:

• Max. Input Pressure: 7 in. W.C
• Min. Input Pressure: 5.5 in. W.C
• Max. Manifold Pressure: 3.5 in. W.C
• Min. Manifold Pressure: 1.6 in. W.C

Liquid Propane Gas Inlet Pressure:

• Max. Input Pressure: 13 in. W.C
• Min. Input Pressure: 11 in. W.C
• Max. Manifold Pressure: 11 in. W.C
• Min. Manifold Pressure: 2.9 in. W.C

Dimensions:

• Depth: 15 1/8 in.
• Height: 19 1/2 in.
• Width: 26 1/2 in.
• Weight: 115 lbs.
