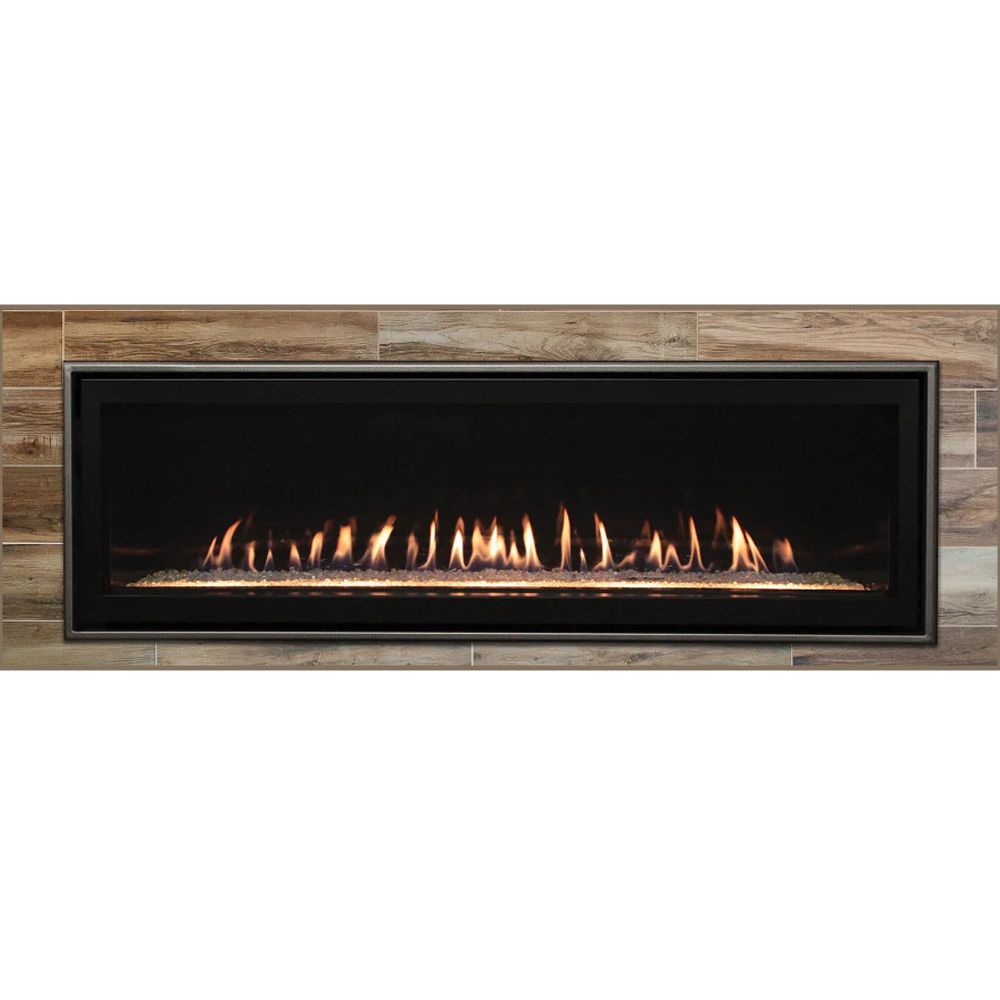

DVLL60BP90N-1 Boulevard 60-Inch Direct-Vent Fireplace, Natural Gas
Reference Item Only
Part Number
DVLL60BP90N-1
The DVLL60BP90N-1 is a liquid propane gas Boulevard fireplace from Empire Comfort Systems. This direct vent fireplace supports a maximum airflow input of 46,000 BTUs.
This Boulevard 60 in. fireplace features a multifunction pilot that can be remotely switched between standing pilot mode and intermittent pilot mode. This can be done with the DVLL60BP90N-1's multifunction remote.
The remote control and control box can also adjust the lighting, the burner flame, target temperature and blower speed on the DVLL60BP90N-1, along with several other fireplace functions.
A compatible remote and receiver should be included with the DVLL60BP90N-1 when purchased from the manufacturer.
Features of the DVLL60BP90N-1 Fireplace
- Multifunction Pilot with Standing and Intermittent Modes
- For Use with Natural Gas
- Vents air intake with outdoor vent
- Multifunction Remote and Receiver Compatible
- Wall-Mount Control Switch includes Backup Battery
Boulevard 60 Fireplace Specifications
Gas Type: Natural Gas
Gas Inlet Valve: 1/2 in. NPT
Maximum Gas Pressure: 14 in. W.C
Minimum Gas Pressure: 4.5 in. W.C
Maximum Airflow Input: 46,000 BTU/Hr.
Minimum Airflow Input: 31,000 BTU/Hr.
Orifice Type: #29 NG
Air Shutter: Fully Open
Height: 36 5/16 in.
Width: 73 in.
Depth: 18 5/8 in.
Write Your Own Review
While the R12908 can be used to replace the R11523 control board in this fireplace, modifications will have to be made. Please refer to our page on the R11523 for more details.
