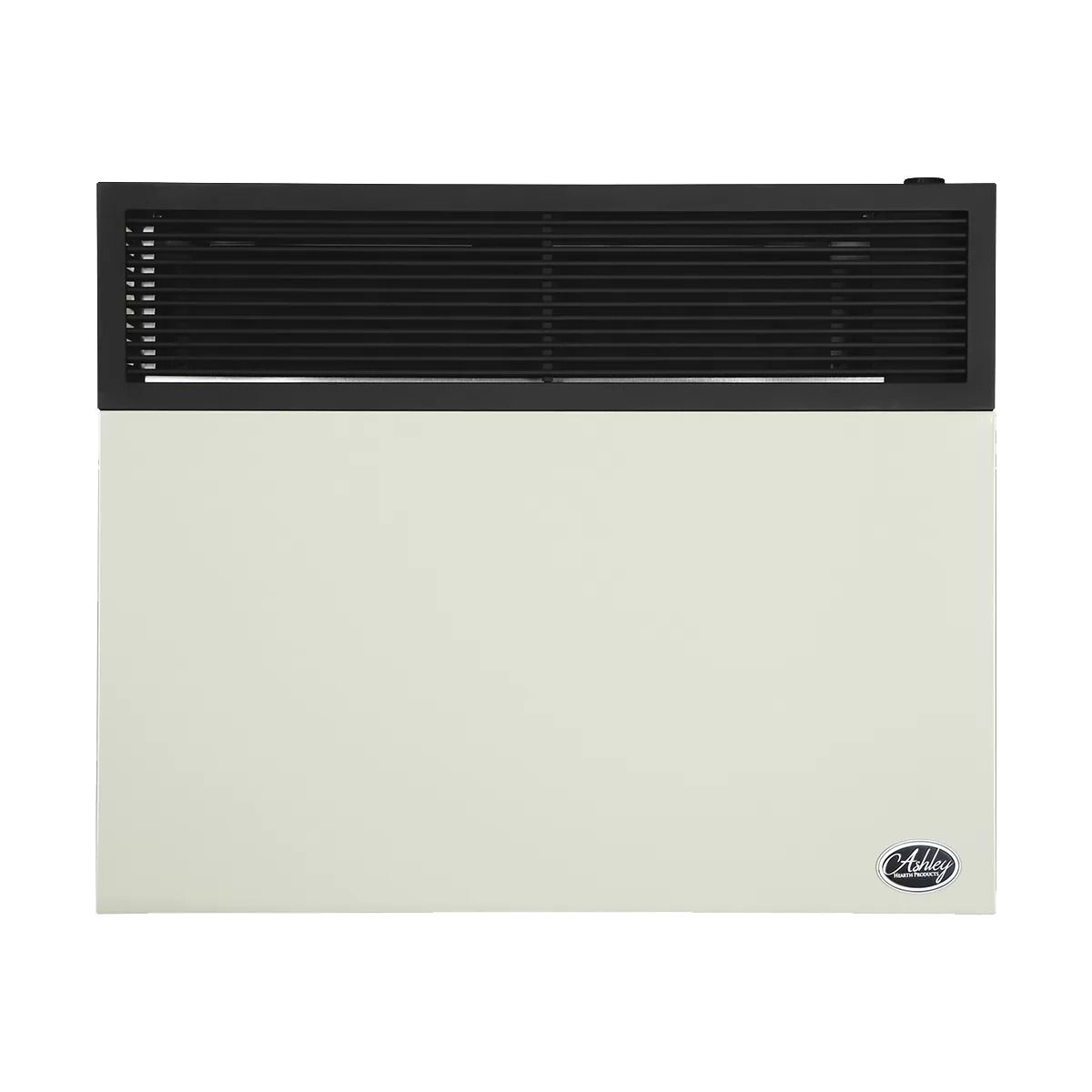

DVAG30L Direct Vent Liquid Propane Gas Heater - 25,000 BTU

The DVAG30L is a direct vent Ashley Hearth Products wall heater that runs on liquid propane gas. This wall heater mounts to an exterior wall with the included hardware, making it an efficient space-saving solution. The direct vent design means the DVAG30L pulls air from outside, which results in no interior air being used.

Note: The DVAG30L is a liquid propane gas (LPG) wall heater that should only ever be used with liquid propane gas. Installing and/or converting the DVAG30L should only ever be performed by a licensed installer.

Features of the DVAG30L Liquid Propane Wall Heater

• Comes standard with venting and mounting hardware
• Features an automatic thermostat for temperature adjustment.
• Uses a piezo ignition. No electricity required to ignite.
• Stainless steel ported burner runs quiet and is built to last.
• Vented design uses no room air for combustion.

Specifications

Fuel Type: Liquid Propane Gas (LPG)

Input Rating: 25,000 BTUs

Standard Heating Area: 826 sq. ft.

Ignition Type: Piezo Spark Ignition

Max. Gas Inlet Pressure: 14 in. W.C.

Min. Gas Inlet Pressure: 11 in. W.C

Pressure Regulator Settings: 10 in. W.C

Measurements

• Length: 8.74 in.
• Width: 32.28 in.
• Height: 26.30 in.
• Weight: 86 lbs.

Note: For further information, such as clearance requirements, please refer to the owner's manual for the DVAG30L wall heater.
