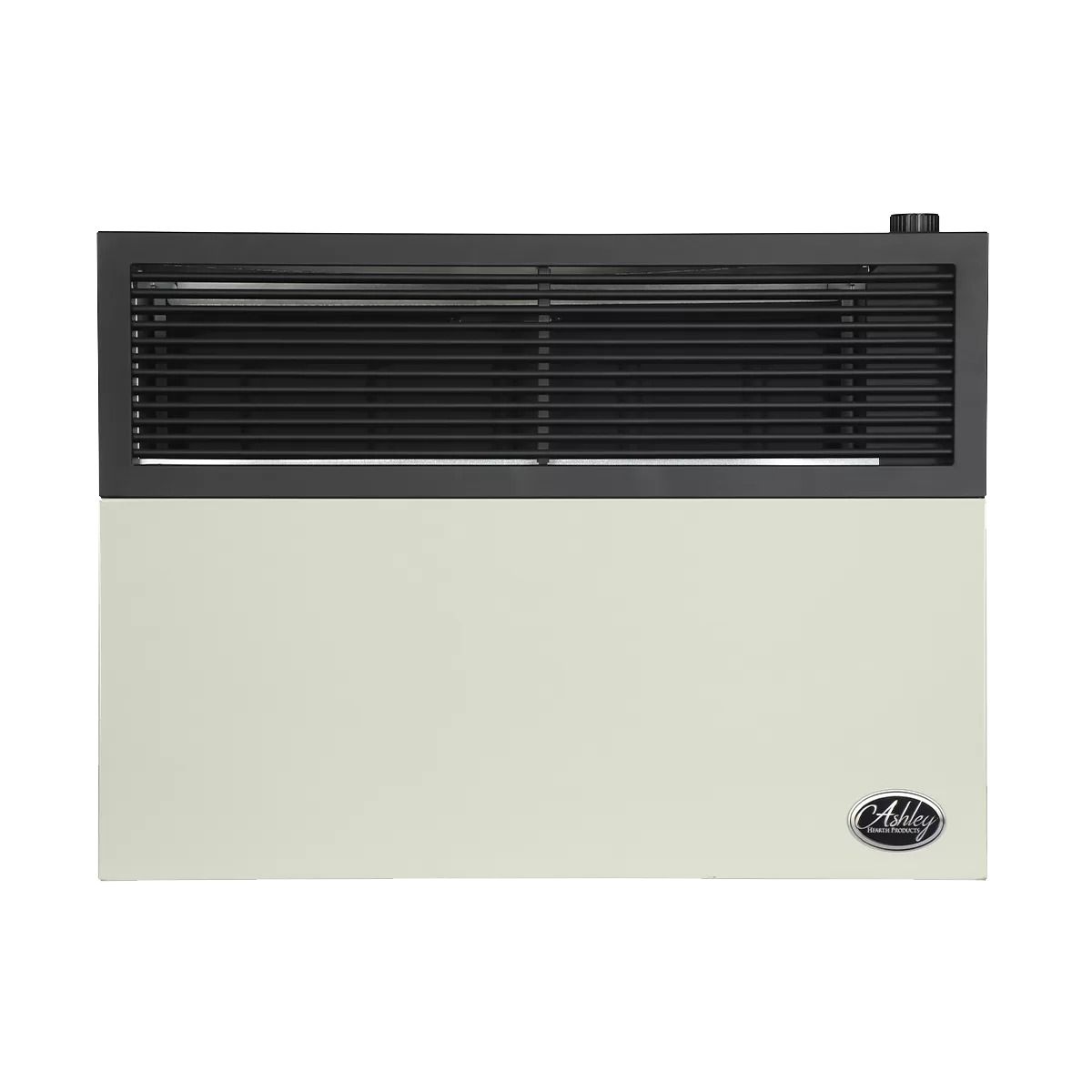

DVAG17N Direct Vent Natural Gas Heater - 17,000 BTU

The DVAG17N is a direct vent Ashley Hearth Products wall heater. This natural gas wall heater includes the hardware needed to mount the unit to an exterior wall, making it an efficient space-saving solution. This direct vent heater pulls air from outside and uses no interior air.

Note: The DVAG17N is a natural gas (NG) wall heater that uses natural gas only. Installing and/or converting the DVAG17N should only ever be performed by a licensed installer.

Features of the DVAG17N Natural Gas Wall Heater

• Comes standard with venting and mounting hardware
• Features an automatic thermostat that allows for temperature adjustment.
• Uses a piezo ignition that requires no external electricity source.
• Stainless steel ported burner runs quiet and is built to last.
• Vented design uses no interior room air for combustion.

Specifications

Fuel Type: Natural Gas (NG)

Input Rating: 17,000 BTUs

Standard Heating Area: 570 sq. ft.

Ignition Type: Piezo Spark Ignition

Max. Gas Inlet Pressure: 10.5 in. W.C.

Min. Gas Inlet Pressure: 7 in. W.C

Pressure Regulator Settings: 5 in. W.C

Measurements

• Length: 6.61 in.
• Width: 27.36 in.
• Height: 20 in.
• Weight: 43 lbs.

Note: For further information, such as clearance requirements, please refer to the owner's manual for the DVAG17N wall heater.
