DS1142E Synetek Controls Inc Ignition Control Module

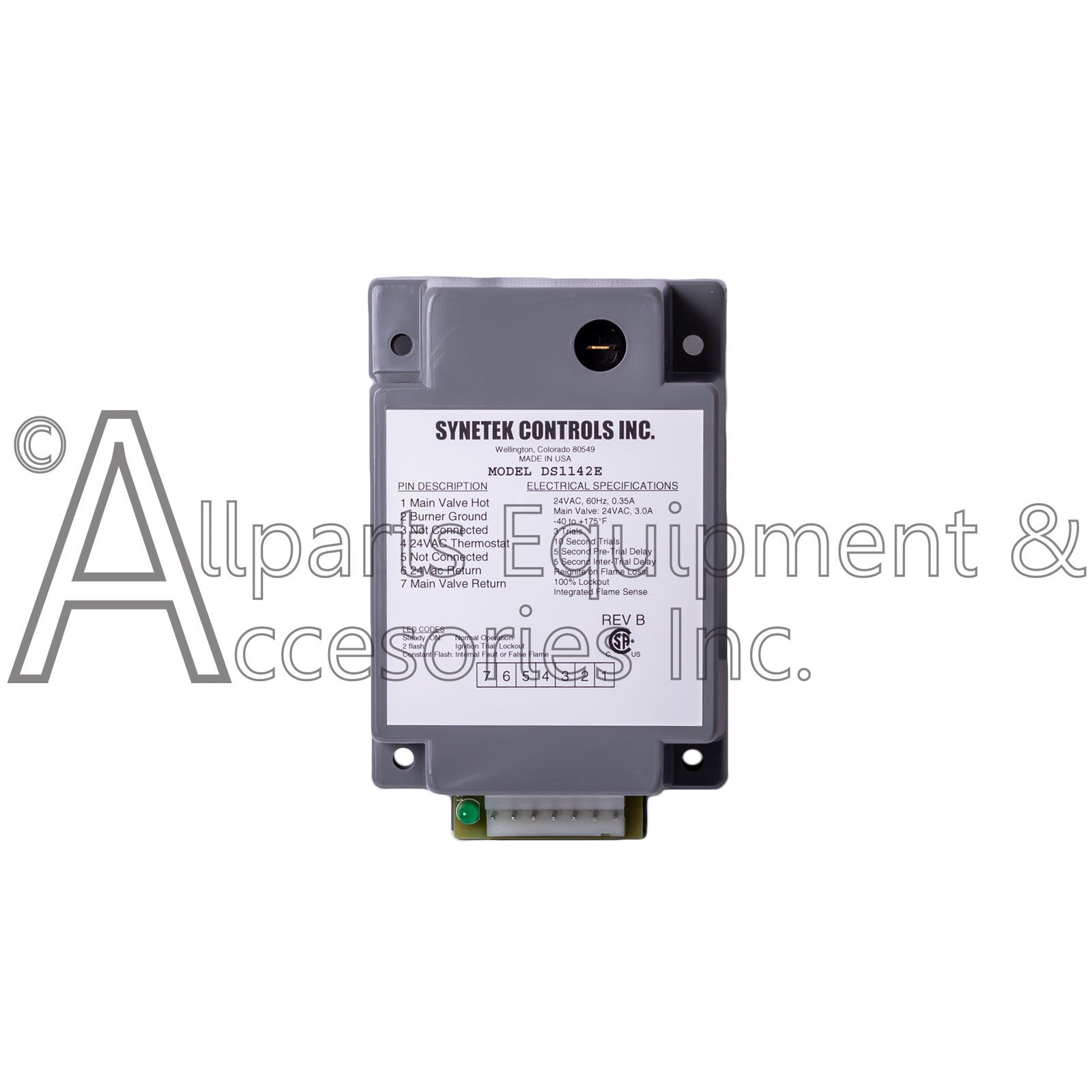

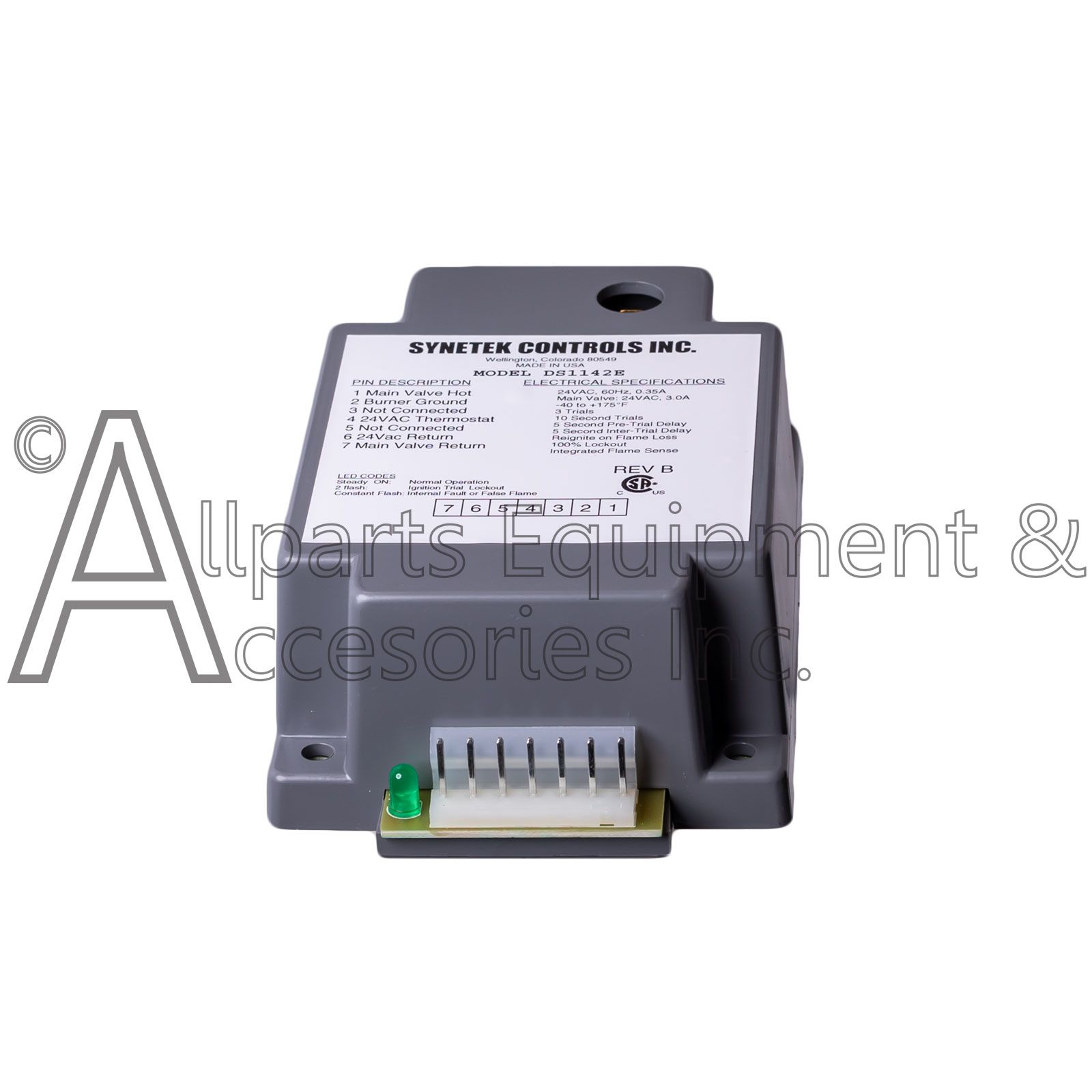

DS1142E Ignition Module Control is a Synetek Controls Inc original equipment replacement ignition module for many appliance ignition systems manufactured by various manufacturers and sold under several brand names.

The DS1442E Module was also used on the SunPak S25 and S34 Patio heaters

Electrical Specifications:

• Main Valve: 24VAC, 1 A Max
• Flame Sense Current: 1uA Min
• Temperature: -40 Degrees to +175 Degrees Fahrenheit
• Ignition Trials: 3 Ignition Trials @ 10 Second Duration each
• Pre-Purge Trial Delay: 5 seconds

• 24VAC+10/-15% 60Hz, 0.35A
• System Recycle on Flame loss
• 100% Lockout
• Integrated Flame Sense

DS1142E Pin Out Specifications

Pin Description:

• (1) Main valve Hot
• (2) Burner Ground
• (3) Not Connected
• (4) 24VAC Thermostat
• (5) Not Connected
• (6) 24VAC Return
• (7) Main Valve Return

LED Fault Codes:
