DS1072D Synetek Controls Inc Ignition Control Module
In stock
Part Number
DS1072D
$212.50

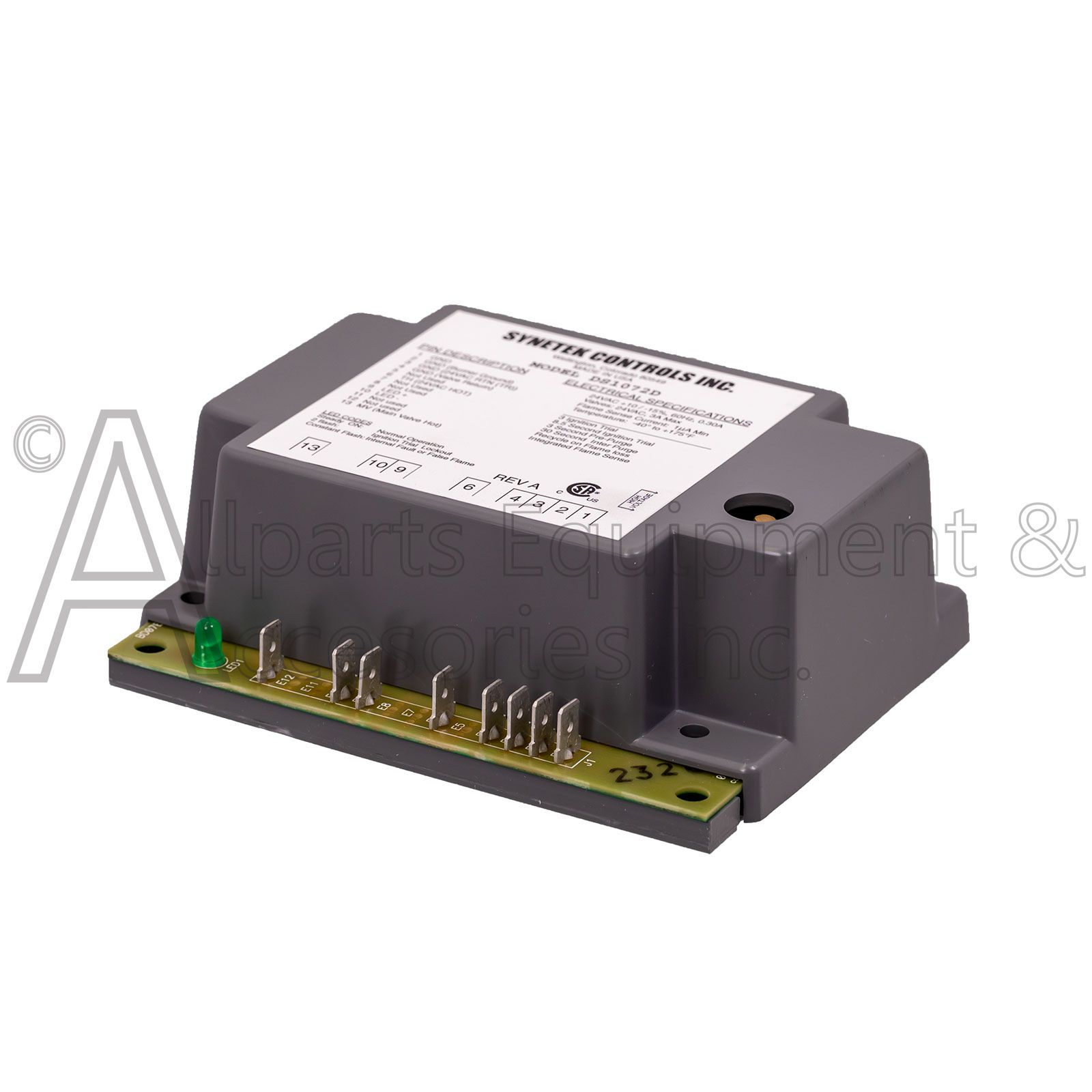

The DS1072D Ignition Module Control is a Synetek Controls Inc original equipment replacement ignition module for many appliance ignition systems manufactured by various manufacturers and sold under several brand names.
Electrical Specifications:
24VAC+10/-15% 60Hz, 0.30A
Valves 24VAC, 3A Max
Flame Sense Current 1uA Min
Temperature -40 Degree to +175 Degree Fahrenheit
3 Ignition Trials
8.5 Second Ignition Trial
3 Second Pre-Purge
30 Second Inter Purge
System Recycle on Flame loss.
Integrated Flame Sense
Electrical Specifications:
24VAC+10/-15% 60Hz, 0.30A
Valves 24VAC, 3A Max
Flame Sense Current 1uA Min
Temperature -40 Degree to +175 Degree Fahrenheit
3 Ignition Trials
8.5 Second Ignition Trial
3 Second Pre-Purge
30 Second Inter Purge
System Recycle on Flame loss.
Integrated Flame Sense

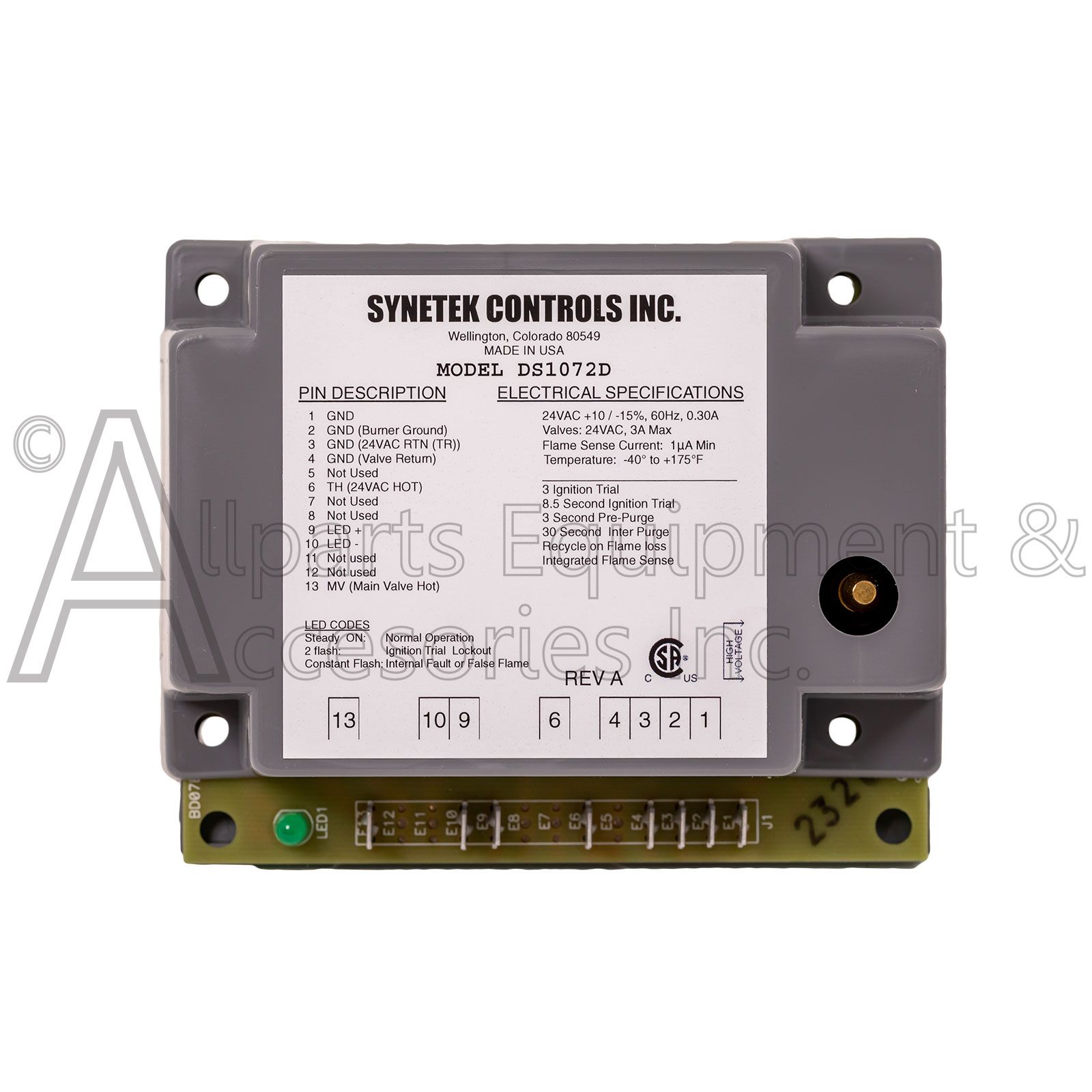

See associated photo for Pin Description
LED Flash Codes
Steady On / Normal Operation
2 Flash / Ignition Trial Lockout = Repower System
Constant Flash: Internal Fault or False Flame= Contact Service professional
