DH21070A Synetek Controls Inc Ignition Control Module

The DH21070A Ignition Module Control is a Synetek Controls Inc original equipment replacement ignition module for many appliance ignition systems manufactured by various manufacturers and sold under several brand names.

Electrical Specifications:

24VAC+10/-15% 60Hz, 0.35A
Flame Sense Current 1uA Min
Temperature -40 Degree to +175 Degree Fahrenheit
3 Ignition Trials
6 Second Ignition Trial
7 Second Pre-Purge
30 Second Inter Purge
34 Second Ignitor Warm-Up

Main Valve : 24VAC, 1 A Max

Ignitor 120VAC, 6A max

System Recycle on Flame loss.

Integrated Flame Sense

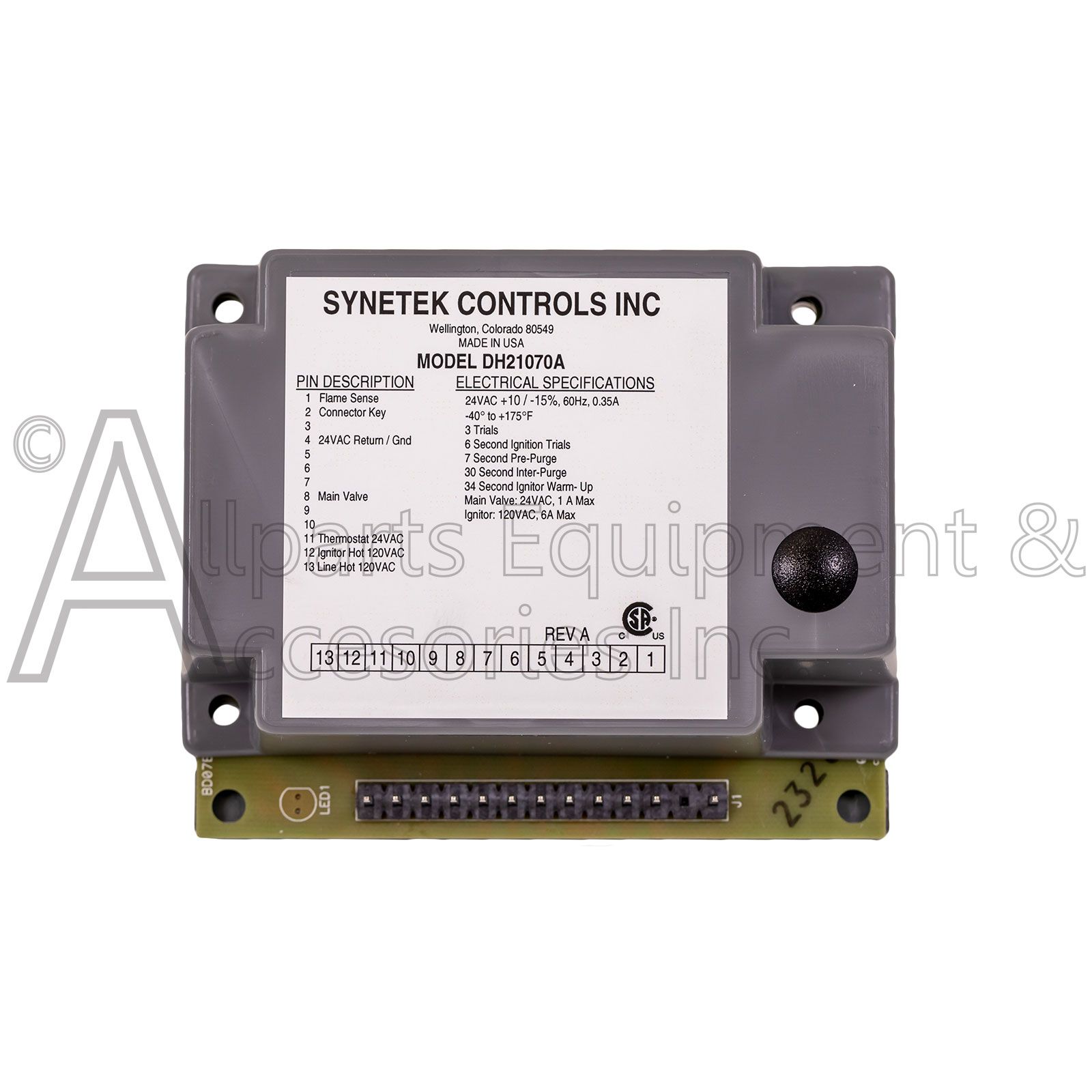

See associated photo for Pin Description



Manufactured by:
Synetek Controls Inc
Wellington, Colorado 80549
Made is the USA
