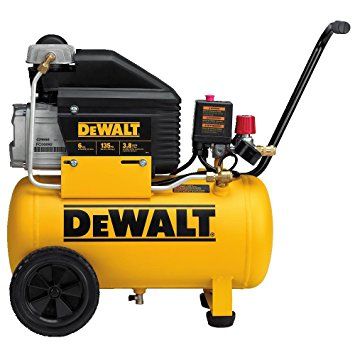

D55166 DEWALT HEAVY DUTY PORTABLE COMPRESSOR

D55166 is a heavy-duty wheeled portable air compressor manufactured by DeWalt.

D55166 Specifications:


Weight: 59.5 lbs (27 kg)

Height: 23.23" (590 mm)

Width: 10.04" (255 mm)

Length: 22.44" (569.9 mm)

Air Tank Capacity (Gallons): 6 Gallon (22.7 liters)

Approx Cut-In Pressure: 105 PSI (723. kPa)

Approx Cut-Out Pressure: 135 PSI (930.7 kPa)

SCFM @ 90 PSI (620.5 kPa): 3.8

Voltage: Single 120 Voltage

Minimum Branch Circuit Requirement: 15 Amp

Pump Oil Capacity: 10.6 oz. (313.5 ml)

Fuse Type: Time Delay

Regulated Pressure Rating (Approximate): 7-135 PSI

Quick Connect (E) Type: 1/4" (6.4 mm) Industrial

Duty Cycle: 5 min ON, 5 min OFF
