DESA MOTOR SERVICE KIT
DESA MOTOR SERVICE KIT

106800-01 DESA MOTOR SERVICE KIT

In stock
Part Number
106800-01
$212.50
Part Number: 106800-01
Shipping Weight: 1 Lbs

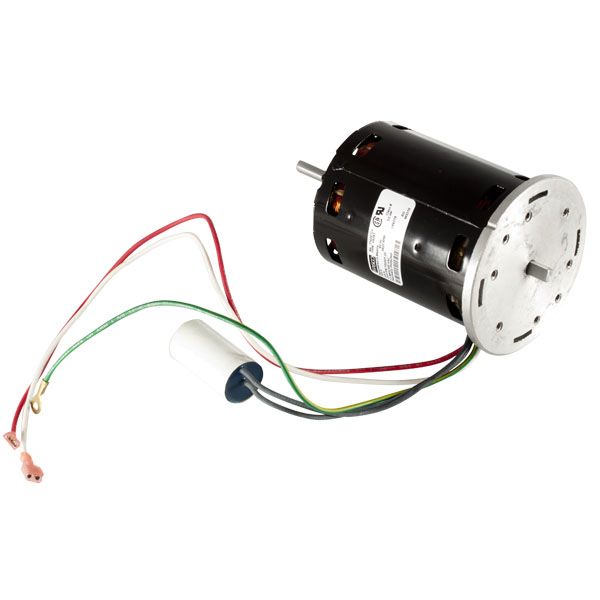

The 106800-01 Motor is a Class B motor rated at 3420 RPM's 120 Volts requiring 3.6 amps at 1/5 HP.

This 102001-21 Motor was one of the most popular motors that was used by Desa International on their HSI series line or portable kerosene heaters and portable diesel fire portable heaters between 115,000 btu's and 170,000 btu's.

Some of the popular brands of portable kerosene heaters that used the 102001-21 motor were the Reddy Heater Low Pressure Heaters as well as the Master Construction Heaters and Remington Heater brands of portable workspace and shop heaters.

The 106800-01 Motor has the following measurements:
Motor Length 4.600in
Motor shaft from Front of Housing 1.585in
Motor Shaft from Rear Housing .475in
Rear Motor Shaft Flats side to side thickness .186in
Mounting Studs Center to Center 2.5in
Motor Stud Size 1/4 x 20 x .300in

Some of the popular models that used the 105800-01 Motor are as follows:

Reddy Heater Models: RH100VT,R110C, R110B, R110BT, R115, R115C, R115DT, AP115MC, RM115, RH125T, RH125AT, RHD125T, RL125AT, RL125T, RE125T, RH140VT, R155B, R155C, R155D, RM155, R165A, R165AT, R165CT, R165DT, RH170, RH170AT, RHD170T, RE170T, RL170T, RL170AT and other Reddy Heater portable kerosene heaters.

Master Heater Models; M100VT, B110AP, B110B, B110BT, B115, B115DT, B115T, M125T, M125AT, MV140VT, B150J, B150JT, B155T,B155CT, B155DT, B165A, B165CT, B165DT, M170T, M170AT,B165AT and other Master portable kerosene and diesel fired heaters.

Remington Heater Models: REM110B REM110BT, REM115, REM115T, REM150E, REM155B
