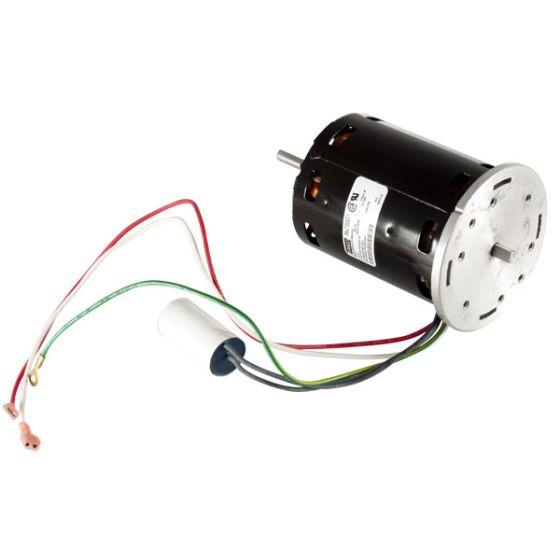

102001-21 DESA MOTOR SERVICE KIT

The 102001-21 Motor is a Class B motor rated at 3420 RPM's 120 Volts requiring 3.6 amps at 1/5 HP.

This 102001-21 Motor was one of the most popular motors that was used by Desa International on their HSI series line or portable kerosene heaters and portable diesel fire portable heaters between 115,000 btu's and 170,000 btu's.

Some of the popular brands of portable kerosene heaters that used the 102001-21 motor were the Reddy Heater Low Pressure Heaters as well as the Master Construction Heaters and Remington Heater brands of portable workspace and shop heaters.

The 102001-21 Motor has the following measurements:
Motor Length 4.600in
Motor shaft from Front of Housing 1.585in
Motor Shaft from Rear Housing .475in
Rear Motor Shaft Flats side to side thickness .186in
Mounting Studs Center to Center 2.5in
Motor Stud Size 1/4 x 20 x .300in

Some of the popular model that used the 102001-21 Motor are as follows:

Reddy Heater Models: RH100VT,R110C, R110B, R110BT, R115, R115C, R115DT, AP115MC, RM115, RH125T, RH125AT, RHD125T, RL125AT, RL125T, RE125T, RH140VT, R155B, R155C, R155D, RM155, R165A, R165AT, R165CT, R165DT, RH170, RH170AT, RHD170T, RE170T, RL170T, RL170AT and other Reddy Heater portable kerosene heaters.

Master Heater Models; M100VT, B110AP, B110B, B110BT, B115, B115DT, B115T, M125T, M125AT, MV140VT, B150J, B150JT, B155T,B155CT, B155DT, B165A, B165CT, B165DT, M170T, M170AT,B165AT and other Master portable kerosene and diesel fired heaters.

Remington Heater Models: REM110B REM110BT, REM115, REM115T, REM150E, REM155B

Service Note:

It is crucial to wait at least 3 minutes before attempting to restart a motor after it has been running. This 3-minute cool-down period allows the motor to dissipate heat and prevents potential damage to motor windings. Attempting to restart a motor in less than 3 minutes will often result in a motor "hum" and failure to start. This occurs because the motor's components are still too hot, and the motor may not have enough torque to overcome the residual heat and start turning.

The specific cool-down time required for a motor will vary depending on its size, type, and operating conditions. It's important to consult the motor's documentation or the manufacturer's recommendations for the appropriate cool-down period. However, the 3-minute rule is a good general guideline to follow.

Always follow the manufacturer's guidelines for cool-down periods and other maintenance procedures to ensure the safe and efficient operation of your motor.
