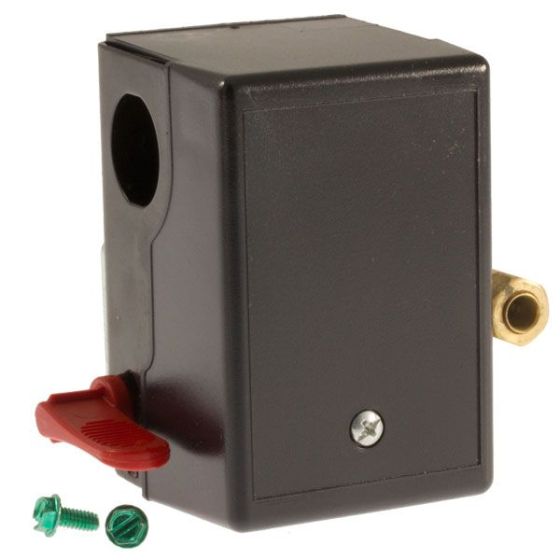

D22260 DeVilbiss Air Compressor Pressure Switch

The D22260 pressure switch is a preset compressor control used on portable and stationary air compressors manufactured by DeVilbiss Air Power Company and privately labeled for DeWalt and Porter Cable. This single-port Furnas-style pressure switch monitors tank pressure and controls the compressor motor.

The D22260 pressure switch automatically starts the compressor when tank pressure drops to the preset cut-in pressure and shuts the motor off once the cut-out pressure is reached. This pressure-based control maintains the operating pressure range required for normal air compressor cycling.

D22260 Specifications

• Component Type: Air compressor pressure switch
• Control Type: Preset pressure switch
• Port Configuration: Single port
• Cut-In Pressure: 110 PSI
• Cut-Out Pressure: 135 PSI
• Application: Portable and stationary air compressors

D22260 Features

• Preset pressure switch used for automatic compressor motor control
• Activates compressor operation when tank pressure drops to the cut-in level
• Stops compressor operation once the cut-out pressure threshold is reached
• Single-port Furnas style pressure switch configuration
• Used on DeVilbiss Air Power-manufactured air compressors
• Installed on compressors privately labeled for DeWalt and Porter Cable
