D30324 CYLINDER & RING KIT UMC MOTOR

In stock
Part Number
D30324
$30.21
Part Number: D30324
Shipping Weight: 0.6 Lbs

The D30324 Cylinder Sleeve and Piston Ring Replacement Kit fits many models of Oil-Free UMC Series Air Compressors made by DeWalt, Stanley, Black, and Decker.


This D30324 Cylinder Sleeve and Piston Ring Replacement kit will fit both the single-cylinder oil-free pumps made by DeVilbiss, Porter Cable, Sears Craftsman, DeWalt, Snap-On, Ex-Cell, Air America, Charge Air Pro, Grainger, Stanley Black and Decker and many other privately labeled air compressors.


This D30324 is the most current direct replacement OEM part and has the newest style coated cylinder sleeve.

The D30324 is the Cylinder Replacement Kit for the KK-4964 Connecting Rod Kit.

The D30324 approximate cylinder dimensions are as follows:


* Inside Diameter 1.875 inches
* Outside Diameter 1.955 inches
* Outside Shoulder:  2.305 inches
* Total Height: 1.630 inches

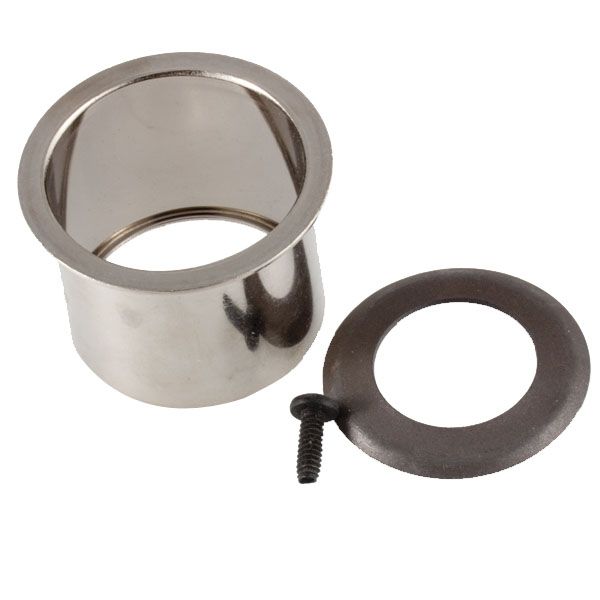

The D30324 Kit contains the following items:


* 1 Coated Cylinder Sleeve

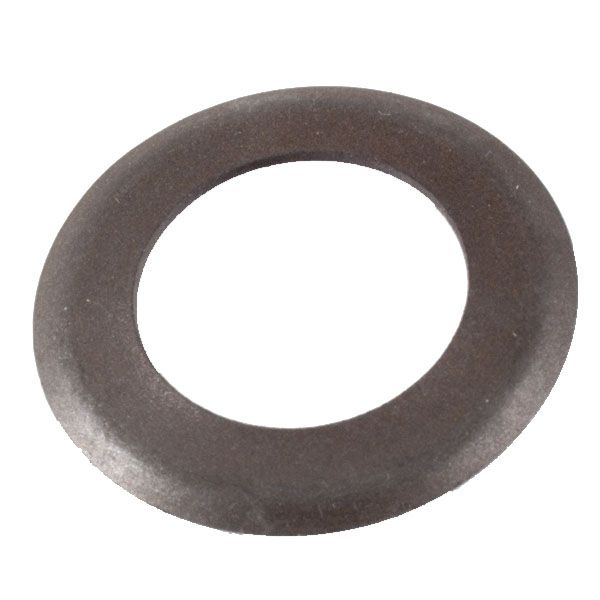

* 1 Coated Oil Free Piston Ring

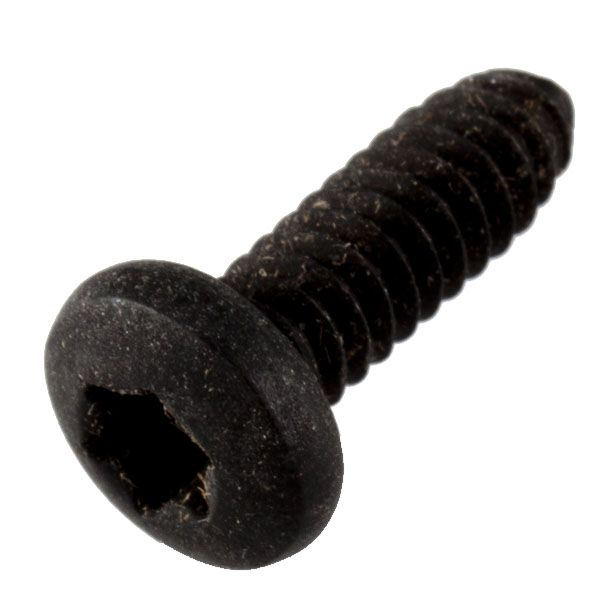

* 1 Piston Rod Cap Screw
* 1 Service instructions for replacing the connecting rod kit.

Need Help? Call us:

1-269-685-4123

Related Items



The following is a partial list of Portable Air Compressor  model numbers that are using the D30324 Oil Free Cylinder and Piston Ring Replacement kit .

These Oil-Free Air Compressors were sold under the various private label brand names and were sold by various stores including Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club, Sear’s stores, Carter Lumber, Canadian Tire, Northern Tool and Supply and other fine retailers throughout the country.


Westward Air Compressor Model # 3JR70 Type 1
Westward Air Compressor Model #4YD76 Type 0
Westward Air Compressor Model #4YD76 Type 2
Westward Air Compressor Model #4YD76 Type 3
Westward Air Compressor Model #4YD76 Type 4
Delta Portable UMC Air Compressor Model #66-202 Type 1
Delta Portable UMC Air Compressor Model #66-501 Type 1

The following is a partial list of Sears Craftsman Portable Air Compressor  model numbers that are using the D30324 Oil Free Cylinder and Piston Ring Replacement kit .
These Oil-Free Air Compressors were sold under the Craftsman private label brand names and were sold by various Sears stores throughout the country.

Sears Craftsman Portable Air Compressor 919-15214 Type 3
Sears Craftsman Portable Air Compressor 919-15214 Type 5
Sears Craftsman Portable Air Compressor 919-15216 Type 0
Sears Craftsman Portable Air Compressor 919-15235 Type 0
Sears Craftsman Portable Air Compressor 919-15316 Type 0
Sears Craftsman Portable Air Compressor 919-16536 Type 0
Sears Craftsman Portable Air Compressor 919-16536 Type 1
Sears Craftsman Portable Air Compressor 919-16536 Type 2
Sears Craftsman Portable Air Compressor 919-16536 Type 3
Sears Craftsman Portable Air Compressor 919-16536 Type 4
Sears Craftsman Portable Air Compressor 919-16537 Type 0
Sears Craftsman Portable Air Compressor 919-16537 Type 1
Sears Craftsman Portable Air Compressor 919-16537 Type 2
Sears Craftsman Portable Air Compressor 919-16537 Type 3
Sears Craftsman Portable Air Compressor 919-16537 Type 4
Sears Craftsman Portable Air Compressor 919-16538 Type 1
Sears Craftsman Portable Air Compressor 919-16538 Type 2
Sears Craftsman Portable Air Compressor 919-16538 Type 3
Sears Craftsman Portable Air Compressor 919-16538 Type 4
Sears Craftsman Portable Air Compressor 919-16644 Type 2
Sears Craftsman Portable Air Compressor 919-16724 Type 1
Sears Craftsman Portable Air Compressor 919-16724 Type 2
Sears Craftsman Portable Air Compressor 919-16724 Type 3
Sears Craftsman Portable Air Compressor 919-16724 Type 4
Sears Craftsman Portable Air Compressor 919-16724 Type 5
Sears Craftsman Portable Air Compressor 919-16725 Type 1
Sears Craftsman Portable Air Compressor 919-16725 Type 2
Sears Craftsman Portable Air Compressor 919-72412 Type 1
Sears Craftsman Portable Air Compressor 919-72412 Type 2
Sears Craftsman Portable Air Compressor 919-72412 Type 3
Sears Craftsman Portable Air Compressor 919-72412 Type 4
Sears Craftsman Portable Air Compressor 919-72412 Type 5
Sears Craftsman Portable Air Compressor 919-72413 Type 2

The following is a partial list of oil free air compressors under the Porter Cable label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Portable Cable Portable Air Compressor C2000-WK Type 0
Portable Cable Portable Air Compressor C2000-WK Type 1
Portable Cable Portable Air Compressor C2001-WK Type 0
Portable Cable Portable Air Compressor C2005 Type 0
Portable Cable Portable Air Compressor C2005 Type 2
Portable Cable Portable Air Compressor C2005 Type 3
Portable Cable Portable Air Compressor C2006 Type 0
Portable Cable Portable Air Compressor C2006 Type 2
Portable Cable Portable Air Compressor C2006 Type 3
Portable Cable Portable Air Compressor C2006 Type 4
Portable Cable Portable Air Compressor C2025 Type 1
Portable Cable Portable Air Compressor C2025 Type 2
Portable Cable Portable Air Compressor C3001 Type 0
Portable Cable Portable Air Compressor C3001 Type 01
Portable Cable Portable Air Compressor C3001 Type 1
Portable Cable Portable Air Compressor C3001 Type 2
Portable Cable Portable Air Compressor CF2600 Type 2
Portable Cable Portable Air Compressor CF2600 Type 2
Portable Cable Portable Air Compressor CFBN125A Type 2
Portable Cable Portable Air Compressor CFBN125A Type 3
Portable Cable Portable Air Compressor CFBN125A Type 3
Portable Cable Portable Air Compressor CFBN125N Type 0
Portable Cable Portable Air Compressor CFBN125N Type 0
Portable Cable Portable Air Compressor CFBN125N Type 1
Portable Cable Portable Air Compressor CFBN125N Type 1
Portable Cable Portable Air Compressor CFBN200A Type 2
Portable Cable Portable Air Compressor CFBN200A Type 2
Portable Cable Portable Air Compressor CFBN200A Type 3
Portable Cable Portable Air Compressor CFBN217A Type 1
Portable Cable Portable Air Compressor CFBN217A Type 1
Portable Cable Portable Air Compressor CFBN217A Type 2
Portable Cable Portable Air Compressor CFBN220 Type 0
Portable Cable Portable Air Compressor CFBN220 Type 0
Portable Cable Portable Air Compressor CFBN220 Type 0
Portable Cable Portable Air Compressor CFBN220 Type 1
Portable Cable Portable Air Compressor CFFN250B Type 2
Portable Cable Portable Air Compressor CFFN250B Type 3
Portable Cable Portable Air Compressor CFFN250B Type 4
Portable Cable Portable Air Compressor CFFN250N Type 0
Portable Cable Portable Air Compressor CFFN250N Type 1
Portable Cable Portable Air Compressor CFFN250N Type 2
Portable Cable Portable Air Compressor CFFN250N Type 2
Portable Cable Portable Air Compressor CFFN250T Type 0
Portable Cable Portable Air Compressor CFFN251N-P Type 0
Portable Cable Portable Air Compressor CFFN251T Type 0
Portable Cable Portable Air Compressor CP503 Type 1
Portable Cable Portable Air Compressor CP503 Type 2
Portable Cable Portable Air Compressor CP503 Type 3
Portable Cable Portable Air Compressor CPFAC2040P Type 2
Portable Cable Portable Air Compressor CPFAC2040P Type 3
Portable Cable Portable Air Compressor CPFAC2600P Type 2
Portable Cable Portable Air Compressor CPFAC2600P Type 2
Portable Cable Portable Air Compressor CPFAC2600P Type 3
Portable Cable Portable Air Compressor CPFAC2600P-WK Type 2

The following is a partial list of oil free air compressors under the Porter Cable label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Dewalt Black and Decker Portable Air Compressor D55141 Type 1
Dewalt Black and Decker Portable Air Compressor D55141 Type 2
Dewalt Black and Decker Portable Air Compressor D55141 Type 3

The following is a partial list of oil free air compressors under theEx-Cell label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Ex-Cell Black and Decker Portable Air Compressor
Ex-Cell Black and Decker Portable Air Compressor E2002 Type 0
Ex-Cell Black and Decker Portable Air Compressor E2002 Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFA2030SV Type 0
Ex-Cell Black and Decker Portable Air Compressor EXFA2030SV Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFA2030SV Type 2
Ex-Cell Black and Decker Portable Air Compressor EXFA2080SV Type 3
Ex-Cell Black and Decker Portable Air Compressor EXFA2080SV Type 4
Ex-Cell Black and Decker Portable Air Compressor EXFAC2080 Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFAC2080 Type 2
Ex-Cell Black and Decker Portable Air Compressor EXFAC23 Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFAC23 Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFAC24 Type 0
Ex-Cell Black and Decker Portable Air Compressor EXFAC24 Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFAC24 Type 2
Ex-Cell Black and Decker Portable Air Compressor EXFAC24 Type 4
Ex-Cell Black and Decker Portable Air Compressor EXFAC24 Type 5
Ex-Cell Black and Decker Portable Air Compressor EXFAC24-1 Type 1
Ex-Cell Black and Decker Portable Air Compressor EXFAC24-1 Type 2
Ex-Cell Black and Decker Portable Air Compressor EXFAC24-1 Type 3

The following is a partial list of oil free air compressors under the DeVilbiss Pro Air II label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit::

DeVilbiss Air Power Pro Air II Portable Air Compressor FAC28 Type 0
DeVilbiss Air Power Pro Air II Portable Air Compressor FAC28 Type 1


The following is a partial list of oil free air compressors under the DeVilbiss Air Power label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC28 Type 0
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC28 Type 1
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC3030 Type 0
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC3030 Type 0
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC3030 Type 0
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC3030 Type 1
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC3030 Type 1
DeVilbiss Air Power Charge Air Pro Portable Air Compressor HFAC3030 Type 1


The following is a partial list of oil free air compressors under the Ingersol Rand label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Ingersol Rand Pro 4000 Portable Air Compressor IRSFAC28 Type 0

The following is a partial list of oil free air compressors under the Porter Cable label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Dewalt Black and Decker Portable Air Compressor PAFAC2040 Type 1
Dewalt Black and Decker Portable Air Compressor PAFAC2040 Type 2
Dewalt Black and Decker Portable Air Compressor PAFAC2040 Type 3
Dewalt Black and Decker Portable Air Compressor PAFAC2040 Type 4


The following is a partial list of oil free air compressors under the Black and Decker label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Black and Decker Dewalt Portable Air Compressor RCK2-4 Type 1


The following is a partial list of oil free air compressors under the Satnley Black and Decker label and sold by various Sears, Home Depot, Lowes, Menards, Ace hardware, Costco, Wal-Mart, Sam’s Club and other fine retailers throughout the country currently using the D30324 Cylinder Sleeve and Piston Ring Replacement Kit:

Stanley Black and Decker Portable Air Compressor YD76B Type 1
Stanley Black and Decker Portable Air Compressor YD76B Type 2
Stanley Black and Decker Portable Air Compressor YD76B Type 3
Stanley Black and Decker Portable Air Compressor YD76B Type 4
