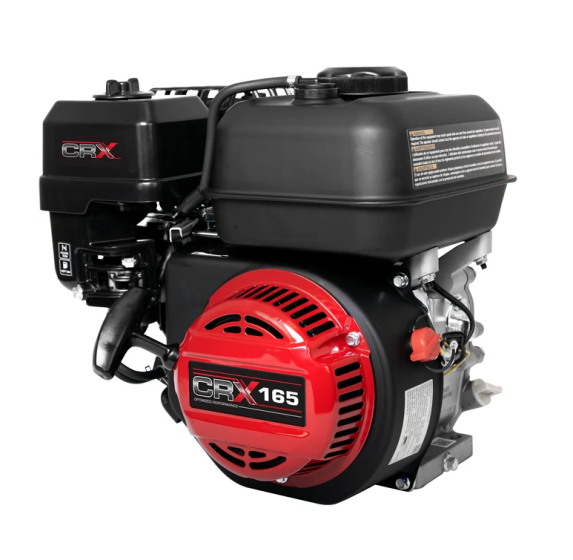

CRX165 Air Cooled, Single Cylinder, OHV Engine
Out Of Stock
Part Number
CRX165
$296.00
The CRX165 is an engine built for premium power and reliability, featuring a forged iron crankshaft, steel ball bearings, dual fuel filters and low oil shutdown.
- FEATURES
- Industrial tough mufflers and shields designed for improved sound quality and lower sound level
- Commercial-style dual element air filtration system helps maintain optimal power on dusty work sites
- Choke and fuel shut-off valve with integral fuel filter housing closely located for convenience and easy maintenance
- Cast iron cylinder decreases friction between mating parts as well as which helps keep the engine cool during extreme applications
- Heavy-duty steel, powder-coated fuel tank
- Precision-machined, forged iron crankshaft with heavy-duty steel ball bearings designed for low vibration and toughness required for the most extreme duty cycles
- Low oil auto-shutdown sensor prevents damage to the engine when oil volume is low
- Heavy-duty steel blower housing designed to protect vital components from impact under the toughest conditions
- Common Engine Applications:
- Pressure Washers
- Lawn and garden equipment
- Tillers / Cultivators
- Construction equipment
- Agricultural equipment
- Water pumps
- Forestry equipment
DESCRIPTION | RATING/PERFORMANCE |
Engine Type | Air Cooled, Single Cylinder, OHV |
Bore x Stroke | 2.68 in. x 1.77 in. (68 x 45 mm) |
Displacement | 9.9 cu in (163cm³) |
Compression Ratio | 8.3:1 |
Net Power | 3.4 kW @ 3600 rpm |
Net Torque | 8.9 Nm @ 2600 |
PTO Shaft Rotation | Counterclockwise |
Ignition System | Transistor Magneto |
Adjustable Throttle | Yes |
Starting System | Recoil |
Recoil Color | Red |
Key Start/E-Start | No |
Low Oil Shutdown | Standard |
Carburetor | Naturally Aspirated |
Lubrication System | Splash |
Governor System | Mechanical |
Air Cleaner | Dual Element |
Oil Capacity | 20.5 oz. |
Fuel Tank Size | 128 oz. (1.0 gal) |
Evaporative Emissions | Yes |
Exhaust Emissions | 50 State |
PTO Dimensions | 3/4 in. (19.05 mm) |
PTO Flange | SAE J609 Flange A |
Engine Dry Weight | 34 lbs. |
Warranty | 3yr Commercial |
