265-410 DeVilbiss Air Compressor Connecting Rod Assembly
In stock
$20.85
MSRP:
In stock
Part Number: 265-410
Compatible Brands: Craftsman, DeVilbiss, Porter Cable, Sears
Shipping Weight: 0.625 Lbs

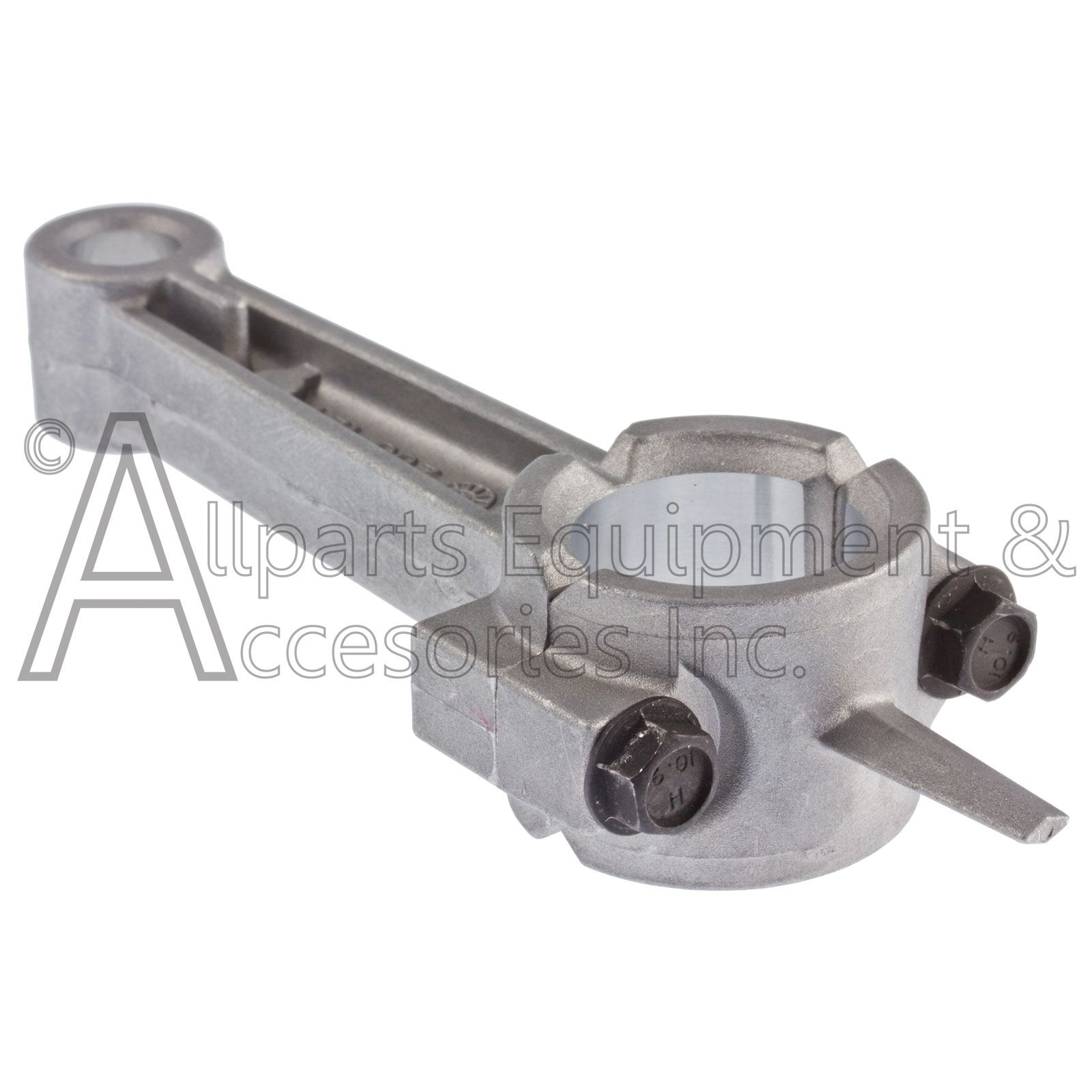

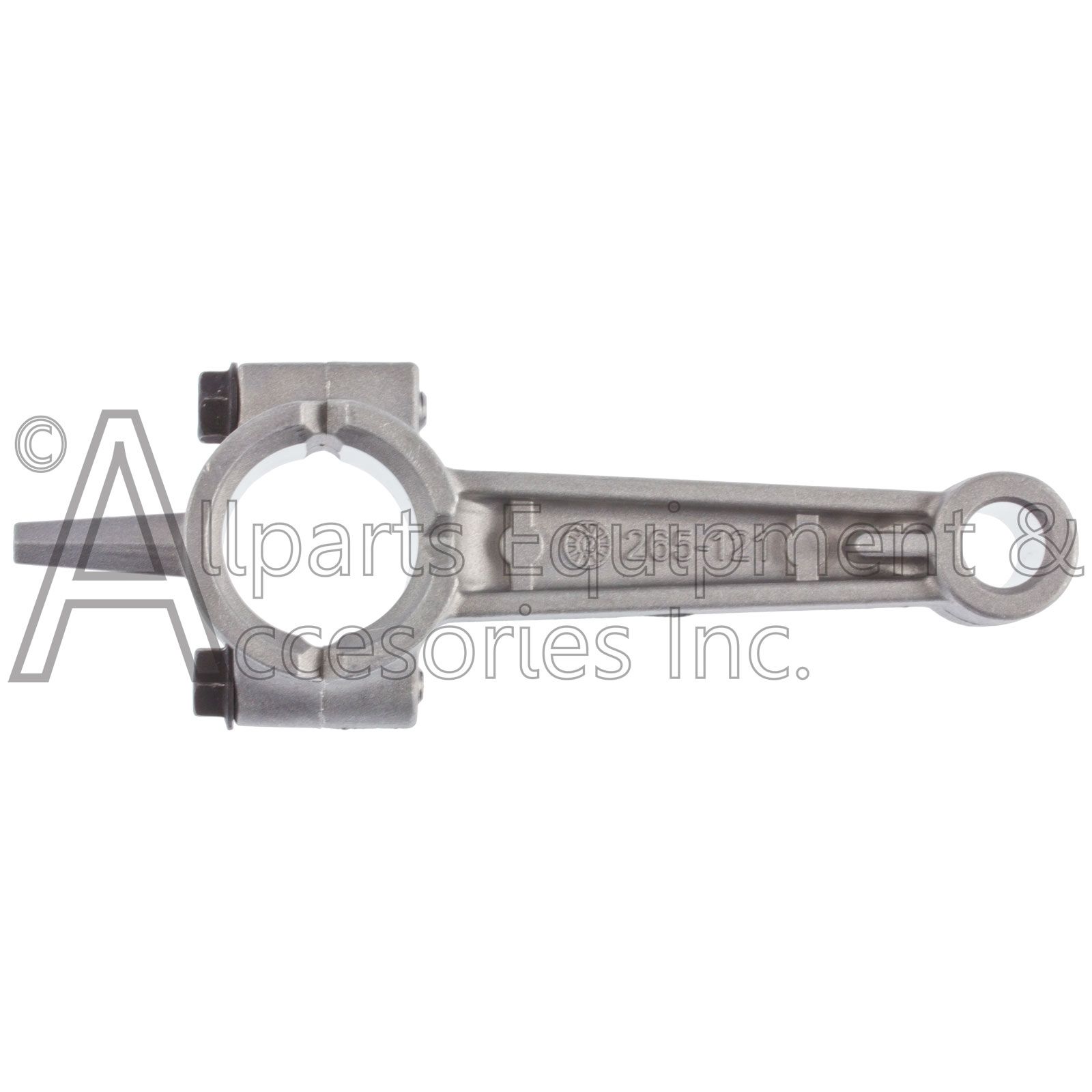

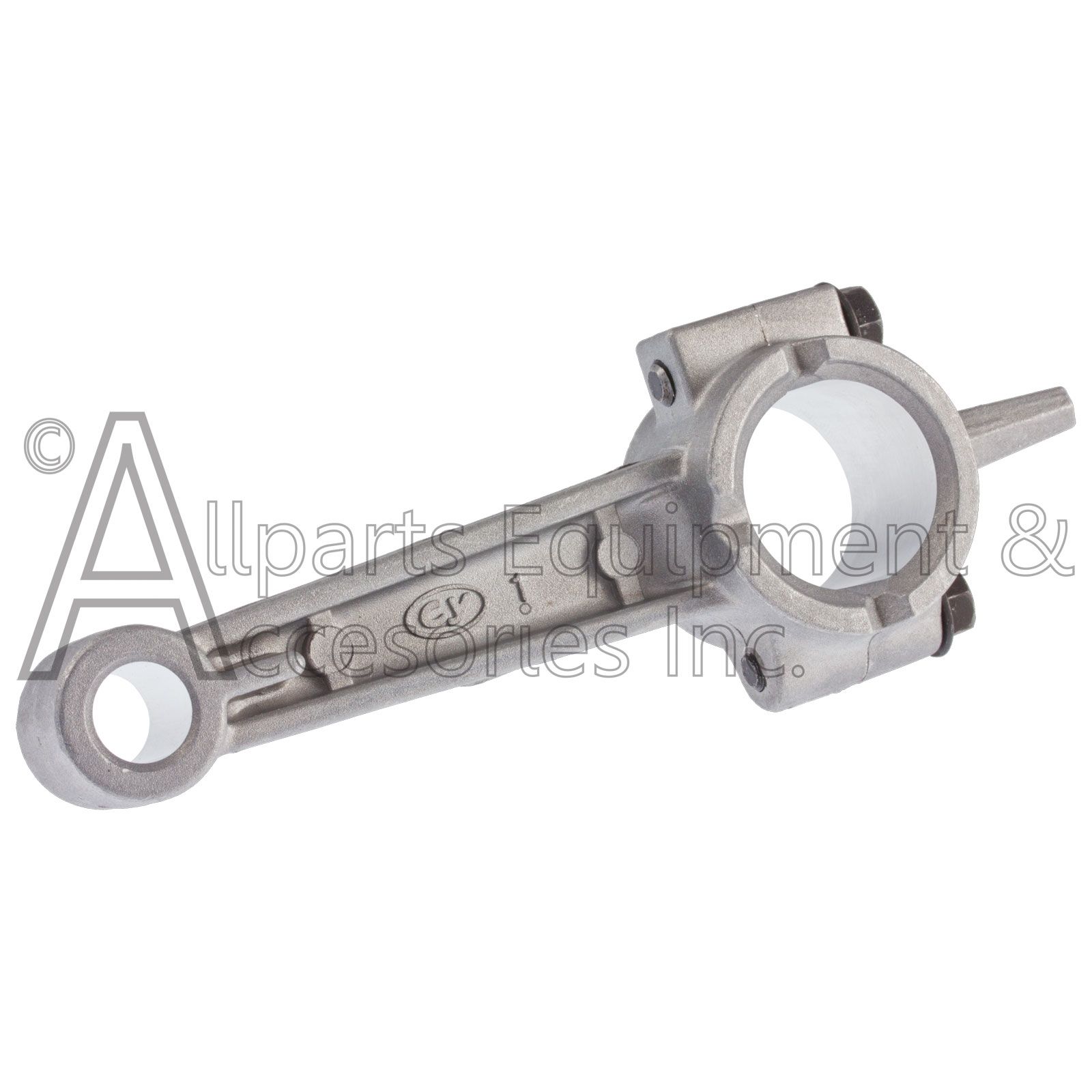

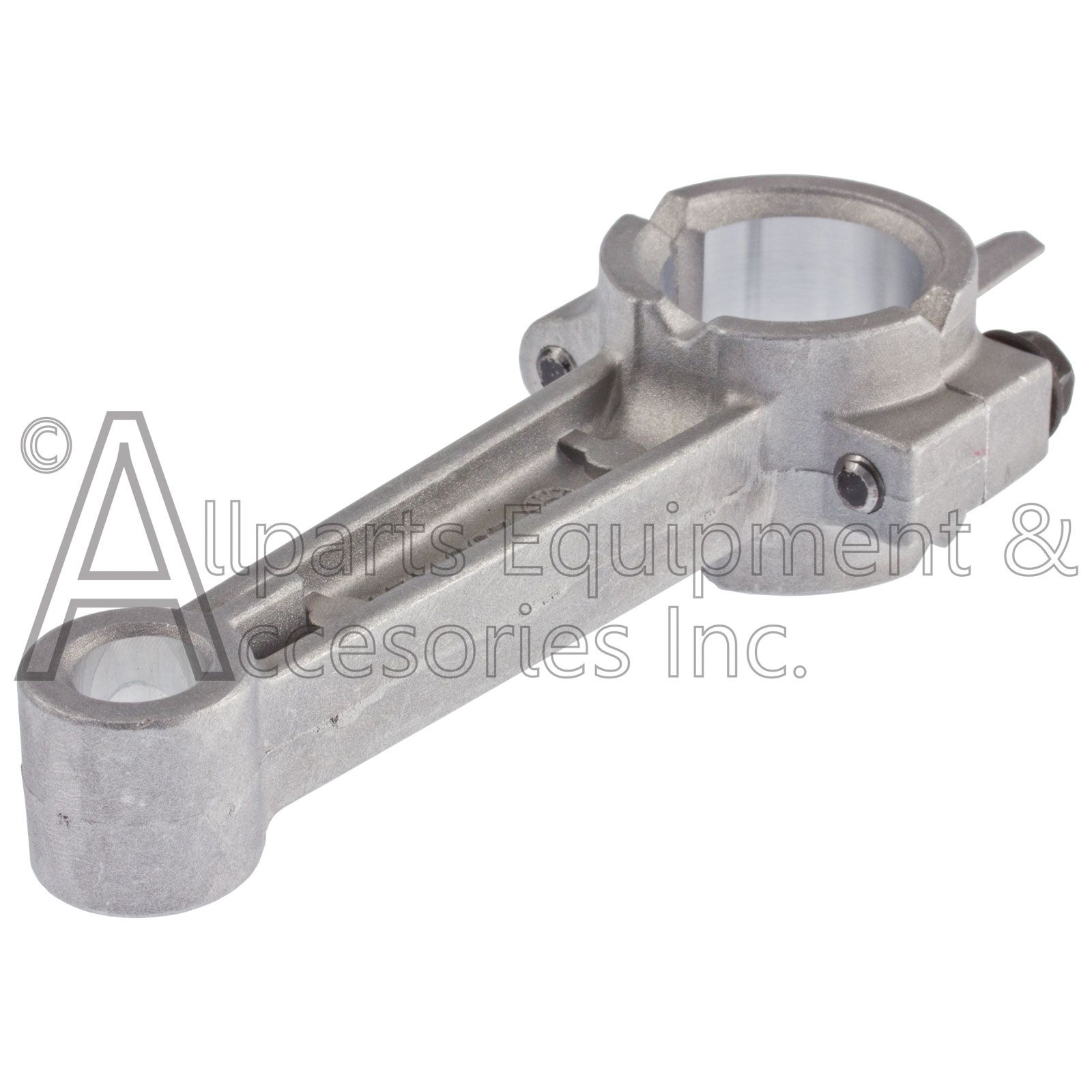

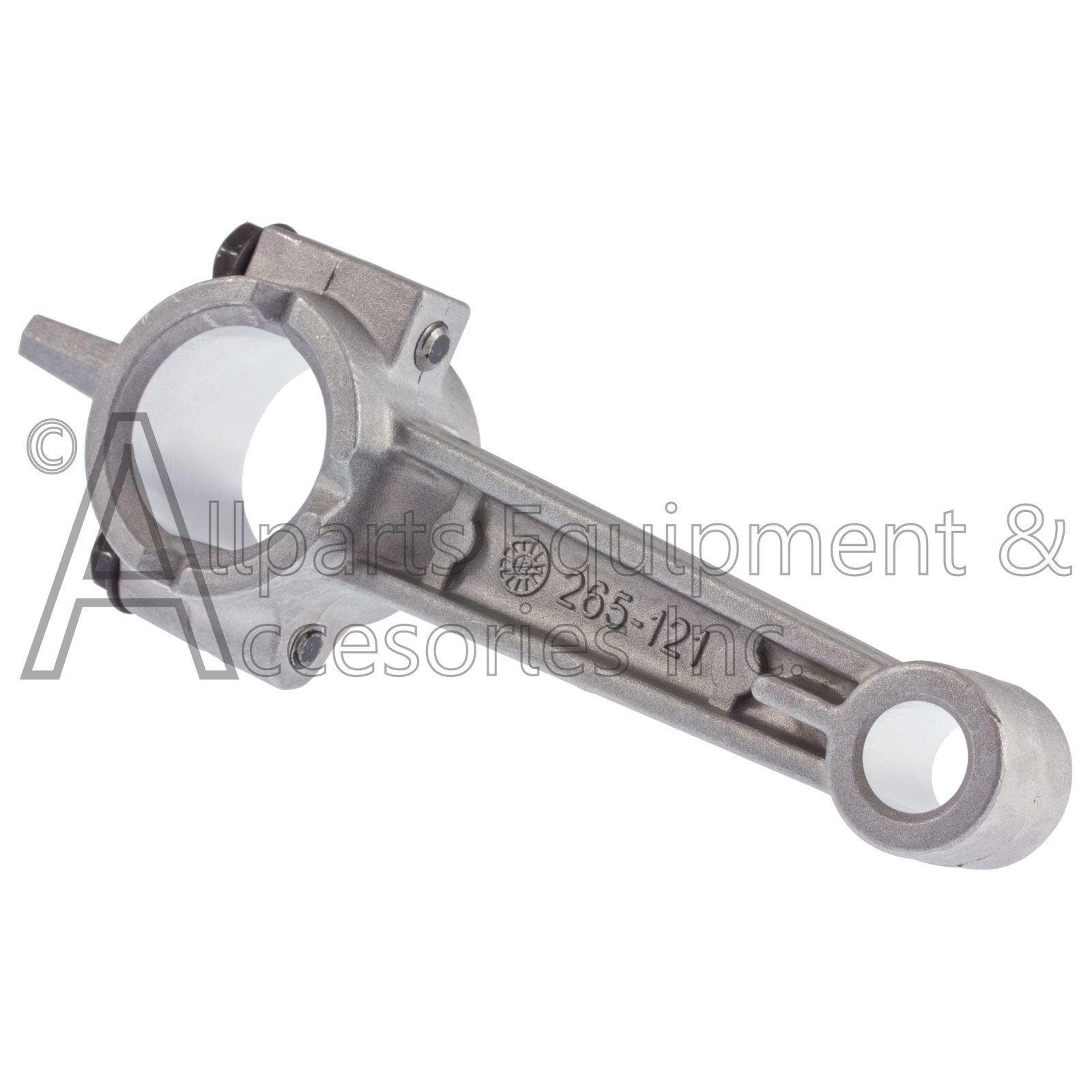

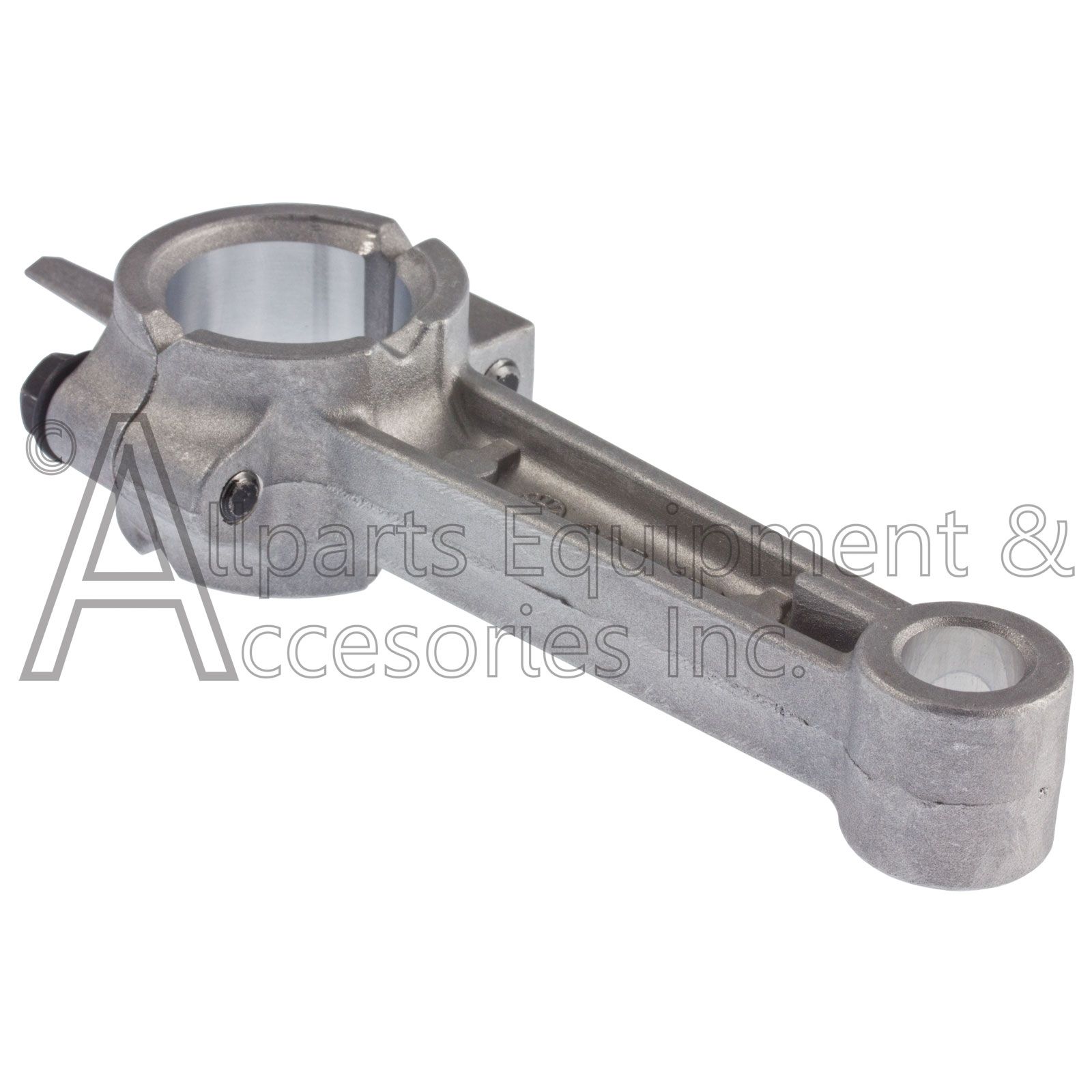

The 265-410 is a DeVilbiss connecting rod assembly designed for use in compatible twin cylinder oil-lubricated air compressor pumps. This assembly includes the connecting rod, rod cap, and two connecting rod bolts for complete replacement of the original component.
This connecting rod assembly is used as the replacement for rods marked with casting number 265-121 and is engineered for proper fit and function within the pump crankshaft system. It is designed to restore the mechanical linkage between the piston and crankshaft in compatible compressor pump configurations.
265-410 Specifications
- Component Type: Connecting Rod Assembly
- Included Components: Rod, Rod Cap, (2) Bolts
- Crankshaft Journal ID: 1.126" ± .0005
- Piston Pin ID: .48"
- Center to Center: 4"
- Bolt Torque Specification: 7–10 ft-lbs
265-410 Features
- Complete connecting rod assembly for compressor pump repair
- Includes rod cap and connecting rod bolts
- Designed for twin cylinder oil-lubricated pump systems
- Replaces connecting rods with 265-121 casting number
- Supports restoration of piston-to-crankshaft linkage
Related Items
Compatible Models
The 265-410 connecting rod assembly is known to properly fit and function with the following partial list of air compressor pumps:
- AC-0336
- AC-0336-1
- D22629
- D22623
- D22625
- D22624
- Z-D22629
- 1000003437
- DAC-4026
- DAC-4026-1
Additional compatibility may exist for other brands and models manufactured using the same connecting rod assembly. Always verify compatibility by confirming your unit’s model number and part diagram.
Compatible Models
The 265-410 connecting rod assembly is known to properly fit and function with the following partial list air compressors:
- 66-750 Type 0
- 919-15725 Type 1
- 919-15726 Type 0
- 919-18419 Type 0
- 919-18419 Type 1
- 919-18419 Type 2
- 919-18543 Type 1
- 919-18695 Type 1
- 919-19540 Type 0
- 919-19541 Type 0
- 919-19541 Type 1
- 919-19541 Type 2
- 919-19541 Type 3
- 919-72728 Type 0
- 919-72728 Type 2
- 919-72800 Type 0
- 919-72800 Type 1
- ACBL320 Type 0
- ACBL320 Type 2
- ACBL320 Type 3
- ACBL320 Type 4
- ACBL520 Type 0
- ACBL520 Type 1
- ACBL530VP Type 2
- ACBL530VP Type 3
- ACBL530VP Type 4
- ACBL5G20 Type 0
- ACBL5G20 Type 2
- ACBL5G20 Type 3
- ACBL5G20HP Type 0
- ACBL660V Type 0
- ACBL660V Type 1
- ACBL760V Type 0
- ACSL530RVP Type 3
- AFL2512 Type 0
- AFL2512 Type 1
- AFL2520 Type 0
- AFL2520 Type 1
- AFL320 Type 0
- AFL320 Type 1
- AFL520 Type 0
- AFL520 Type 1
- AFL560V Type 1
- AFL560V Type 2
- AFL560V Type 3
- AFL5G20 Type 0
- AFL660V Type 0
- AFL660V Type 1
- ATCL4520 Type 0
- ATCL4520 Type 2
- BACL4520 Type 0
- BACL4520 Type 2
- C5510 Type 0
- C7501M Type 0
- CPL55GH8W Type 0
- CPL6025 Type 1
- CPLC7060V Type 0
- CPLC7060V Type 1
- CPLC7060V Type 2
- EXL5020 Type 0
- EXL6560V Type 0
- EXLC5G20 Type 0
- EXLC7060V Type 0
- HL6560V Type 0
- HL6560V Type 1
- HL7060V Type 0
- IMCL4520 Type 0
- IMCL4520 Type 2
- IR25E20AD Type 0
- IR35E20AD Type 1
- IR35E20AD Type 2
- IR4E20AD Type 0
- IR5E20AD Type 0
- IR5E20AD Type 1
- IR5E20AD Type 2
- IR5E30AD Type 0
- IR5E30AD Type 1
- IR5E30AD Type 2
- IR5E60VAD Type 0
- IR5E60VAD Type 1
- IR5G20AD Type 0
- IR6E60VAD Type 0
- IRC4E20AD Type 0
- IRC4E20AD Type 1
- IRC5E20AD Type 0
- IRC5E20AD Type 1
- IRC5E60VAD Type 0
- IRC5E60VAD Type 1
- IRC6E60VAD Type 0
- IRL5020 Type 0
- IRL5G20 Type 0
- IRL5G20 Type 2
- IRL5G20 Type 3
- IRL6520 Type 0
- IRL6530 Type 0
- IRL6530 Type 1
- IRL6560V Type 0
- IRLC5020 Type 0
- IRLC6520 Type 0
- IRLC6560V Type 0
- IRLC6560V Type 1
- L2512 Type 0
- L2512 Type 1
- L2520 Type 0
- L2520 Type 1
- L320 Type 0
- L320 Type 1
- L320 Type 2
- L320 Type 3
- L320 Type 4
- L420 Type 0
- L5020 Type 0
- L520 Type 0
- L520 Type 1
- L520 Type 2
- L530 Type 0
- L530 Type 1
- L560V Type 0
- L560V Type 1
- L560V Type 2
- L560V Type 3
- L5G20 Type 0
- L5G20 Type 2
- L5G20 Type 3
- L6520 Type 0
- L6530 Type 0
- L6530 Type 1
- L6560V Type 0
- L660V Type 0
- L660V Type 1
- L660V Type 2
- L660V Type 3
- PALC520 Type 0
- PALC520 Type 1
- PALC560V Type 1
- PALC6520 Type 0
- PALC6560V Type 0
- PALC6560V Type 1
- PALC7060V Type 0
- PRL5020 Type 0
- PRLC5020 Type 0
- RA4E20AD Type 0
- RA5E20AD Type 0
- RA5E20AD Type 1
- RA5E20AD Type 2
- RA5E60VAD Type 0
- RA5E60VAD Type 1
- RA6E60VAD Type 0
- RAC5E20AD Type 0
- RAC5E20AD Type 1
- RAC5E60VAD Type 0
- RAC5E60VAD Type 1
- RAL5020 Type 0
- RAL5G20 Type 0
- RAL5G20 Type 2
- RAL5G20 Type 3
- RAL6520 Type 0
- RAL6560V Type 0
- RALC5020 Type 0
- RALC6520 Type 0
- RALC6560V Type 0
- RALC6560V Type 1
- SDS2E8DCD Type 0
- SDS2E8DCD Type 1
- SDS5G8D Type 0
- SDS5G8D Type 1
Additional compatibility may exist for other brands and models manufactured using the same connecting rod assembly. Always verify compatibility by confirming your unit’s model number and part diagram.
No Reviews Yet
Only registered users can write reviews. Please Sign in or create an account
The 265-121 part number is the casting number that was stamped into the connecting rods that were used by DeVilbiss Air Power Company.
This 265-121 Connecting rod fits many different models of air compressor that were made by DeVilbiss Air Power Company for nearly 30 years and was only the main compressor pump that was used by Sears for their line of Craftsman air compressors.
This 265-121 Connecting rod fits many different models of air compressor that were made by DeVilbiss Air Power Company for nearly 30 years and was only the main compressor pump that was used by Sears for their line of Craftsman air compressors.
