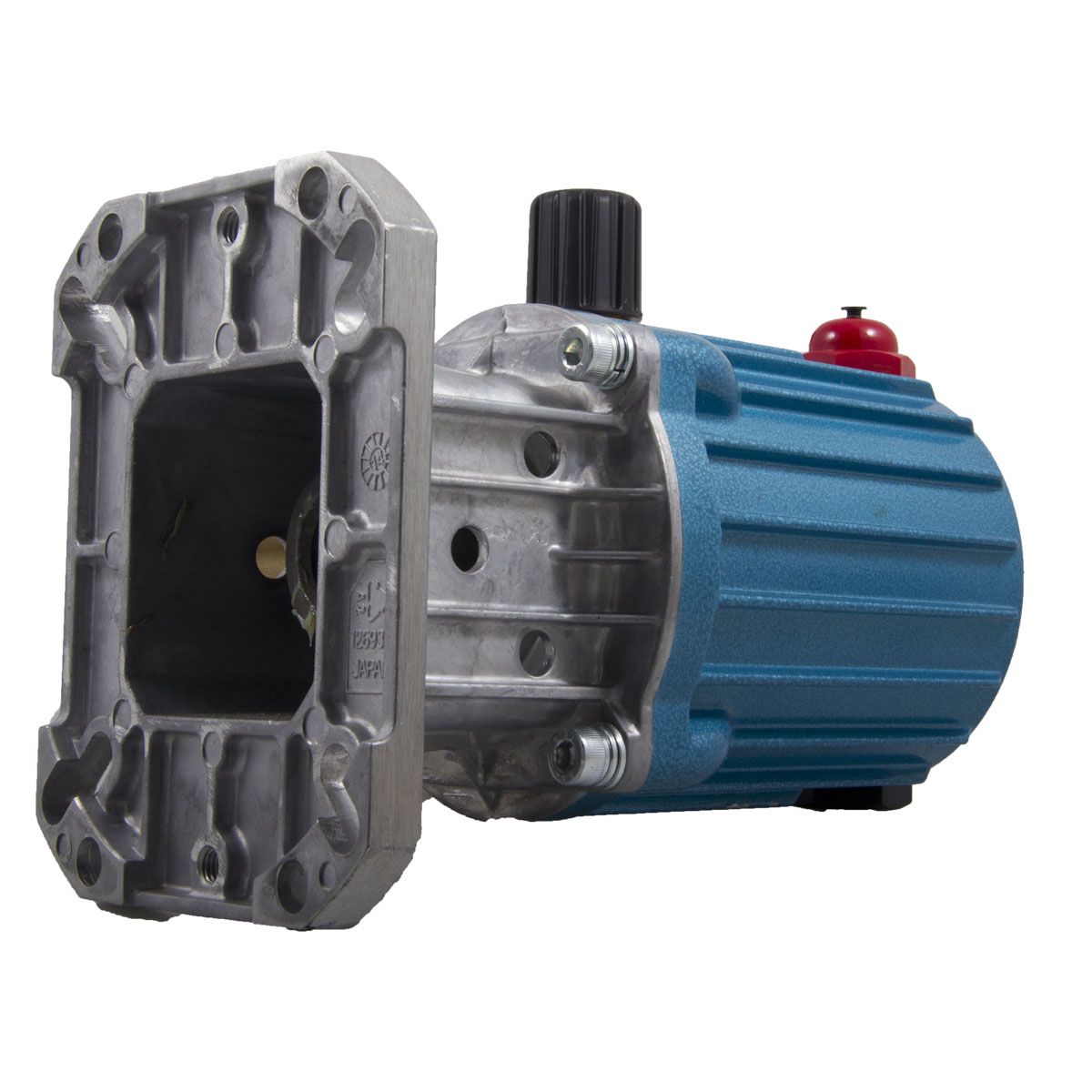

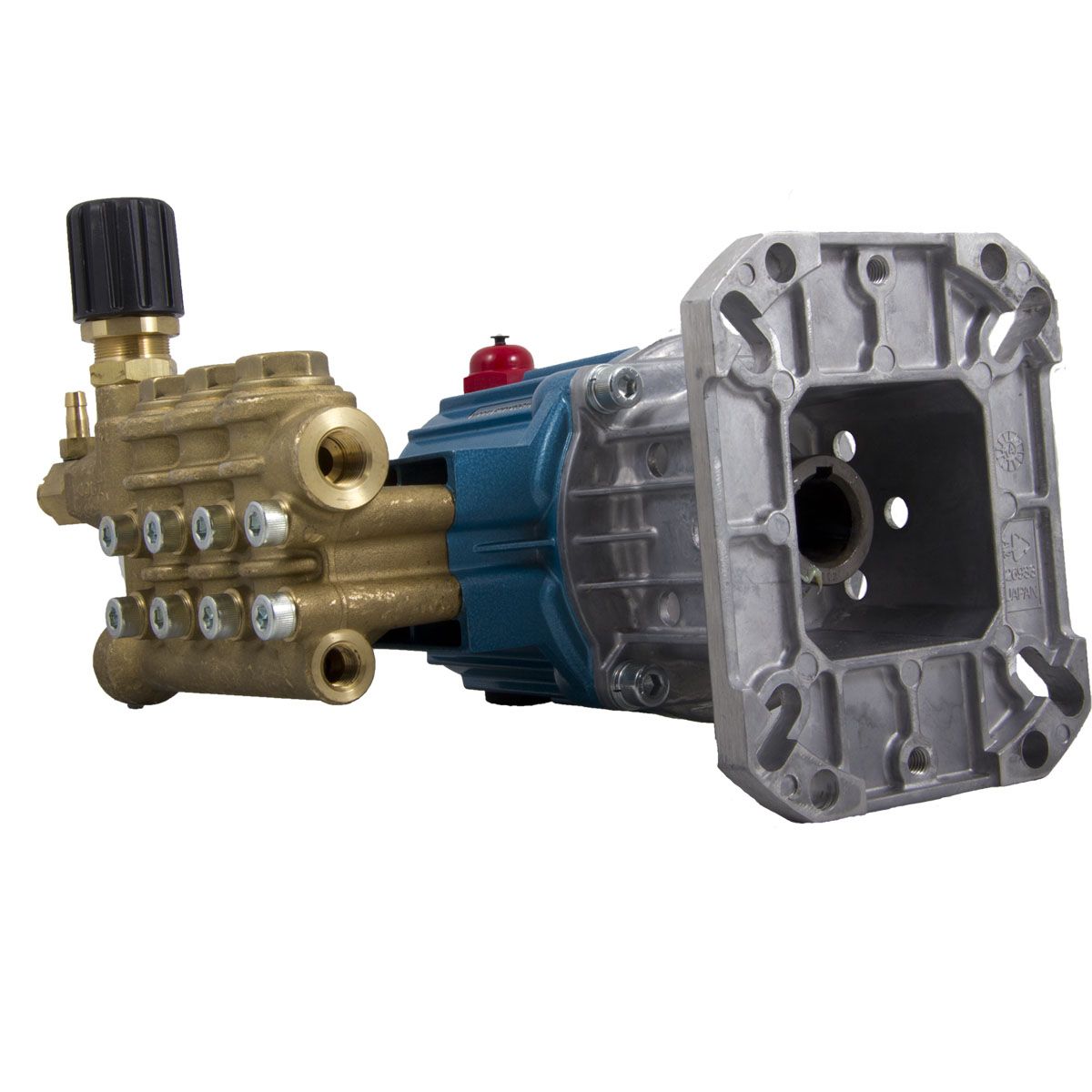

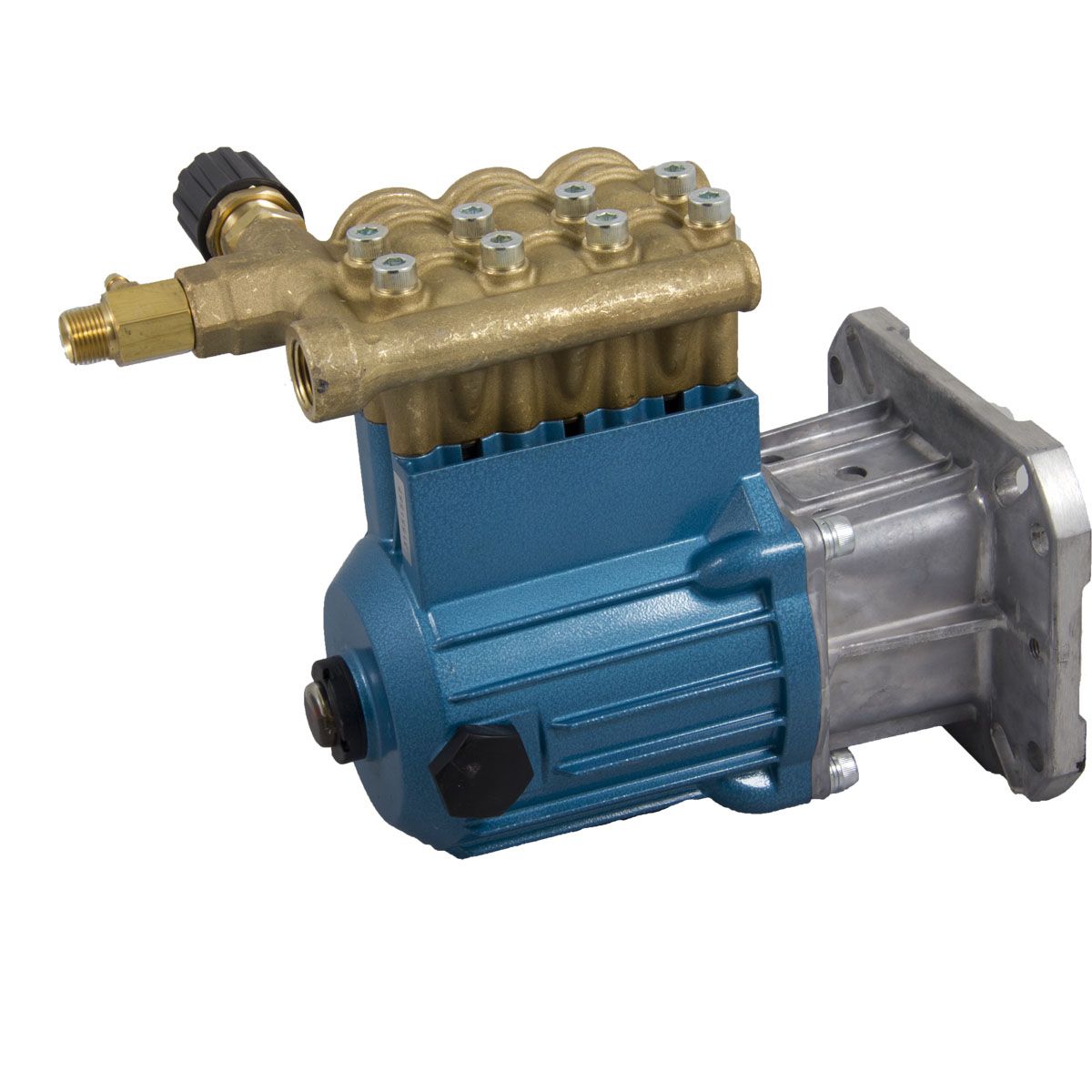

67DX39G1I CAT 4000 PSI Triplex Plunger Pump

The 67DX39G1I is a CAT triplex plunger pump with a brass manifold and solid ceramic plungers. This direct-drive pump is rated for a maximum pressure of 4000 PSI with a flow rate of 3.9 GPM.

The CAT 67DX39G1I features a 1 in. horizontal shaft with a built-in flange mount that attaches directly to a c-face electric motor. This pump also comes standard with an integral unloader with a bypass valve.

Features of the 67DX39D1I CAT Pump

• Comes with a built-in unloader and a built-in chemical injector.
• Bolts directly to most horizontal shaft c-face electric motors.
• Solid ceramic plungers and stainless steel valves extend the pump's lifespan.
• Includes standard NBR seals and O-rings for water-tight sealing, preventing leaks.
• Designed for cold water use only.

Specifications of the 67DX39G1I Pump

Max. Pressure Rating: 4000 PSI

Max. Flow Rate: 3.9 GPM

Inlet Port Size: 1/2 in. NPT(F)

Discharge Port Size: 3/8 in. NPT(M)

Motor Speed Rating: 3450 RPM

Max Water Temperature: 140°F

Shaft Size: 1 in.

Crankcase Oil Capacity: 13.5 fl. oz.
