4SPX32G1I CAT Direct Drive Plunger Pump, 3000 PSI
In stock
Part Number
4SPX32G1I
$429.90

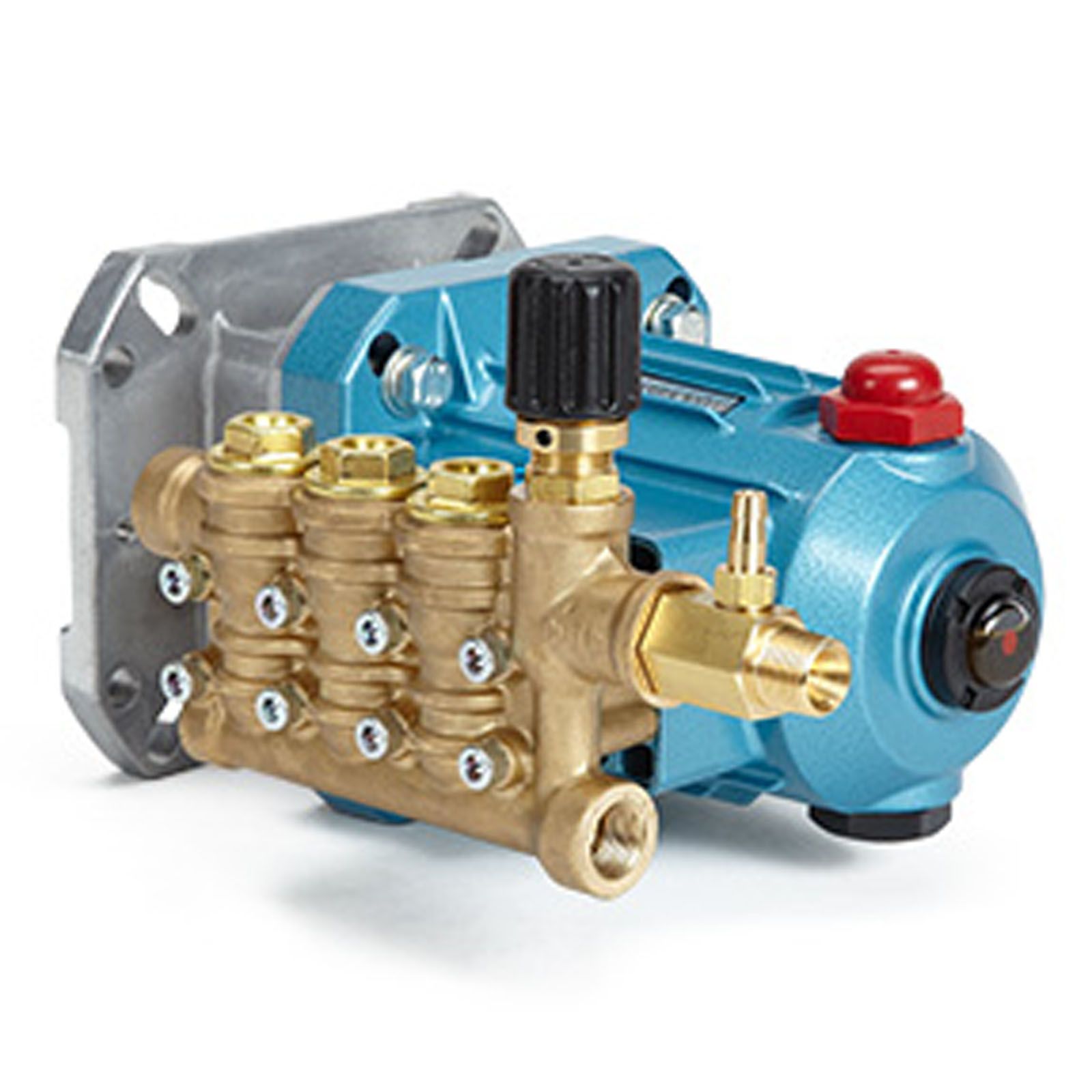

The 4SPX32G1I is a direct-drive brass triplex plunger pump manufactured by CAT Pumps. Its max flow is 3.2 GPM and 3000 PSI.
This positive displacement reciprocating plunger pump has a brass manifold, solid ceramic plungers, stainless steel valves, O-rings, and standard NBR (Buna-N) seals.
Features Of The 4SPX32G1I CAT Pump:
- Equipped with a built-in unloader and chemical injector.
- Hollow-shafted and bolts directly to a gas engine with a 1” straight horizontal shaft.
- Integral pressure control valves can be configured as pressure regulating or relief valves.
- Control valves also reduce the number of leak paths, meaning cleaner operation and less mess.
- Ease of servicing with the stacked valve design.
Specifications Of The 4SPX32G1I Pump:
Material: Brass
Drive Type: Direct
Max. Temperature: 140° F
Inlet Port: 3/8” NPT (F)
Discharge Port: 3/8” NPT (M)
RPM: 3450
Max. Pressure: 3000 PSI
Max. Flow: 3.2 GPM
Dimensions:
Length: 11 in.
Width: 7.81 in.
Height: 7.11 in.
Weight: 13.9 lbs.
