GS-0748 CAPACITOR 40UF 370V START WINDING
In stock
Part Number
GS-0748
$38.20

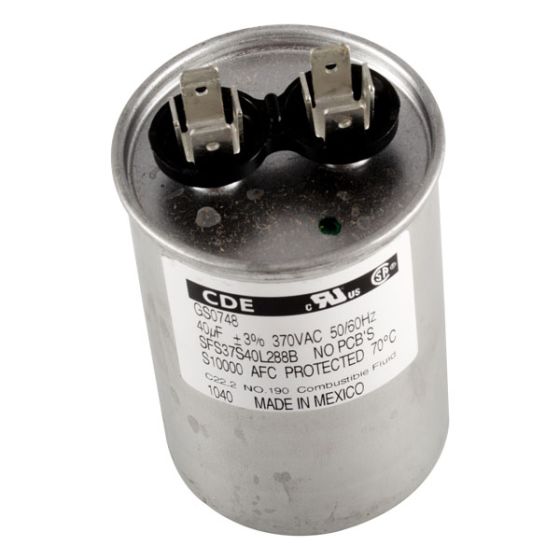

GS-0748 Capacitor is a 40uF 370VAC 50/60Hz used on many of the Porter Cable and DeVilbiss generators.
The GS-0748 Type SF, AC rated metallized polypropylene capacitors provide starting torque and power factor correction for split phase motors typically used in refrigeration and air conditioning motor applications. voltage regulation and line current reduction in power supply applications.
Operating Temperature Range: 40 ºC to 70 ºC standard, 90 ºC available
Highlights
- Self healing
- Fault current protection up to 10,000 amps AFC
- Low energy consumption
- 4 - tine, 1/4” quick connect lug terminals are standard
2.0" Round
370 Vac
Aluminum
40.0 µF
±3%
3.50" Tall Canister Total Height 4.00"
4 Way Terminal 1/4 Spades
The GS-0748 Type SF, AC rated metallized polypropylene capacitors provide starting torque and power factor correction for split phase motors typically used in refrigeration and air conditioning motor applications. voltage regulation and line current reduction in power supply applications.
Operating Temperature Range: 40 ºC to 70 ºC standard, 90 ºC available
Highlights
- Self healing
- Fault current protection up to 10,000 amps AFC
- Low energy consumption
- 4 - tine, 1/4” quick connect lug terminals are standard
2.0" Round
370 Vac
Aluminum
40.0 µF
±3%
3.50" Tall Canister Total Height 4.00"
4 Way Terminal 1/4 Spades
