C3850-1EA check valve

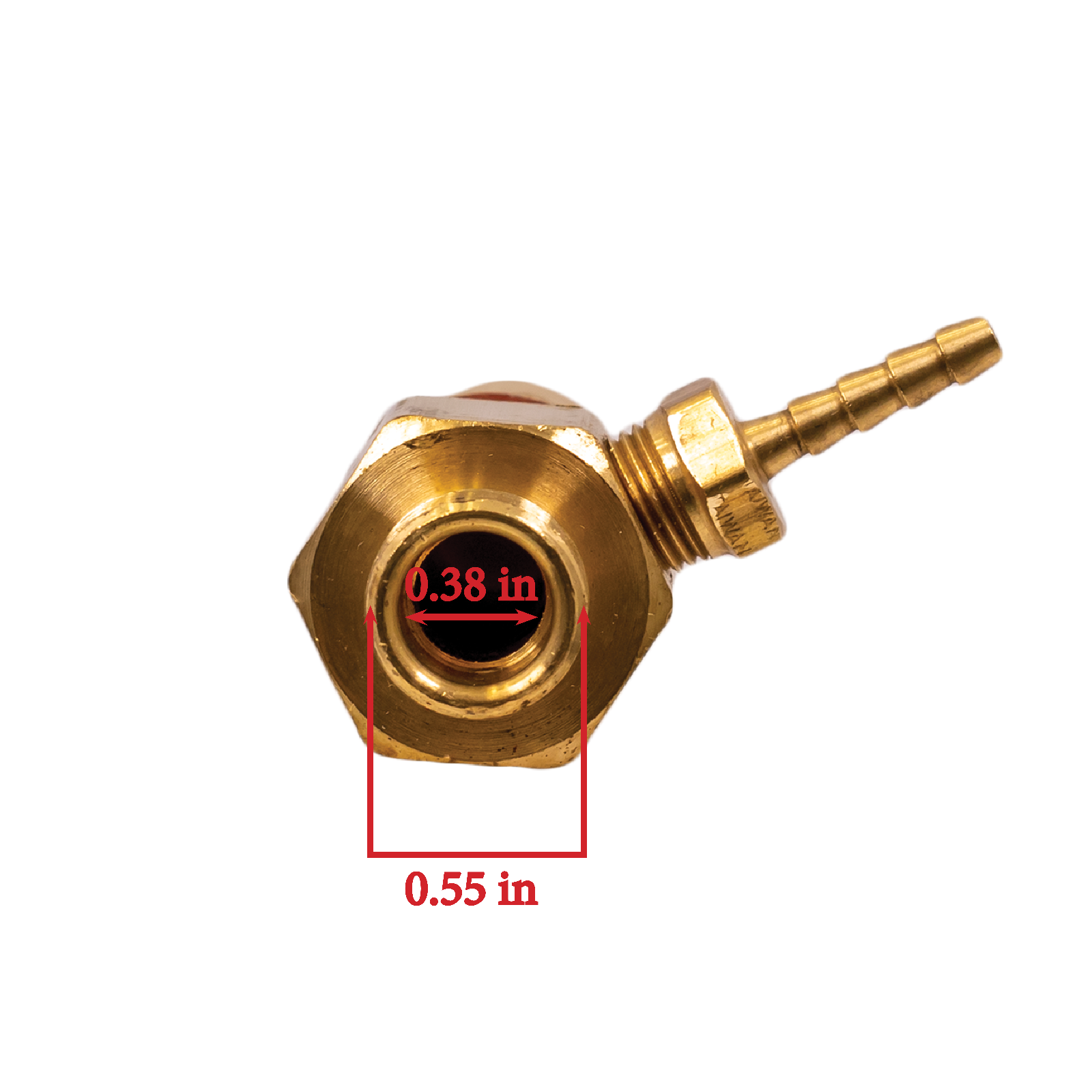

C3850-1EA check valve C3850-1EA dimensions

C3850-1EA Air Check Valve, Fitting Inlet, 20 SCFM Flow Rate

In stock
Part Number
C3850-1EA
$16.98
Part Number: C3850-1EA
Brand: Control Devices LLC
Shipping Weight: 0.5 Lbs

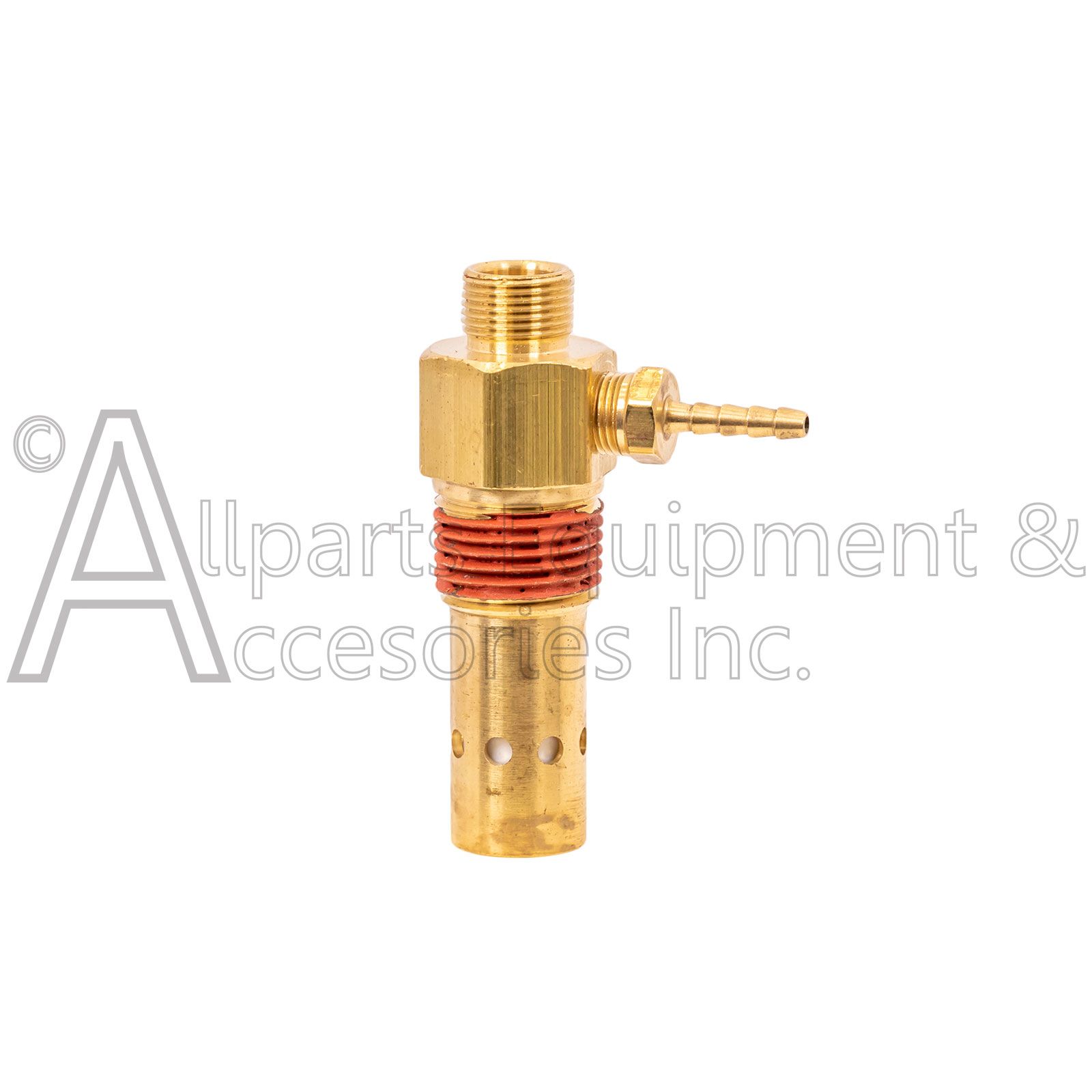

The C3850-1EA air check valve is a Control Devices OEM part for various air compressor models manufactured by Simpson, Delco, and others.


Check valves are one-way valves that prevent backflow in an air compressor. Control Devices construct their valves for long lasting operation when used with high-pressure air compression systems.


Check valve C3850-1EA features oversized discharge holes across the valve's body. These discharge holes help the valve maintain a powerful airflow in an air compressor.


This check valve goes by different part numbers depending on the manufacturer and specifications of the valve's coating and attachments. The C3850-1EA has a C5038009 fitting relief tube attached.

Specifications of the C3850-1EA Control Valve

  • Tube Inlet: 3/8 in.
  • MPT Outlet: 1/2 in.
  • Max Air Flow Rate: 20 SCFM
  • Max Pressure: 450 psi
  • Max Temperature: 400°F
  • Dimensions: 2 3/8 x 1 3/x 7/Hex
  • Weight: 0.2 lbs.
  • Body Material: Brass
