17628 High Pressure Trigger Gun with Swivel Connector for Extension Wand
In stock
In stock

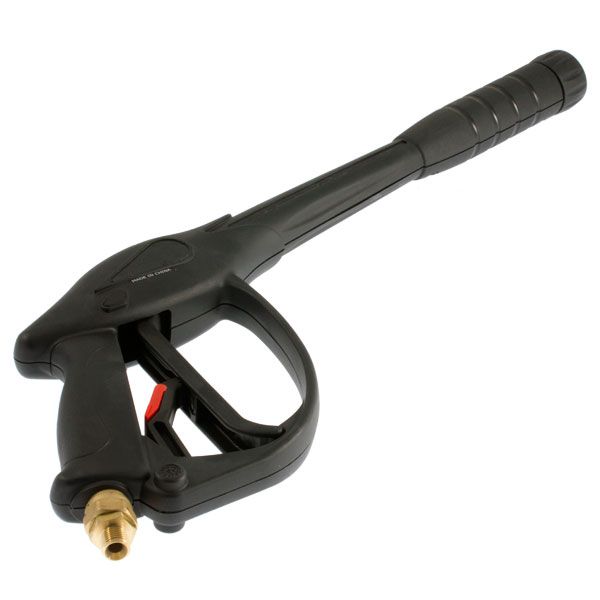

The 17628 trigger gun is a high-pressure trigger gun with a 1/4MPT hose connector that was used on DeVilbiss pressure washers. This pressure washer trigger gun has a maximum pressure rating of 3700 PSI and a maximum flow rate rating of 8.0 GPM.

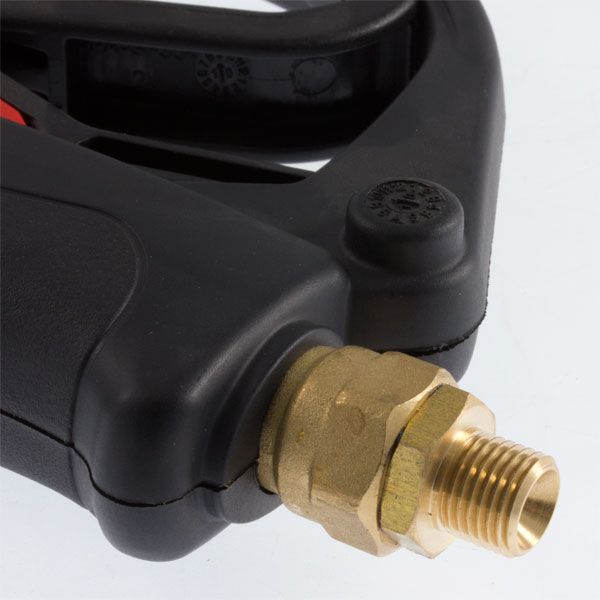

A 22mm swivel connector for an extension wand is included on the 17628 spray gun, which is the industry standard size for spray wands. This means that the 17528 will be compatible with a wide range of lances, wands, and extensions.
Specifications of the 17628 Trigger Gun
Max. Pressure Rating: 3700 PSI
Max. Flow Rate: 8.0 GPM
Max. Water Temperature: 140°F
Hose Inlet Size: 1/4 MPT
Wand Connector Size: 22mm
The 17628 can be used to replace the DeVilbiss original Trigger gun on the Ex-Cell pressure washers and was used on the following models of High Pressure portable pressure washers.
1502CBT Type 1
1502CVBS Type 0
1502CVBS Type 1
1502CVBS Type 2
1502CVTW Type 0
1502CWT Type 0
1502WBT Type 0
Sears Craftsman Pressure Washer Model:
919-76200 Type 0
Delta Electric Pressure Washer Model:
D1600E Type 1
Ex-Cell Pressure washer Model:
EXWGV1721 Type 0
EXWGV1721 Type 1
MV3000B Type 0
MV3600B Type 0
MV3600B Type 1
MV4000B Type 0
MV4000B Type 1
WG1420 Type 0
WG1522 Type 0
WGV1518 Type 0
WGV1518 Type 1
WGV1520 Type 0
WGV1520 Type 1
WGV1520 Type 2
WGV1521 Type 0
WGV1521 Type 1
WGV1521 Type 2
WGV1721 Type 0
WGV1721 Type 2
WGV2020 Type 0
WGV2020 Type 1
WGV2020 Type 2
WGV2021 Type 0
WGV2021 Type 1
WGV2021 Type 2
WGVB1621 Type 0
WGVT1620 Type 0
