WU Air Compressor Pump Assembly Wu Series
Out of Stock
$2,271.00
MSRP:
This item is NOT currently in stock and will be shipped as soon as possible.
Typical lead times are 5-10 business days for common stock items that are pictured and 15-25 business days for non stock and special orders.
Please email customer service for specific details if required at
customerservice@allpartsinc.com
customerservice@allpartsinc.com
Out of Stock
Loading...
Part Number: WU
Model Number: WU
Shipping Weight: 153 Lbs
Documents:

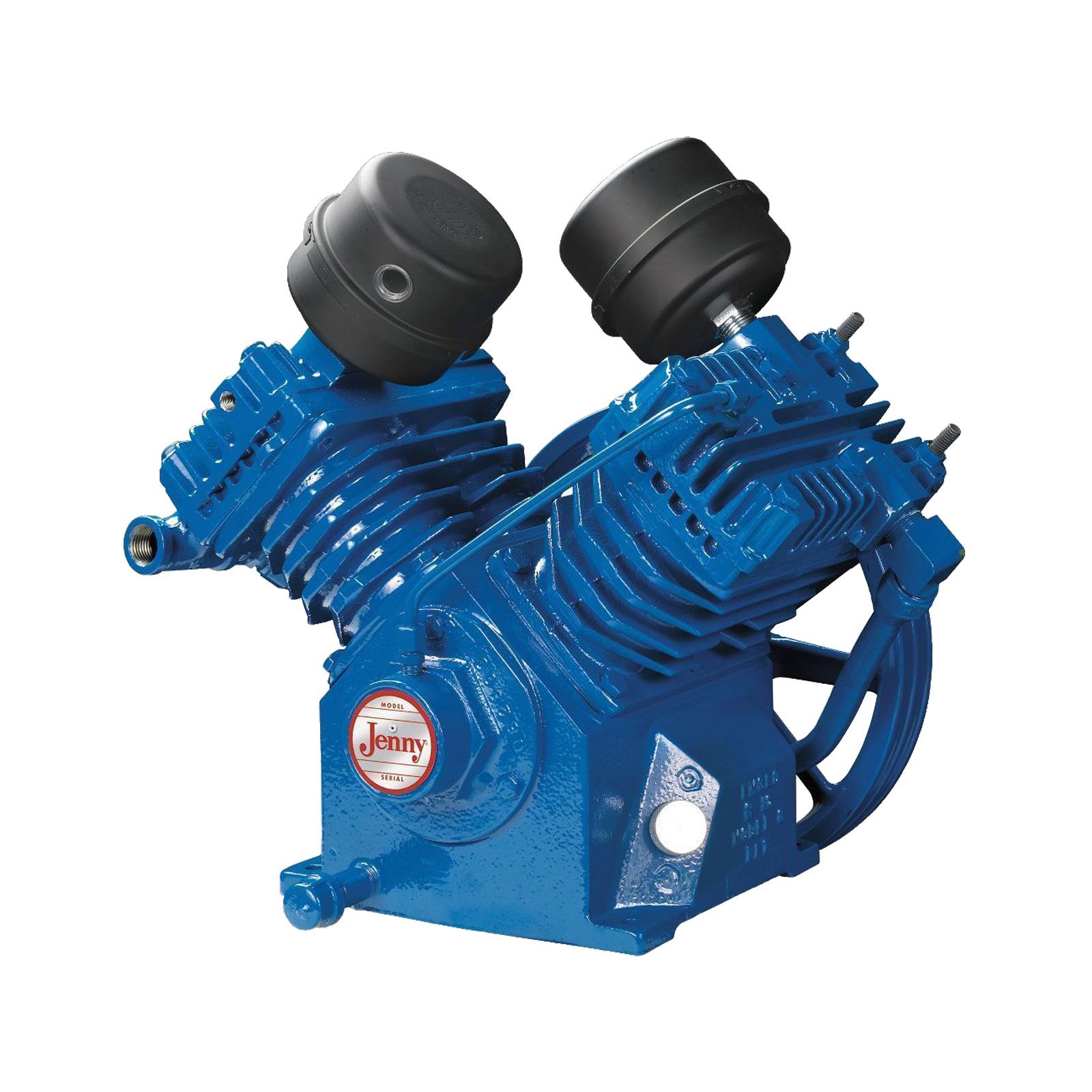

The WU Jenny air compressor pump features a robust cast iron construction with steel sleeves. It has a V Twin, 2-stage motor with a power rating of 3 to 5 HP. The compressor also comes complete with a flywheel and air filter. It provides a maximum pressure of 175 PSI and can be used with gas engines.
Features of the WU Jenny Pump
- Includes flywheel and air filter assemblies
- Durable cast iron design with steel sleeves
- Compatible with gas engines
Specifications of the WU Jenny Pump
HP Rating: 3 - 5
Stages: Two-Stage, V-Twin
Drive: Reciprocating / Oil-Bath
CFM Delivery: 17.5 CFM at 175 PSI
Maximum PSI: 175 PSI
Flywheel: 16 in. OD, twin A groove
RPM Range: 480 / 760
Bolt Pattern: 6.75 in. (front-to-back) / 9.125 in. (side-to-side)
Outlet: 1/2 in. FPT
Weight: 53 lbs.
Dimensions:
Length: 16-15/16 in.
Width: 20 in.
Height: 17-3/4 in.
