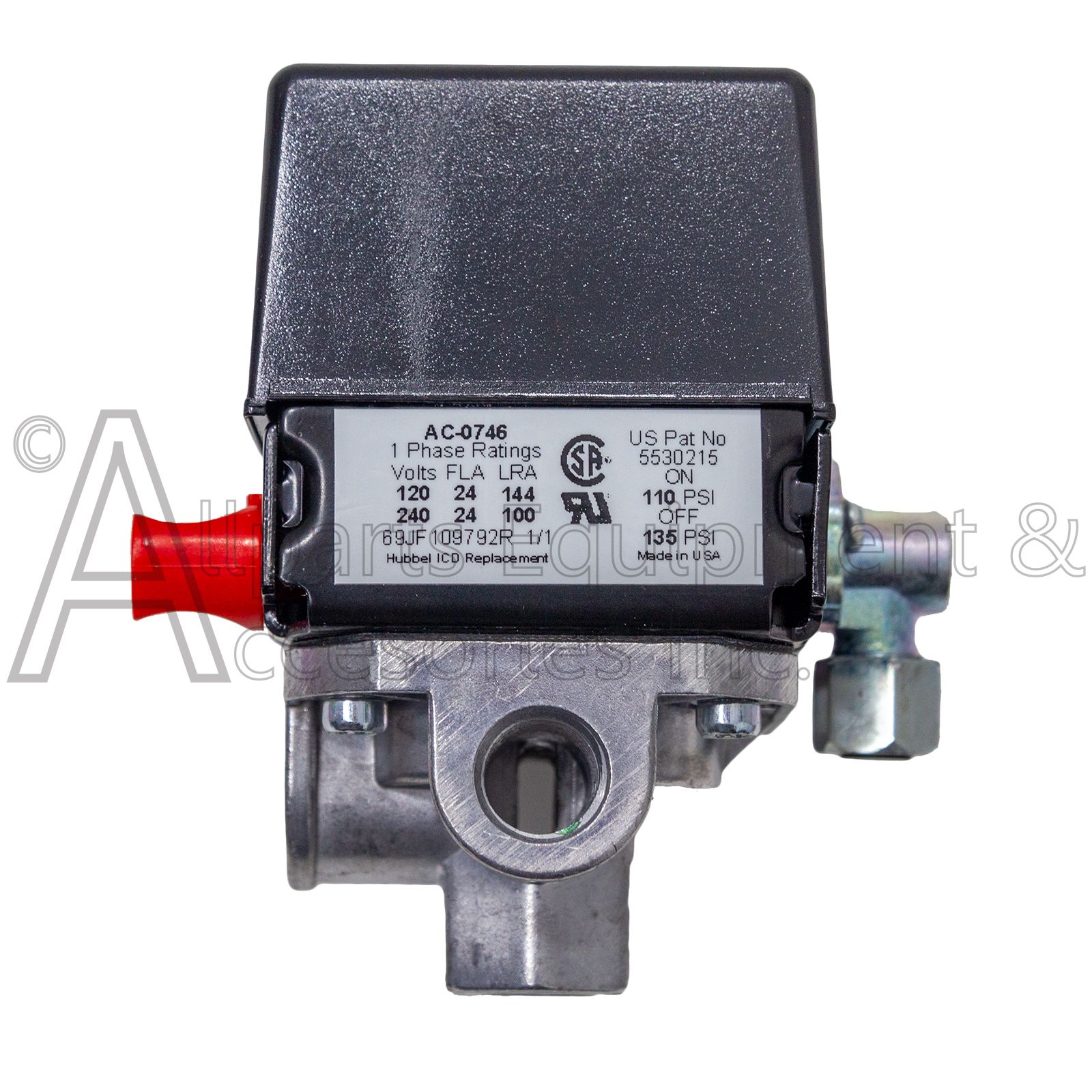

Data plate on the AC-0746 4 port pressure switch

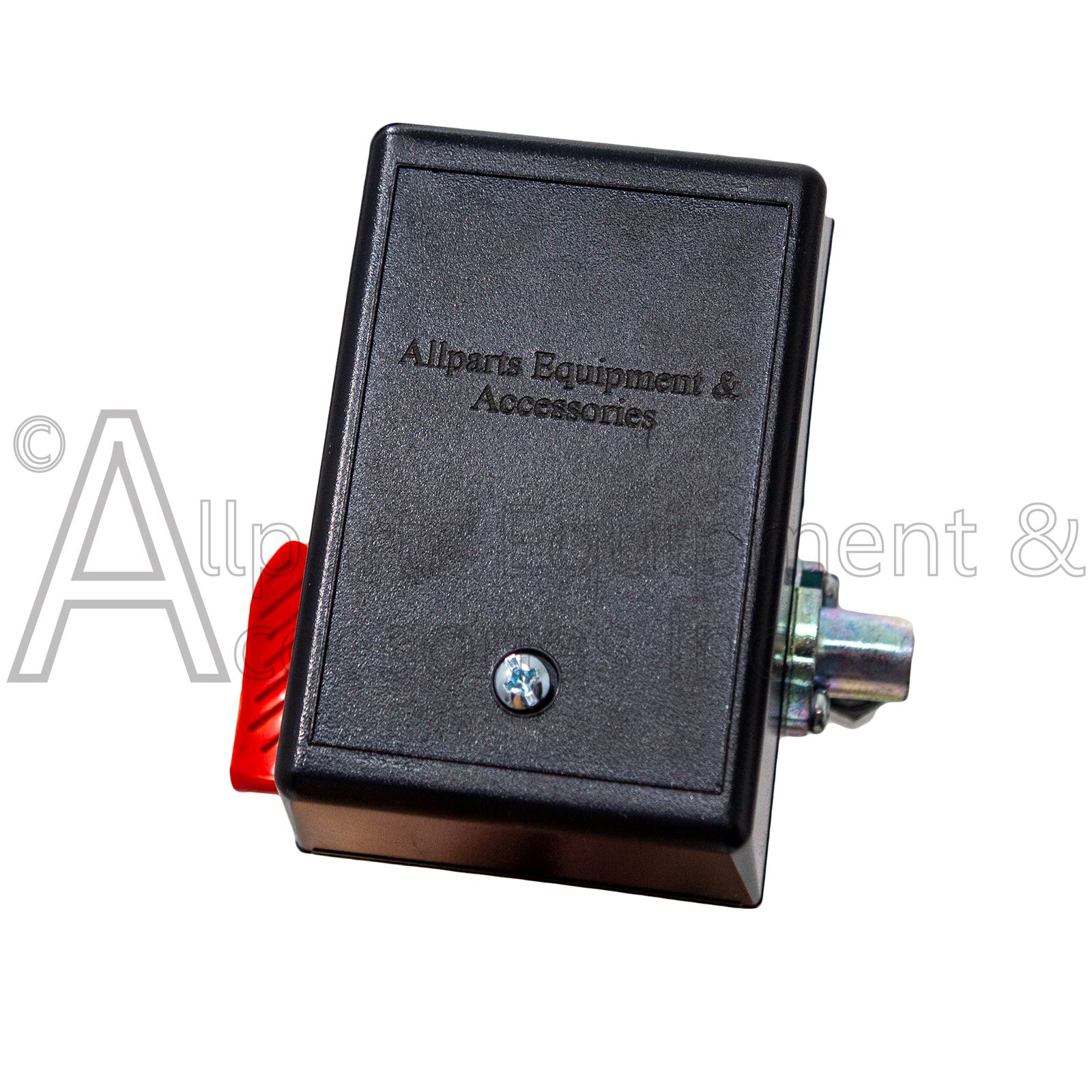

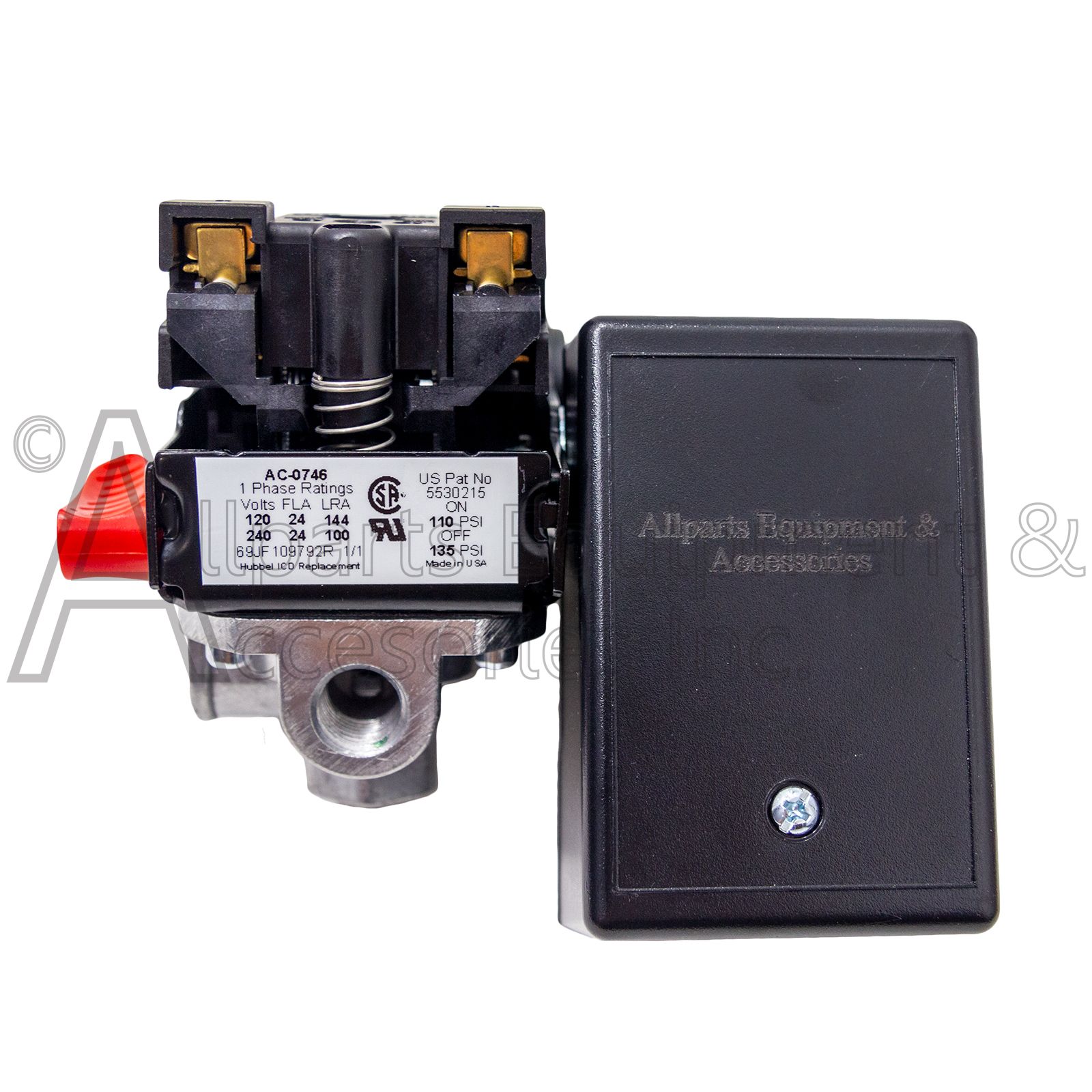

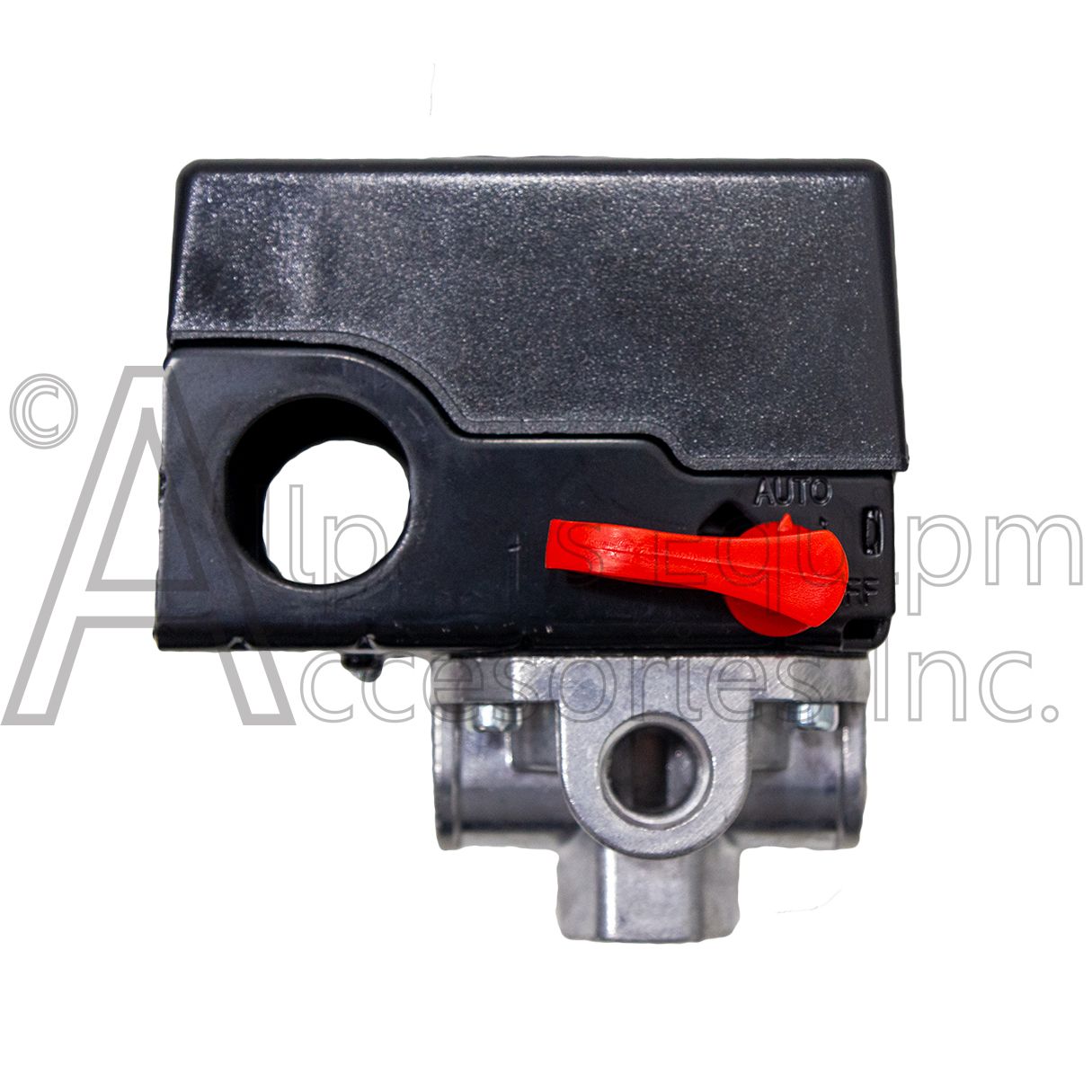

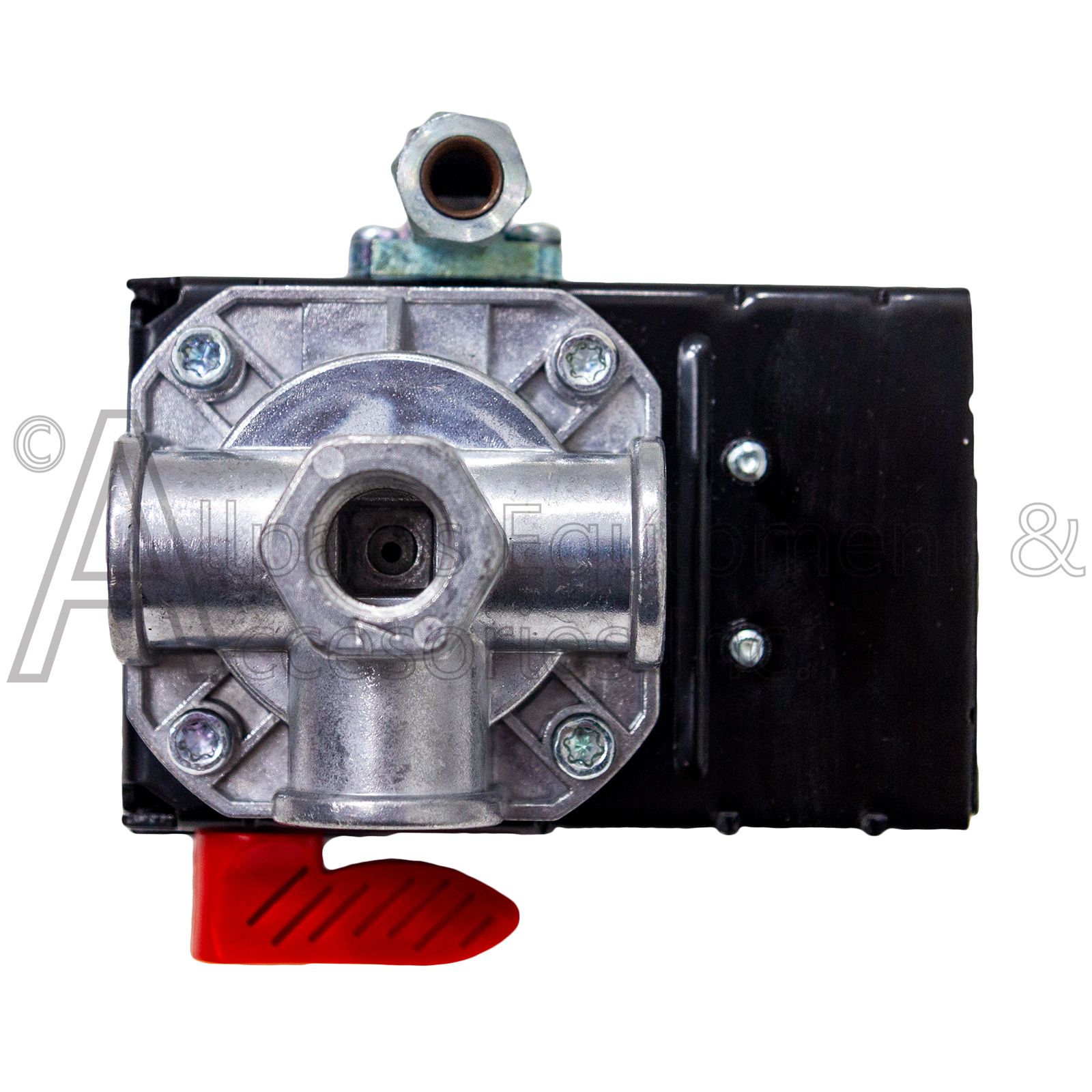

Data plate on the AC-0746 4 port pressure switch Relief valve on the AC-0746 switch Red switch on the AC-0746 pressure switch Manifold on the AC-0746 pressure switch Four ports on the bottom of the AC-0746 pressure switch Wire connections on the AC-0746 pressure switch

AC-0746 Pressure Switch - 4 Port 110/135 With Unloader

In stock

$41.78

In stock

Part Number: AC-0746
Compatible Brands: DeVilbiss
Shipping Weight: 1.5 Lbs
The AC-0746 Pressure Switch is a 4 port replacement pressure air compressor On Off switch for the Furnas 69 Series switches. It has a preset pressure rating of 110 PSI Cut In and 135 PSI cut out.

This AC-0746 Pressure Switch is used on the following air compressors:

Sears Craftsman Air Compressor 919-16513 Type 0
Sears Craftsman Air Compressor 919-16519 Type 0

Porter cable Air Compressor CPF6025VP Type 0

Excell Air Compressor EXFBC5520VP Type 0
Excell Air CompressorEXFBC6020VP Type 0
