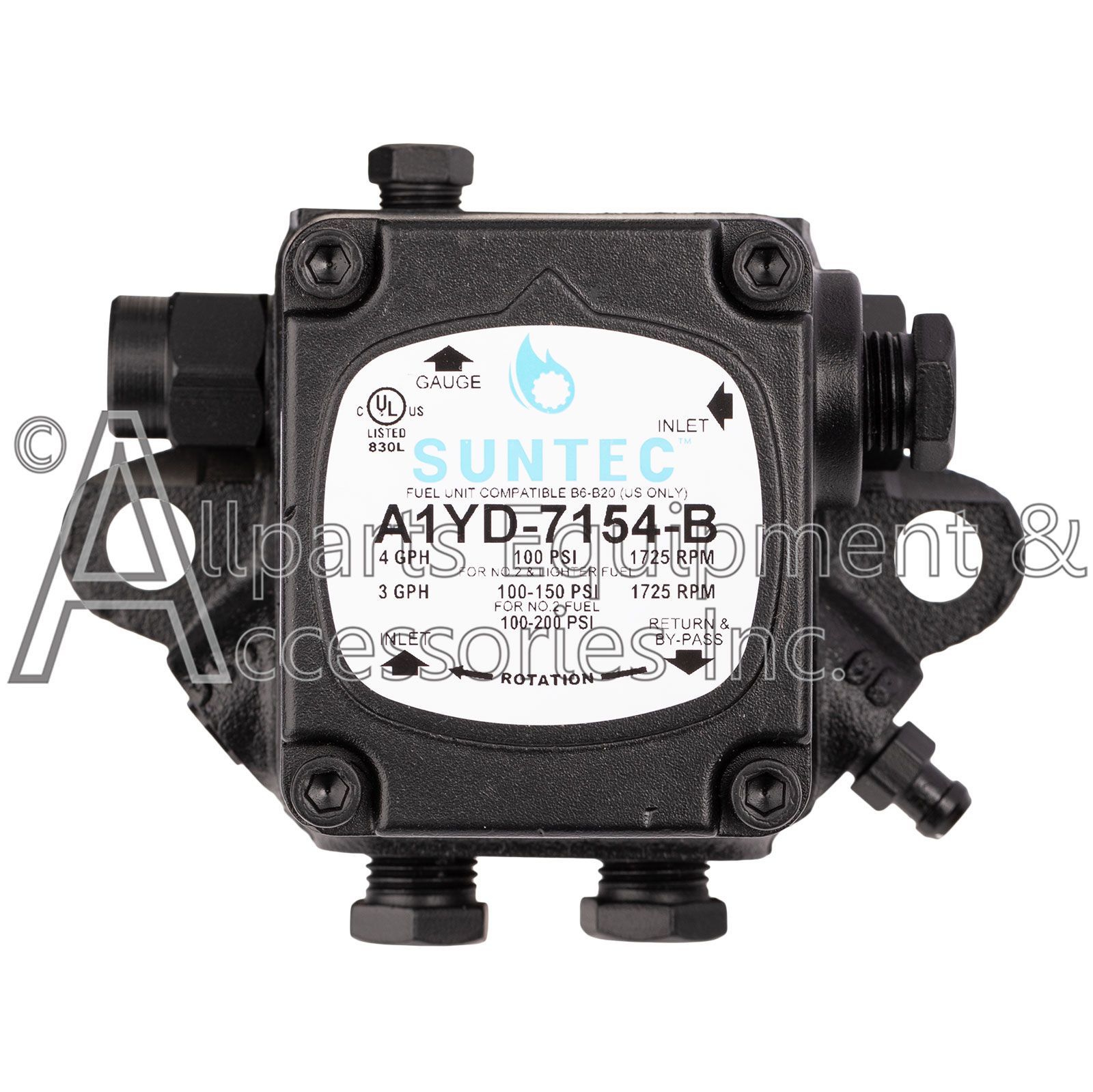

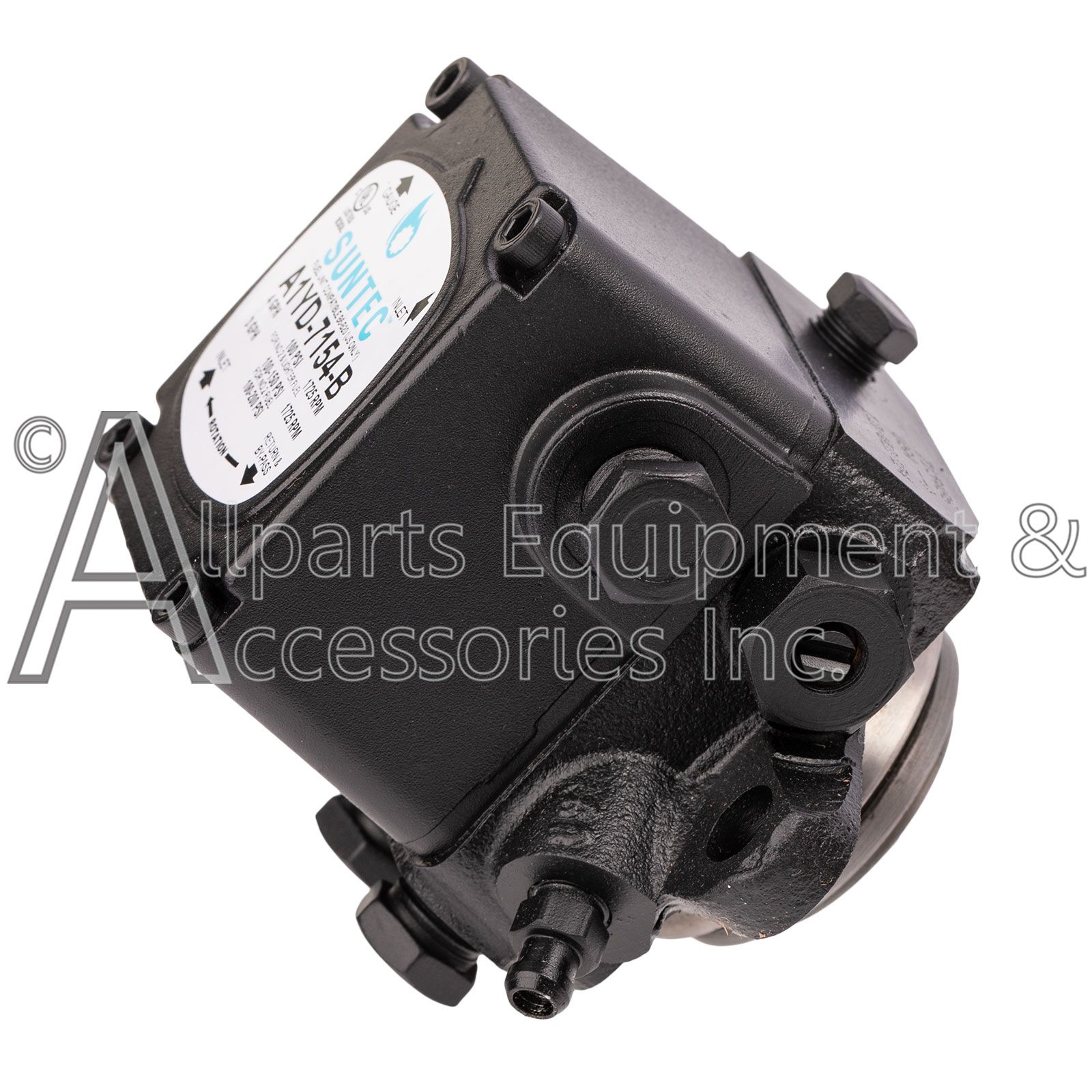

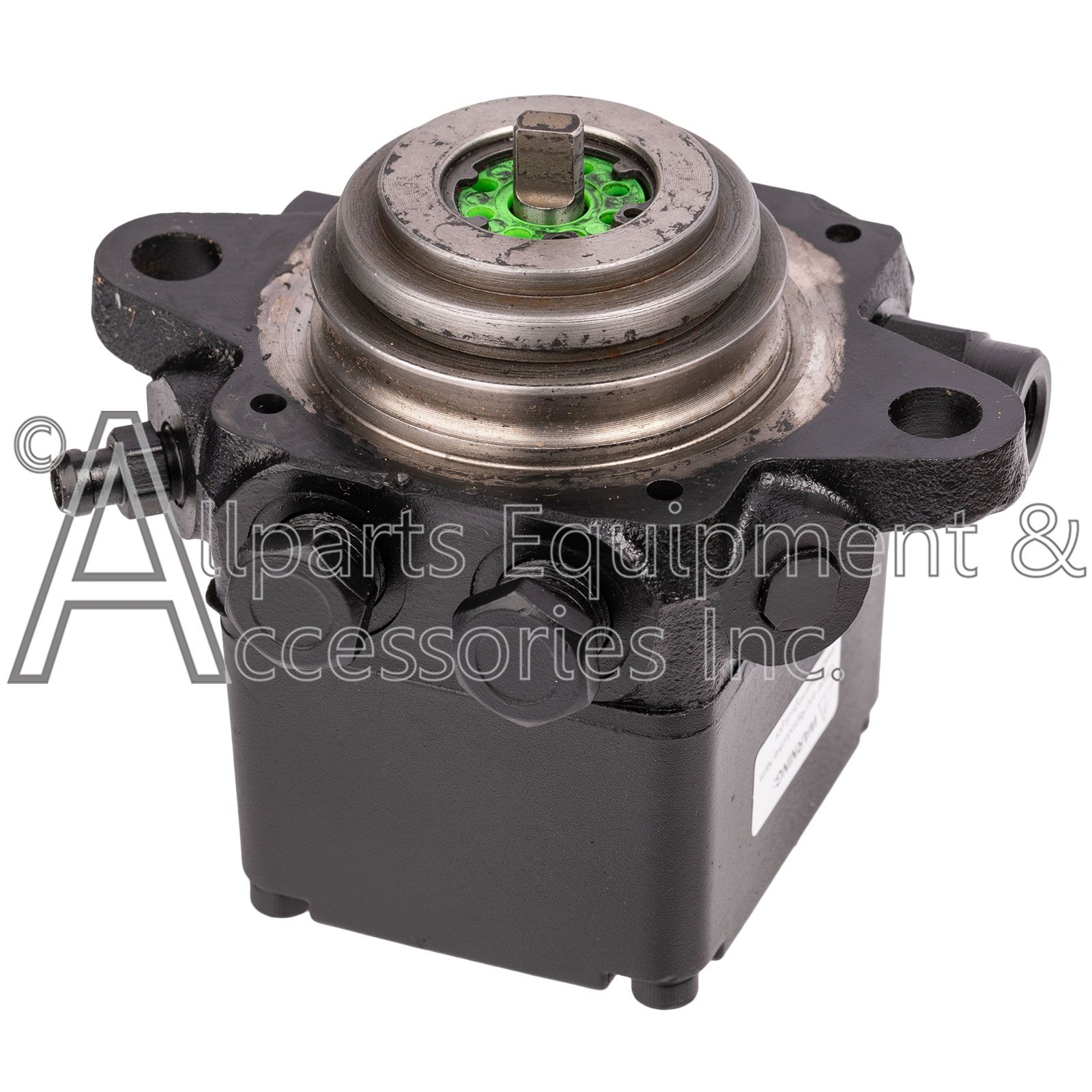

A1YD-7154 SUNTEC High Pressure Fuel Pump Single Stage Clockwise Rotation 1725 RPM

The SUNTEC A1YD-7154 Fuel Pump is a single-stage high-pressure Pump with a clockwise rotation used in multiple applications, including portable heating products, hot water pressure washers, Wayne burners, and other outdoor power equipment applications.

Warranty Note
Do Not use Teflon Tape during installation!
The use of Teflon tape will void the Suntec pump warranty any thread sealing compound ingested into the pump during installation can cause premature failure of the new Suntec pump.
Do not overlap sealing compound past the threads.

Service Note:
The A1YD-7154 Fuel pump is designed for Diesel Fuel #1and  #2 (blends no greater than 5%)

The A1YD-7154-B Fuel pump is designed for Fuel oil #2 and lighter, B6-B100 (blends from 6% up to 100% biodiesel, per ASTM D396)

One pipe installation:
The by-pass plug must not be installed.
The excess fuel is returned back to the inlet.

Two pipe installation :

The steel plug of the return port must be removed, and the by-pass plug must be inserted in the return port, allowing excess fuel to be bypassed back to the tank.
The return plug must not be reinstalled.

 Bleed: In one pipe operation, the easy flow bleeder valve must be loosened to bleed the system.
 Bleeding in two-pipe operation is automatic, but it may be accelerated by loosening the easy flow bleeder.

Suntec A1YD-7154 Specifications:

OEM Suntec

OEM #A1YD-7154

Condition: New OEM Original

Returnable: No

Color Black

Depth Inches: 4 11/20

Height Inches: 4 3/5

Limited Warranty: 1 Year

Model: A-7000 Series

Nozzle Capacity At Rated Psi GPH 3-7

Pump Type: Single Stage Two Pipe Usage

Rated Pressure: Psi 100 Max 150 Adjustable
4 GPH 100 PSI For # 2 and Lighter Fuels
3 GPH 110-150 PSI For # 2 up to B5 Fuels

Rotation And Nozzle Location: LH-RH

Shaft Speed 1725 RPM

Weight Lbs.: 7.0

Width Inches:3-5/8

For Proper Installation follow the listed instructions.

• Use 37 o JIC flare fittings.

• Use a non-hardening thread sealing compound.

• Prefill (prime) the pump on long runs to reduce dry running time.

• Check all unused pump fittings for tightness.

• Bleed system. Open bleed port approximately one turn.

Bleed for 15 seconds after clear oil begins flowing out of port.

Close bleeder valve tightly

• See page IV-1 if pump fails to prime or deliver

It is suggested that you DO NOT do the following:

• Install by-pass plug. (Will damage seal.)

• Use compression fittings. (Will eventually leak.)

• Use Teflon tape. (Will void warranty.)

• Use check valves. (Especially on gravity feed systems.) See Thermal Expansion, page III- 12.

• Exceed 10 psi (manufacturer) or 3 psi (NFPA) inlet line pressure.

• Exceed 6" hg. running vacuum (for Suntec “A” and “B” fuel units) or 2" hg. running vacuum (for Suntec “J” and “H” fuel units).
