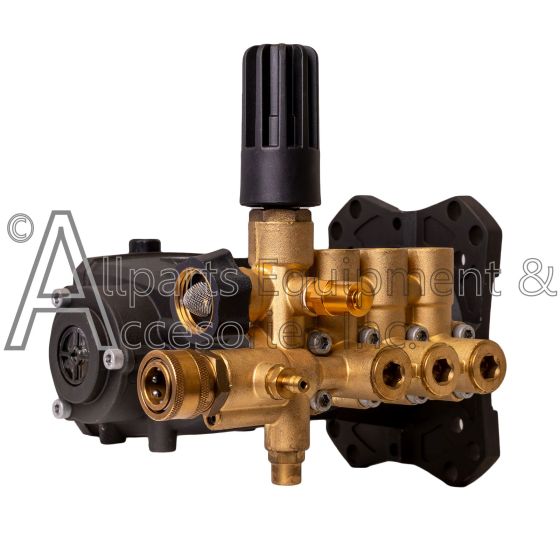

930010 Horizontal Triplex AAA Pump 4000 psi 3.5 GPM

This 930010 Triplex Plunger Pump has a patented Powerboost™ technology that provides higher pressure at the spray nozzle.

Features:

4000 PSI @ 3.5 GPM

PowerBoost™ Technology

Fully adjustable unloader system with ergonomic control

Sight glass and advanced oil seal technology, does away with the need for a dipstick

Thermal relief protection to prevent pump overheating

Dual oversized radial ball bearings are installed for better wear, friction resistance and precision ceramic coated pistons for extended seal life.

Crankcase is manufactured from fully anodized die-cast aluminum for corrosion protection and is sealed to prevent contamination and lube failure.

Gas engine flange and hollow shaft that fits most horizontal shaft engines

Specifications:

PSI: 4000

GPM: 3.5

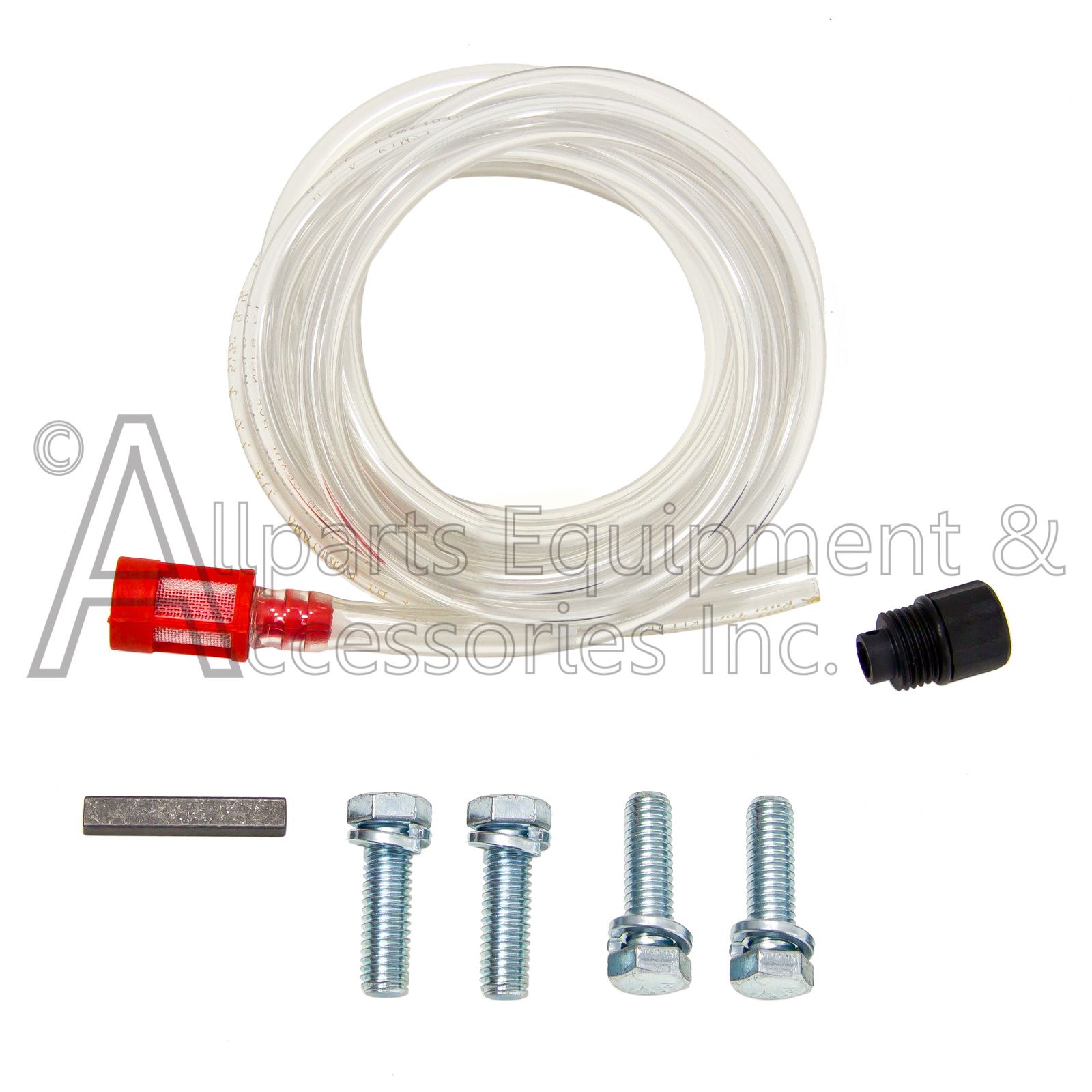

Kit Includes: Siphon tube with filter, mounting bolts, and shaft key

Inlet Port: 3/4” GH

Discharge Port: 3/8” Quick connect female

Inlet Pressure Range: 10-60 PSI

Thermal Relief Port: 1/2” NPT

Shaft Diameter: 24mm

Key Way: M8

Pump Oil Capacity: 11 fl oz.

PowerBoost®: Yes

Head: Brass
