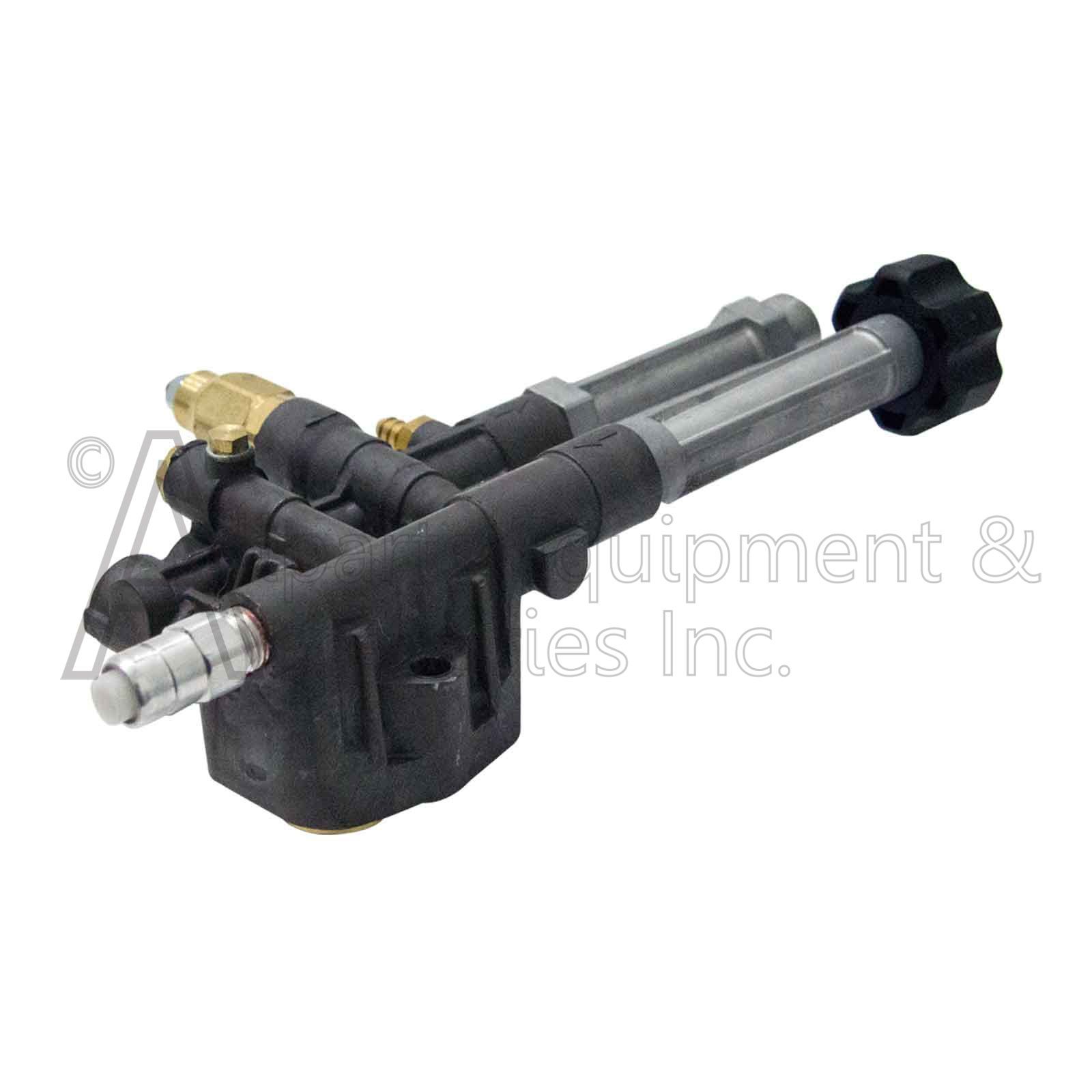

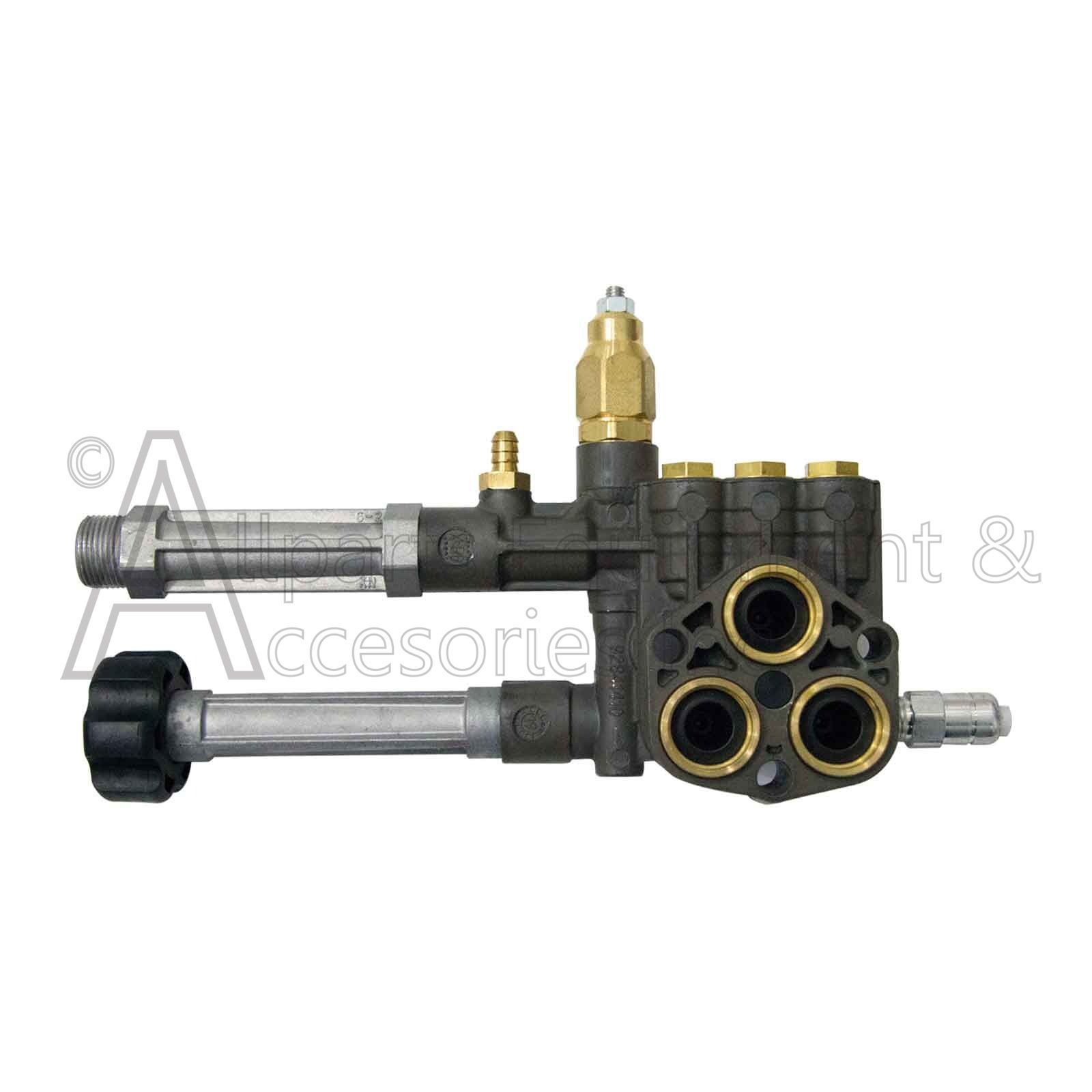

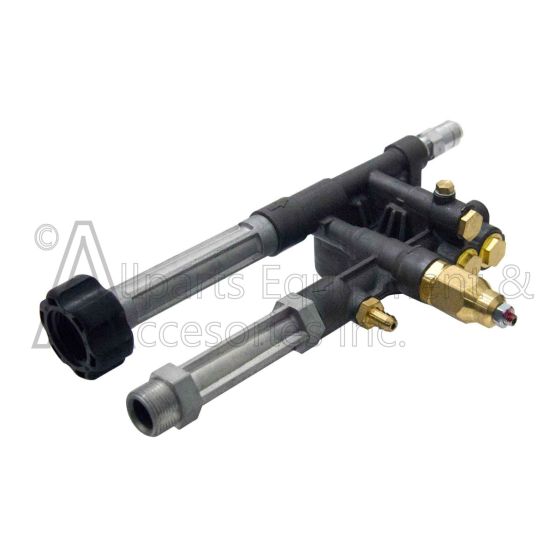

92841410 Complete Manifold for SRMW24G28 Pumps

92841410 is the casting number for a manifold casting head assembly for the SRMW24G28 / SRMW2.4G28 pressure washer pump from AR North America. This pump is found in many Troy Built pressure washers.

The 92841410 replacement pump head is designed to work specifically with Oil Lubricated SRMW24G28 / SRMW2.4G28 series pressure washer pumps.

This head assembly's raised brass seal retainers were only used on this specific manifold's pump head. The manifold includes a pump head, water seals, check valves, unloader valve, chemical injector, E-Z start valve, thermal relief valve, and an inlet/outlet tube for an easy repair of your SRMW24G28 pressure washer pump.

The casting number for this manifold is 92841410, but the AR43361 manifold kit will be sent. Both the 92841410 and the AR43361 service the SRMW24G28 AR pump.

The SRM24G28 pump that this manifold services is considered a direct OEM upgrade to the original RMW2.5G28-EZ high pressure pump. If you are looking to replace or service the original pump model, please refer to the RMW2.5G28-EZ.

Service Note:
If your current pump has an Automatic Idle Cable attached to your manifold you will need to transfer the Cable and fitting from your old manifold to your new replacement manifold or pump.
