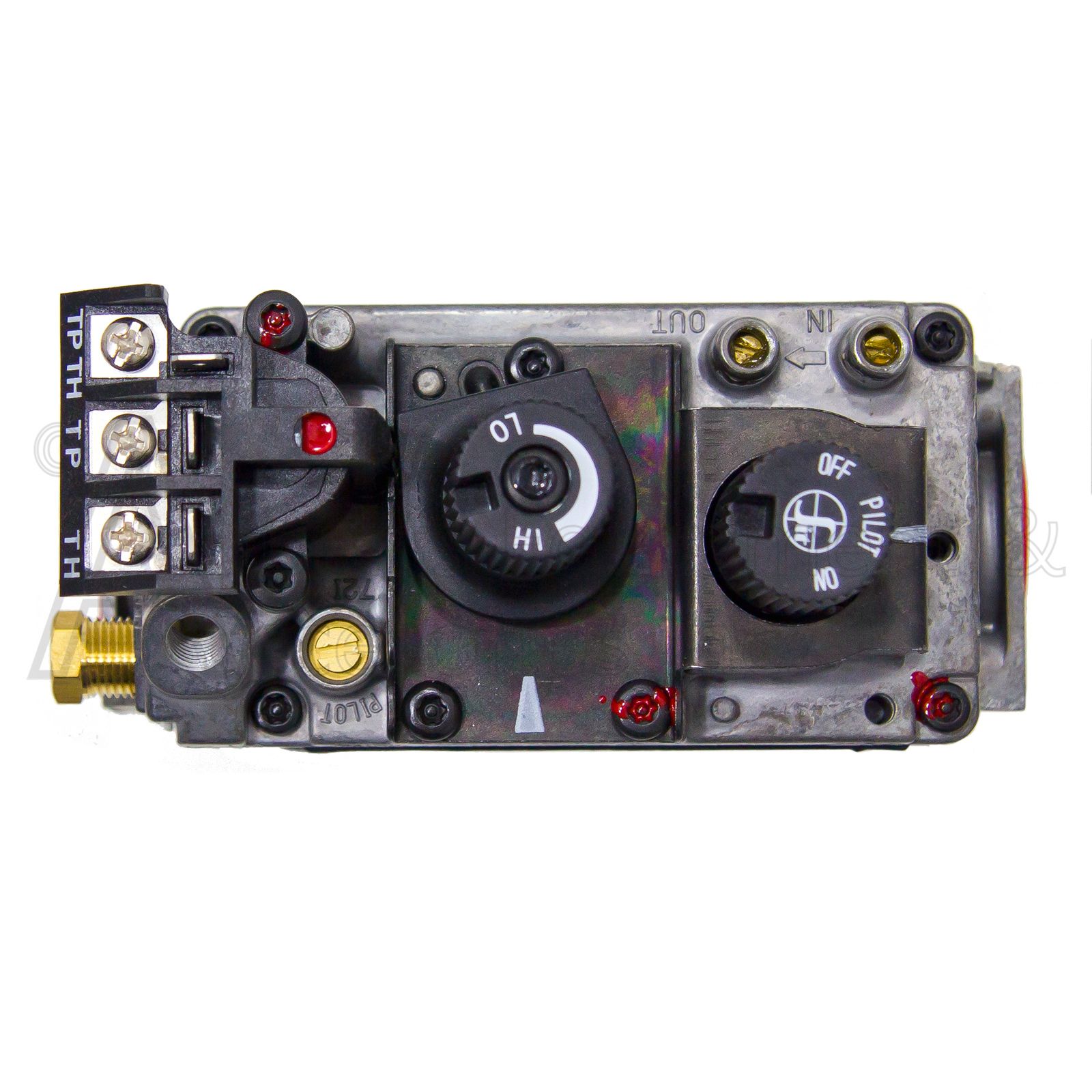

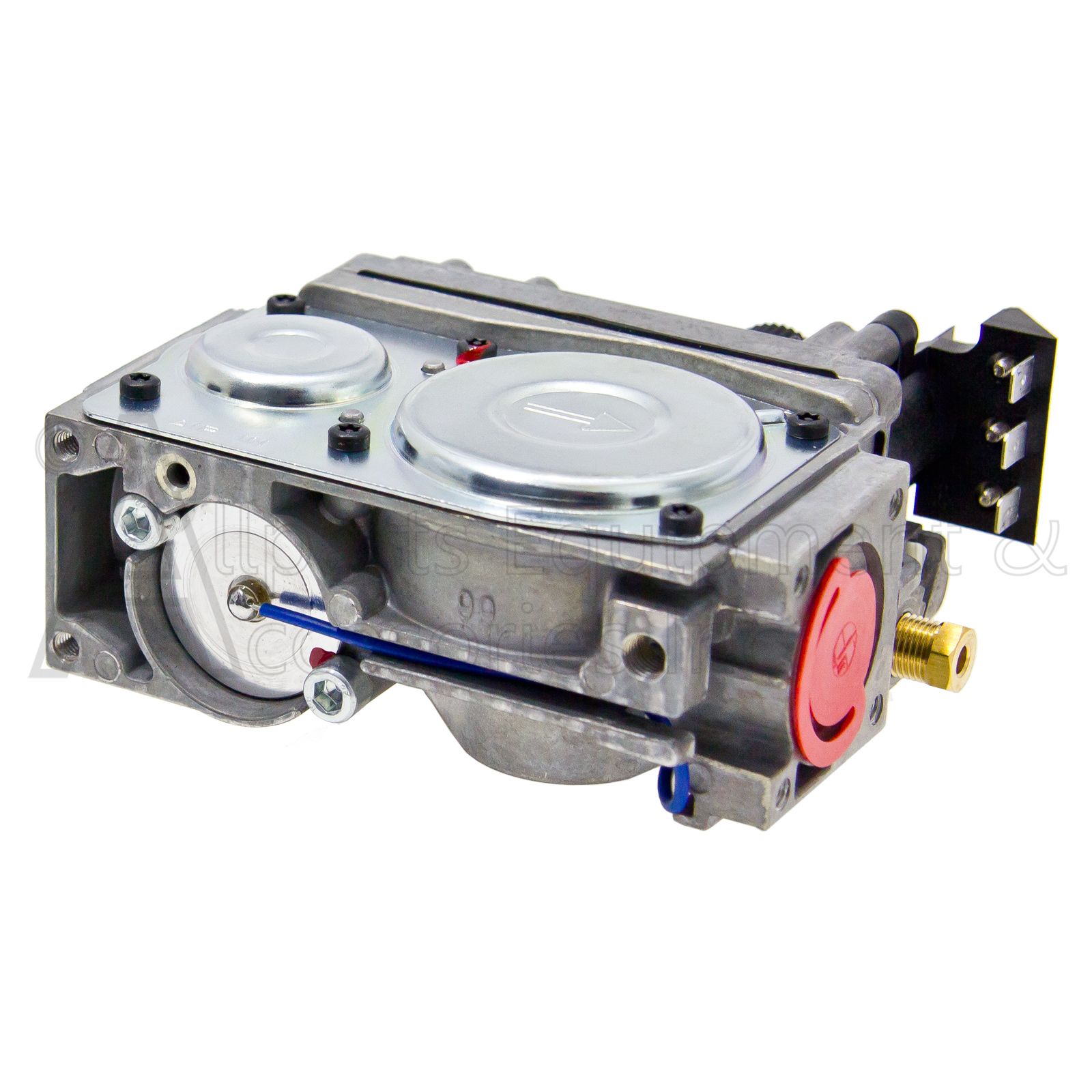

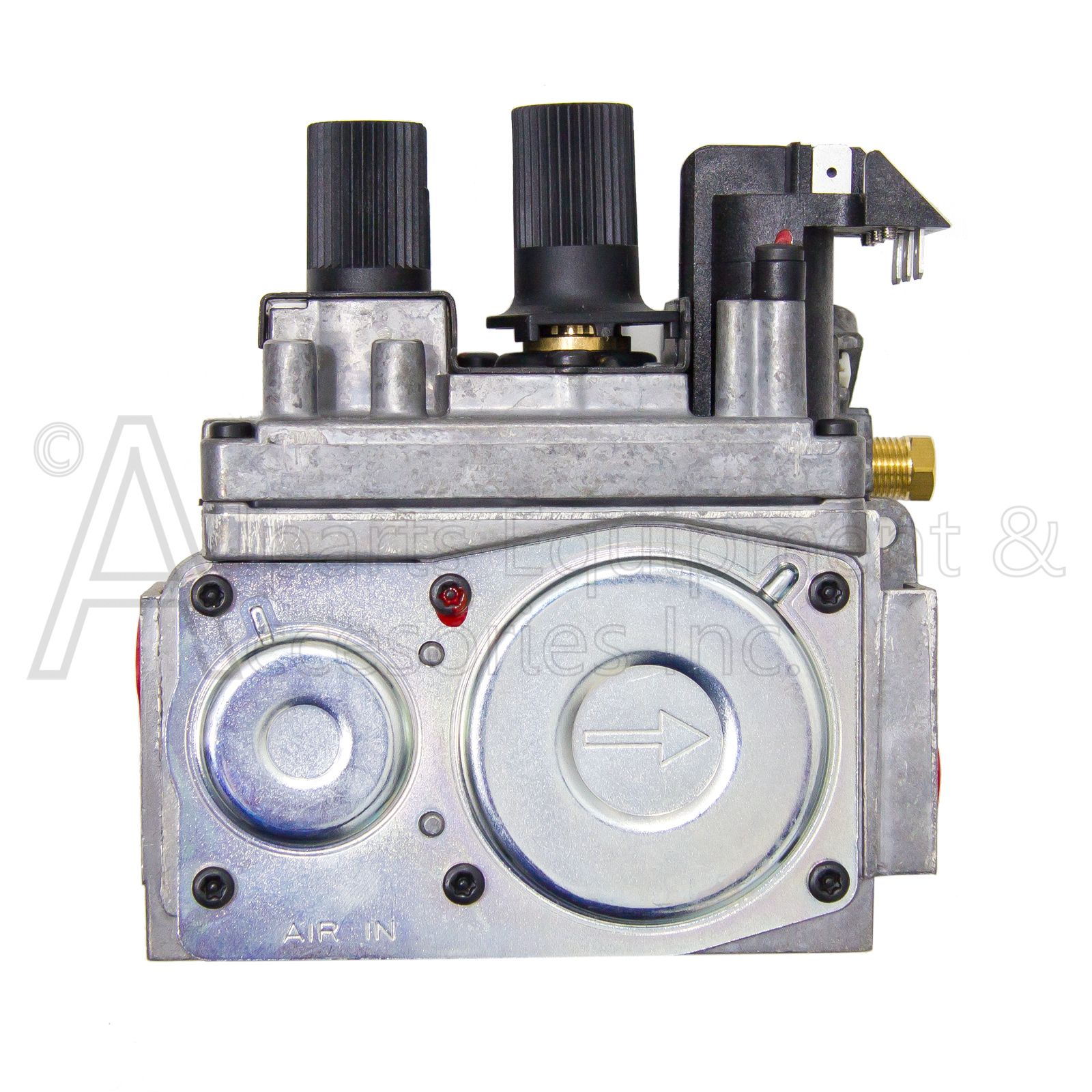

901917 Propane Control Valve for Lennox

The 901917 Lennox fireplace part is a propane split-system control valve with millivolt control. This propane control valve is for use with vent-free appliances only.

This control valve 901917 is remote-ready and compatible with millivolt control remotes. The propane control valve should be installed along with an ODS pilot system.

The 901917 propane control valve is part of a series of SIT Control valves that are incredibly similar in design and function. It is important to ensure that you have a manufacturer-approved valve for your fire feature to avoid unnecessary risk or damage.

• Control Valve for propane gas vent free Lennox fire features
• Split-system millivolt controlled liquid propane gas valve for use in millivolt appliances.
• Remote-ready millivolt valve

• HI/LO burner adjustment with manually operated knob
• Thermo-Electric Unit Hold-in current less than 200Ma
• Drop-out current Greater than 80mA with coil resistance 0.018± 0.003
• BTU per hour Regulation capacity of 8,100 to 315,700 BTU AP per hour
• Maximum @ 1 in. w.c. pressure drop 162,000

• Manual Pressure set-point: 10.0” w.c. ± 0.4
• Range of adjustment: 10.0”-6.3” w.c. Set at 30K btu/hr
• Thermocouple connection: M8x1
• Propane Gas Inlet: 3/8 in. NPT
• Propane Gas Outlet: 3/8 in. NPT
• Maximum Inlet Pressure: 1/2 PSIG Ambient operating
• Temperature: 32° to 175° F
• Minimum voltage: 145mV
• Coil resistance: 2.25±0.5
