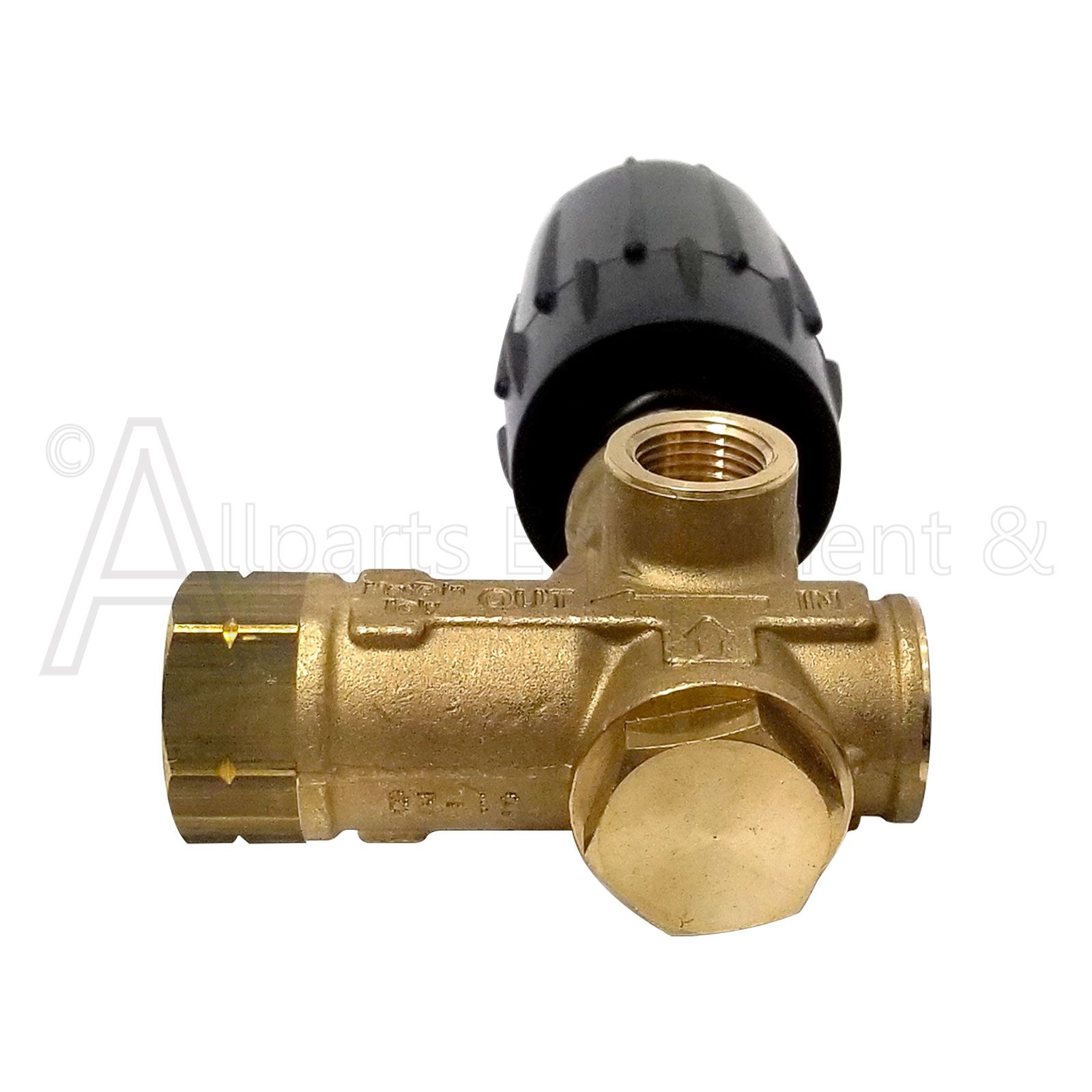

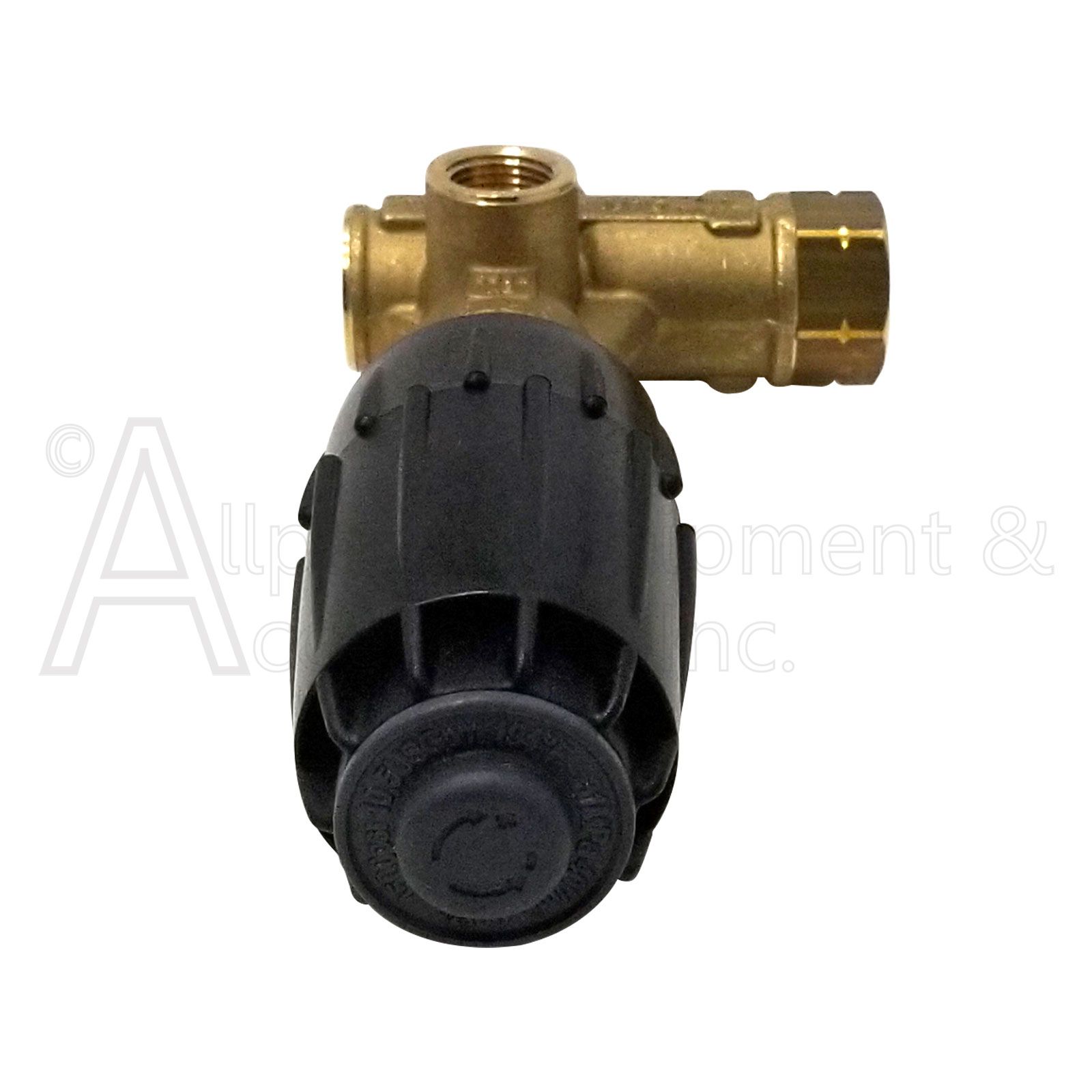

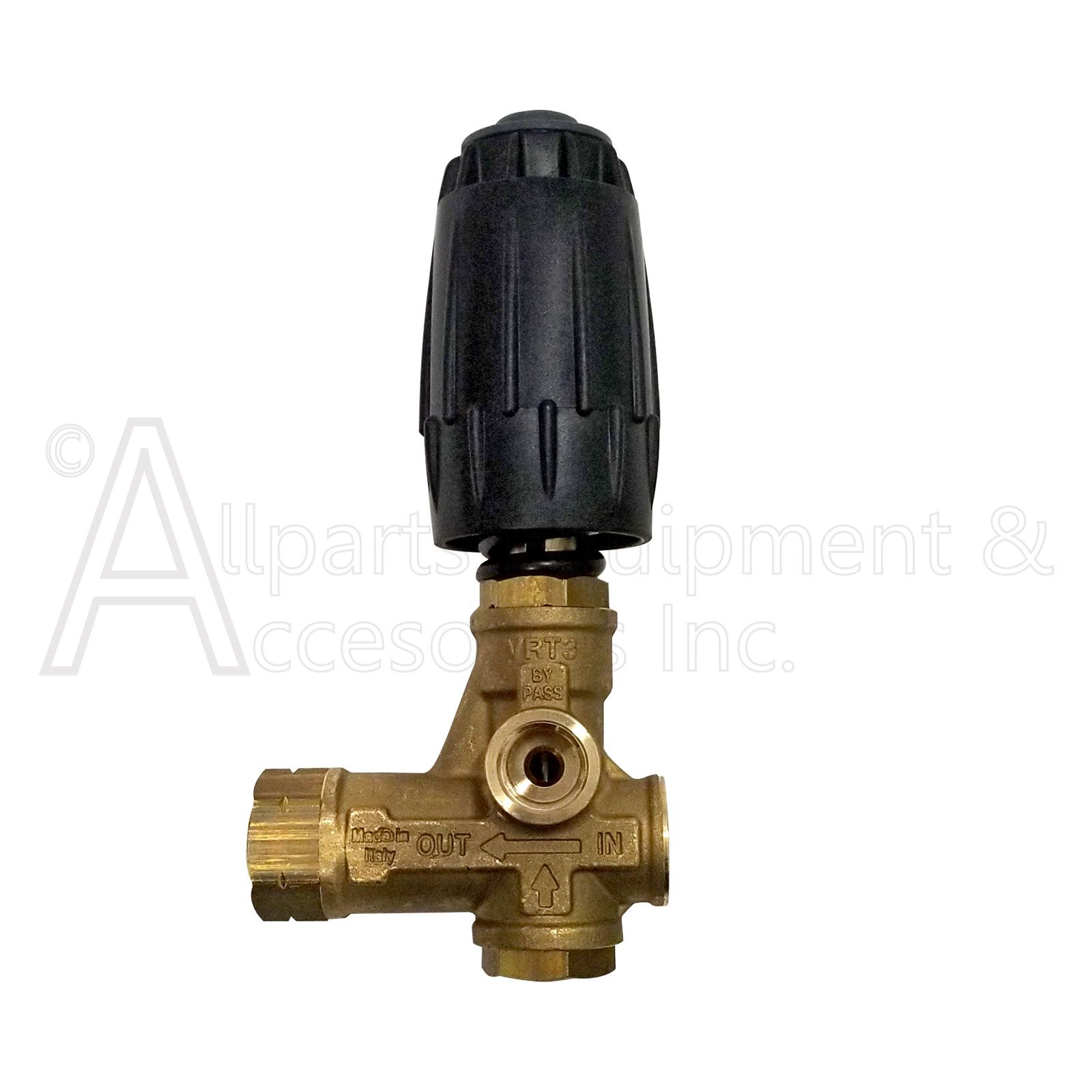

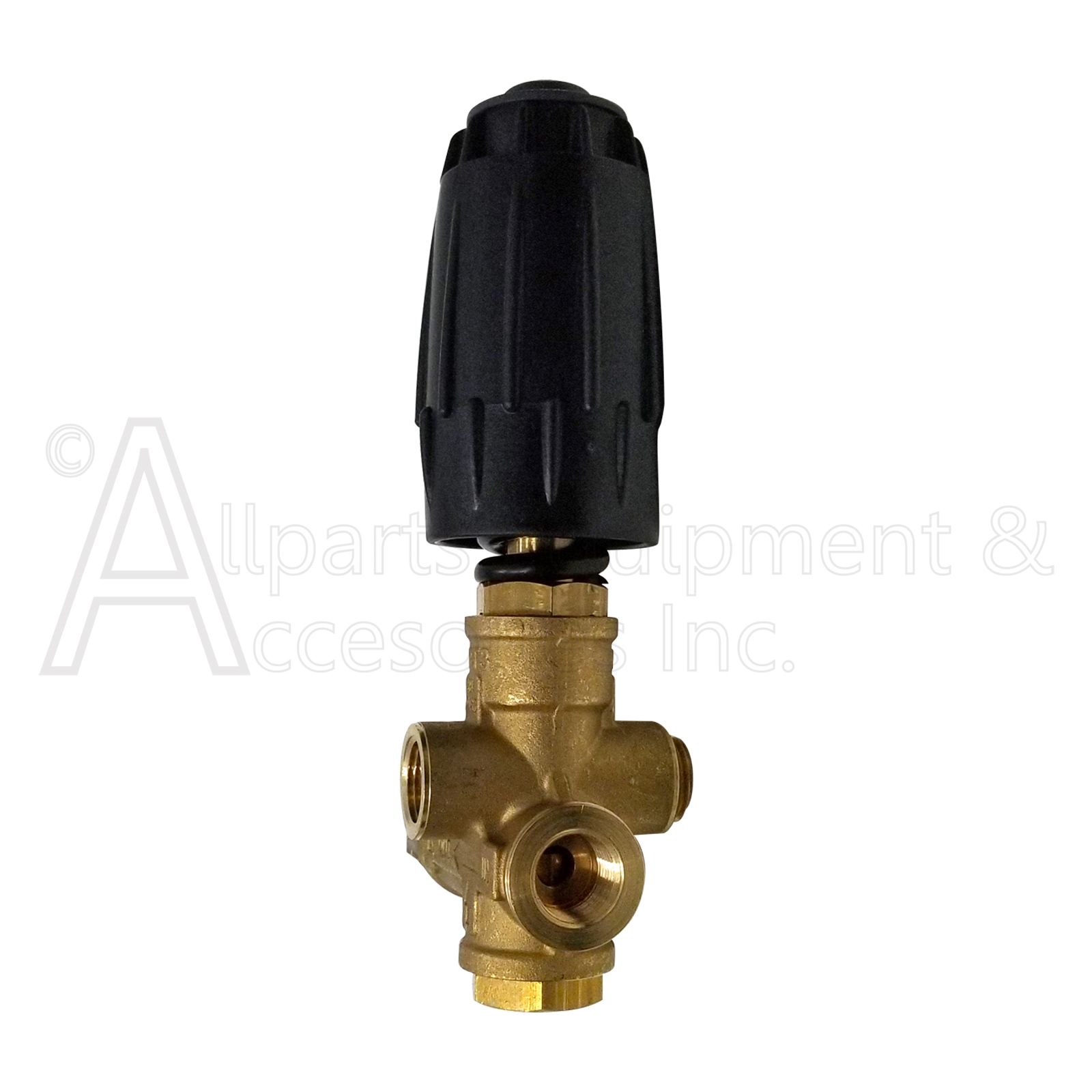

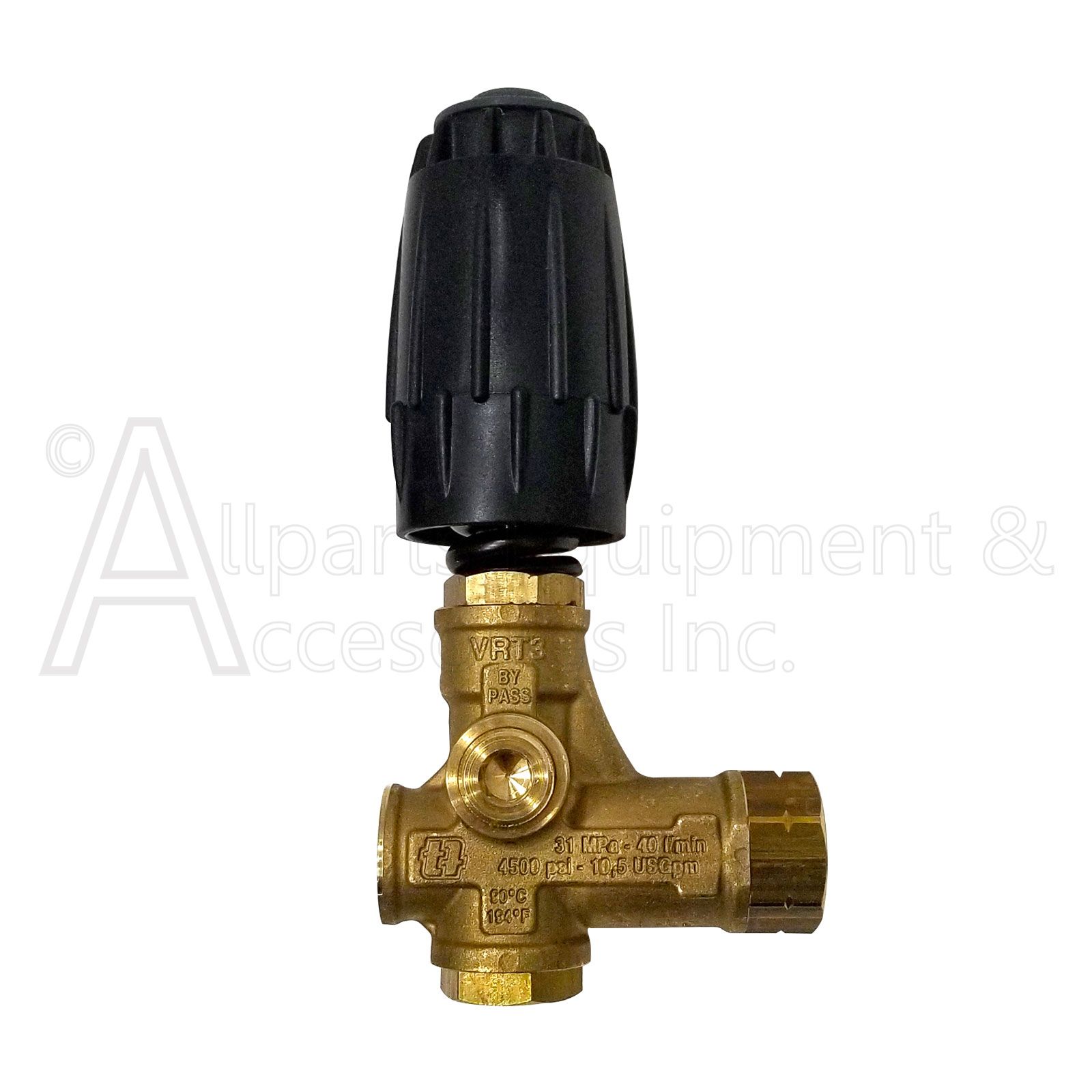

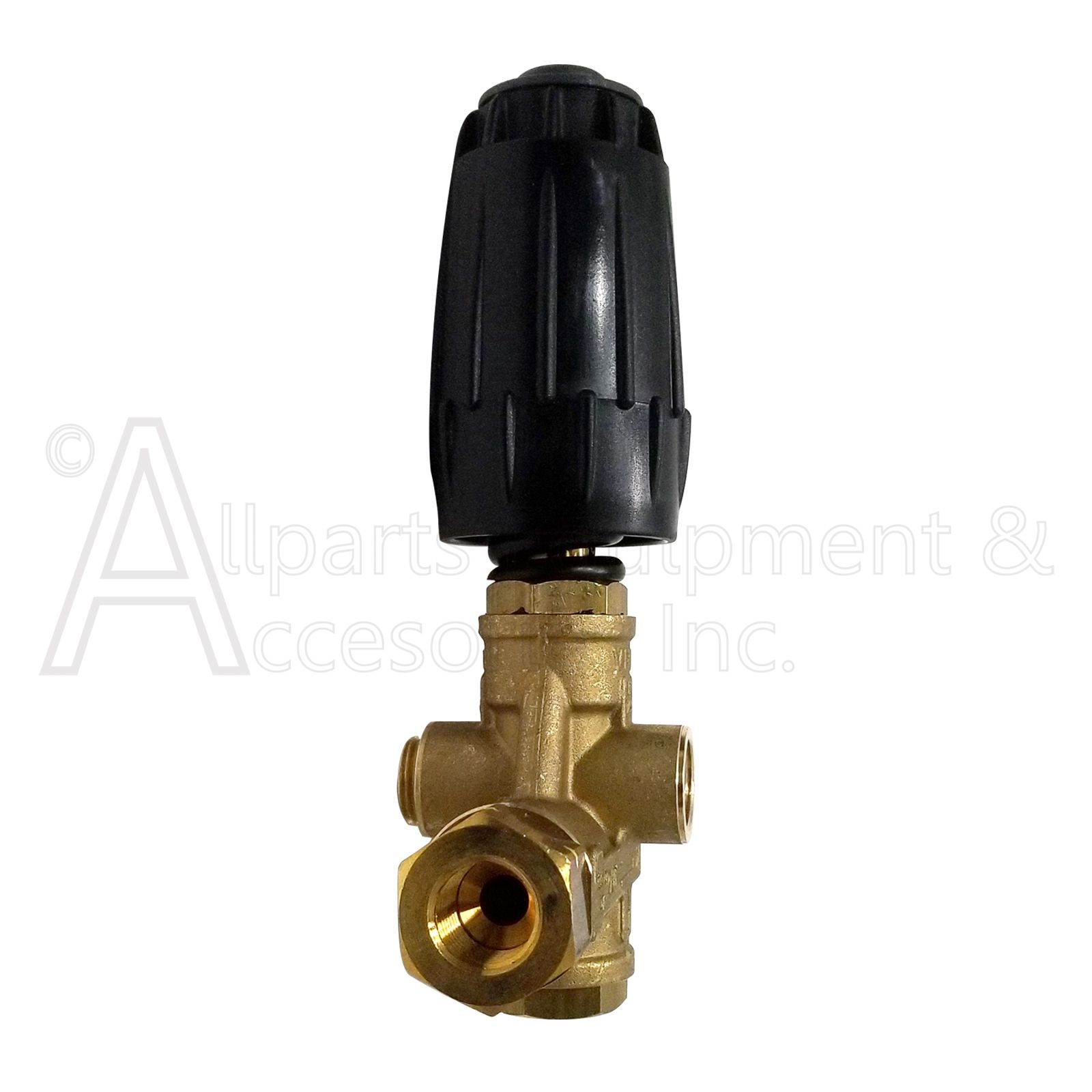

8108.2542.00 Unloader Valve with Built In EZ Start system 4,500 PSI Max

The 8108.2542.00 is a Comet brass unloader valve rated at 4500 PSI. It features a Built in EZ Start System designed to divert water flow into bypass when the trigger gun valve is closed and help prevent pump damage.

The 8108.2542.00 Comet VRT3-310EZ Unloader features a new interior design for more efficient flow operation with a new fatigue resistant spring as well as new powder paint being used to resist rusting.

This Unloader is designed to respond to an increase in pressure and a change in flow or for variable pressure adjustment.

Features of the 8108.2542.00 Unloader

• Built-in EZ Start system
• Vibration resistant dual locking nuts for setting maximum pressures
• Larger diameter piston for more strength and contact area for shifting alignment
• Discharge nipple sealing O-ring located at lower part of the thread to increase hydro strength and fitting strength.
• Shutter valve hex design means less contact area for smooth shifting and longer unloader life.
• Has two FNPT inlet ports
• Has two FNPT bypass ports
• Ultra-thick inlet and discharge ports for added strength

Technical Specifications:

Max Temperature: 194°F

Max PSI: 4500

Inlet Port: 3/8 in. FNPT

Outlet Port: 3/8 in. FNPT

Max GPM: 10.5
