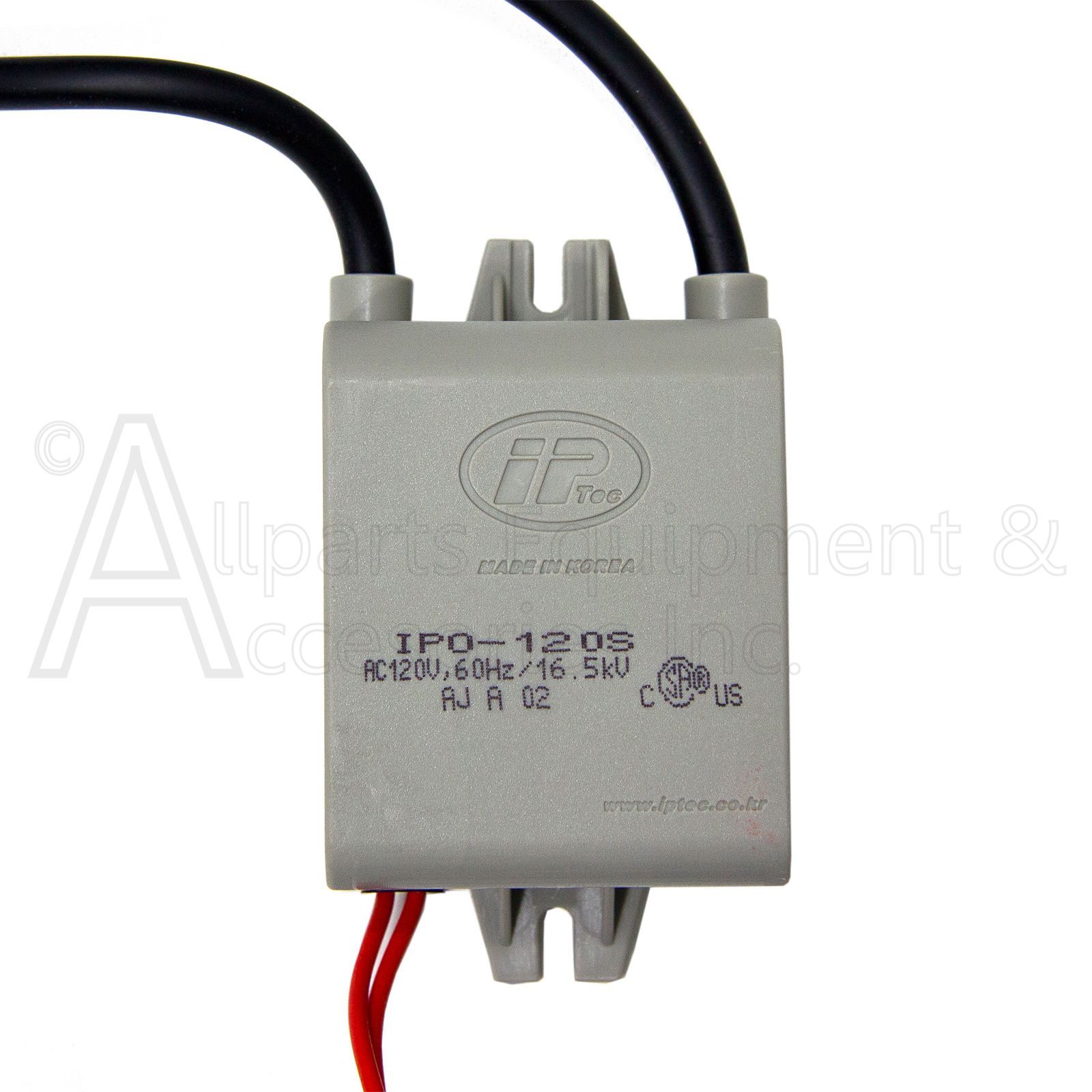

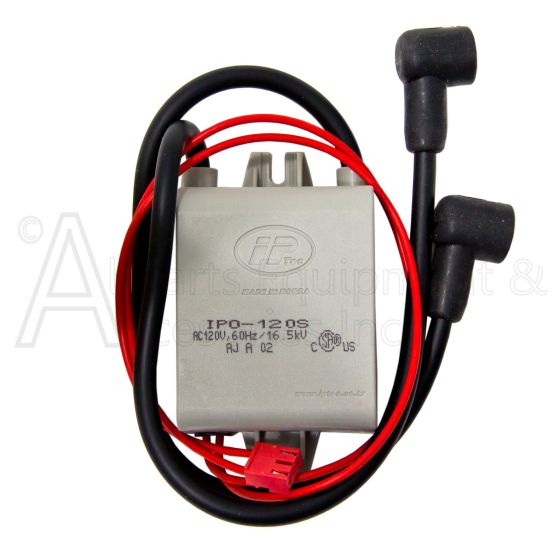

75-025-0100 Ignitor Assembly IPO120S Series with Special Red Block Connector

75-025-0100 Ignitor is a new style IP Tec IPO120S ignitor module with 10-inch high-temperature spark plug leads used on Pinnacle Products International kerosene and diesel portable forced air residential heaters and portable construction heaters.

 This 75-025-0100 was used on heaters by Sun Stream, Heat Stream, Heat Hog, Sun-Stream, Tru-temp, Heat-Stream Heat Hog, Stanley, Remington Master, and other privately labeled heaters manufactured by Pinnacle Climate Technologies.

The 75-025-0100 Ignitor Specifications are:

Igniter Primary Voltage: AC 120Volts 50/60Hz
Primary Lead Length: 10 inch 2 pin connector with Brown leads
Secondary Voltage: 16.5 KV o-p
Secondary Lead length: 2 12-inch high-temperature spark plug leads.

Pinnacle Climate Technologies Pro-Temp Models:
PT-35-SS

1VNX6A

Pinnacle Products Heat-Hog Models:
HH-55-SS

Pinnacle Products Grainger Dayton Models:
1VNX5
1VNX5A

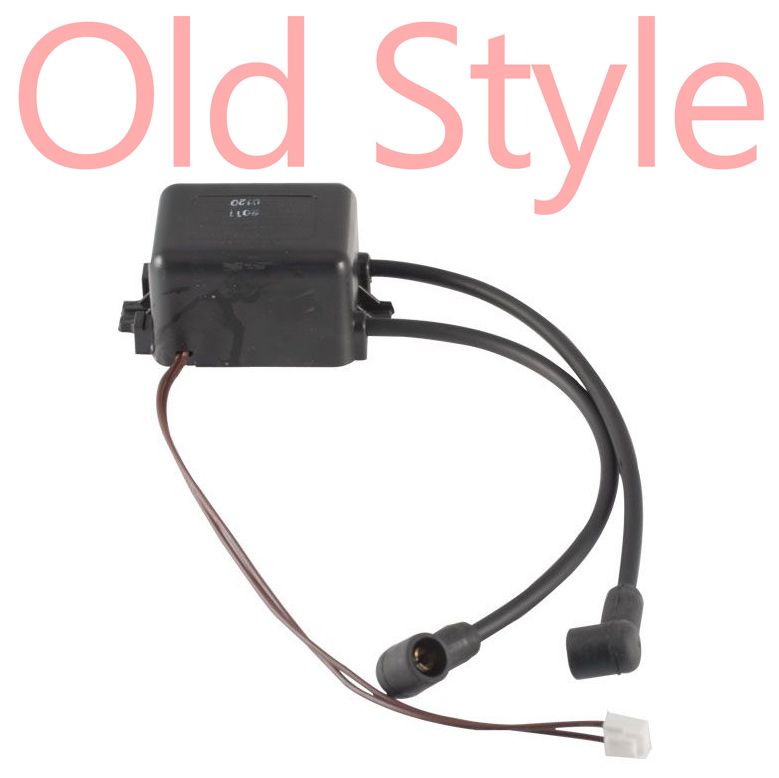

Service Note:
Old Style Igniter Information Model Number WMI924 H.F. Igniter Primary Voltage AC 120Volts 50/60Hz with 10 inch 2 pin connector with Brown leads. Secondary Voltage 16.5 KV o-p with 2 10-inch spark plug leads.
