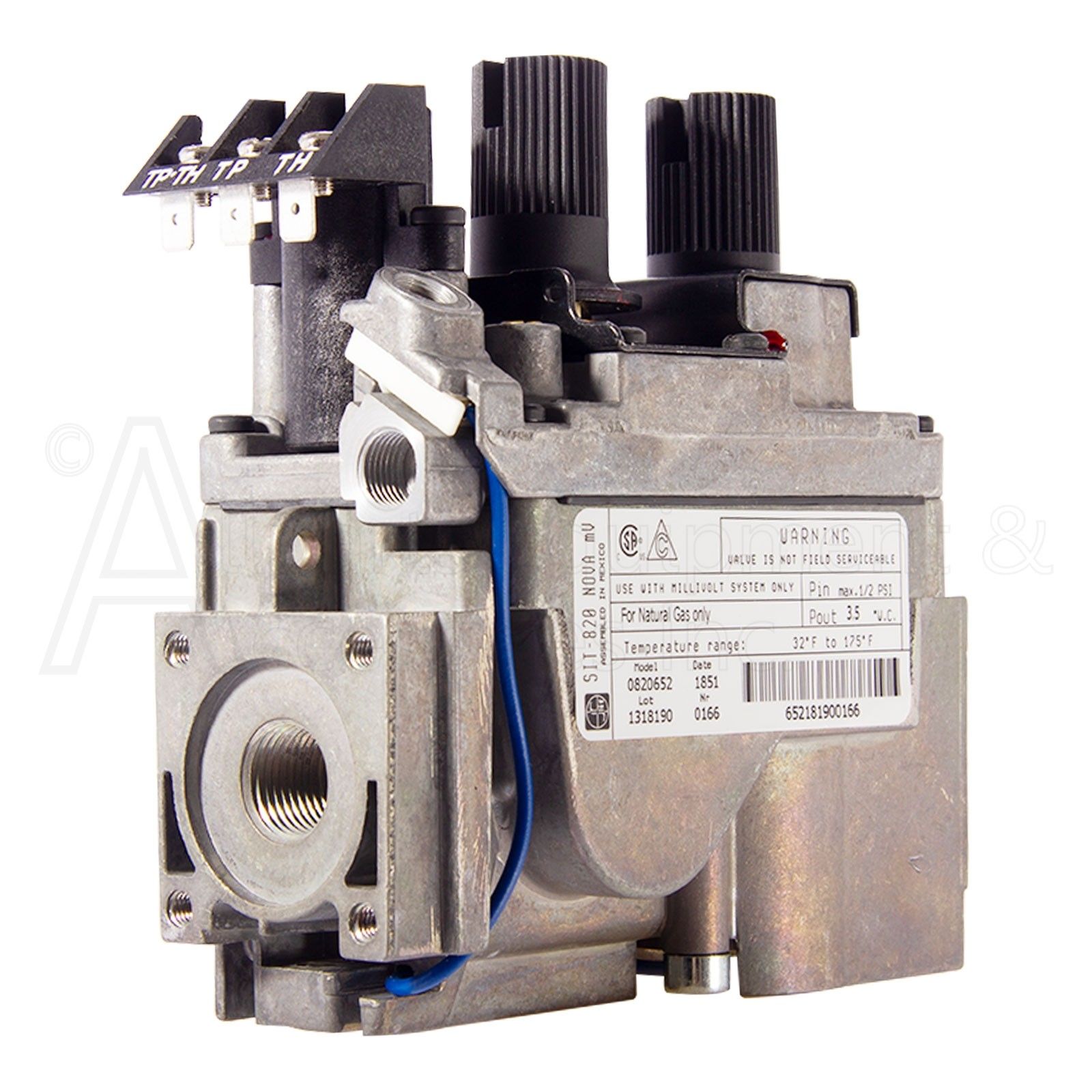

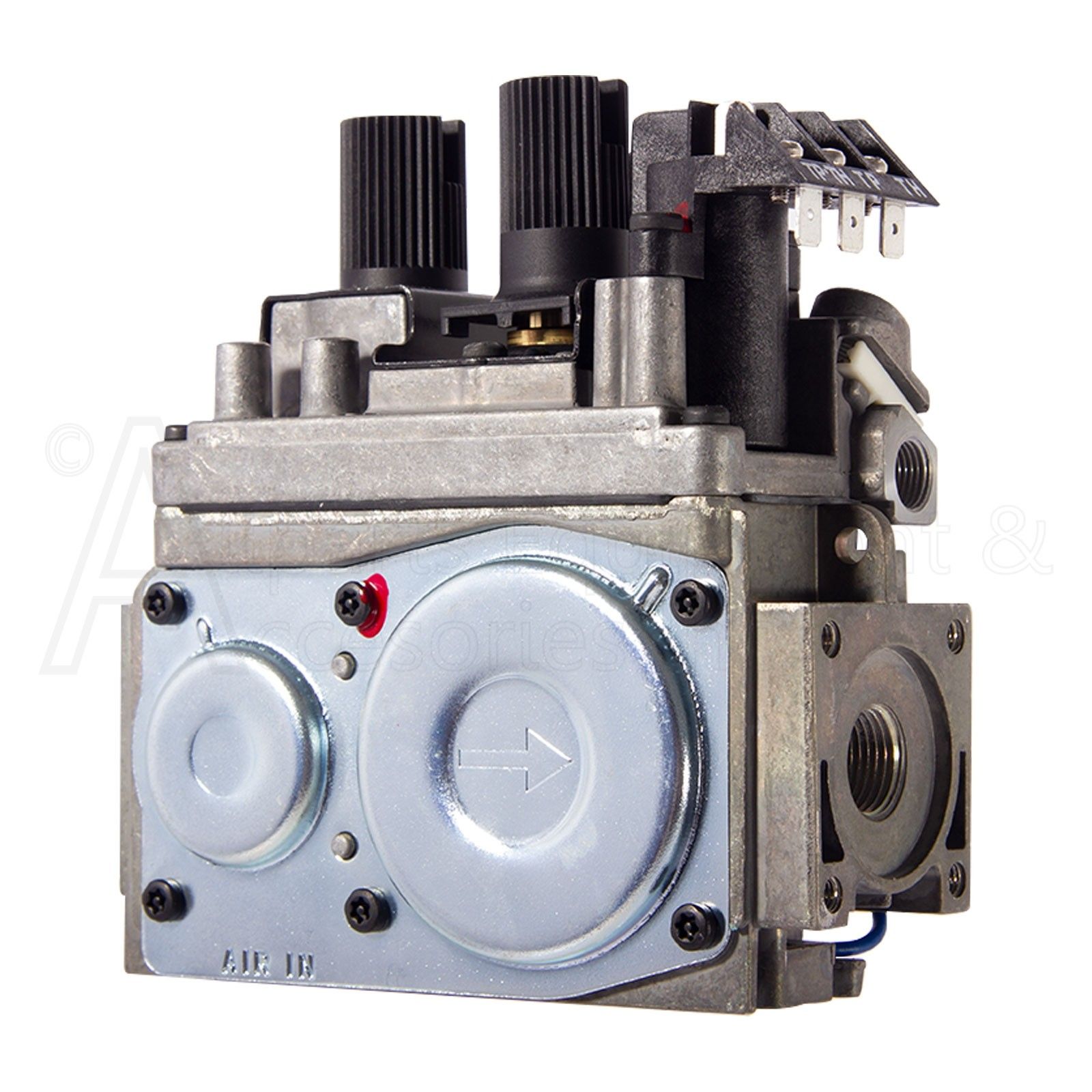

7211-310 Natural Gas Hearthstone Gas Valve, Millivolt

The 7211-310 is a SIT 820 series natural gas millivolt gas valve with manual hi/lo burner adjustment for Hearthstone gas fireplaces. This gas valve is remote-ready and can be controlled via a millivolt wall switch or a millivolt remote control system.

Natural gas valve 7211-310 services a wide range of natural gas stoves, fireplaces, gas log sets, and other direct vent Hearthstone appliances that support millivolt components.

7211-310 gas valves are thoroughly tested and inspected prior to certification to ensure compatibility.

Specifications of the 7211-310

Gas Type: Natural Gas

Maximum Natural Gas Inlet Pressure: 1/2 PSIG

Natural Gas Inlet: 3/8 in. NPT

Natural Gas Outlet: 3/8 in. NPT

Minimum Voltage: 145mV

Coil Resistance: 2.25±0.5

Thermo-Electric Unit Hold-in Current < 285Ma

Drop-out Current: > 125mA with coil resistance 0.018± 0.003

Thermocouple Connection Size: 11/32 ASA-DNC

Manual Pressure Set-Point: 3.5 in. w.c. ± 0.3

Range of Adjustment: 3.5 in. w.c. -1.6 in. w.c.

Ambient Operating Temperature: 32° to 175° F

Regulation Capacity: 5,000 to 195,000 BTU AP per hour
