7109385 ISOLATOR FOOT REPLACEMENT SERVICE KIT WITH HARDWARE

This Simpson Cleaning 7109385 Isolation feet replacement service kit with complete hardware kit is an OEM Simpson set of two replacement service feet with all mounting hardware designed for 1 1/4-inch tube frame applications.

This 7109385 service kit includes two non-marking Gray replacement feet and two replacement screws for various pressure washers manufactured by Simpson Pressure Washers.

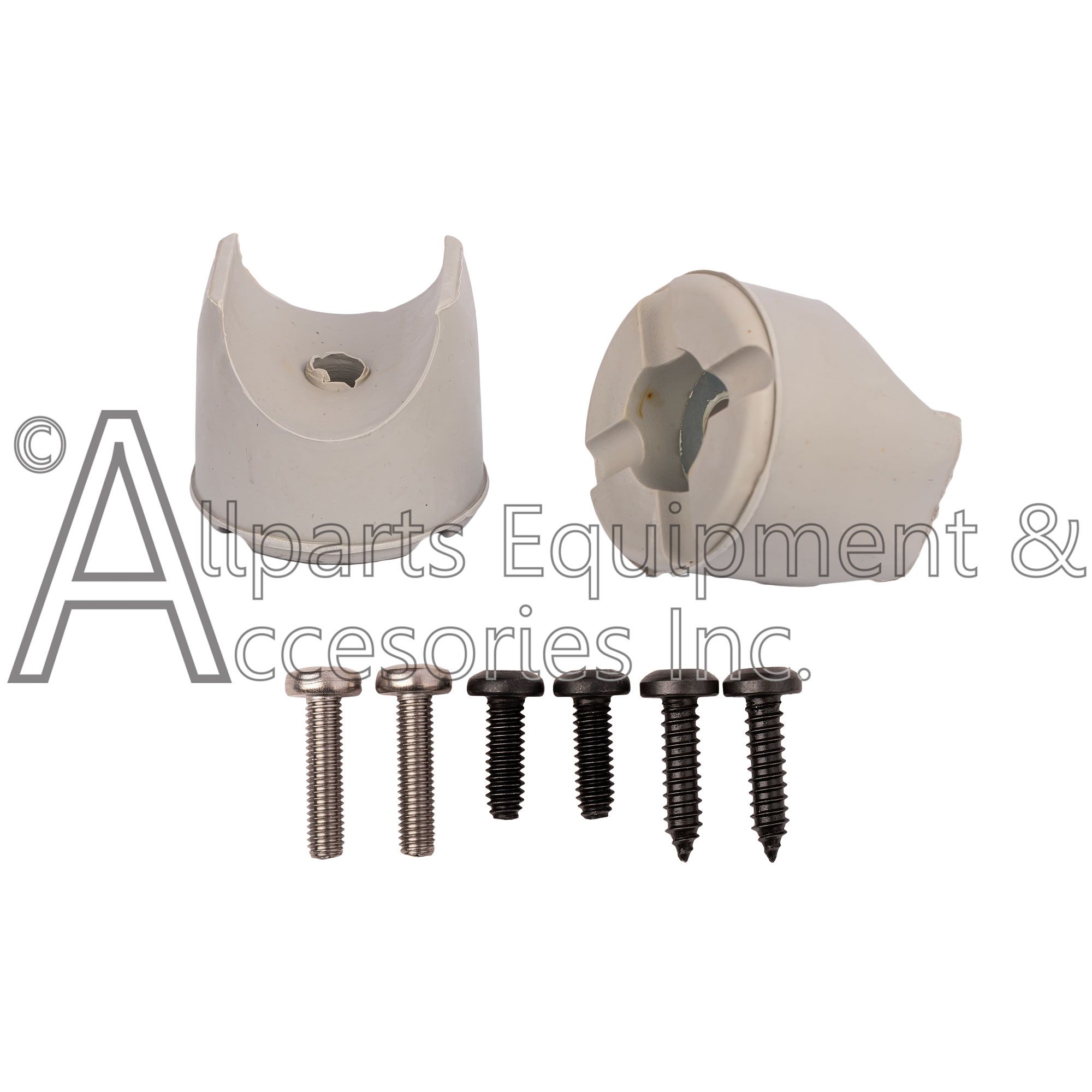

The 7109385 Complete Service Isolator foot replacement kit with universal hardware comes with the following items:

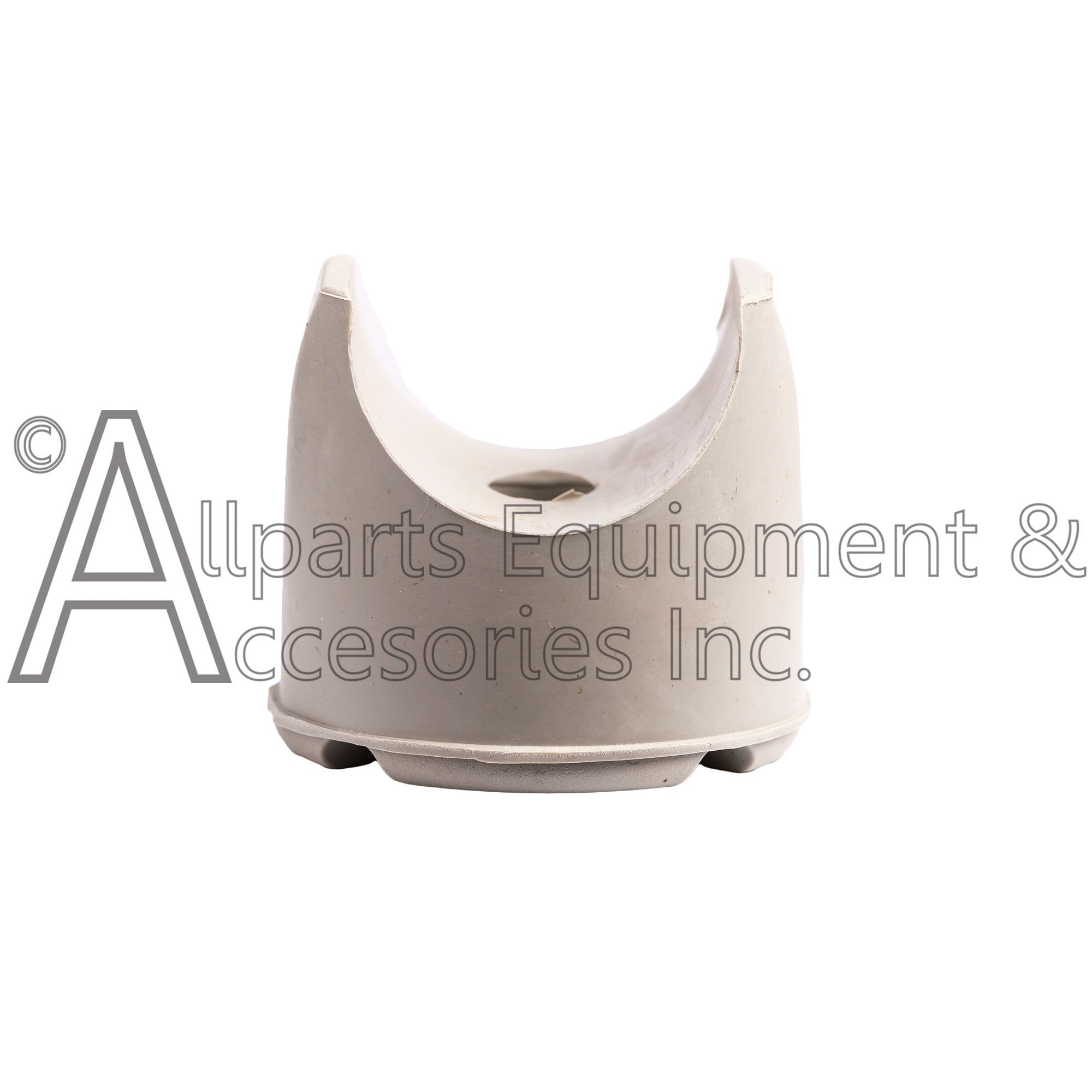

2 Each Gray Fitted Isolator Foot

2 Each Black Torx Screw 1/4-20 x 3/4

2 Each Black Torx Screw 1/4-14 x 1
2 Each Silver Phillips # 3 Screw M6 -1.0

Service Note:

When using the 7109385 isolator service kit to replace an early an model pressure washer that used pop rivets to secure the isolator foot to the frame, please follow these instructions.

1) Put on safety glasses and gloves.

2) Place a 1/4-inch metal drill bit into your drill.

3) Apply a small amount of cutting oil or equivalent to the drill bit.

4) Place the drill bit into the hole in the center of the pop rivets; while holding the drill straight and level, carefully drill the old pop rivet from the frame.
5) Install the new Gray non-marking replacement isolator feet using the supplied hardware kit
