7101033 Commercial Grade Pressure Washer Pump, 5100 PSI
Out Of Stock
Part Number
7101033
$3,238.50

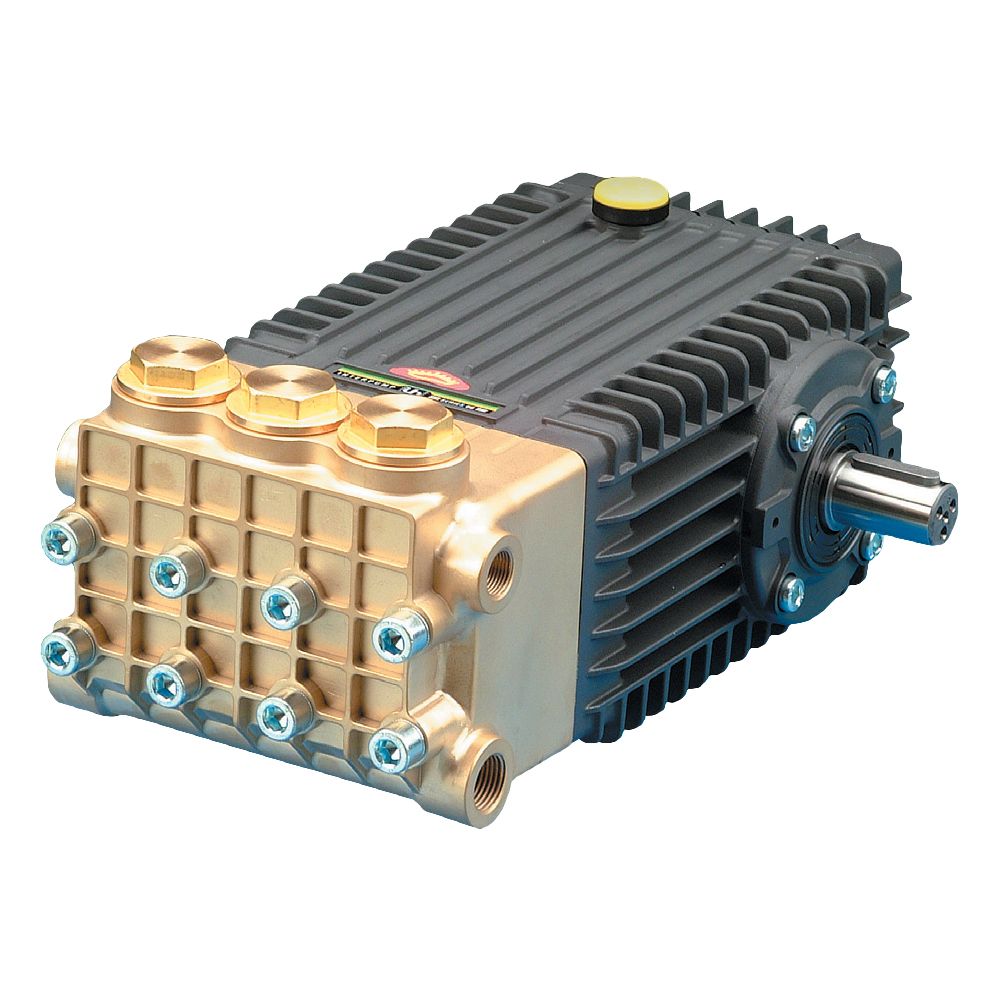

The 7101033 is a high-pressure commercial pressure washer pump from General Pump. This is a 66 series TSP pump with a 24 mm solid shaft, designed for commercial pressure washer use. It delivers a flow rate of 5.0 GPM at 5100 PSI.
General Pump's 7101033 uses solid ceramic plungers and a durable forged brass manifold. This pump is built for durability and longevity, ensuring that it holds up to long-term high-pressure use.
The 7101033 is the TSP1819 pressure washer pump from General Pump.
7101033 Pump Features
- Uses a compact and durable design that is built for longevity.
- Oversized roller bearings reduce wear from pump vibrations.
- Plunger designed for improved thermal shock resistance.
- Built with a fully anodized crankcase that is corrosion resistant.
- Valve cap provides improved hydrostatic performance.
Specifications of the 7101033 Pump
Flow Rate: 5.0 GPM
Pressure Rating: 5100 PSI
Rotation Rating: 1450 RPM
Oil Capacity: 33.8 fl. oz.
Bore Size: 0.709 in. (18 mm)
Stroke Size: 0.748 in. (19 mm)
Electric Motor Horsepower: 17.5 HP
Shaft Size: 0.94 in. (24 mm)
Inlet Port Size: 1/2 in. BSP-F
Discharge Port Size: 3/8 in. BSP-F
Max. Water Temperature: 165°F
Dimensions
Width: 13.8 in.
Depth: 9.8 in.
Height: 7.7 in.
Weight: 51.8 lbs.
