7100010 Unloader Replacement Retrofit Kit - 4500 PSI Max UV Series

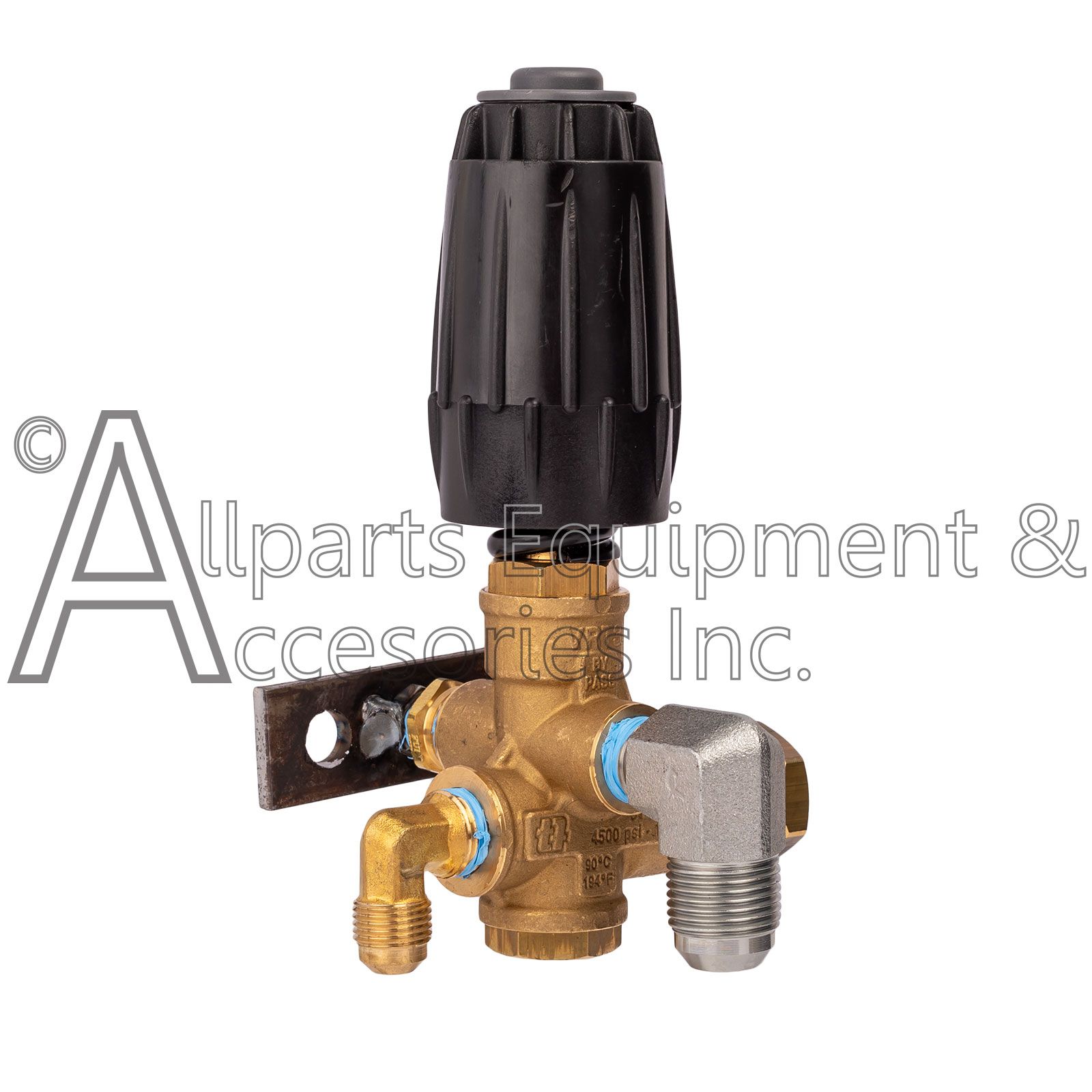

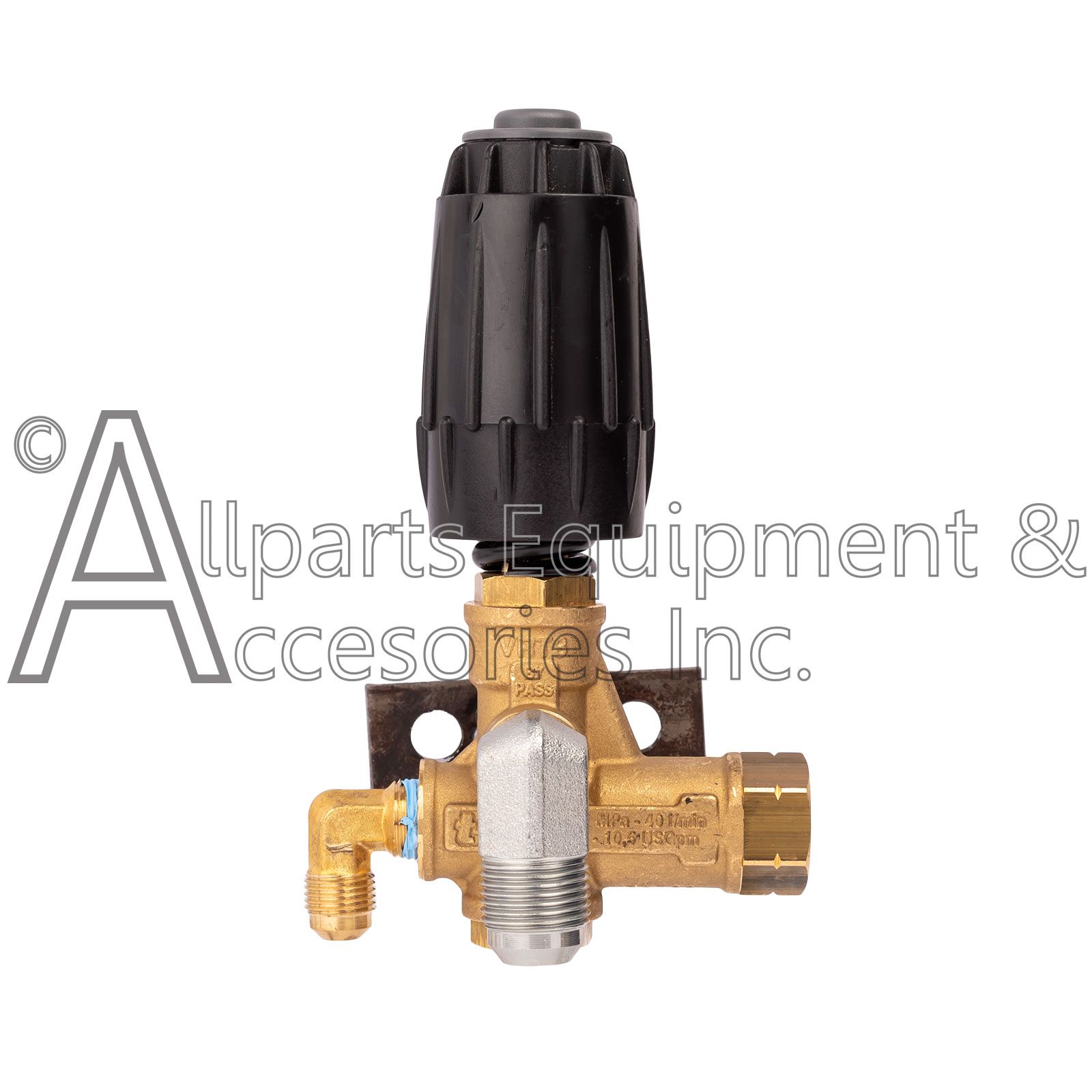

The 7100010 Unloader Valve is the Simpson UV Series adjustable unloader valve replacement kit.

This new unloader service kit is used to replace the older UV Series unloader valves used by Simpson, Delco, Sherwin Williams and others on their line of cold water pressure washers.

The New Style 7100010 Unloader Valve replacement kit with hardware will allow the new unloader valve to be installed with or without the adjustable black control knob.

The unloader valve can be installed either the below the frame position similar to the original installation or the fittings can be rotated to allow for the unloader to be mounted in an upright position for easy pressure adjustment.

The new AAA 7100010 Unloader Valve Kit has the following ratings.

Max GPM: 10.5
Max Adj PSI: 4500
Min Adj PSI: 1500 PSI

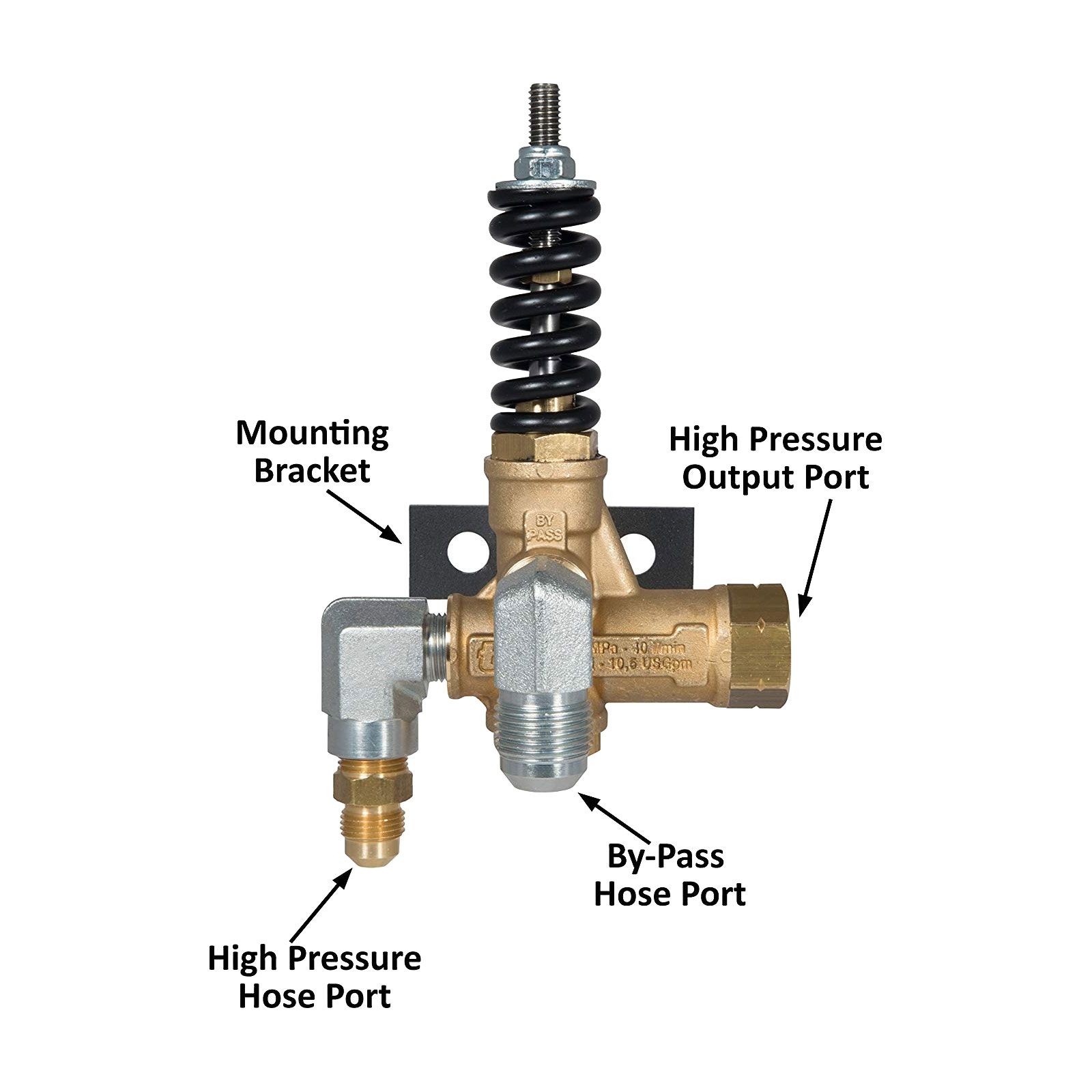

Inlet 2 x 3/8 F
Outlet 3/8
Max Temp: 194 F
By-Pass 3/8 x 2 Ports
Adjustable Handle Included
Mounting Plate


The 7100010 Unloader Service Kit will replace the following Simpson unloader valves.

UV-760
UV760
UV-760-30
UV760-30
UV760-35
UV760-35

UV-770
UV770
UV-770-30
UV770-30
UV-770-35
UV770-35
UV-770-40
UV770-40

UV725-40
UV725-30
UV725-35
UV725-45
UV-725-30
UV725-35
UV-725-40
UV725-45

UV601-22

UV-550-30
UV55030
