62L18 Lennox Honeywell Resideo Gas Valve - Honeywell 62L1801 24 Volt SV9403M2303

In stock
Part Number
62L18
$379.90
Part Number: 62L18
Compatible Brands: Honeywell
Shipping Weight: 2 Lbs
Non Returnable
I understand this item CAN NOT be returned if the tamper evident packaging has been opened. Packaging is see-through to allow for proper inspection prior to unwrapping.
⇧ Check The Box If You Want To Proceed.

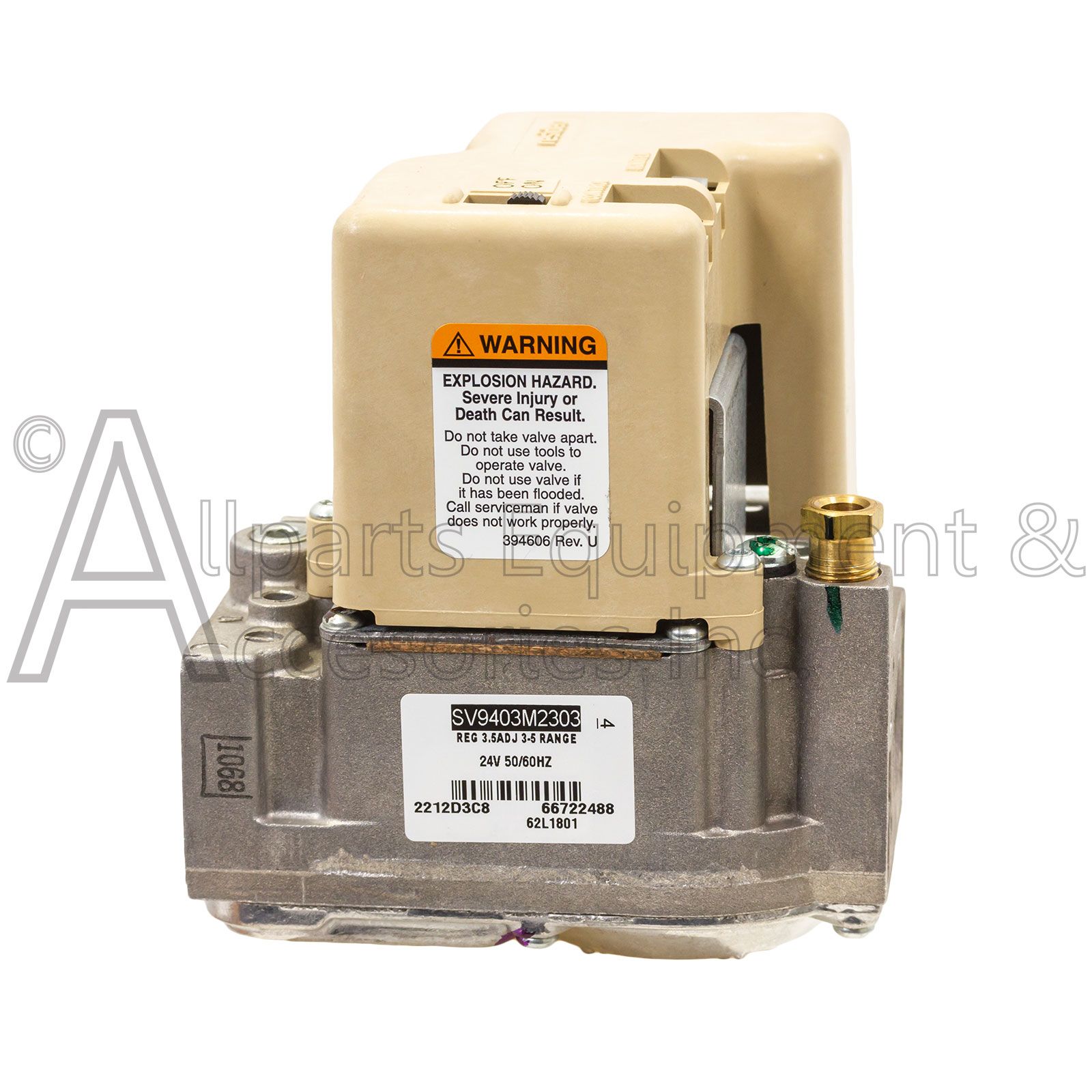

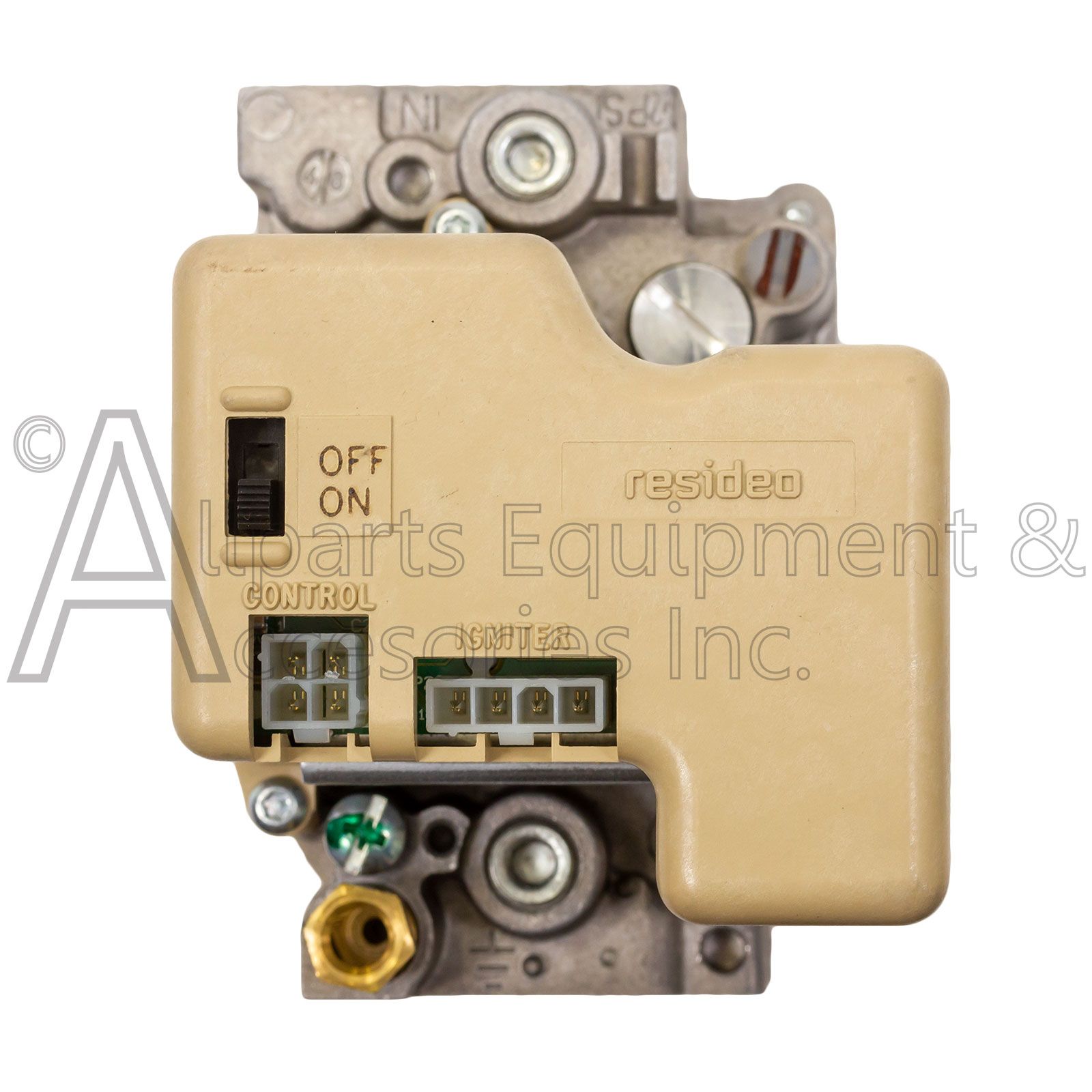

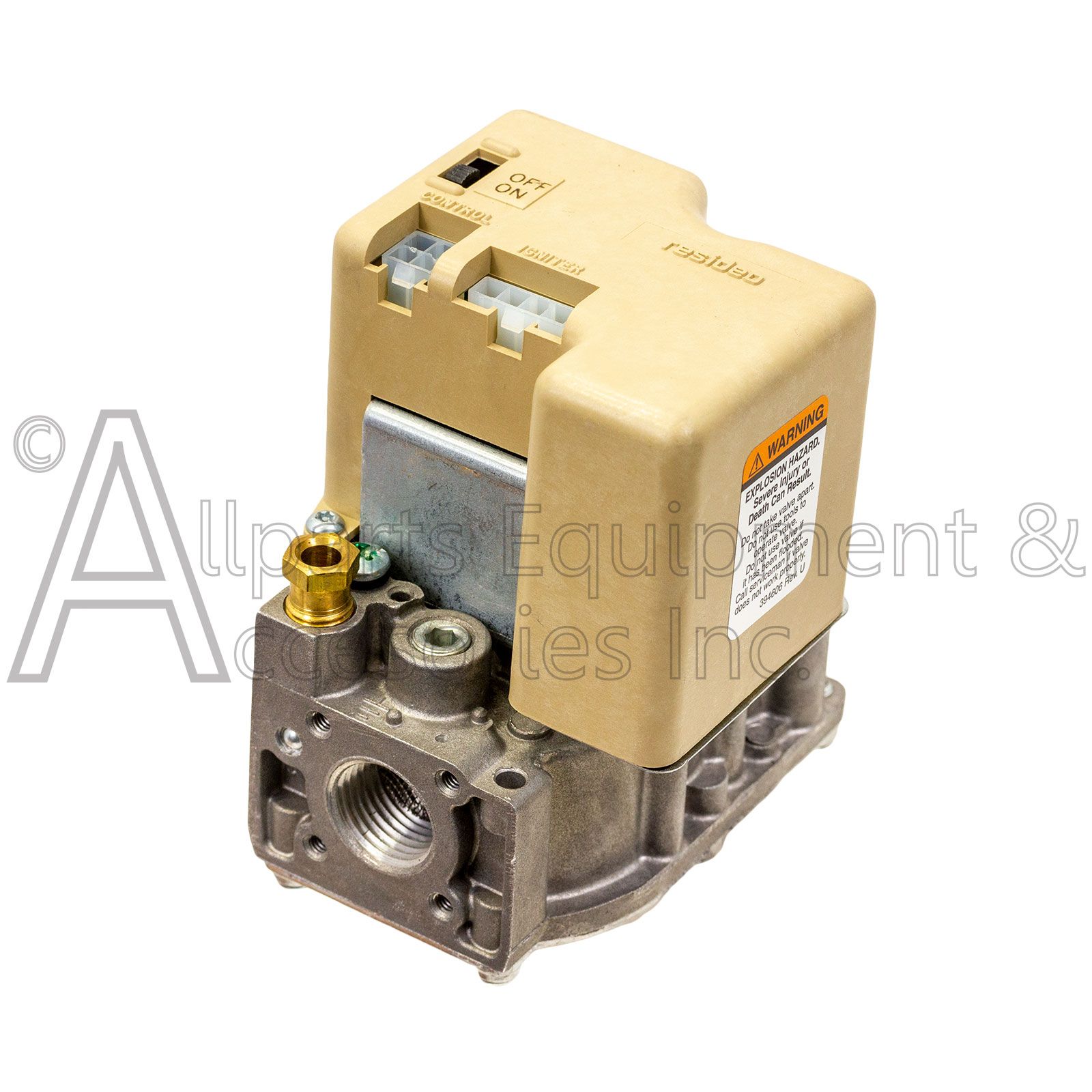

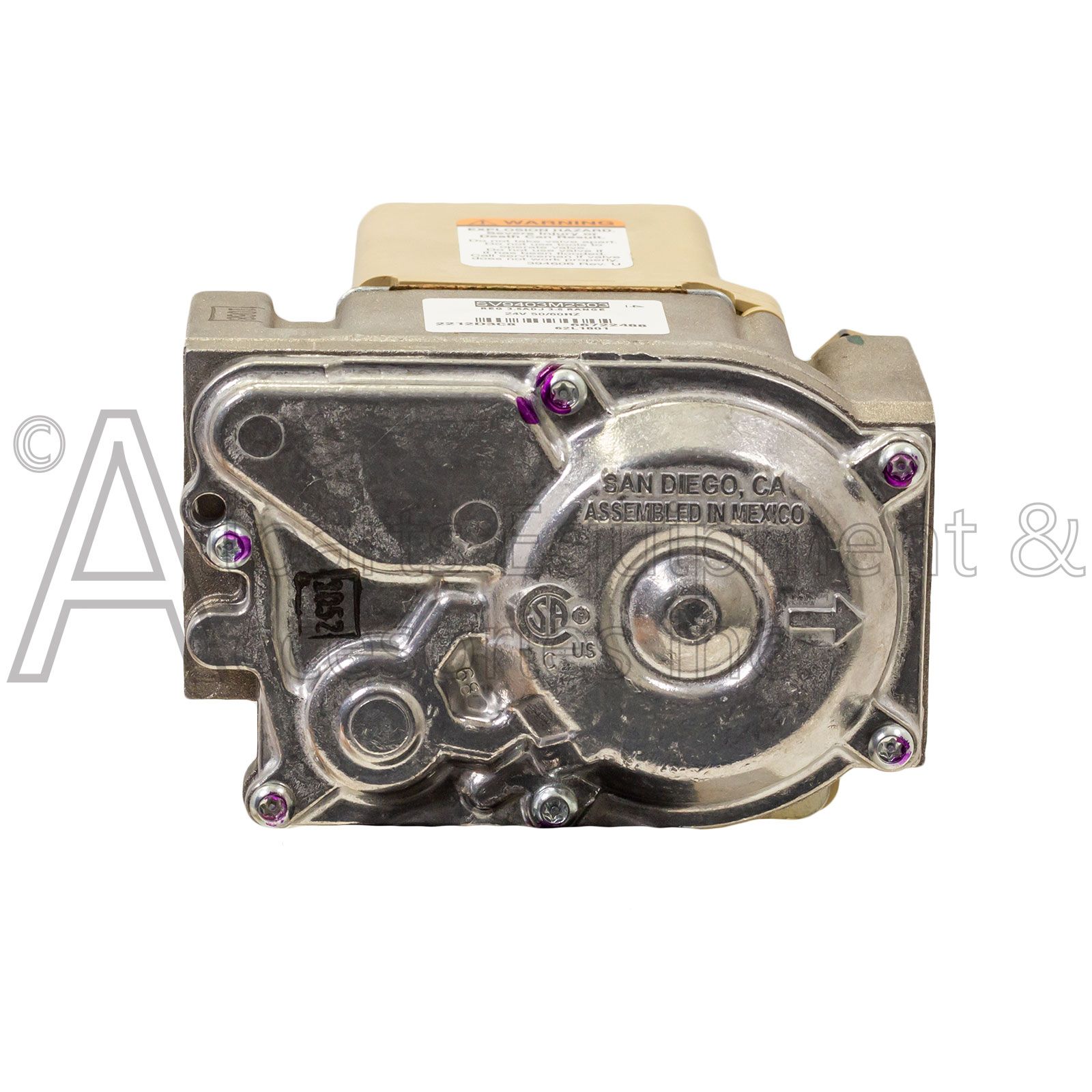

The Lennox 62L18 Honeywell Resideo Smart Gas Valve is the SV9403M 2303 Series Gas Valve used by Lennox Hearth products on their line of Direct vent Fireplaces and Gas Appliances under both the 62L1801 and 62L18 part numbers


This 62L18 Lennox SV9403M2303 Honeywell Gas valve can be used on the Elite Series gas fireplaces, Lennox Merit Gas Fireplaces as well as Astria and Superior Gas fireplaces and stoves.

Honeywell Resideo Number SV9403M2303 gas valve Specifications are as follows:


OEM Number: 62L18 62L1801

Reg 3.5

Adjustable full range 3-5 WC

24 Volt AC 50/60HZ

SV9403 100% IP shutoff 90 second ignition trial lockout +20% at 50HZ

Run 0.2 Amps Igniter 1.25 Amps

Inlet port: 1/2 NPT

Outlet port: NPT

Service Note:
Resideo Technologies, Inc. is a publicly traded U.S.-based company formed in 2018 out of a spin off from Honeywell.
Resideo provides room air temperature, quality, and humidity control and security systems primarily in residential dwellings in the U.S. and internationally.

The following is a partial list of model numbers the 62L18 gas Valve could have been used on.


Astria Gas Fireplace:

  • Libra 40STDEN
  • Libra 40PFDEN
  • Libra 40CLDEN
  • Libra 40CRDEN

    Merit Gas Fireplaces:

    • LMDV-3530CNE
    • LMDV-4035CNE
    • LMDVR-3328CNE
    • LMDVT-3328CNE
    • MPB-3328CNE
    • MPB-3530CNE
    • MPB35ST-NE
    • MPB-4035CNE
    • MPB-4540CNE
    • MPD-3530CNE
    • MPD-3530CNE-B
    • MPD35ST-NE
    • MPD-4035CNE
    • MPD-4035CNE-B
    • MPD-4540CNE
    • MPD-4540CNE-B
    • MPDR3328CNE
    • MPDT3328CNE

      Superior Gas Fireplaces:

      • BBV-42REN
      • CDST-CEN
      • CDPF-CEN
      • CDCL-CEN
      • CDCR-CEN
      • SDDV-35NE
      • SSDVT-3328CNE
      • SSDVR-3328CNE
      • D600 CMN
      • D600 CMP
      • D600 CEN
      • D600 CEP
      • D800 CMN & CMP
      • D800 CEN & CEP
      • DT-500CMN
      • DVT5-RENS
      • LBV-4324EN
      • LBV-4324EP
      • LBV-4324EN-H
      • LBV-4324EP-H
      • BBV-36RMN/P
      • BBV-36REN/P
      • B-40RMN/P
      • B-40REN/P
      • BBV-42RMN
      • BBV-42REN
      • BBV-42RMP
      • BBV-42REP
      • DT-400
      • DR-400

    Elite Gas Fireplaces:

    • EBVCLNE
    • EBVCRNE
    • EBVPFNE
    • EBVSTNE
    • ED3530CNE
    • ED4035CNE-2
    • ED4540CNE-2
    • EDCLNE-2
    • EDCRNE-2
    • EDPFNE-2
    • EDSTNE-2
    • EDV3530CNE
    • EDV4035CNE
    • EDV4540CNE
    • EDVCLNE
    • EDVCRNE
    • EDVPFNE
    • EDVSTNE
