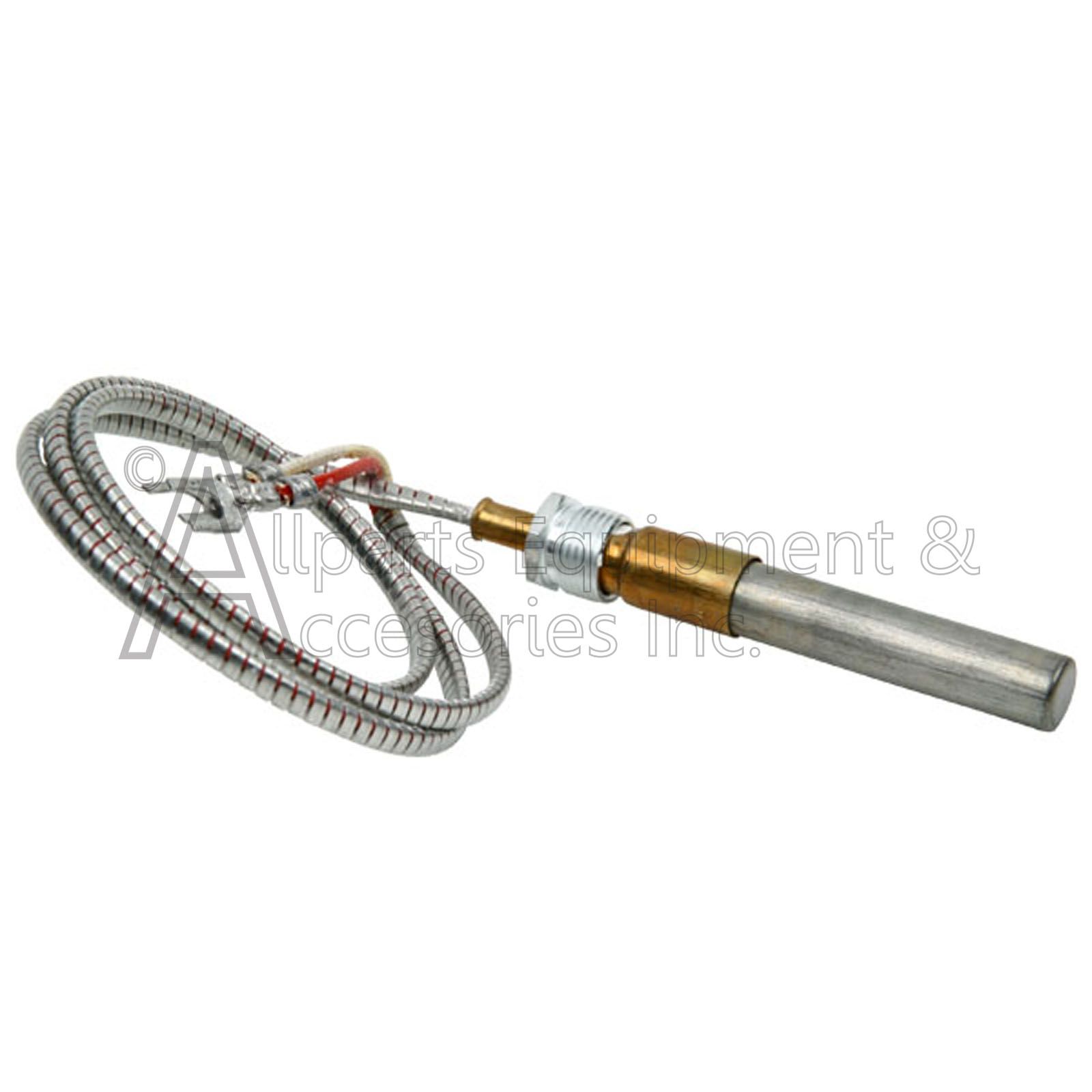

60j79 thermopile 24 inch lennox hp front view

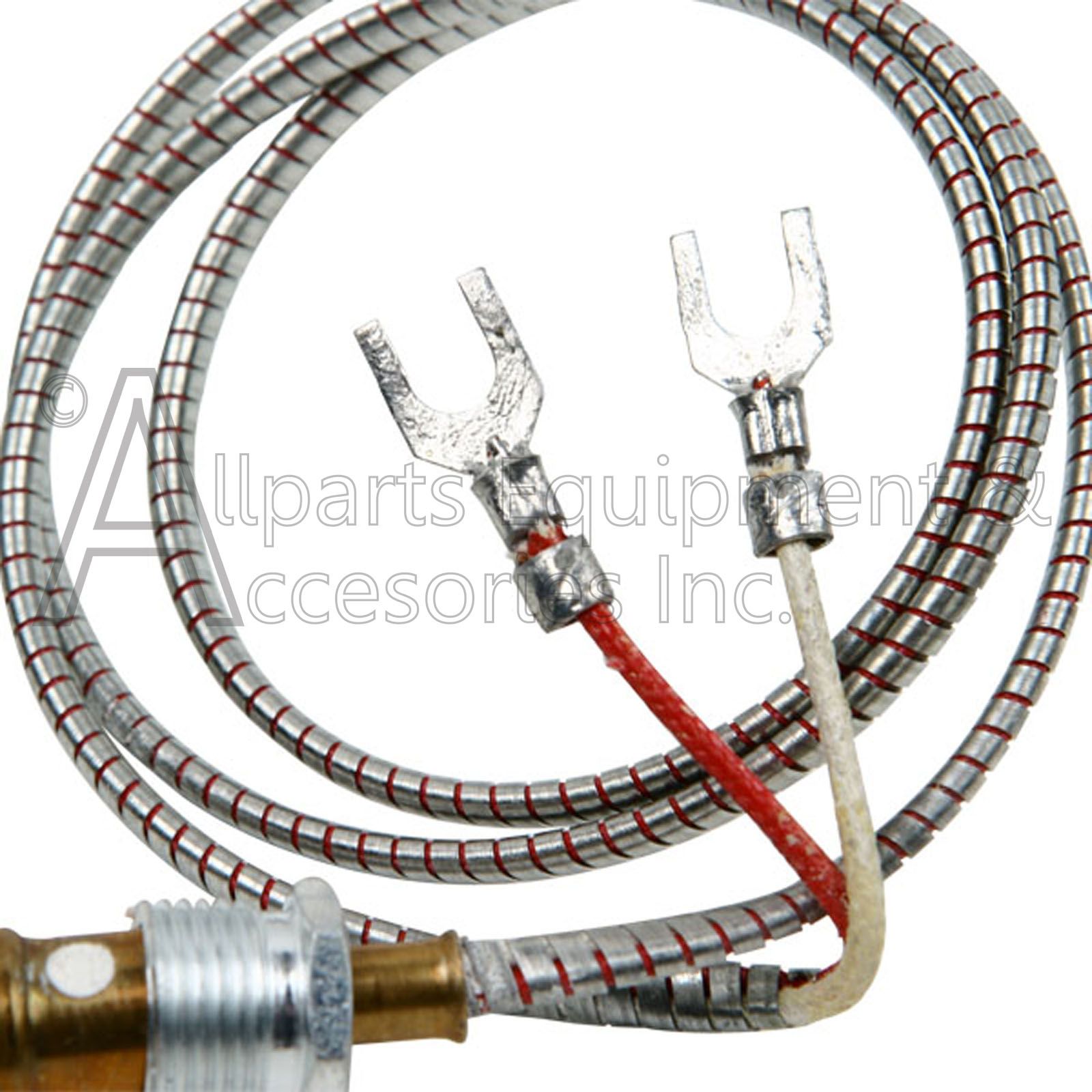

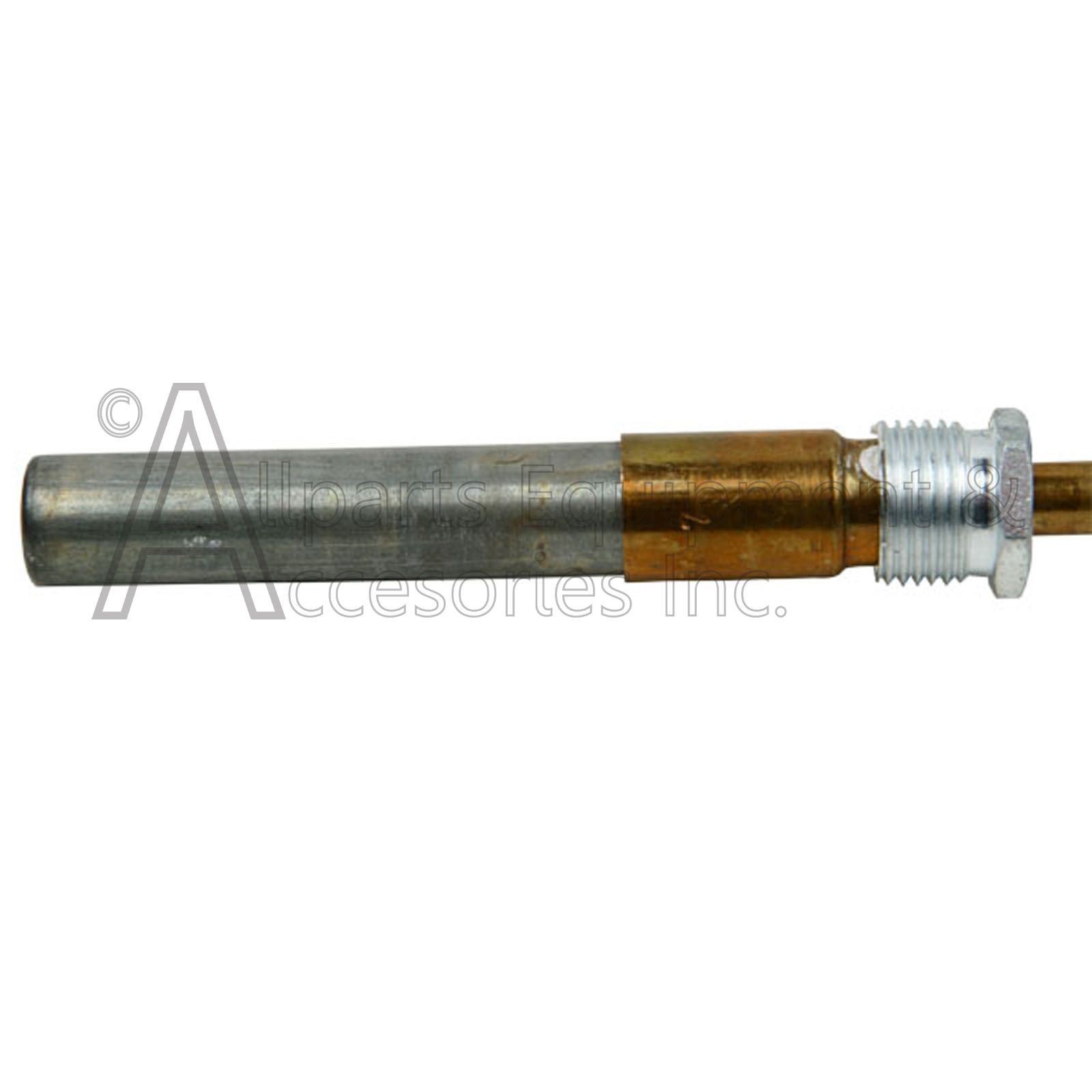

60j79 thermopile 24 inch lennox hp front view 60j79 thermopile 24 inch lennox hp burner 60j79 thermopile 24 inch lennox hp connectors

60J79 THERMOPILE 24 INCH LENNOX IHP MILLIVOLT GAS FIREPLACES

In stock
Part Number
60J79
$34.50
Part Number: 60J79
Brand: Lennox fireplace and components by IHP
Shipping Weight: 0.1875 Lbs
The 60J79 Thermopile Generator is an original equipment Lennox IHP thero generator and generates sufficient power to operate an automatic millivolt gas control system, independent of any outside power source.

This 60J79 Thermopile Generator Features:
Push-in clip, split nut, and adapter assembly for easy pilot burner installation. Spade or quick-connect terminals available for millivolt gas control connections.

Male nut connector for PilotstatĀ® safety control power units.



Cross Reference

Earth Stove 18050
Whitfield 11450097





Need Help? Call us:

1-269-685-4123

The 60J79 Thermopile will replace the previous lennox IHP part numbers.


Lennox 94699, 094699
Lennox 94527, 9452701
Lennox 97527, 09752701

IHP H2294

Superior Lennox 60J7901, 9800, 09800


The product specifications for the 60J79 are as follows:


Voltage: 750 mV
Connection Type: Spade Terminals
Lead Length (in.): 23 in.
Lead Length (mm):584 mm
Open Circuit Output (mV): 400 mV to 750 mV
Resistance: 2.88 ohms Temperature Ratings (F): Hot Junction 1400 F
Temperature Ratings (C): Hot Junction 760 C
Temperature Ratings (F): Cold Junction 780 F
Temperature Ratings (C): Cold Junction 416 C
Includes:Thermopile attaching nut
