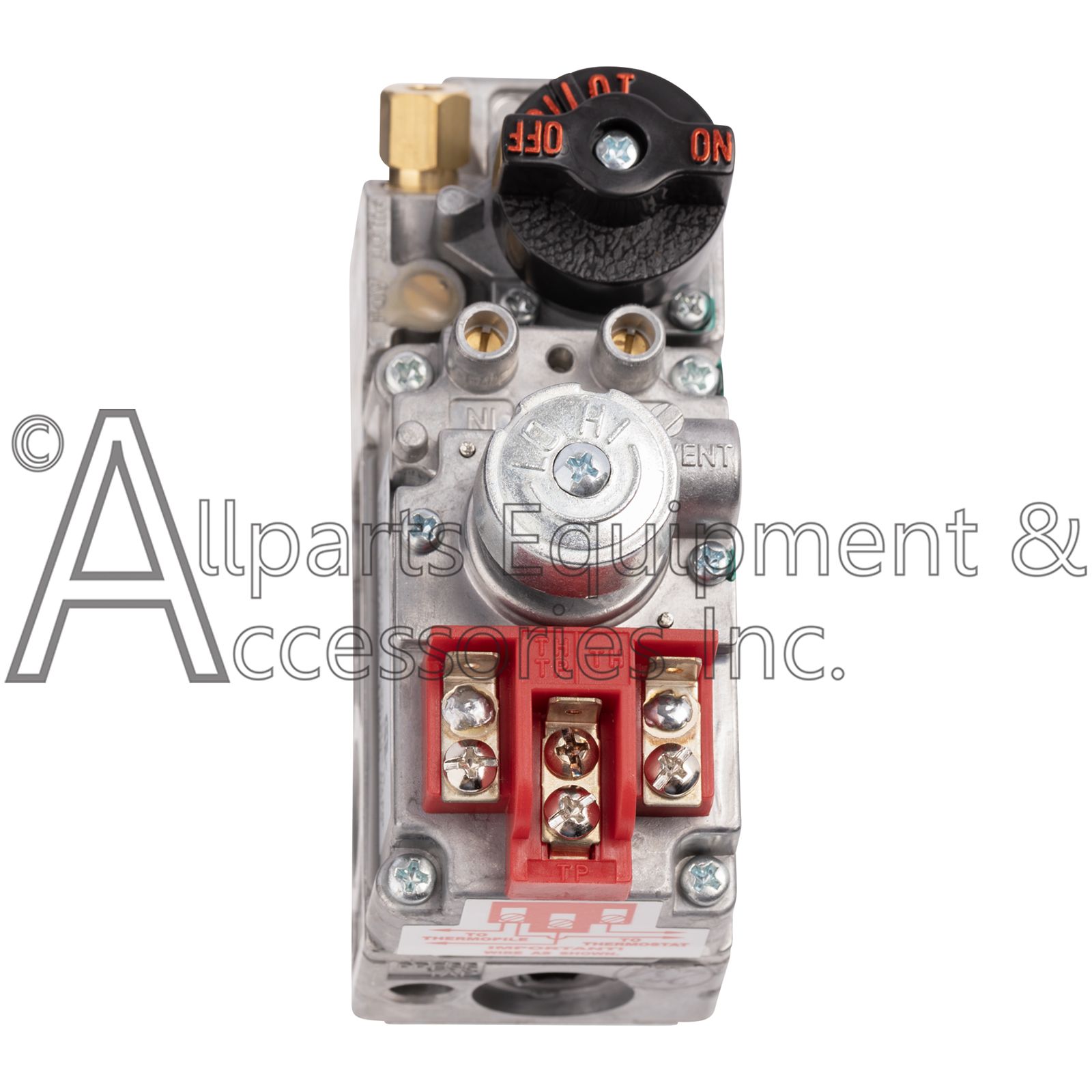

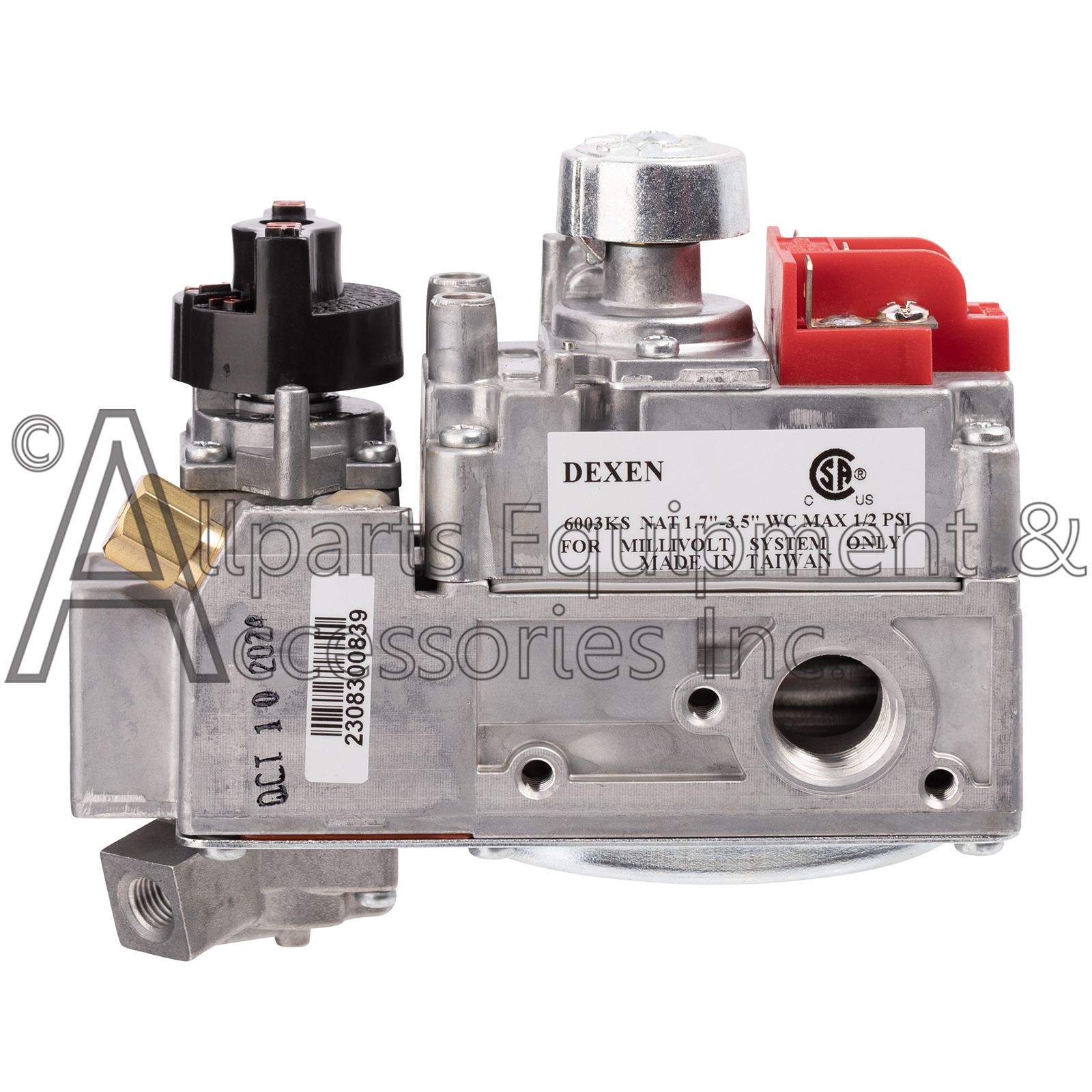

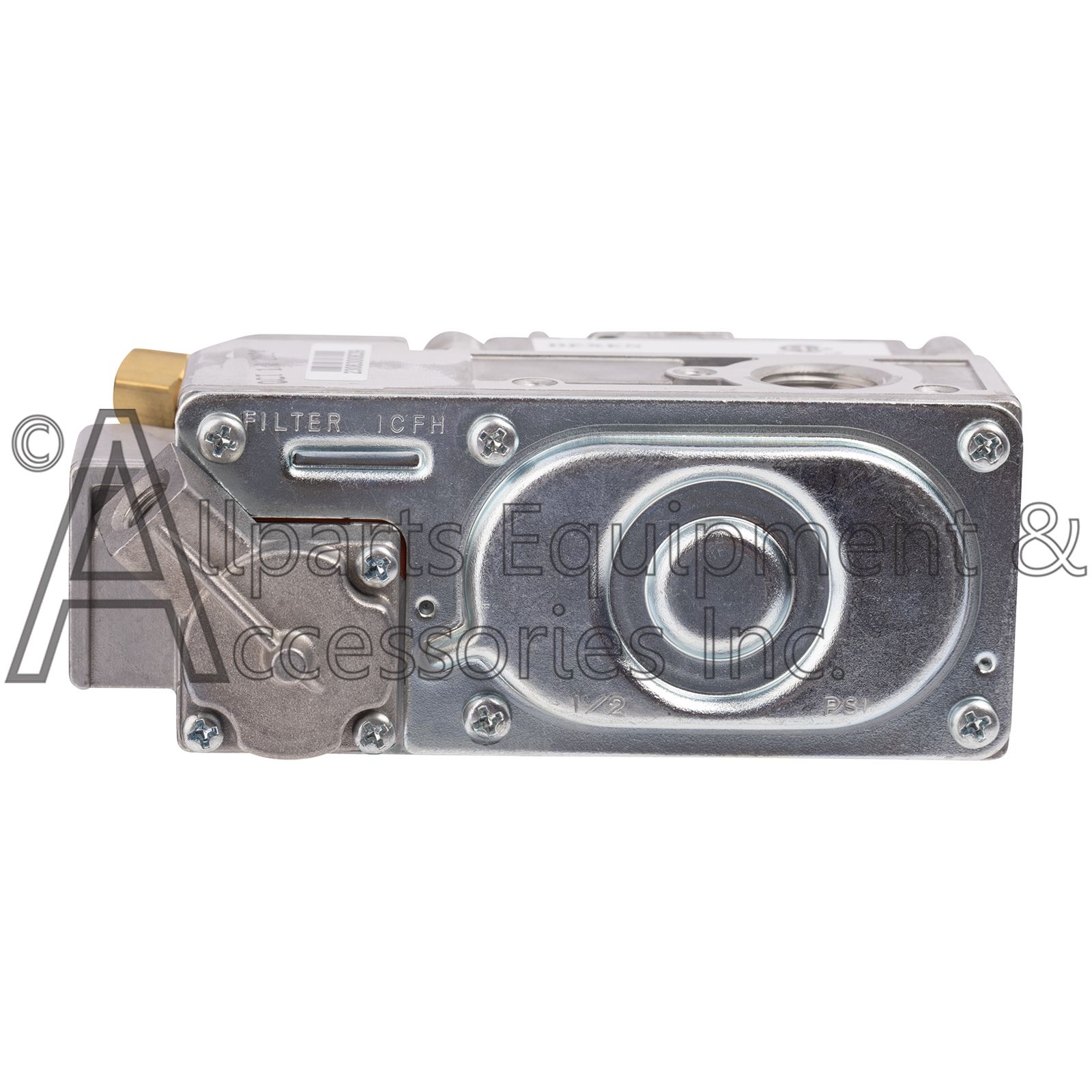

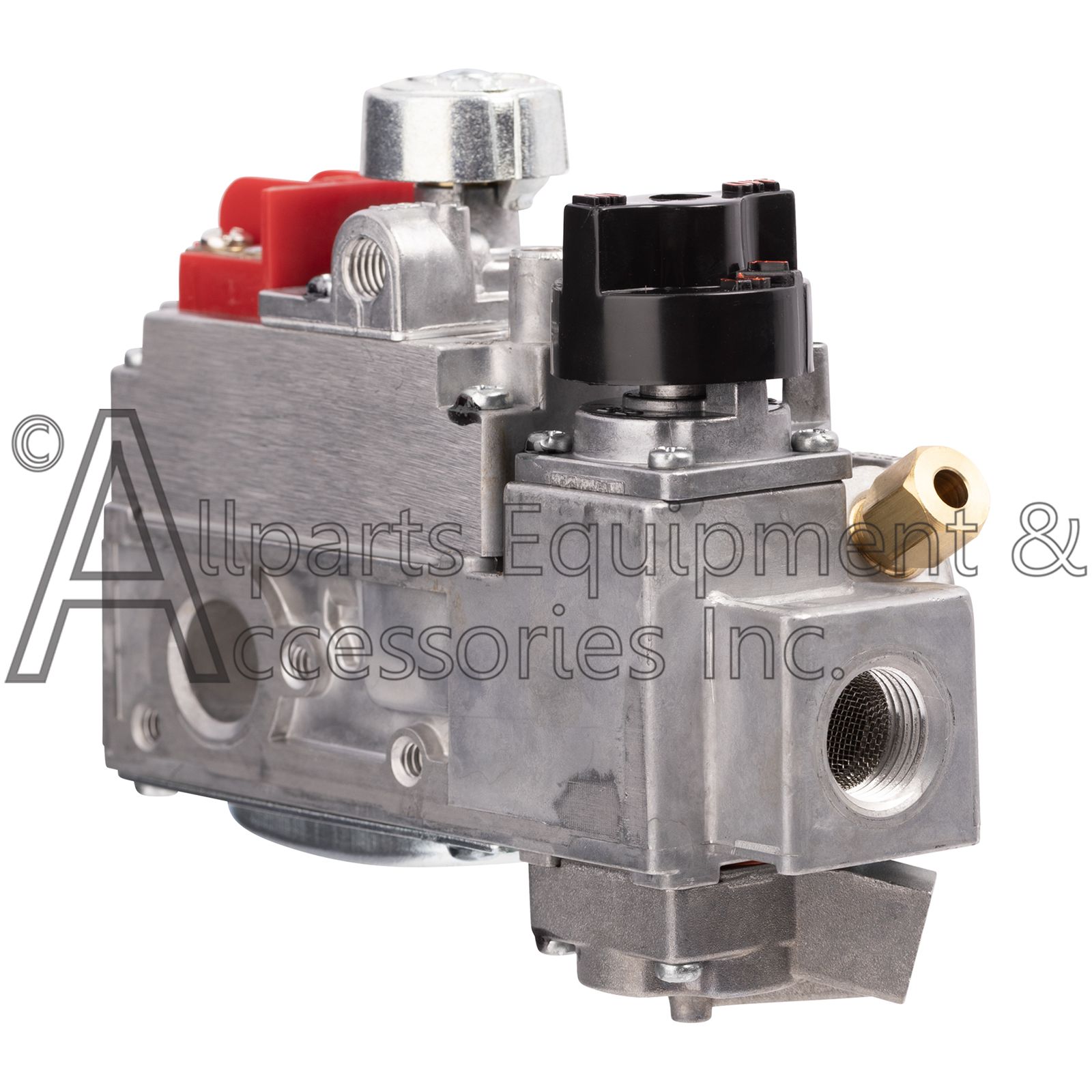

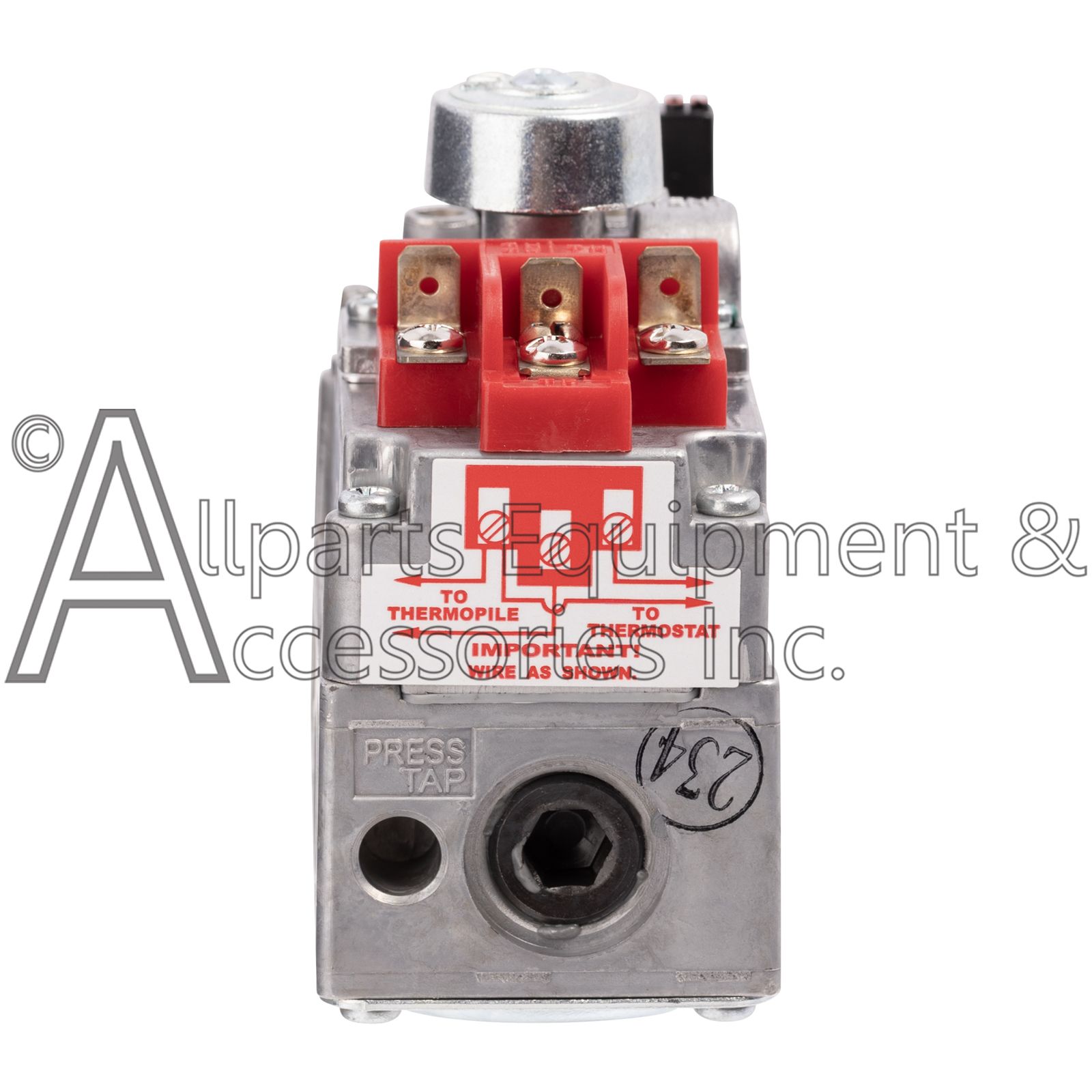

6003KS1-P04 Dexen Natural Gas Millivolt Valve with Manual Adjustable Flame Height Control

The Dexen 6003KS1-P04 Gas valve is an OEM CSA-certified and tested replacement millivolt operated gas valve configured for use with natural gas

This OEM replacement gas valve has the following specifications.


Models: 6003KS Manual Hi/Low (pictured) Description: Dexen Gas valve mV valve with quick drop-out safety magnet Gas Type: NG Pressure Setting Range: 1.7” w.c- 3.5” w.c Natural Gas Range of regulation: 5,000 – 70,000 Btu/hr Ambient Temperature Range: -40°F to 175°F Control Type: On/Off Millivolt Manual Adjustment Valve Inlet Size: 3/8” & ½” NPT Outlet Size: 3/8” & ½ NPT Side Taps: 3/8” & ½” NPT Pilot: 7/16”-24 UNS

Mounting Holes: 3/16”-24 UNS

Mounting Position: Any For Use with: Thermopile, 11/32”-Thermocouple, 8mm-Thermocouple Adjustable pilot flow Pneumatically inline

Cross reference:
Empire R10405
Dexen 6003KS
