593-592 Dexen Control Module GM-6KA HHT 593-592 Green Module Box White Label

Out Of Stock
Part Number
593-592
$64.90
Part Number: 593-592
Compatible Brands: Dexen Industries, Hearth & Home
Shipping Weight: 1 Lbs
Non Returnable
I understand this item CAN NOT be returned if the tamper evident packaging has been opened. Packaging is see-through to allow for proper inspection prior to unwrapping.
⇧ Check The Box If You Want To Proceed.
This item is NOT currently in stock and will be shipped as soon as possible. Typical lead times are 5-10 business days for common stock items that are pictured and 15-25 business days for non stock and special orders. Please email customer service for specific details if required at
customerservice@allpartsinc.com

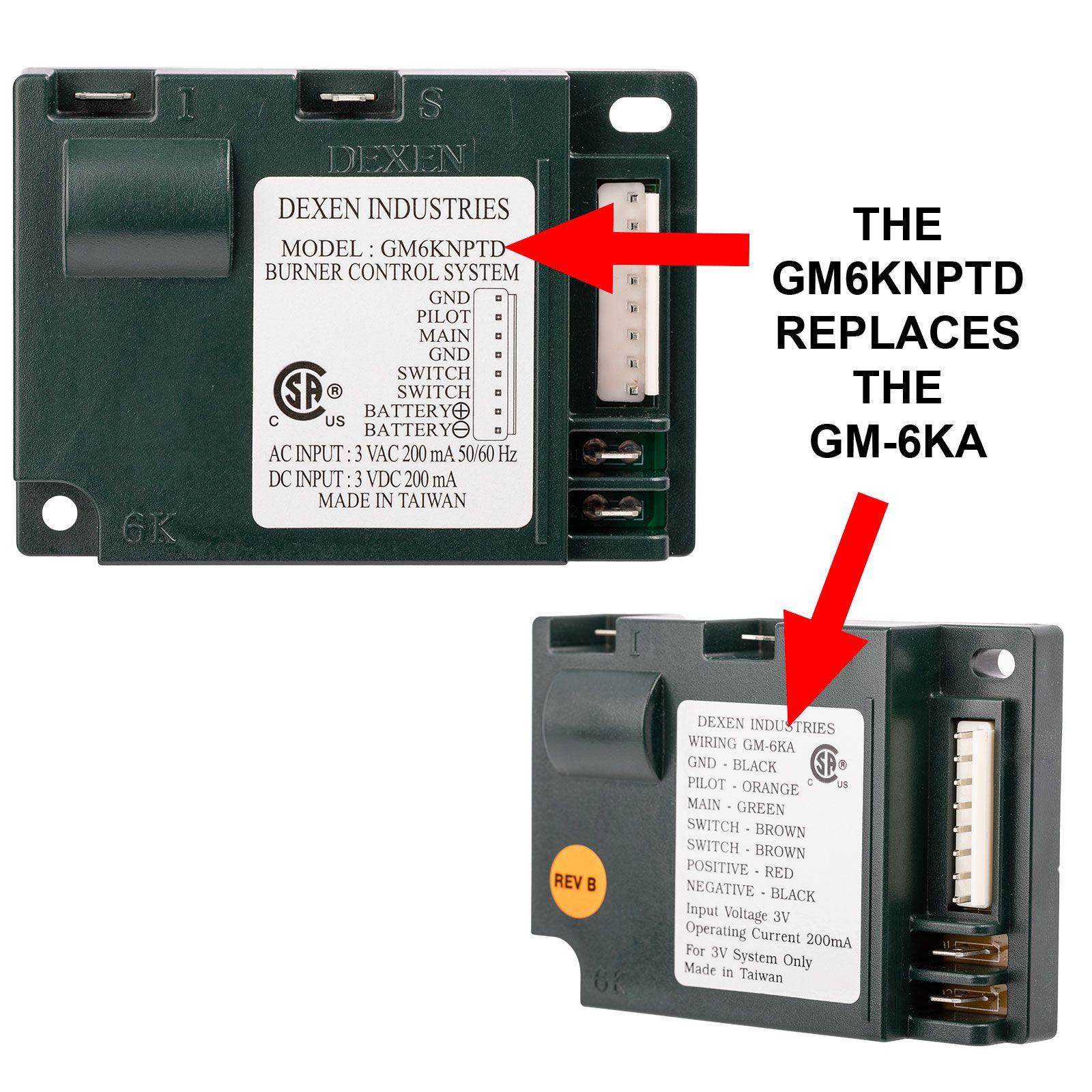

Dexen Industries Green Control Module Box 593-592 is a GM-6KA module that is designed for use with a for 3V operating electric ignition systems for use with direct vent fireplaces, gas logs and other appliances.

This GM-6KA module with the White label is specially designed to be used with a constant 3 Volt power supply.

The 593-592 Specification are:

Wiring  -  GM-6KA

GND  -  Black

Pilot  -  Orange

Main  -  Green

Switch  -  Brown
Switch  -  Brown
Positive  -  Red
Negative  -  Black

Input Voltage 3V
Operating Current 200mA

Operation for 3V circuits only requires the SRV593-593 Power Supply Class 2 Model YLA-03020.


Service Note
For systems running on only a batter power supply the 593-595 GM-6KA with the Yellow label should be used.
